stelpro INSWFA0622 ALUMINUM WALL FAN HEATE User Guide
stelpro INSWFA0622 ALUMINUM WALL FAN HEATE

WARNING

Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product.

This product must be installed by a qualified person and connected by a certified electrician, according to the electrical and building codes effective in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit’s nameplate.
This unit must be grounded.
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative).

RECOMMENDED HEATING CAPACITY: 1.25 W/cubic foot (0.03 m³)
It corresponds to 10 W/square foot (0.09 m²) based on a standard ceiling height of 8 feet (2.44 m). The recommended capacity is usually sufficient for normal heating needs. Please note that the insulation quality of walls and windows are some of the factors that influence heat losses, which modify the required capacity to heat a room. If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stel pro Design Web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to install several units instead of one. For example, 2 X 1000 W rather than 1 X 2000 W.

WARNING

Do not install the unit where objects or pieces of furniture could be heat damaged.
If the unit capacity is insufficient for the size of the room, it will be in operation continuously, and may become defective earlier and turn yellow.

Respect distances and positions indicated in the installation section.
If the installer or the user modifies the unit, he will be held responsible for any damage resulting from this modification, and the CSA certification could be void.

This unit must not come into contact with a water source and must be protected from splashes. Do not use it if any part has been immersed.

When mounting the unit, make sure that the anchorage used can support the total weight of the unit with the mounting brackets.

When cutting or drilling into a wall or a ceiling, do not damage electrical wiring and other hidden utilities.
When starting up the unit for the first time or after a long period, it is normal that it produces some temporary odours and whitish smoke.

Because this unit is hot when in use, it may pose risks even in normal operation. Therefore, be careful and responsible when using it. To avoid burns, do not let bare skin touch hot surfaces. The unit must cool down for few minutes since it will stay warm for some time after shut-down.

This unit must be installed at least 6 inches (15.2 cm) from the walls and 8 inches (20.32 cm) from the floor. However, make sure objects or pieces of furniture do not come into contact with the unit and keep them at least 24 inches (60 cm) from the unit since they are more flammable than walls and floors. Failure to comply with this warning could lead to a fire. Some materials are more heat-sensitive than others, so make sure those near the unit can withstand heat.

Never block unit air vents. This obstruction could lead to overheating, which could result in a fire.
Do not insert or allow foreign objects to enter any air vent as this may cause electric shocks, fires, or damages to the unit.

This unit has hot and arcing or sparking parts inside. It is not designed to be used or stored in wet areas or areas containing flammable liquids, combustible materials or corrosive, abrasive, chemical, explosive and flammable substances such as, but not limited to, gasoline, paint, chlorine, sawdust and cleaning products.

Some areas are dustier than others. Thus, it is the user’s responsibility to evaluate if the unit must be cleaned based on the amount of dirt accumulated on and inside air vents. Accumulated dirt can lead to a component malfunction or discoloration (yellow). It may cause a fire hazard if not installed and maintained in accordance with these instructions.

The thermal protection activation indicates that the unit has been subjected to abnormal operating conditions. If the thermal protection remains activated or activates and deactivates repeatedly, it is recommended that a qualified electrician or a certified repair centre examine the unit in order to make sure it is not damaged. (Refer to the limited warranty)

If the unit is damaged or defective, cut off power supply at circuit breaker and call a certified repair centre. (Refer to the limited warranty) Make sure that all the electrical connections have been secured and made properly. Pull each wire to ensure it is not loose in the connector or the terminal board as this may cause a fire.

If an option must be added, make sure it has been approved by Stelpro. This way, it will ensure that it has been tested in accordance with our safety rules and that an appropriate installation has been planned into the unit.

Note: When a part of the product specification must be changed to improve operability or other functions, priority is given to the product specification itself. In such instances, the instruction manual may not entirely match all the functions of the actual product. Therefore, the actual product and packaging, as well as the name and illustration, may differ from the manual.

SPECIFICATIONS

WFA SERIES – WITHOUT CONTROLWFA SERIES – WITHOUT CONTROL
UNITTYPEWATTSVOLTSKGLBUNITTYPEWATTSVOLTSKGLB
SINGLEWFA150215002401022SINGLEWFA4008T40002081022
SINGLEWFA200220002401022SINGLEWFA4808T48002081022
SINGLEWFA300230002401022SINGLEWFA1507T15002771022
SINGLEWFA400240002401022SINGLEWFA2007T20002771022
SINGLEWFA480248002401022SINGLEWFA3007T30002771022
SINGLEWFA150815002081022SINGLEWFA4007T40002771022
SINGLEWFA200820002081022SINGLEWFA4807T48002771022
SINGLEWFA300830002081022SINGLEWFA1503T15003471022
SINGLEWFA400840002081022SINGLEWFA2003T20003471022
SINGLEWFA480848002081022SINGLEWFA3003T30003471022
SINGLEWFA150715002771022SINGLEWFA4003T40003471022
SINGLEWFA200720002771022SINGLEWFA4803T48003471022
SINGLEWFA300730002771022SINGLEWFA1505T15004801022
SINGLEWFA400740002771022SINGLEWFA2005T20004801022
SINGLEWFA480748002771022SINGLEWFA3005T30004801022
SINGLEWFA1502T15002401022SINGLEWFA4005T40004801022
SINGLEWFA2002T20002401022SINGLEWFA4805T48004801022
SINGLEWFA3002T30002401022SINGLEWFA1506T15006001022
SINGLEWFA4002T40002401022SINGLEWFA2006T20006001022
SINGLEWFA4802T48002401022SINGLEWFA3006T30006001022
SINGLEWFA1508T15002081022SINGLEWFA4006T40006001022
SINGLEWFA2008T20002081022SINGLEWFA4806T48006001022
SINGLEWFA3008T30002081022

Several other models with control are available in higher voltages and wattages.
For a complete model list, consult our online product catalog at www.stelpro.com

TECHNICAL DRAWINGS

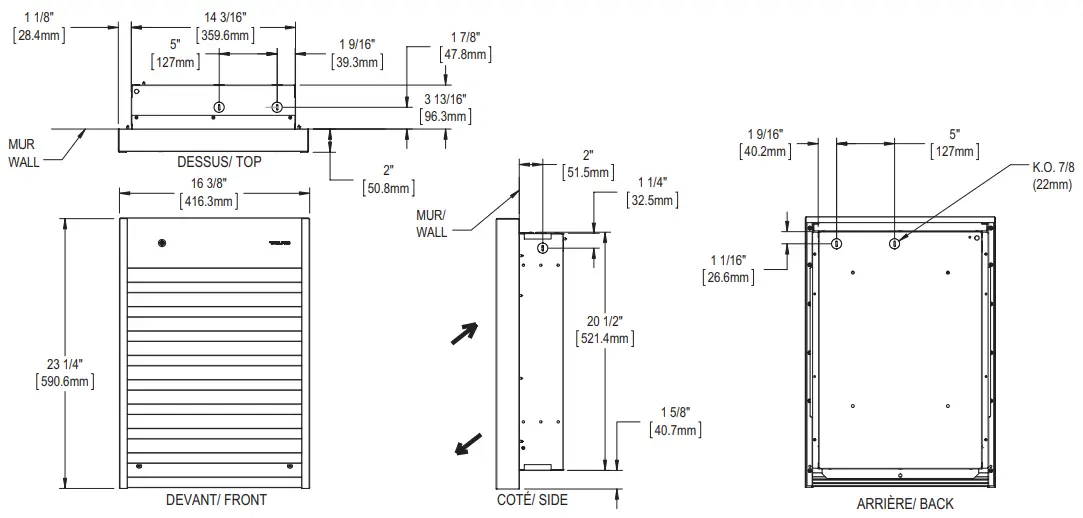

SINGLE UNIT
SINGLE UNIT

DOUBLE UNIT
DOUBLE UNIT

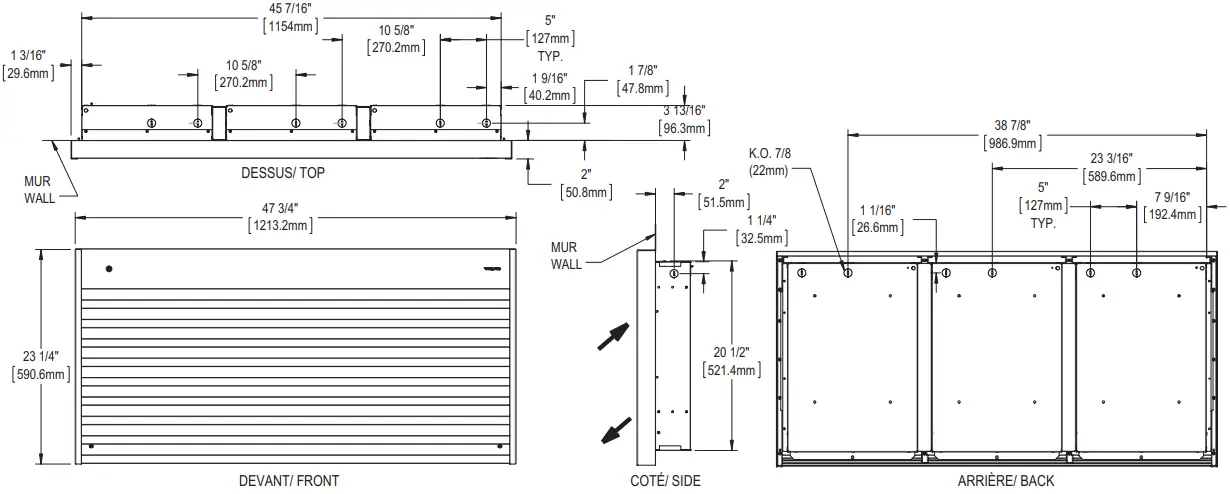

TRIPLE UNIT

TRIPLE UNIT

INSTALLATION

N.B. Cut off power supply at circuit breaker/fuse before proceeding to the installation and wiring connections. This product must be connected by a certified electrician, according to the electrical and building codes effective in your region.

When the unit is recessed, the flanged shoulders must rest on the finished surface of the wall.

WARNINGS

  1. Recessed and surface installations must meet the minimum distances for single and double units (see figures 1 and 2). Note: 4800 W single units should be installed with a minimum distance of 8 inches (203 mm) from the floor.
  2. Triple units must meet a minimum distance of 12 inches (305 mm) from the wall and 8 inch (203 mm) from the floor. For the opening of recessed installation of triple units, see figure 3.
  3. Recessed structure requirement on outside walls must be the same as a window structure (refer to applicable building codes effective in your area).
  4. For surface installation, put a wooden plate at the back of gypsum in order to fix the product to the wall securely. For the wooden plate dimensions, refer to the opening for the recessed application (see figures 2 and 3).

FRONT

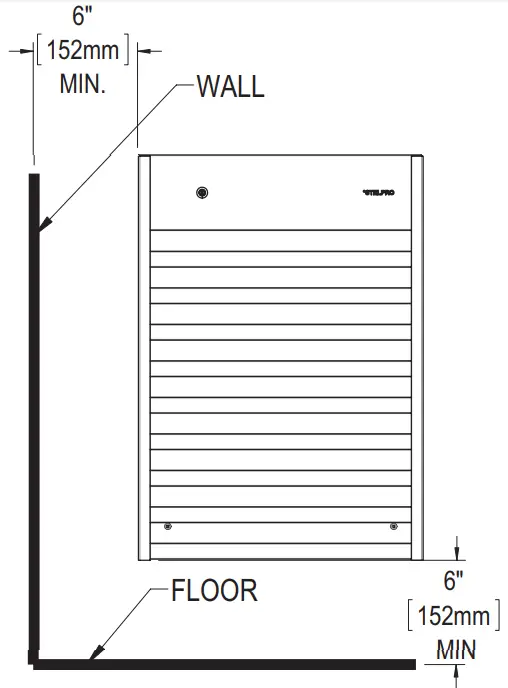

SURFACE INSTALLATION
SINGLE AND DOUBLE UNIT
REQUIRE (SURFACE ADAPTOR)
SURFACE INSTALLATION
FIG. 1

OPENING

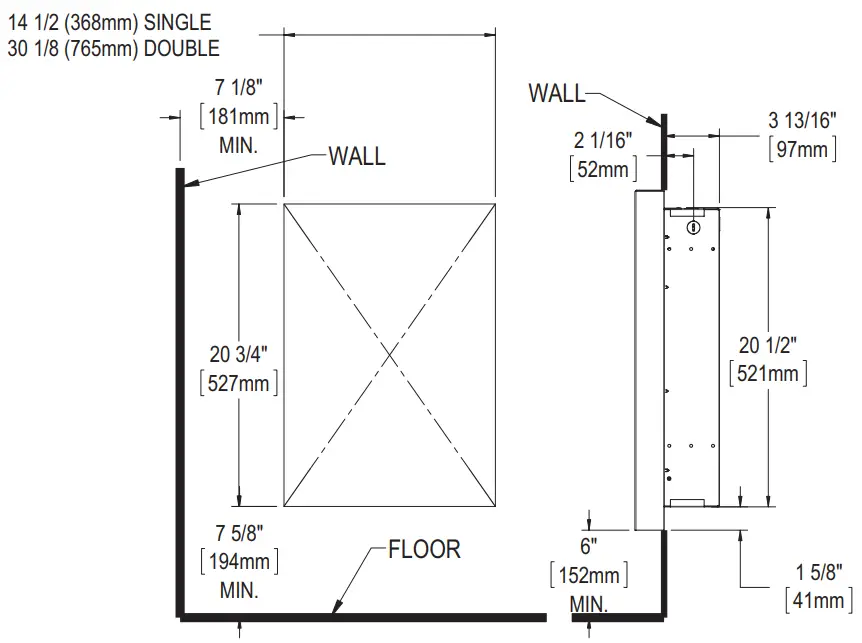

RECESSED INSTALLATION
SINGLE AND DOUBLE UNIT
RECESSED INSTALLATION
FIG- 2

OPENING

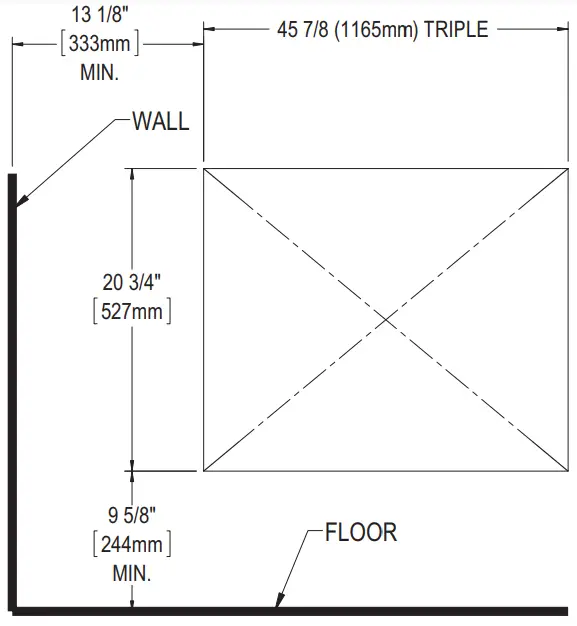

RECESSED INSTALLATION
TRIPLE UNIT
RECESSED INSTALLATION

SURFACE INSTALLATION
  1. Make sure you use the proper sleeve surface adaptor depending on the device you are installing: WFASA1 (single units), WFASA2 (double units), WFASA3 (triple units).

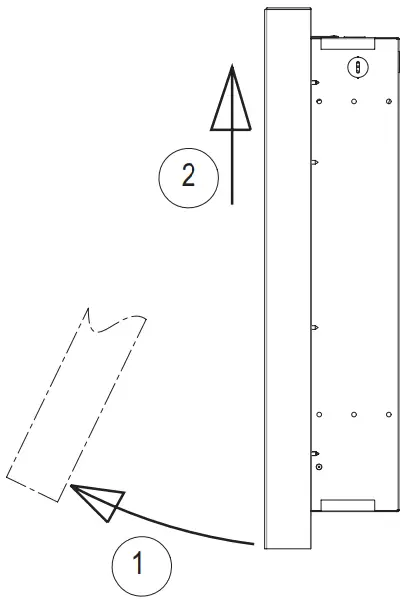

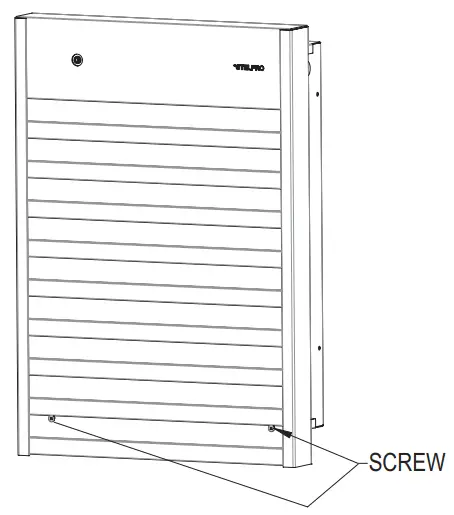

  2. Unscrewed the two (2) screws holding the grid (see figure 4). Raise the bottom and gently pull up to release the grille (see figure 5).
    Surface Installation
    FIG. 4
    Surface Installation
    FIG. 5
  3. Using the screws included with the sleeve adaptor, attach the sleeve adaptor to the frame (see figure 6).
    Surface Installation
    FIG. 6

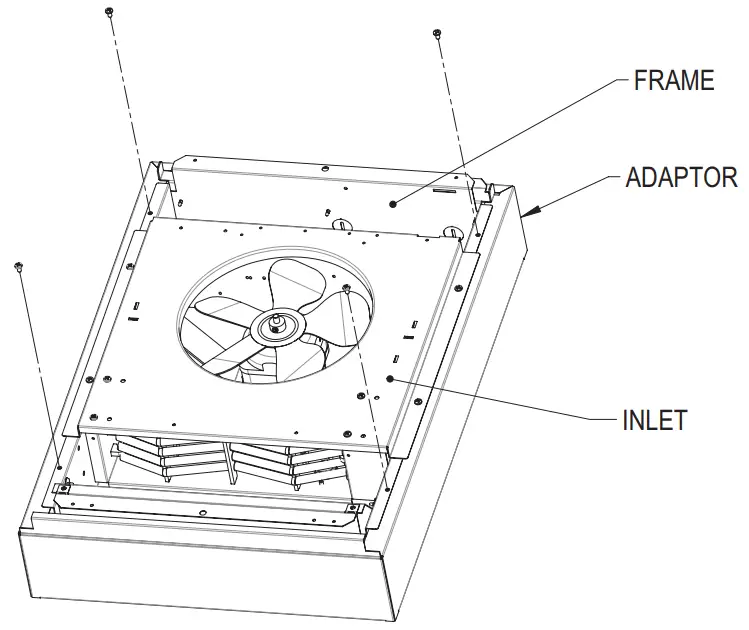

  4. Remove the inlet of the frame (see figure 6) by unscrewing the four (4) screws.
  5. Open the KO to be used and insert the wire with connector into it.

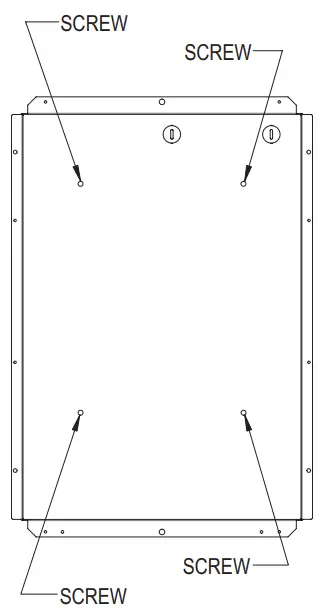

  6. Place the frame against the wall, level it and tighten it with four (4) wood screws (not included) into the holes provided for this purpose (see figure 7).
    Surface Installation
    FIG. 7
  7. Replace the inlet, make the required electrical connections and replace the grille.
RECESSED INSTALLATION
  1. The opening in the wall must first be made in accordance with acceptable standards (see figures 2 and 3, and Warning).
  2. Unscrew the two (2) screws holding the grid (see figure 4). Raise the bottom and pull up to release the grille (see figure 5).
  3. Remove the inlet of the frame (see figure 6) by unscrewing the four (4) screws.
  4. Open the KO to be used and insert the wire with connector into it.

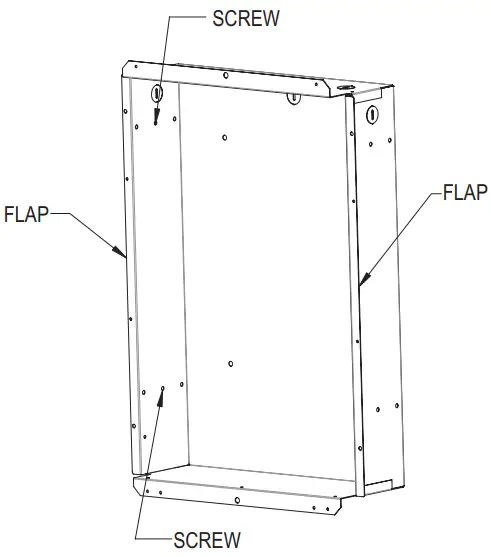

  5. Insert the frame into the opening, press the flap against the wall. Screw in wood screws (not included) in the left and the right studs, through holes provided for this purpose (see figure 8).
    RECESSED INSTALLATION
  6. Replace the inlet, make the required electrical connections and replace the grille.

INSTALLATION OF THERMOSTAT KNOBS

When purchasing a product with a thermostat (e.g. WFA4802T), two options are available:

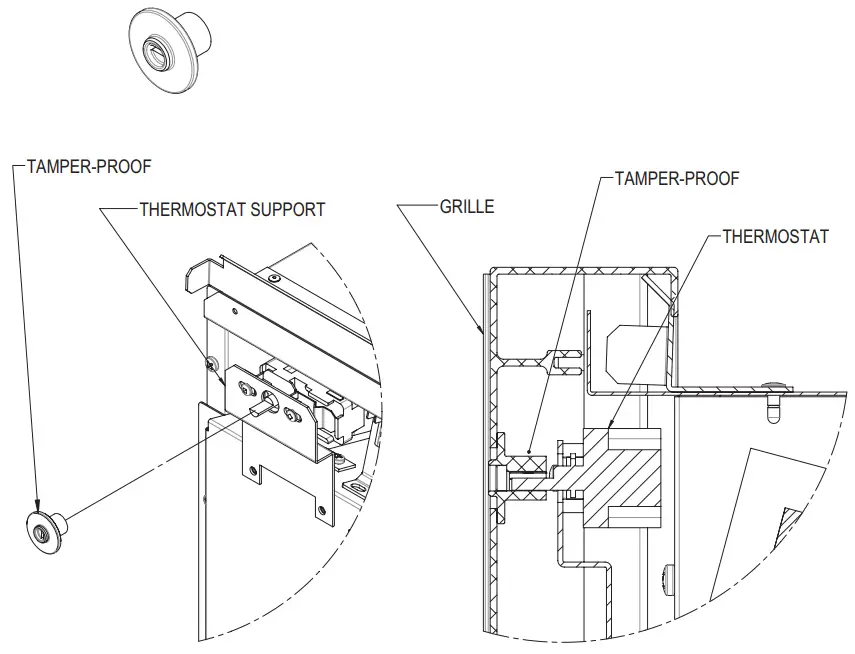

OPTION A) TAMPER PROOF

Function: Prevents children from changing the room temperature.
Before installing the grille, insert the tamper proof button onto the shaft of the thermostat. Check the alignment between the tamper proof knob and the hole on the grille. Adjust, if necessary, using the thermostat support grooves.
TAMPER PROOF

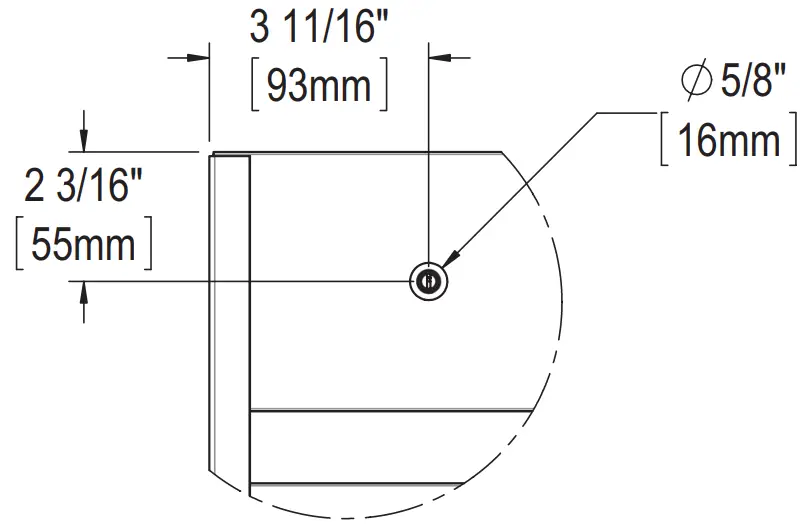

OPTION B) THERMOSTAT KNOB

After installation of the grille, insert the knob onto the shaft of the thermostat.
THERMOSTAT KNOB

Note: If you ordered the grille without the thermostat hole by mistake, consult the diagram shown here for the dimensions to manually drill the hole.
THERMOSTAT KNOB

MAINTENANCE

N.B. In order for the warranty to be valid, the unit must be cleaned regularly.

Switch off the main breaker in the electrical panel before cleaning the unit.
Use a soft rag for dusting. When cleaning, use only a damp rag and nonabrasive dish soap. If you use a cleaning product, always wipe the product off properly to avoid the discoloration of the unit. Do not use abrasive or chemical cleaners because they may damage the finishing. If the unit is used in a very dusty location, use a vacuum brush to remove dust and other foreign objects from the grilles. If needed, vacuum out the dust inside the unit. Note that cigarette smoke could yellow the discharge grille and that the best way to prevent it is to clean the unit on a regular basis.

Do not use cleaning products identified with these symbols:
Symbols

TROUBLESHOOTING

PROBLEMDEFECTIVE PART OR PART TO CHECK
The unit does not work
  • The circuit breaker is in the OFF position or removed fuse
  • Defective thermostat or wrong thermostat setting
  • Activated thermal protection
  • Faulty connections
The unit runs continuously
  • Defective thermostat or wrong thermostat setting
  • Heat losses higher than the unit capacity
The enclosure is extremely hot
  •  Defective thermal protection
  •  Blocked air vents
The desired ambient temperature can never be reached
  •  One or more elements are defective
  • Defective thermostat or wrong thermostat setting
  • Voltage lower than that written on the nameplate
  • Heat losses higher than the unit capacity
Overheating
  •  Defective thermostat or wrong thermostat setting
The unit cycles under control of the thermal protection (overheat indicator)
  • Blocked air vents
  • Defective motor
The breaker trips when the heater is turned on
  •  Faulty connections
  •  Voltage higher than that written on the nameplate

N.B. If you do not solve the problem after checking these points, cut off the power supply at the main electrical panel and contact our customer service (see the “Limited warranty” section to obtain the phone numbers).

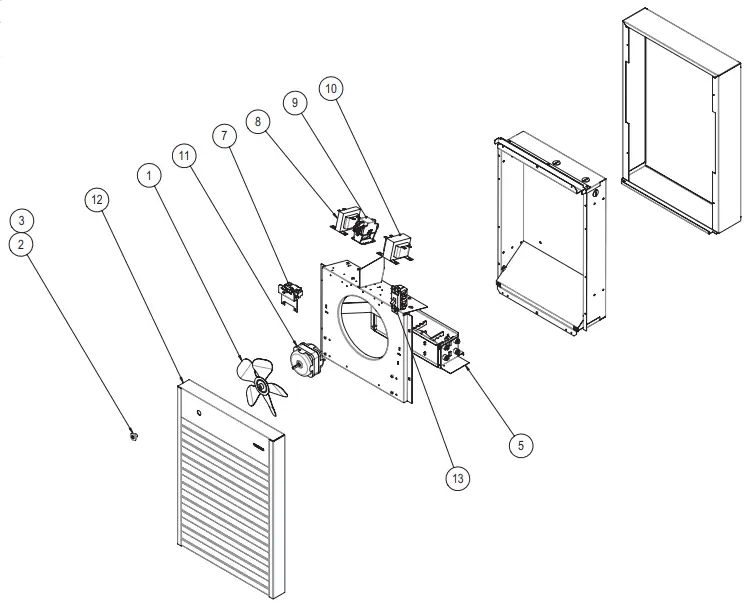

REPLACEMENT COMPONENT LIST

REF. #PART #DESCRIPTION
1BLA-003FAN BLADE 8”
2BOUT-033WTHERMOSTAT BUTTON, WHITE
2BOUT-033ATHERMOSTAT BUTTON, WHITE
2BOUT-033BKTHERMOSTAT BUTTON, BLACK
3BOUT-026WTAMPER-PROOF, WHIITE
3BOUT-026ATAMPER-PROOF, ALMOND
3BOUT-026BKTAMPER-PROOF, BLACK
4
5ELF-WFA1502ELEMENT ASSEMBLY WFA1502
5ELF-WFA1503ELEMENT ASSEMBLY WFA1503
5ELF-WFA1506ELEMENT ASSEMBLY WFA1506
5ELF-WFA1507ELEMENT ASSEMBLY WFA1507
5ELF-WFA2002ELEMENT ASSEMBLY WFA2002
5ELF-WFA2003ELEMENT ASSEMBLY WFA2003
5ELF-WFA2006ELEMENT ASSEMBLY WFA2006
5ELF-WFA2007ELEMENT ASSEMBLY WFA2007
5ELF-WFA2008ELEMENT ASSEMBLY WFA2008
5ELF-WFA3002ELEMENT ASSEMBLY WFA3002
5ELF-WFA3003ELEMENT ASSEMBLY WFA3003
5ELF-WFA3006ELEMENT ASSEMBLY WFA3006
5ELF-WFA3007ELEMENT ASSEMBLY WFA3007
5ELF-WFA4002ELEMENT ASSEMBLY WFA4002
5ELF-WFA4003ELEMENT ASSEMBLY WFA4003
5ELF-WFA4006ELEMENT ASSEMBLY WFA4006
5ELF-WFA4007ELEMENT ASSEMBLY WFA4007
5ELF-WFA4008ELEMENT ASSEMBLY WFA4008
5ELF-WFA4802ELEMENT ASSEMBLY WFA4802
5ELF-WFA4803ELEMENT ASSEMBLY WFA4803
5ELF-WFA4805ELEMENT ASSEMBLY WFA4805
5ELF-WFA4806ELEMENT ASSEMBLY WFA4806
5ELF-WFA4807ELEMENT ASSEMBLY WFA4807
5ELF-WFA4808ELEMENT ASSEMBLY WFA4808
6PROT-006THERMAL PROTECTION 1500-2000W
6PROT-005THERMAL PROTECTION 3000-12000W
7ST-017THERMOSTAT SP 120 TO 277V-22A, 600V-10A
7ST-007THERMOSTAT SP 120 TO 277V-25A, 600V-10A
7ST-013THERMOSTAT DP 120 TO 277V-25A, 600V-10A
REF. #PART #DESCRIPTION
CONTROL TRANSFORMER
8TRF200040DTRANSFORMER 208-240/24/40VA CL.2
8TRF700025TRANSFORMER 277/24/25VA
8TRF720025TRANSFORMER 277/240/25VA
8TRF300040TRANSFORMER 347/24/40VA CLS 2
8TRF320025TRANSFORMER 347/240/25VA
8TRF500025DTRANSFORMER 240-480/12-24/25VA
8TRF520025TRANSFORMER 480/240/25VA
8TRF600040TRANSFORMER 600/24/40VA CLS 2
8TRF620025TRANSFORMER 600/240/25VA
CONTACTOR
9CONT-3002CONTACTOR 2P/24V/30A RESISTIVE
9CONT-3503CONTACTOR 3P/24V/35A RESISTIVE
9CONT-5002CONTACTOR 2P/24V/50A RESISTIVE
9CONT-3022CONTACTOR 2P/240-208V/30A RESISTIVE
9CONT-4023CONTACTOR 3P/240-208V/40A RESISTIVE
9CONT-5023CONTACTOR 3P/240-208V/50A RESISTIVE
MOTOR TRANSFORMER
10TRF720100TRANSFORMER 277/240/100VA
10TRF520100TRANSFORMER 480/240/100VA
10TRF620100TRANSFORMER 600/240/100VA
11MO-016MOTOR 208/240V 50/60HZ 0.4A
12M-WFA100Z*GRILL ASSY WFA-1
12M-WFA100TZ*GRILL ASSY WFA-1, THERMOSTAT
12M-WFA200Z*GRILL ASSY WFA-2
12M-WFA200TZ*GRILL ASSY WFA-2, THERMOSTAT
12M-WFA300Z*GRILL ASSY WFA-3
12M-WFA300TZ*GRILL ASSY WFA-3, THERMOSTAT
13SWI-027MOTOR SWITCH 600V/30A, 2 POLES
13SWI-028DISCON. SWITCH 600V/40A 2POLES/3POLES
13SWI-029DISCON. SWITCH 600V/60A 2POLES/3POLES

Add W for white, SW for silica white, A for almond, S for silver, BK for black, CHAR for textured charcoal, NIC for nickel, CHA for champagne, LB for light bronze, BR for dark brown or CAP for clear anodized (paint)
Components

LIMITED WARRANTY

This limited warranty is offered by Stelpro Design inc. (“Stelpro”) and applies to the following products made by Stelpro: WFA model. Please read this limited warranty carefully. Subject to the terms of this warranty, Stelpro warrants its products and their components against defects in workmanship and/or materials for the following periods from the date of purchase: 3 years. This warranty applies only to the original purchaser; it is non-transferable and cannot be extended.

CLAIM PROCEDURE

If at any time during the warranty period the unit becomes defective, you must cut off the power supply at the main electrical panel and contact 1) your installer or distributor, 2) your service center or 3) Stelpro’s customer service department. In all cases, you must have a copy of the invoice and provide the information written on the product nameplate. Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part. Please note that repairs made within the warranty period must be authorized in advance in writing by Stelpro and carried out by persons authorized by Stelpro.

Before returning a product to Stelpro, you must have a Stelpro authorization number (RMA). To obtain it, call the customer service department at:
1-800-363-3414 (electricians and distributors – French), 1-800-343-1022 (electricians and distributors – English), or 1-866-766-6020 (consumers). The authorization number must be clearly written on the parcel or it will be refused.

CONDITIONS, EXCLUSIONS AND DISCLAIMER OF LIABILITY

This warranty is exclusive and in lieu of all other representations and warranties (except of title), expressed or implied, and Stelpro expressly disclaims and excludes any implied warranty of merchantability or implied warranty of fitness for a particular purpose.

Stelpro’s liability with respect to products is limited as provided above. Stelpro shall not be subject to any other obligations or liabilities whatsoever, whether based on contract, tort or other theories of law, with respect to goods or services furnished by it, or any undertakings, acts or omissions relating thereto. Without limiting the generality of the foregoing, Stelpro expressly disclaims any liability for property or personal injury damages, penalties, special or punitive damages, damages for lost profits, loss of use of equipment, cost of capital, cost of substitute products, facilities or services, shutdowns, slowdowns, or for other types of economic loss or for claims of a dealer’s customers or any third party for such damages. Stelpro specifically disclaims all consequential, incidental and contingent damages whatsoever.

This warranty does not cover any damages or failures resulting from: 1) a faulty installation or improper storage; 2) an abusive or abnormal use, lack of maintenance, improper maintenance (other than that prescribed by Stelpro) or a use other than that for which the unit was designed; 3) a natural disaster or an event out of Stelpro’s control, including, but not limited to, hurricanes, tornadoes, earthquakes, terrorist attacks, wars, overvoltage, flooding, water damages, etc. This warranty does not cover any accidental or intentional losses or damages nor does it cover damages caused by negligence of the user or owner of the product. Moreover, it does not cover the cost of disconnection, transport, and installation.

The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the discretion of Stelpro. Any parts replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty period. This warranty will be considered null and void and Stelpro will have the right to refuse any claims if products have been altered without the written authorization of Stelpro and if the nameplate numbers have been removed or modified. This warranty does not cover scratches, dents, corrosion or discoloration caused by excessive heat, chemical cleaning products and abrasive agents. It does not cover any damage that occurred during the shipping.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages and some of them do not allow limitations on how long an implied warranty lasts, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary from state to state or from province to province.
