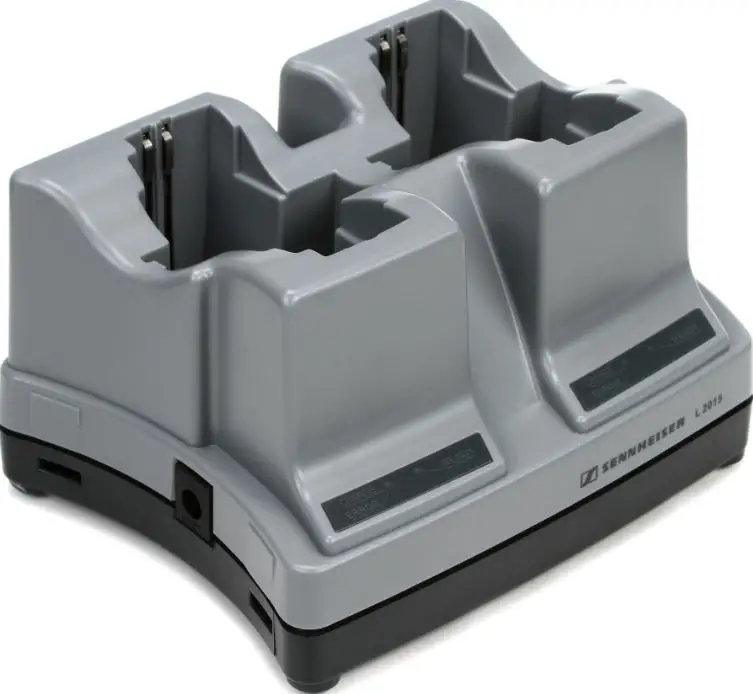

SENNHEISER L2015 Charging Station

Important safety instructions

Read these safety instructions and the instruction manual of the product.
Keep these safety instructions and the instruction manual of the product. Always include all instructions when passing the product on to third parties.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Only clean the product when it is not connected to the power supply system. Clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer‘s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Only operate the product from the type of power source specified in the chapter „Specifications“ and indicated on the power supply unit.
Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where it exits from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
Unplug the power supply unit from the wall socket,

to completely disconnect the product from the power supply system,
during lightning storms,
when not using the product for long periods of time.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.
When using the supplied device feet, do not place the product on delicate surfaces. Delicate surfaces can become discolored or stained when they come into contact with the plastic of the device feet.
Always ensure that the power supply unit is

in a safe operating condition and easily accessible,
properly plugged into the wall socket,
only operated within the permissible temperature range,
not covered or exposed to direct sunlight for longer periods of time in order to prevent heat accumulation.

Risk of fire due to overloading

Do not overload wall outlets and extension cables as this may result in fire and electric shock.

Intended use

The product is designed for indoor use.
The product can be used for commercial purposes.
It is considered improper use when the product is used for any application not named in the corresponding instruction manual. Sennheiser does not accept liability for damage arising from improper use or misuse of this product and its attachments/] accessories.
Before putting the products into operation, please observe the respective country-specific regulations!
Sennheiser is not liable for damages resulting from the loss of connection due to flat or overaged (rechargeable) batteries or exceeding the transmission range.

Safety instructions for standard/rechargeable batteries

Caution: Risk of explosion if you use or replace a battery by an incorrect type.
Do not short-circuit a cell or battery.
Do not expose cells or batteries to heat or fire. Avoid storage in sunlight.
Do not subject cells or batteries to mechanical shock.
Do not touch leaking/defective batteries unprotected.
Observe correct polarity.
Do not use different battery types.
Charge rechargeable batteries at ambient temperatures between +10 °C and +40 °C (+50 °F and +104 °F).

The L 2015 quick charger

The L 2015 quick charger must only be used for automatically = charging BA 2015 ACU packs – individual rechargeable battery cells or primary cells cannot be charged! The BA 2015 accuracy is suitable for units of the Sennheiser ew G2, ew G3, ew G4 series, 2000er series, the system Tourguide 1039 and the System 2015. The bodypack receivers (EK) and transmitters (SK) of the Sennheiser ew G2, ew G3, ew G4 series, and the System 2015 have special charging contacts, i.e. these units can be charged with the accuracy inserted. When placed into the charger, the SK and EK automatically switch off (exception: the EK 300 IEM G2, EK 300 IEM G3 and EK IEM G4 must be switched off manually). The handheld transmitters (SKM) can be charged using the LA 2 adapter.

Delivery includes

L 2015 quick charger
Instructions for use
Suitable mains units are available as accessories (see ”Accessories“).

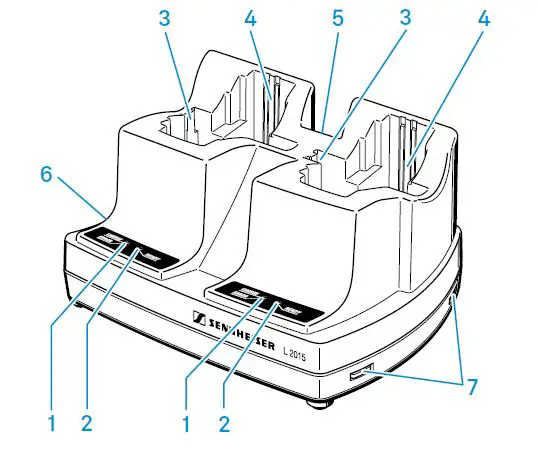

Operating controls

Red LED CHARGE/ERROR (2 x)
Green LED READY (2 x)
Charging compartment for BA 2015 accuracy (2 x)
Charging compartment for SK/EK (2 x)
Air vents
DC socket for connection of mains unit
Guiding slot with internal rail (2 x)

Operating controls

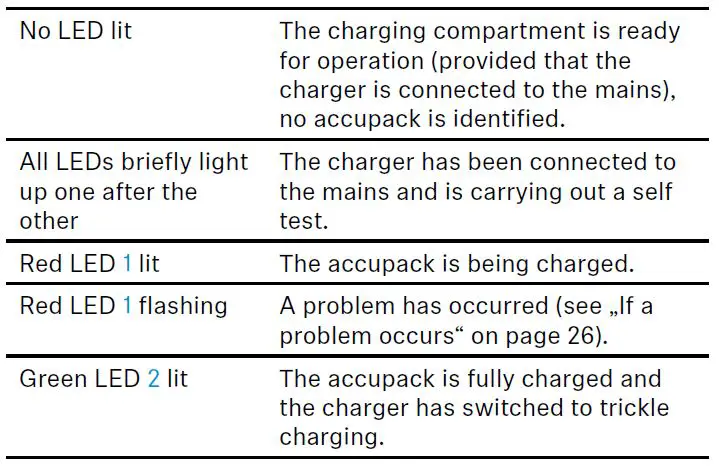

LED indications

Each charging compartment has two LEDs which indicate the following operating states:

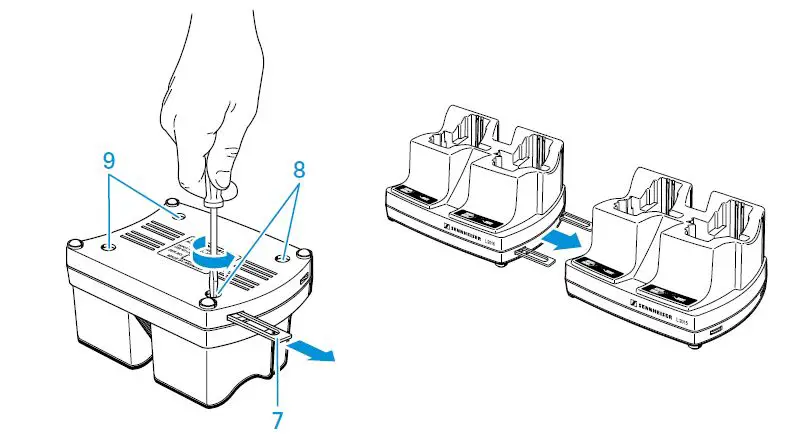

Cascading several chargers

Make sure that the charger is disconnected from the mains.
Unscrew the two screws 8 at the right bottom side of the charger.
Slide the two rails 7 out of the guiding slots and screw them tight using the two screws 8.
Unscrew the two screws 9 at the left bottom side of the second charger.
Slide the second charger onto the rails of the first charger and screw the rails tight using the two screws 9.

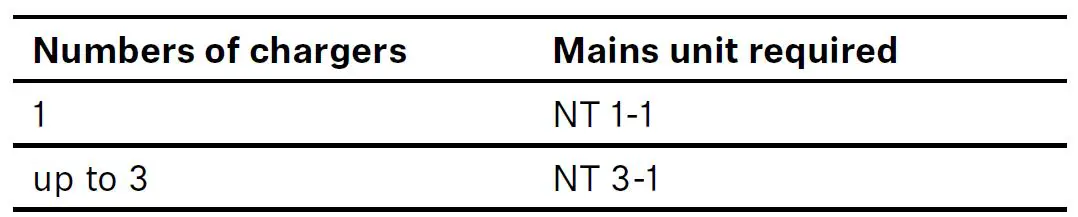

Up to three chargers can be cascaded together with the rails and can by powered by a common mains unit.

Setting up the charger

The charger has four plastic feet to ensure that it cannot slip on the surface on which it is placed.

NOTICE

RISK OF STAINING OF FURNITURE SURFACES!

Some furniture surfaces have been treated with varnish, polish or synthetics which might cause stains when they come into contact with other synthetics.

Do not place the charger on delicate surfaces.
Place the charger on a flat, even surface.

Switching the charger on or off

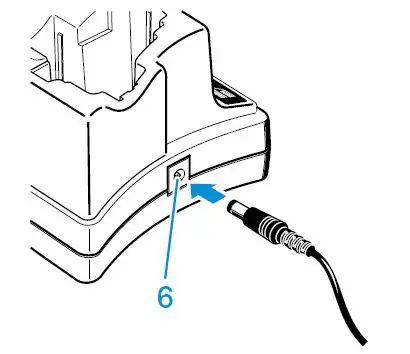

To switch the charger on, insert the hollow jack plug on the cable of the mains unit (mains unit must be ordered separately) into socket 6.
Connect the mains unit to the mains.
All LEDs briefly light up one after the other.

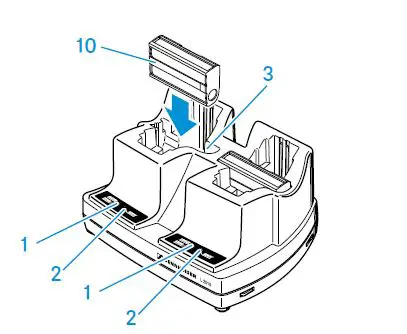

Charging the BA 2015 accuracy

Insert the accupack 10 into one of the two charging compartments 3 as shown. The red LED 1 at the occupied charging compartment lights up.
Charging a completely discharged accuracy takes approx. 2½ hours at room temperature. It is normal for the accupacks to get warm during charging.
After the accuracy has been fully charged, the green LED 2 lights up.

However, the charging process may take longer if:

the accuracy is deep-discharged and first has to be reconditioned by a deep discharge recovery charge,
the ambient temperature is close to or over 40 °C, since, in order to protect the accuracy, the charging process will be interrupted until the accuracy temperature has fallen to an admissible value.

For safety reasons, the charging process will be interrupted and the red LED 1 will start flashing if:

excessively hot ACU packs cannot cool down,
and accuracy cannot be fully charged within the max. charging time of 6 hours, e.g. due to overaged cells.

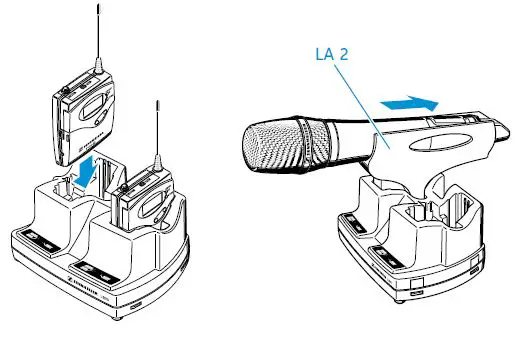

Charging the BA 2015 accuracy in the SK/EK/SKM

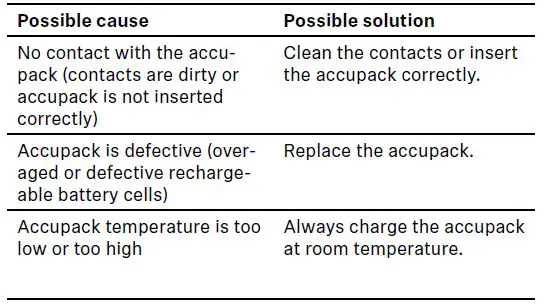

If a problem occurs

If a red LED starts flashing, one of the following errors has occurred at the corresponding charging compartment:

Cleaning and maintenance

CAUTION

LIQUIDS CAN DAMAGE THE PRODUCTS’ ELECTRONICS.

Liquids entering the product housing can cause a short-circuit and damage the electronics.

Keep all liquids away from the products.
Do not use any solvents or cleansing agents.
Disconnect the products from the power supply system and remove rechargeable batteries and batteries before you begin cleaning.
Clean all products only with a soft, dry cloth.
Use a brush or similar to remove dust from the charging compartments.

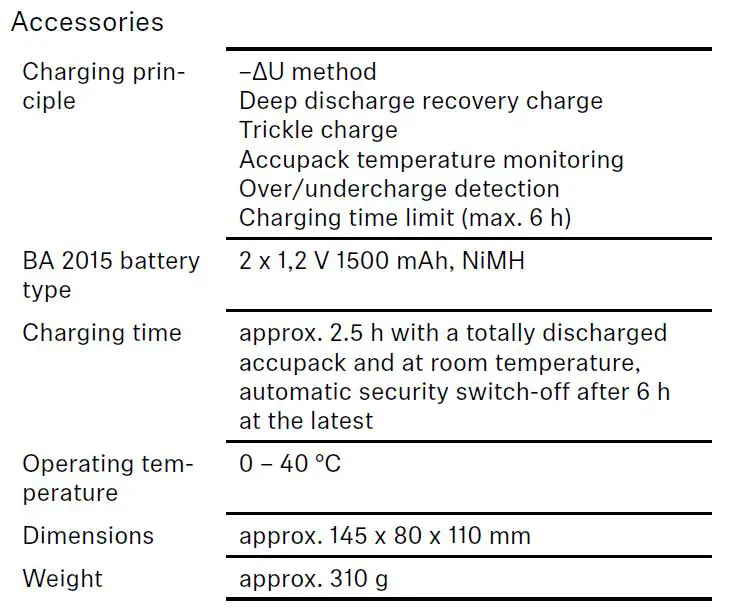

Specifications

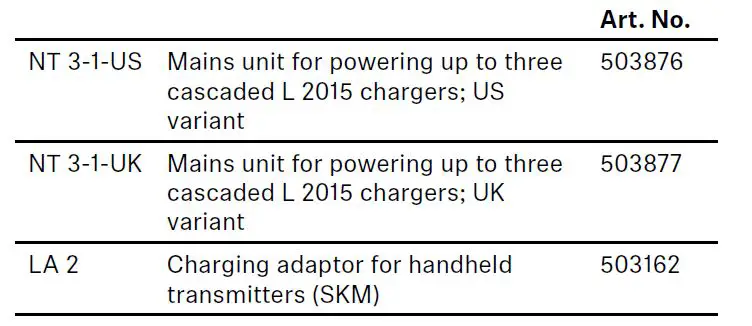

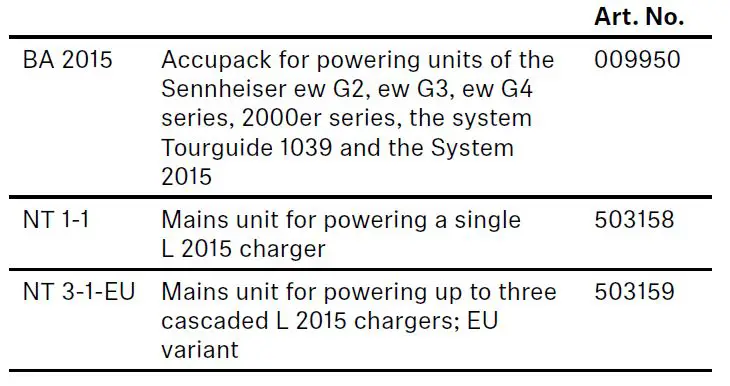

Accessories

Manufacturer Declarations

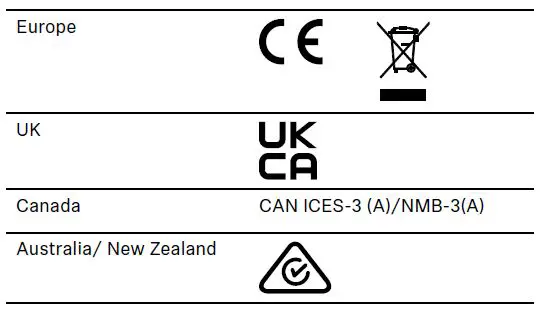

Information about approvals and certifications can be found in the „Compliance“ section.

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on these products.
For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.

Warranty FOR AUSTRALIA and NEW ZEALAND ONLY:

Sennheiser Australia Pty Ltd provides a warranty of 24 months on these products.

For the current warranty conditions, visit the Sennheiser website:

Australia: https://en-au.sennheiser.com/
New Zealand: https://en-nz.sennheiser.com/

Sennheiser goods come with guarantees that cannot be excluded under Australian and New Zealand Consumer law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.This warranty is in addition to other rights or remedies under law. Nothing in this warranty excludes, limits or modifies any remedy available to be consumer which is granted by law.
To make a claim under this contract, raise a case via Sennheiser website

Australia: https://en-au.sennheiser.com/service-support-contact
New Zealand: https://en-nz.sennheiser.com/service-support-contact

All expenses of claiming the warranty will be borne by the person making the claim.
Sennheiser international warranty is provided by: Sennheiser Australia Pty Ltd (ABN 68 165 388 312) Level 14, Tower A Zenith Building, 821 Pacific Highway, Chatswood NSW 2067, Australia.

In compliance with the following requirements

WEEE Directive (2012/19/EU)
Battery Regulations (2015)

Notes on disposal

The symbol of the crossed-out dumpster on the product, the (rechargeable) battery (if applicable), and/or the packaging indicates that these products must not be disposed of with normal household waste, but must be disposed of separately at the end of their service life. For the packaging, follow the regulations in your country for separating waste. Improper disposal of packaging materials can be harmful to your health and the environment. The separate collection of waste electrical and electronic equipment, (rechargeable) batteries (if applicable), and packaging is intended to promote reuse and recycling and to prevent negative impacts on public health and the environment, for example, due to hazardous substances contained in these products. At the end of their service life, recycle electrical and electronic equipment and (rechargeable) batteries so that their materials can be reused and to prevent environmental pollution.] If (rechargeable) batteries can be removed without destroying them, you are obliged to dispose of them separately (see the product’s operating instructions for information on how to remove the batteries safely). Be especially careful when handling (rechargeable) batteries containing lithium, as these pose special hazards, such as the risk of fire and/or health risks if button cells are swallowed. Reduce battery waste as much as possible by using longer-life batteries or rechargeable batteries. Further information on the recycling of these products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner. You may also be able to return electrical or electronic equipment to your distributor if they are legally required to do so. By disposing of your batteries properly, you are helping to protect public health and the environment.

UK Declaration of conformity

RoHS Regulations (2012)
EMC Regulations (2016)
Electrical Equipment (Safety) Regulations (2016)

Importer: Sennheiser UK Ltd.

Pacific House, Third Avenue, Globe Park, Marlow
Buckinghamshire SL7 1EY, United Kingdom

EU Declaration of conformity

RoHS Directive (2011/65/EU)
EMC Directive (2014/30/EU)
Low Voltage Directive (2014/35/EU)

The full text of the EU declaration of conformity is available at the following Internet address: www.sennheiser.com/download.

Statements regarding the FCC and Industry Canada rules

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

this device may not cause harmful interference.
this device must accept any interference received, including interference that may cause undesired operation.

This Class A digital apparatus complies with the Canadian ICES-003.
