SENNHEISER L 60 Battery Charger for BA 60 or 61 Battery Instruction Manual

Contents hide

1 OPERATION

2 SPECIFICATIONS

3 COMPLIANCE

4 Important safety instructions

5 Manufacturer Declarations

5.1 Notes on disposal

6 Documents / Resources

6.1 References

7 Related Posts

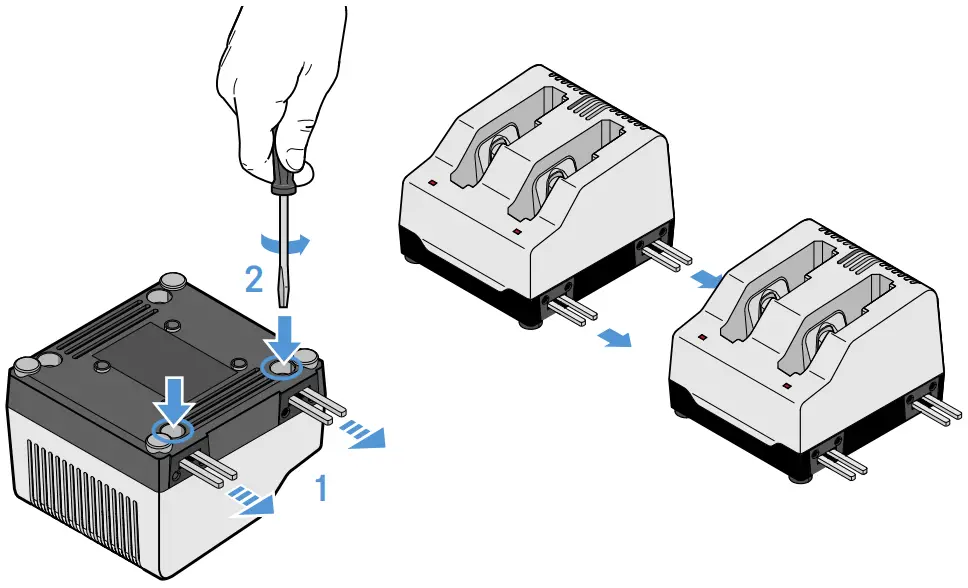

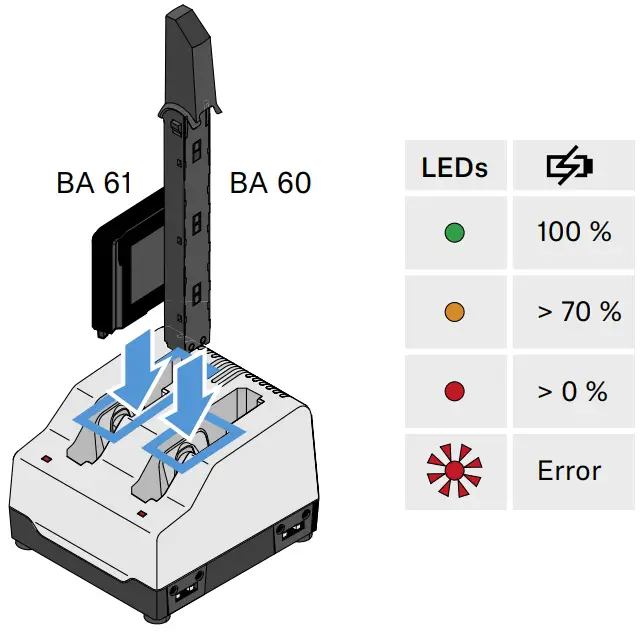

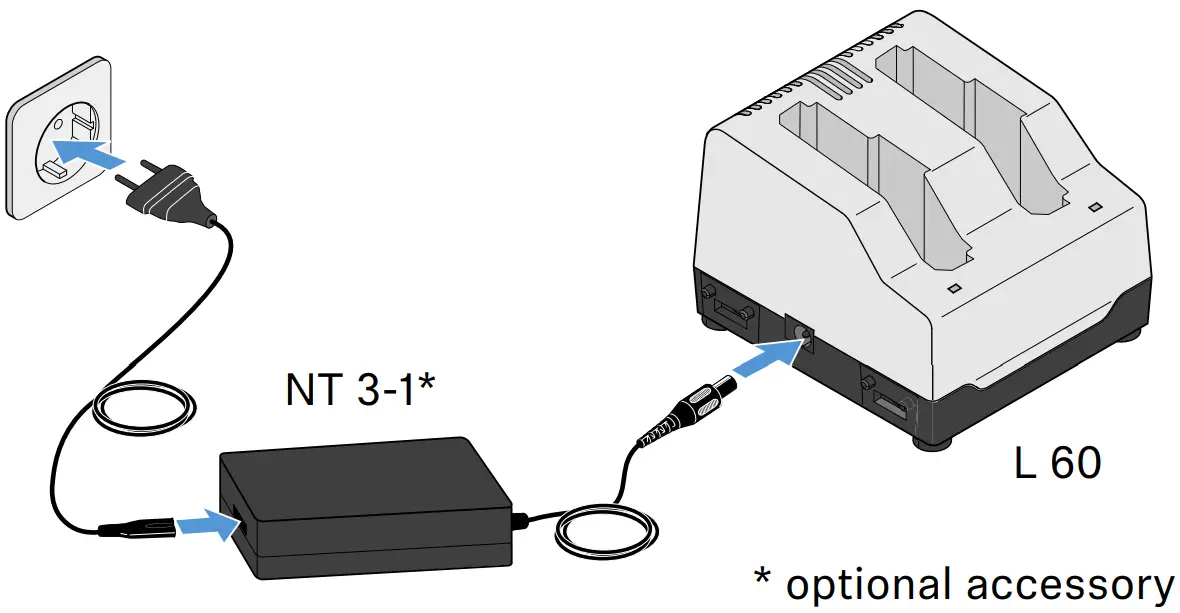

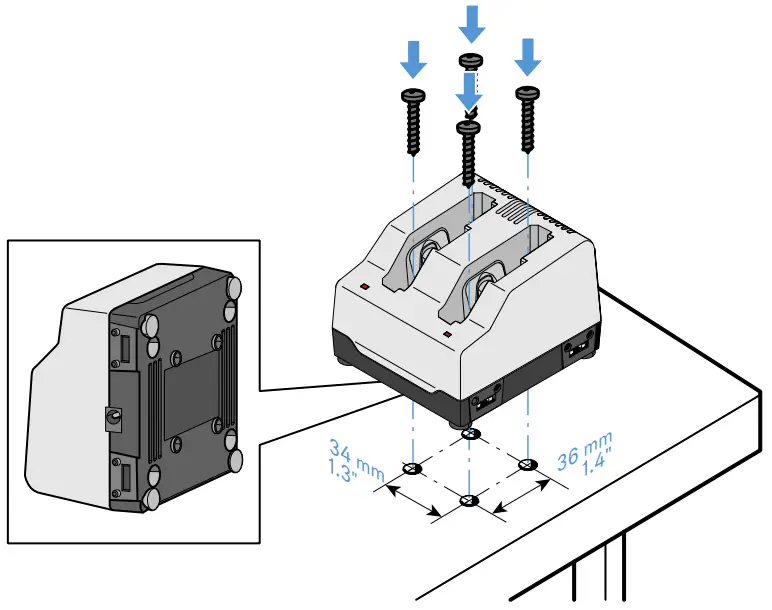

OPERATION

SPECIFICATIONS

Charging capacity 2x Sennheiser BA 60/61 rechargeable batteries
Input voltage 12 to 15 V DC
Input current max. 900 mA
Charging voltage 2.5 to 4.2 V DC
Charging current max. 2 x 1,000 mA
Charging time max. 3.5 h with NT 3-1 power supply unit
Charging temperature range 0 °C to +35 °C
Storage temperature range -20 °C to +70 °C
Relative humidity 25 to 95 % (non-condensing)
Dimensions 80 x 87 x 62 mm
Weight approx. 160 g

COMPLIANCE

Europe
UK
USA
Canada CAN ICES-003(B) / NMB-003(B)
Australia / New Zealand
Vietnam : As of December 1, 2012, the products manufactured by Sennheiser comply with Circular 30/2011/TT-BCT regulations the permissible limit for a toxic substances in electrical products and electronics.
South Korea
Russia

Important safety instructions

Read these safety instructions and the instruction manual of the product.
Keep these safety instructions and the instruction manual of the product. Always include all instructions when passing the product on to third parties.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Only clean the product when it is not connected to the power supply system. Clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer‘s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Only operate the product from the type of power source specified in the chapter „Specifications“ and indicated on the power supply unit.
Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where it exits from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Unplug the power supply unit from the wall socket,
- to completely disconnect the product from the power supply system,
- during lightning storms,
- when not using the product for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.
When using the supplied device feet, do not place the product on delicate surfaces. Delicate surfaces can become discolored or stained when they come into contact with the plastic of the device feet.
Always ensure that the power supply unit
- and the AC receptacle are in a safe operating condition and easily accessible,
- is properly plugged into the wall socket,
- is only operated in the permissible temperature range,
- is not covered or exposed to direct sunlight for longer periods of time in order to prevent heat accumulation.
Caution: Risk of explosion if you use or replace a battery by an incorrect type.

Intended use
The product is designed for indoor use.
The product can be used for commercial purposes.
It is considered improper use when the product is used for any application not named in the corresponding instruction manual.
Sennheiser does not accept liability for damage arising from improper use or misuse of this product and its attachments/accessories.

Before putting the products into operation, please observe the respective country-specific regulations!
Sennheiser is not liable for damages resulting from the loss of connection due to flat or overaged (rechargeable) batteries or exceeding the transmission range.

Manufacturer Declarations

Warranty
Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.
For the current warranty conditions, please visit our website at www. sennheiser.com or contact your Sennheiser partner.
Warranty FOR AUSTRALIA and NEW ZEALAND ONLY:
Sennheiser Australia Pty Ltd provides a warranty of 24 months on these products.

For the current warranty conditions, visit Sennheiser website:
Australia: https://en-au.sennheiser.com/
New Zealand: https://en-nz.sennheiser.com/

Sennheiser goods come with guaran tees that cannot be excluded under Australian and New Zealand Consumer law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty is in addition to other rights or remedies under law.
Nothing in this warranty excludes, limits or modifies any remedy available to be consumer which is granted by law

To make a claim under this contract, raise a case via Sennheiser website

Australia:
https://en-au.sennheiser.com/service-support-contact
New Zealand:
https://en-nz.sennheiser.com/service-support-contact

All expenses of claiming the warranty will be borne by the person making the claim.

Sennheiser international warranty is provided by: Sennheiser Australia Pty Ltd (ABN 68 165 388 312) Level 14, Tower A Zenith Building, 821 Pacific Highway, Chatswood NSW 2067, Australia
In compliance with the following requirements
EU: WEEE Directive (2012/19/EU)
UK: WEEE Regulations (2013)

Notes on disposal

The symbol of the crossed-out dumpster on the product, the (rechargeable) battery (if applicable) and/or the packaging indicates that these products must not be disposed of with normal household waste, but must be disposed of separately at the end of their service life. For the packaging, follow the regulations in your country for separating waste. Improper disposal of packaging materials can be harmful to your health and the environment.

The separate collection of waste electrical and electronic equipment, (rechargeable) batteries (if applicable) and packaging is intended to promote reuse and recycling and to prevent negative impacts on public health and the environment, for example due to hazardous substances contained in these products. At the end of their service life, recycle electrical and electronic equipment and (rechargeable) batteries so that their materials can be reused and to prevent environmental pollution.

If (rechargeable) batteries can be removed without destroying them, you are obliged to dispose of them separately (see the product’s operating instructions for information on how to remove the batteries safely). Be especially careful when handling (rechargeable) batteries containing lithium, as these pose special hazards, such as the risk of fire and/or health risks if button cells are swallowed. Reduce battery waste as much as possible by using longer-life batteries or rechargeable batteries.

Further information on the recycling of these products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner. You may also be able to return electrical or electronic equipment to your distributor, if they are legally required to do so. By disposing of your batteries properly, you are helping to protect public health and the environment.

UK Declaration of conformity

RoHS Regulations (2012)
EMC Regulations (2016)

Importer: Sennheiser UK Ltd.Pacific House, Third Avenue, Globe Park,
Marlow Buckinghamshire SL7 1EY, United Kingdom

EU Declaration of conformity

RoHS Directive (2011/65/EU)
EMC Directive (2014/30/EU)

The full text of the EU declaration of conformity is available at the following internet address: www.sennheiser.com/download.

Statements regarding the FCC and ISED

This device complies with part 15 of the FCC rules and CAN ICES-003 of Innovation, Science and Economic Development Canada (ISED). Operation is subject to the following two conditions:

This device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.

This class B digital device complies with the Canadian ICES-003.

Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment. Before putting the device into operation, please observe the respective country-specific regulations!

Contact information:
Sennheiser Electronic Corporation
1 Enterprise Drive, Old Lyme, CT 06371
www.sennheiser.com

Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Publ. 06/22, 587491/A02
