Air Humidifier
HU2510/00 CN HU2510/10 EU

Philips Consumer Lifestyle
service manual

Product information

Living room air humidifier based on Philips
Industrial Design

• Upper unit
• Humidification filter (FY1190)
• Wick support
• Water tank
• Gentle mode
• Power off
• Turbo mode

Accessory

• Humidification filter (FY1190)

Notes

• In dry conditions, moisture from the humidifier will be absorbed by walls, furniture, and other items in your room. Ventilation of dry outside air will also increase the time it takes to reach the target humidity. To optimize humidification performance, it’s recommended to close doors and windows during use.
• Clean the humidification filter every week.
• Replace the humidification filter every 6 months.
• The product is NON-DI, there is no error code for it.

Change List

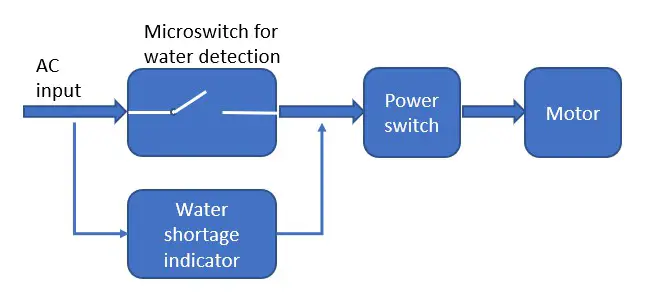

TECHNICAL INFORMATION

Safety precautions

• This manual is only for maintenance professionals’ reference.
• Non-professionals do not disassemble the machine, So as not to cause injury to the adult body
• Please turn off and unplug the power cord when the appliance is maintained.
• Please use the same type of parts and components in the machine during repair and replacement parts.

Tips for disassembling

• During repair, the parts should be disassembled according to actual n eeds.
• During repair, please pay more attention to each spare part in order to avoid damage, especially to prevent PCB from static electricity damage.
• After repair, assemble each part in reverse order. wrong-assembling and miss-assembling should be forbidden.
• During repair, please pay more attention to safety when test appliances with electricity.

Tool

• Cross Screwdriver
• Straight Screwdriver

DISASSEMBLY INSTRUCTION

Before you start dismantling!
 For your safety be sure the plug is disconnected from the mains!

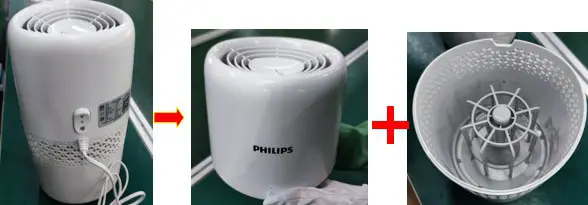

1. Take out the water tank.

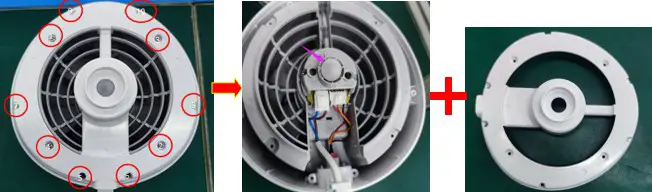

2. Remove ten screws from the bottom housing.

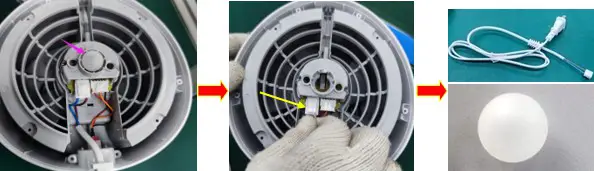

3. Take out the sustain ball and pull out the power cord.

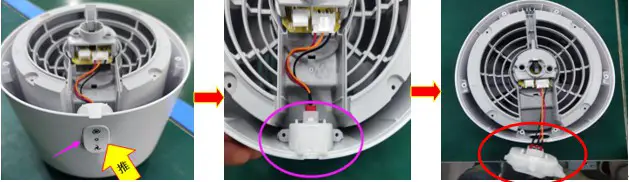

4. Push your finger against the switch and loosen the plastic clip, finally releasing the Toggle switch ASSY part from the main housing.

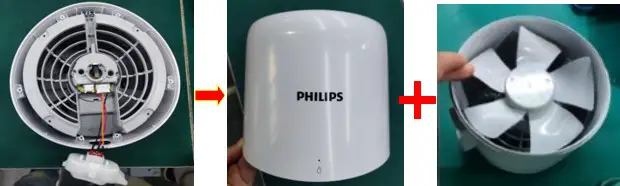

5. Separate the main housing&Top panel and the Motor&Fan ASSY part.

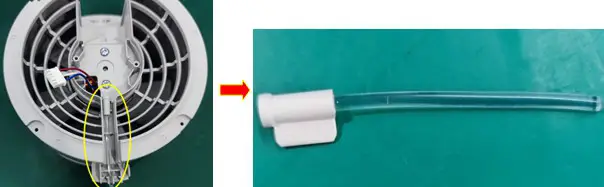

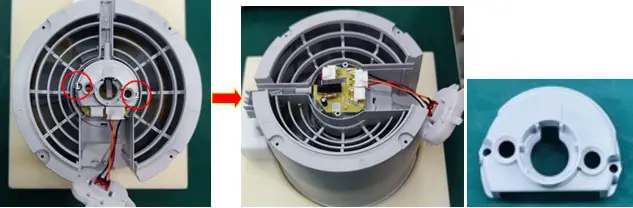

6. Remove 2pcs screws from ball frame, then take out the ball frame, and pull out the Toggle switch ASSY part.

7. Take down the Light cover & Light guide bar.

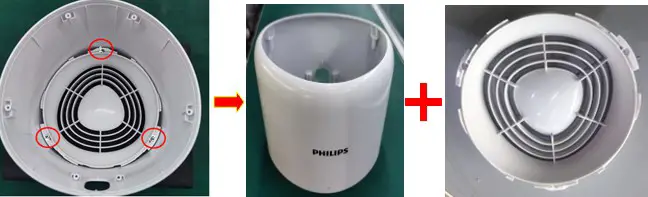

8. Remove 3pcs screws and separate Main housing and Top panel.

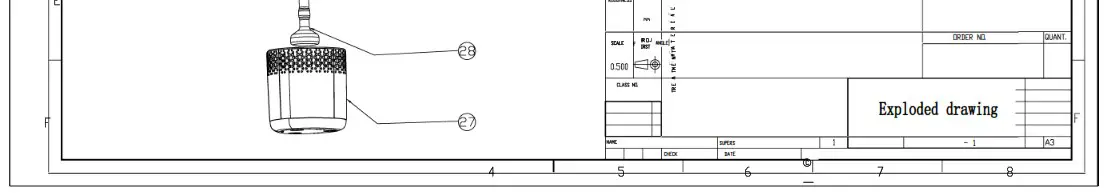

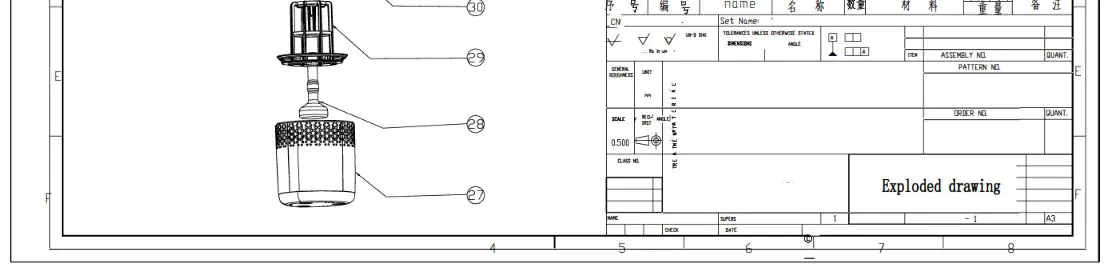

Service part list

HU2510/00 CN 883451000710

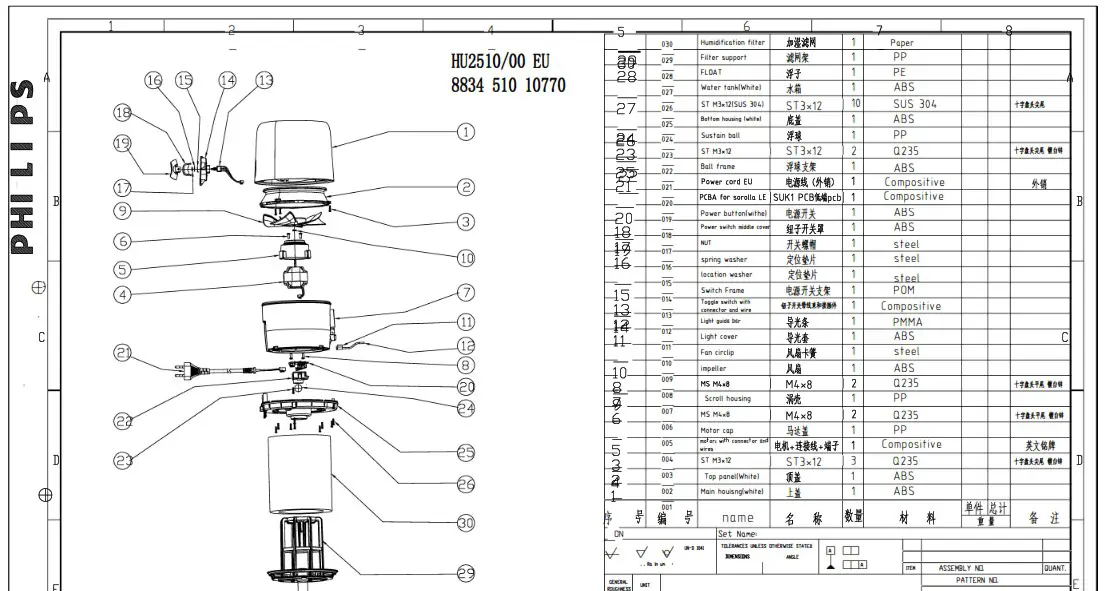

Service part list

HU2510/10 EU 883451010770
