S-LV-MINI-DS Recessed Sensor Light for Mains Powered Fittings
Instruction Manual
S-LV-MINI-DS Recessed Sensor Light for Mains Powered Fittings

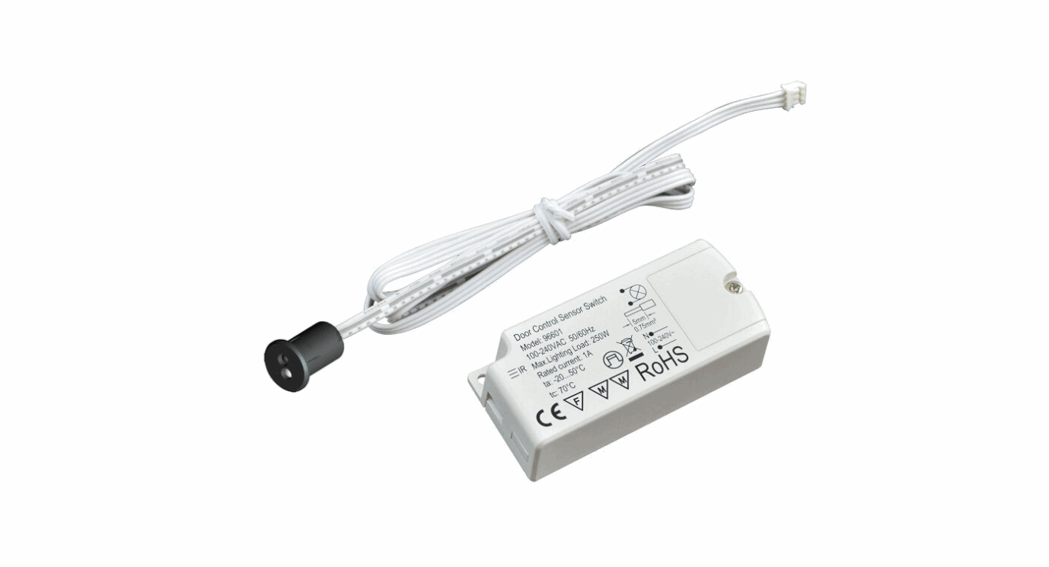

Product Name: Door Sensor Switch

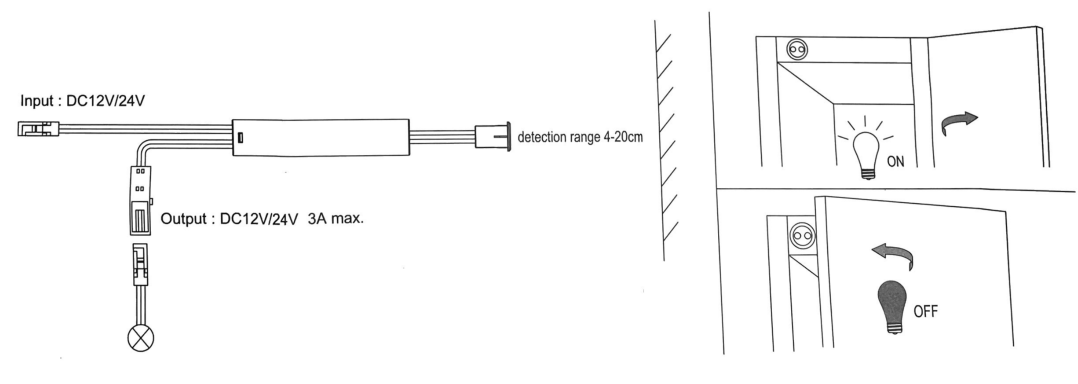

Product description: This Door sensor Switch is an exclusively design for Class III insulation appliance based on the application of IR sensor switch. Function description: when the target object is in the detecting range, the lamp switches off, when there is no object in the detecting range, the lamp switches on
Specifications
| input voltage | DC12V | DC24V |
| output voltage | DC12V | DC24V |
| output current | 3A max | 3A max. |
| Resting current | 6mA | 6mA |
| working temperature | -20-+45°C | -20-+45°C |
| detection range | 4-20cm | 4-20cm |
| Maximum Load | 36W | 72W |
 |  |
