LOGOSOL 0458-395-0421 Remote Crank Feed Petrol Saw
COMPONENT PARTS
01-00696
 | 1 x | 03-02832 |
 | 1 x | 03-03156 |
 | 1 x | 04-00561 |
 | 1 x | 03-03158 |
 | 2 x | 04-00409 |
 | 1 x | DS-00169 |
 | 1 x | 03-03239 |
 | 1 x | 03-02819 |
 | 1 x | 03-02813 |
 | 1 x | 04-00407 |
 | 1 x | DK-00110 |
 | 1 x | 03-02811 |
 | 1 x | 03-03159 |
 | 1 x | 03-02797 |
 | 1 x | 03-02796 |
 | 4 x | 03-03157 |
 | 1 x | 01-00697, 4 m |
 | 1 x | 01-00696-skp |
 | 1 x | 01-00777-skp |
 | 3 x 6 x 4 x 4 x 1 x 4 x 4 x 3 x | M8x20 M8 M10x25 M10 8x22x1,5 BRB 10 M8 M8x20 |
 | 4 x 4 x 1 x 1 x 1 x | M6 M6x16 8x22x1,5 M8M8x35 |
Exploded view
01-00696
| 20 | MC6S M8x20 | 3 | Allen screw | |
| 19 | M6SF M8x20 | 3 | Flange screw M6SF DIN 6921 | |
| 18 | LM6MF M8 Fzb | 6 | Nylon lock flange nut Fzb | |
| 17 | M6MF M8 | 4 | Flange nut M8 Fzb | |
| 16 | BRB10 | 4 | Washer 10,5×22 t=2 Fzb | |
| 15 | M6S M10x25 | 4 | Hex screw M6S Fzb | |
| 14 | LM6M M10 | 4 | Hex Nylon Lock Nut Fzb | |
| 13 | ISO 4759/3 | 1 | Washer NB 8x22x1,5 | |
| 12 | 03-03239 | 1 | Threaded rod M8x150 8.8 fzb | 1 |
| 11 | DK-00110 | 1 | Endcap WN319 G32-M8 | 1 |
| 10 | 04-00407 | 1 | Knob M8x25 | 1 |

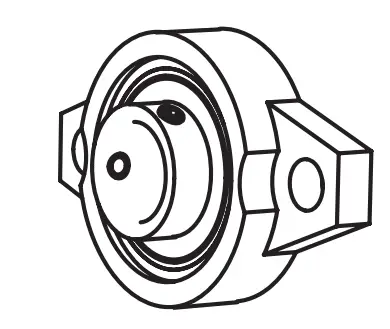

| 9 | 04-00409 | 2 | Flanged bearing 020 KFL004 | 1 |
| 8 | 03-02832 | 1 | Turn wheel bracket | 1 |
| 7 | 01-00777 | 1 | Manual feed chain kit | 4 |
| 6 | 03-02796 | 1 | Bracket | 2 |
| 5 | 03-02797 | 1 | Cable & Wire mount | 1 |
| 4 | 03-02813 | 1 | Crank handle | 1 |
| 3 | 03-02819 | 1 | Crankshaft | 1 |
| 2 | 03-02811 | 1 | Chassis | 1 |
| 1 | DS-00169 | 1 | Handle w.out end cap | 2 |
| Item no. | Art.no. | Qty. | Description | Issue |
01-00777
| 12 | LM6MF M8 Fzt | 1 | Nylon lock flange nut Fzb | |
| 11 | M6SF M6x16 | 4 | Flansskruv M6SF DIN 6921 | |
| 10 | LM6MF M6 | 4 | Nylon lock flange nut Fzb | |
| 9 | ISO 4759/3 | 1 | Washer NB 8x22x1,5 | |
| 8 | M6SF M8x35 | 1 | Flange screw M6SF DIN 6921 | |
| 7 | 03-03156 | 1 | Turn wheel plate | 1 |
| 6 | 04-00561 | 1 | 05B-1 Z=23 Tension sprocket | 1 |
| 5 | 03-03159 | 1 | Spacer D=15,8×8,1 L=18,5 | 1 |
| 4 | 03-03158 | 1 | Sprocket 05B-1 z=23 d=20 L=14 | 1 |
| 3 | P6SS M6x8 | 2 | Pin screw | |
| 2 | 03-03157 | 4 | Chainholder | 1 |
| 1 | 01-00697 | 1 | Feed Chain (Manual) | 1 |
| Item no. | Art.no. | Qty. | Description | lssue |
BOLTS/NUTS
Definition of the fasteners on following pages.
 | Shoulder bolt |
 | Cross screw |
 | Slotted screw |
 | Locking screw |
 | Hex nut |
 | Flange nut |
 | Flat washer |
 | Allen screw |
 | Allen screw (partially threaded) |
 | Hex bolt |
 | Hex bolt (partially threaded) |
 | Flange screw |
 | Flange screw (partially threaded) |
 | Carriage bolt |
ADDITIONAL SYMBOLS
The following symbols are used as supplements to the symbols above to describe the design of the parts.
 |  |  |  |
| Low | Tensilock | Lock | Countersunk |
DIMENSIONS/LENGTH
The dimensions of the fasteners are written as a diameter measurement (M) ISO 68-1. For bolts, this is followed by a length measurement. The length of the bolt is measured from below the head to the tip of the bolt.
| (Diameter) | (Length) | |
| M8 | x | 20 |
ASSEMBLY
01-00696
①
 | 1 x | 8x22x1,5 |
 | 1 x | M8x35 |
 | 4 x | M8 |
 | 1 x | M8 |
 | 1 x | 04-00561 |
 | 1 x | 03-03159 |
②
 | 4 x | 04-00409 |
 | 4 x | M10x25 |
 | 4 x | M10 |
| 4 x | M10 |
③ Mounting the crank handle
| 1 x | 8x22x1,5 |
 | 1 x | M8x20 |
 | 1 x | M8 |
 | 1 x | 03-03158 |
The crank handle can be mounted on either the right or left side.
 | 1 x | 04-00407 |
⑥
| 2 x | M8x20 |
| 2 x | M8 |
⑦ The assembly is carried out using the existing screw joints on the carriage.
 | 2 x | M8x35 |
 | 2 x | M8 |
To facilitate saw unit maintenance, the wire mount can be removed from the saw carriage without releasing the wire tension
⑧
 | 4 x | M6x16 |
 | 4 x | M6 |
 | 1 x | 01-00697, 4 m |
 | 1 x | 01-00720, 1 m Required for each 1 m extension |
⑨ The assembly is partially carried out using the existing screw that connects the strut to the guide rail.
 | 1 x | M8x20 |
 | 1 x | M8 |
⑩ The assembly is partially carried out using the existing screw joints on the beam
 | 2 x | M8x20 |
 | 2 x | M8 |
⑪
⑫ Tighten the drive chain so thatthere is 6-7 cm between the chains.
In order to adjust the tension, you need to loosen the tensioning mechanism’s flange nut.
Once the adjustment has been made, be sure to re-tighten the flange nut.
⑬
|  | 1 x 01-00701, 4 m |
01-00701
| | 1 x01-00729, 4,5-6 m |
NB! Check that there is a distance of at least 3 mm between the remote throttle pressure control and the throttle control on the chainsaw when idling.
