Enlarge Your Ethernet Network
10/100 Mbps WDM Media Converter
Package Contents: Converter, Power Adapter, Installation Guide
LED Explanation
Ο PWR
On: Power on
Off: Power off
Ο Link/Act
On: Valid link
Flashing: Transmitting or receiving data
Off: Invalid link

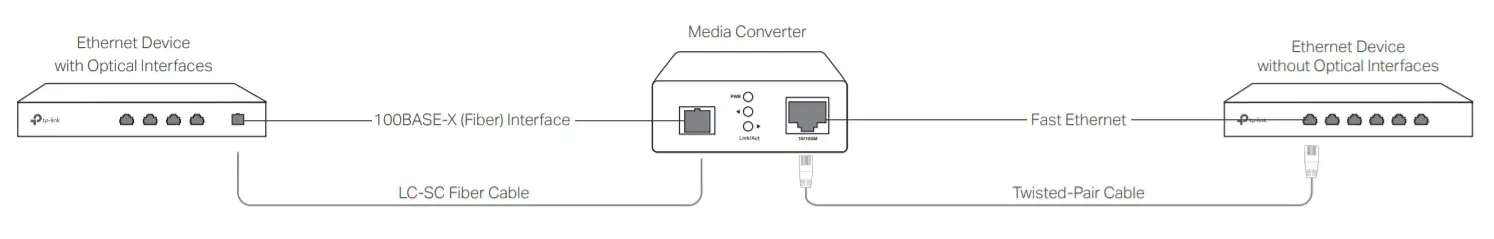

Scenario 1: Connect Devices with and without Optical Interfaces

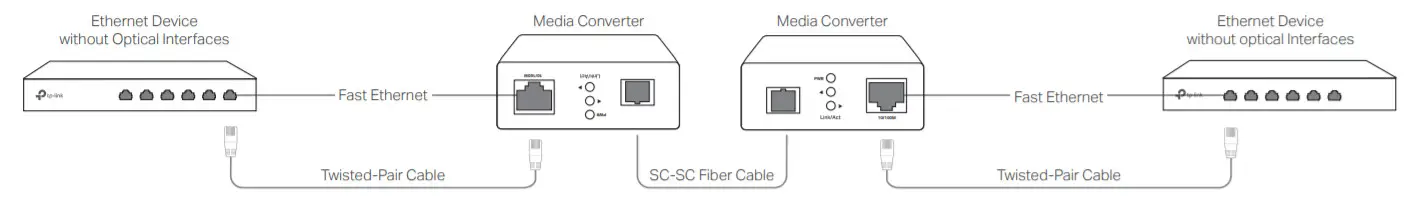

Scenario 2: Connect Devices without Optical Interfaces
Specifications
General Specifications
| Standards | IEEE 802.3, IEEE 802.3i, IEEE802.3u |
| LED | PWR, Link/Act |
| Connector | 1 SC fiber optic; 1 RJ45 jack |
| Twisted-Pair | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
| Fiber | 9/125 μm single-mode fiber (≤20 km) |
| WaveLength | TL-FC111A-20: 1550 nm TX, 1310 nm RX TL-FC111B-20: 1310 nm TX, 1550 nm RX |
| Power | External Power Adapter: 5 V/0.6 A |
| Dimensions | External Power Adapter: 5 V/0.6 A |
Environmental and Physical Specifications
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link
Community.
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code.
http://www.tp-link.com/support
If you have any suggestions or needs on the product guides, welcome to email [email protected].
Safety Information
Keep the device away from water, fire, humidity, or hot environments.
- Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
- Do not use a damaged charger or USB cable to charge the device.
- Do not use any other chargers other than those recommended.
- The adapter shall be installed near the equipment and shall be easily accessible.
- Do not point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due
to improper use of the device. Please use this product with care and operate at your own risk.
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU,
2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
©2020 TP-Link 7106508844 REV1.0.0
