Ticinque TuttoLED TR
Instruction Manual
| IP | 230V 50Hz | cos φ |  |  |  |
| 8594 | 42 | 107mA | 0,069C | 16 LED | LiFe 9,6V 1,5Ah | 5h |
| 8595 | 65 | 107mA | 0,069C | 16 LED | LiFe 9,6V 1,5Ah | 5h |
| 8596 | 65 | 107mA | 0,156C | 16 LED | LiFe 9,6V 1,5Ah | 5h |

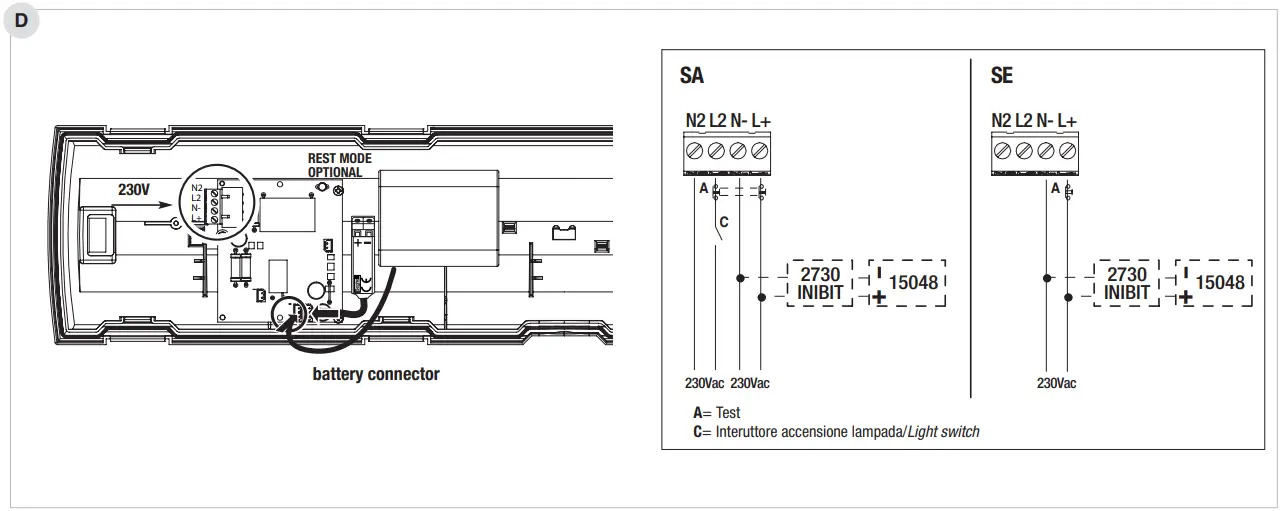

OPTIONAL: to put the appliance in “rest mode”, use the accessory cod. 15048 and the Inhibit remote control (code 2730).
LED SIGNALS
| FIXED GREEN | BATTERY CHARGING |
| FIXED RED | BATTERY DISCONNECTED |

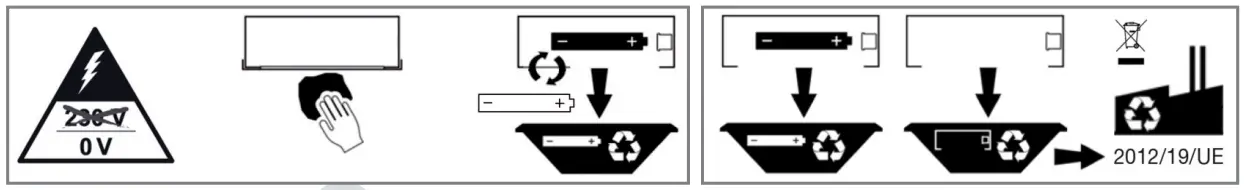

WARNINGS – GUARANTEE
– This device shall be used exclusively for the purpose for which it has been designed. Any other use is considered improper and therefore dangerous.

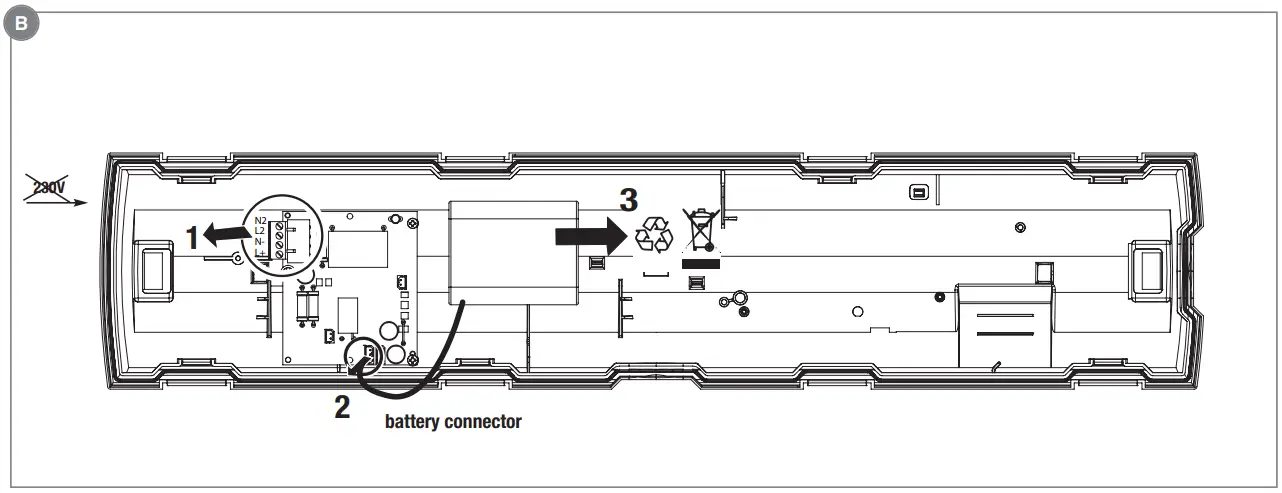

– Rechargeable batteries and LED sources are non-replaceable types. Contact an authorized technical service center for any repairs possibly required to use only original spare parts. They lacked the respect for the above conditions may compromise the safety of the device.
* Caution: electric shock
