AU8000 Crystal UHD 4K Smart TV 2021
User Guide

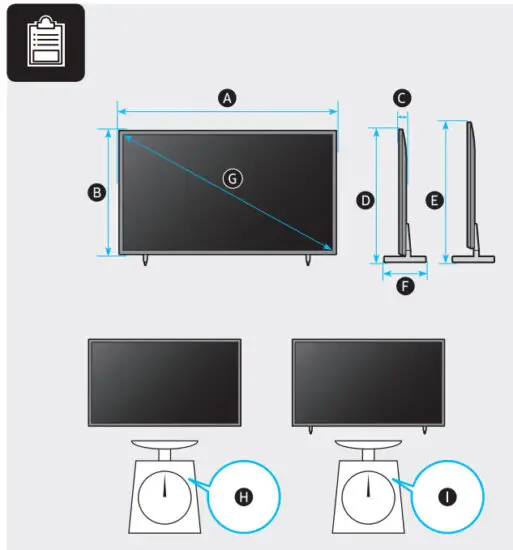

| A | B | C | D | E | F | G | H | I | |
| 43Q6*A | 38.0 inches (965 5 mm) | 22.0 inches (559.8 mm) (5598 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 23.6 inches (599.8 mm) (59.98 cm) | 24.6 inches (624.8 mm) (62.48 cm) | 8.1 inches (205.6 mm) (20.56 cm) | 42.5 inches (108 cm) | 18.5 lbs (8.4 kg) | 19.6 lbs (8.9 kg) |
| (96.55 cm) | |||||||||
| 50Q6*A | 44.0 inches (1118.3 mm) (111.83 cm) | 25.4 inches (644.5 mm) (64.45 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 26.9 inches (683.6 mm) (68.36 cm) | 27.9 inches (708.6 mm) (70.86 cm) | 9.0 inches (228.8 mm) (22.88 cm) | 49.5 inches (125 cm) | 25.4 lbs (11.5 kg) | 269 tbs (12.2 kg) |
| 55Q6*A | 48.5 inches (12321 mm) (123.21cm) | 27.9 inches (708.8 mm) (70.88 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 29.4 inches (7478 mm) (7478 cm) | 30.4 inches (772.8 mm) (77.28 cm) | 9.0 inches (228.8 mm) (22.88 cm) | 54.6 inches (138cm) | 34.2 lbs (15.5 kg) | 35.7 lbs (16.2 kg) |
| 60Q6*A | 53.3 inches (1353.0 mm) (135.30 cm) | 30.6 inches (776.8 mm) (77.68 cm) | 1.0 inches (257 mm) (2.57 cm) | 321 inches (8161 mm) (81.61cm) | 331 inches (8411 mm) (8411cm) | 111 inches (281.8 mm) (2818 cm) | 60.1 inches (152 cm) | 41.0 lbs (18.6 kg) | 43.0 lbs (19.5 kg) |
| 65Q6*A | 571 inches (1450.9 mm) (145.09 cm) | 32.7 inches (831.8 mm) (83.18 cm) | 1.0 inches (257 mm) (2.57 cm) | 34.3 inches (871.0 mm) (8710 cm) | 35.3 inches (896.0 mm) (89.60 cm) | 111 inches (281.8 mm) (2818 cm) | 64.5 inches (163 cm) | 461lbs (20.9 kg) | 481 Ws (21.8 kg) |
| 70Q6*A | 62.0 inches (1575.9 mm) (15759 cm) | 34.6 inches (877.7 mm) (87.77 cm) | 1.0 inches (26.6 mm) (2.66 cm) | 36.3 inches (923.0 mm) (92.30 cm) | 37.3inches (948.0 mm) (94.80 cm) | 13.4 inches (340.4 mm) (34.04 cm) | 69.5 inches (176 cm) | 60.4 lbs (27.4 kg) | 631 lbs (28.6 kg) |
| 43AU8*** | 38.0 inches (965.5 mm) (96.55 cm) | 22.0 inches (559.8 mm) (55.98 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 23.6 inches (6001 mm) (60.01cm) | 24.6 inches (625.1 mm) (62.51 cm) | 7.7 inches (1951 mm) (19.51 cm) | 42.5 inches (108 cm) | 18.5 lbs (8.4 kg) | 19.6 lbs (8.9 kg) |
| 50AU8*** | 44.0 inches (1118.3 mm) (111.83 cm) | 25.4 inches (644.5 mm) (64.45 cm) | 1.0 inches (257 mm) (2.57 cm) | 27.0 inches (684.6 mm) (68.46cm) | 28.0 inches (709.6 mm) (70.96 cm) | 8.9 inches (226.6 mm) (22.66 cm) | 49.5 inches (125 cm) | 25.4 lbs (11.5 kg) | 26.9 lbs (12.2 kg) |
| 55AU8*** | 48.5 inches (12321 mm) (123.21cm) | 27.9 inches (708.8 mm) (70.88 cm) | 1.0 inches (257 mm) (2.57 cm) | 29.5 inches (748.8 mm) (74.88 cm) | 30.5 inches (773.8 mm) (77.38 cm) | 8.9 inches (226.6 mm) (22.66 cm) | 54.6 inches (138cm) | 34.2 lbs (15.5 kg) | 35.7 lbs (16.2 kg) |
| 60AU8*** | 53.3 inches (1353.0 mm) (135.30 cm) | 30.6 inches (776.8 mm) (77.68 cm) | 1.0 inches (257 mm) (2.57 cm) | 32.3 inches (819.3 mm) (8193 cm) | 33.6 inches (844.3 mm) (84.43 cm) | 111 inches (281.8 mm) (2818 cm) | 601 inches (152 cm) | 41.0 lbs (18.6 kg) | 43.0 lbs (19.5 kg) |
| 65AU8*** | 571 inches (1450.9 mm) (145.09 cm) | 32.7 inches (831.8 mm) (8318 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 34.4 inches (874.3 mm) (87.43 cm) | 35.4 inches (899.3 mm) (89.93 cm) | 111 inches (281.8 mm) (2818 cm) | 64.5 inches (163 cm) | 461 lbs (20.9 kg) | 481 lbs (21.8 kg) |

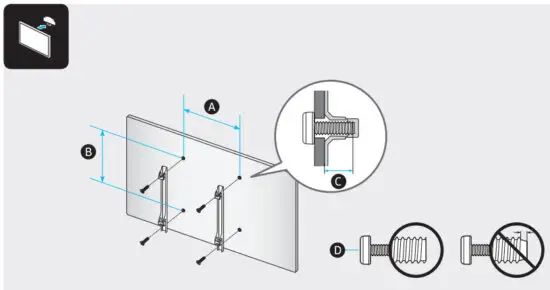

| VESAA×B(mm) | C(mm) | D×4 | |
| 43Q6*A | 200×200 | 11-13 | M8 |
| 50Q6*A | |||
| 55Q6*A | |||
| 60Q6*A | 400 x 300 | ||
| 65Q6*A | |||
| 70Q6*A | |||
| 43AU8*** | 200×200 | ||
| 50AU8*** | |||
| 55AU8*** | |||
| 60AU8*** | 400 x 300 | ||
| 65AU8*** |
