QUICK SETUP GUIDE
55″

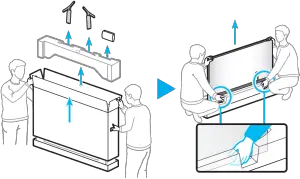

60 – 70″

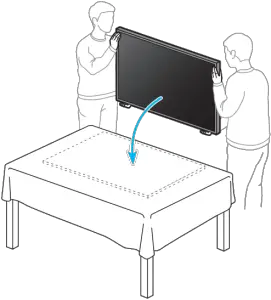

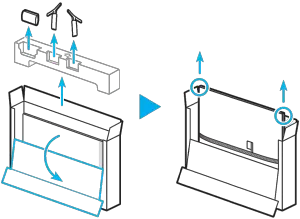

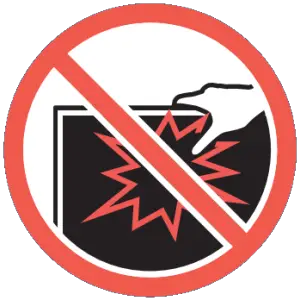

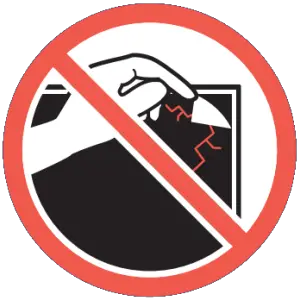

1

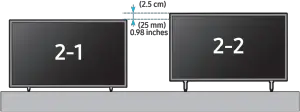

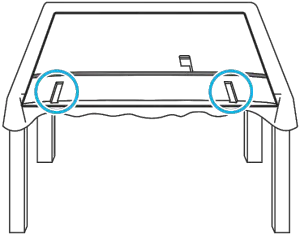

2

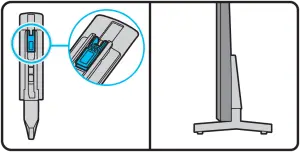

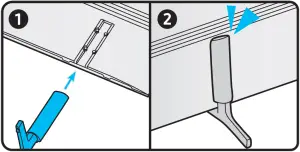

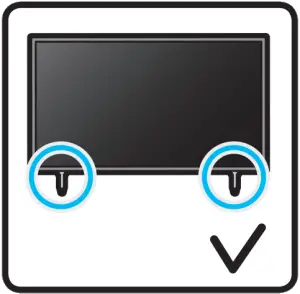

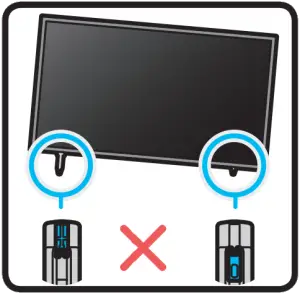

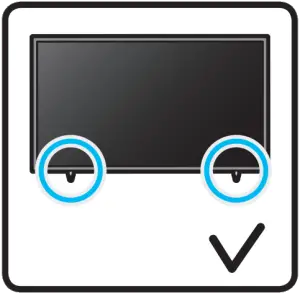

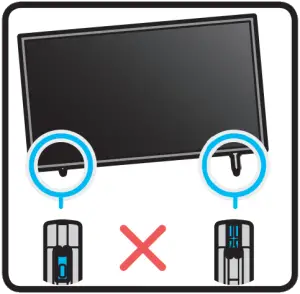

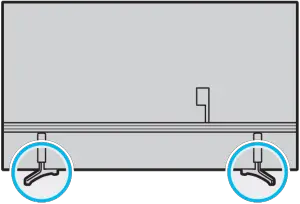

2-1

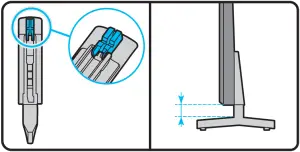

2-2

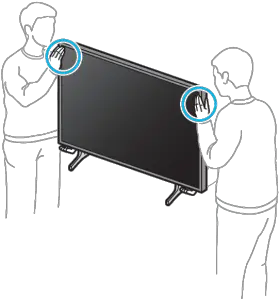

3

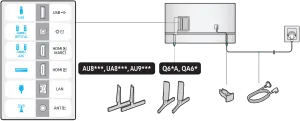

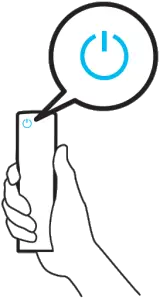

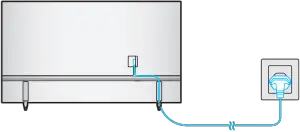

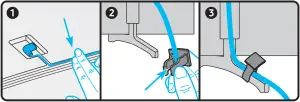

4
AU8***, UA8***, AU9***
Q6*A, QA6*

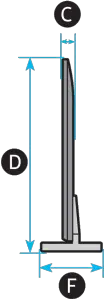

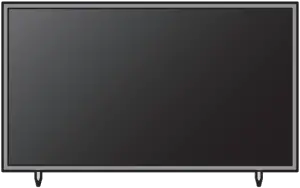

| A | B | C | D | E | F | G | H | I | |

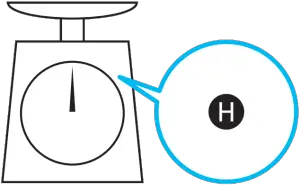

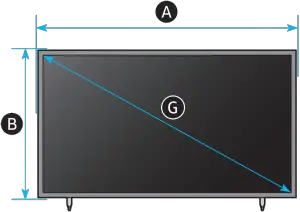

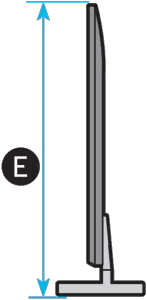

| 55Q6*A 55QA6* | 48.5 inches (1232.1 mm) (123.21 cm) | 27.9 inches (708.8 mm) (70.88 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 29.4 inches (747.8 mm) (74.78 cm) | 30.4 inches (772.8 mm) (77.28 cm) | 9.0 inches (228.8 mm) (22.88 cm) | 54.6 inches (138 cm) | 34.2 lbs (15.5 kg) | 35.7 lbs (16.2 kg) |
| 60Q6*A 60QA6* | 53.3 inches (1353.0 mm) (135.30 cm) | 30.6 inches (776.8 mm) (77.68 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 32.1 inches (816.1 mm) (81.61 cm) | 33.1 inches (841.1 mm) (84.11 cm) | 11.1 inches (281.8 mm) (28.18 cm) | 60.1 inches (152 cm) | 41.0 lbs (18.6 kg) | 43.0 lbs (19.5 kg) |
| 65Q6*A 65QA6* | 57.1 inches (1450.9 mm) (145.09 cm) | 32.7 inches (831.8 mm) (83.18 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 34.3 inches (871.0 mm) (87.10 cm) | 35.3 inches (896.0 mm) (89.60 cm) | 11.1 inches (281.8 mm) (28.18 cm) | 64.5 inches (163 cm) | 46.1 lbs (20.9 kg) | 48.1 lbs (21.8 kg) |
| 55AU8*** 55UA8*** | 48.5 inches (1232.1 mm) (123.21 cm) | 27.9 inches (708.8 mm) (70.88 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 29.5 inches (748.8 mm) (74.88 cm) | 30.5 inches (773.8 mm) (77.38 cm) | 8.9 inches (226.6 mm) (22.66 cm) | 54.6 inches (138 cm) | 34.2 lbs (15.5 kg) | 35.7 lbs (16.2 kg) |
| 60AU8*** 60UA8*** | 53.3 inches (1353.0 mm) (135.30 cm) | 30.6 inches (776.8 mm) (77.68 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 32.3 inches (819.3 mm) (81.93 cm) | 33.6 inches (844.3 mm) (84.43 cm) | 11.1 inches (281.8 mm) (28.18 cm) | 60.1 inches (152 cm) | 41.0 lbs (18.6 kg) | 43.0 lbs (19.5 kg) |
| 65AU8*** 65UA8*** | 57.1 inches (1450.9 mm) (145.09 cm) | 32.7 inches (831.8 mm) (83.18 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 34.4 inches (874.3 mm) (87.43 cm) | 35.4 inches (899.3 mm) (89.93 cm) | 11.1 inches (281.8 mm) (28.18 cm) | 64.5 inches (163 cm) | 46.1 lbs (20.9 kg) | 48.1 lbs (21.8 kg) |
| 70AU8*** 70UA8*** | 62.0 inches (1575.9 mm) (157.59 cm) | 34.6 inches (877.7 mm) (87.77 cm) | 1.0 inches (26.6 mm) (2.66 cm) | 36.3 inches (920.8 mm) (92.08 cm) | 37.2 inches (945.8 mm) (94.58 cm) | 13.0 inches (332.2 mm) (33.22 cm) | 69.5 inches (176 cm) | 60.4 lbs (27.4 kg) | 63.1 lbs (28.6 kg) |
| 55AU9*** | 48.5 inches (1232.9 mm) (123.29 cm) | 27.9 inches (709.2 mm) (70.92 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 29.5 inches (749.2 mm) (74.92 cm) | 30.5 inches (774.2 mm) (77.42 cm) | 8.9 inches (226.6 mm) (22.66 cm) | 54.6 inches (138 cm) | 34.2 lbs (15.5 kg) | 35.7 lbs (16.2 kg) |
| 65AU9*** | 57.2 inches (1451.7 mm) (145.17 cm) | 32.8 inches (832.2 mm (83.22 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 34.4 inches (874.7 mm) (87.47 cm) | 35.4 inches (899.7 mm) (89.97 cm) | 11.1 inches (281.8 mm) (28.18 cm) | 64.5 inches (163 cm) | 46.1 lbs (20.9 kg) | 48.1 lbs (21.8 kg) |
* : 0~9, A~Z

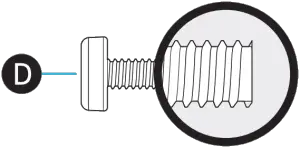

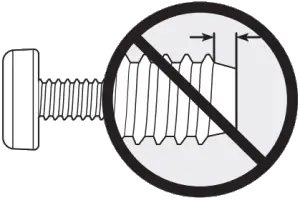

| VESA A x B (mm) | C (mm) | D x 4 | |
| 55Q6*A 55QA6* | 200 x 200 | 11-13 | M8 |
| 60Q6*A 60QA6* | 400 x 300 | ||
| 65Q6*A 65QA6* | |||
| 55AU8*** 55UA8*** | 200 x 200 | ||
| 60AU8*** 60UA8*** | 400 x 300 | ||
| 65AU8*** 65UA8*** | |||
| 70AU8*** 70UA8*** | |||
| 55AU9*** | 200 x 200 | ||
| 65AU9*** | 400 x 300 |
* : 0~9, A~Z
