Yoshimura Sa-19-k Spark Arrestor Kit Instruction Manual

YOSHIMURA SA-19-K Spark Arrestor Kit

Product Information

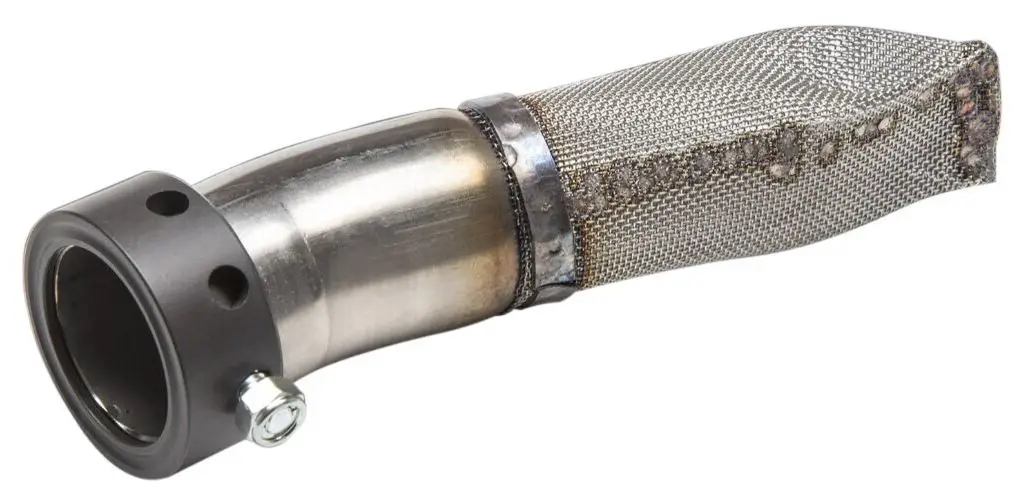

Yoshimura TEC-SD15 Spark Arrestor Kit

The Yoshimura TEC-SD15 Spark Arrestor Kit is a safety accessory designed for use with Yoshimura exhaust systems. The kit includes a spark arrestor, spark arrestor ring, button head screw, lock nut, and USFS-certified spark arrestor label. The spark arrestor is designed to reduce the risk of fire by trapping hot particles in the exhaust system.

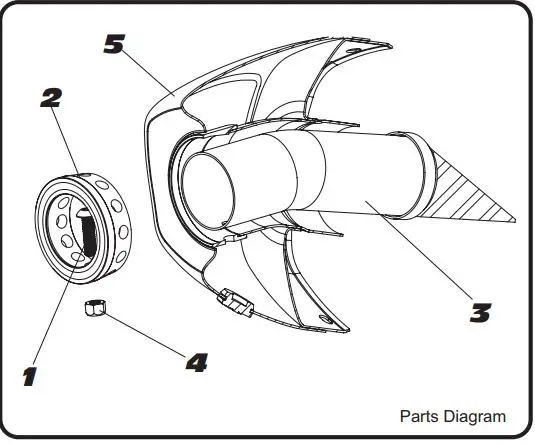

Parts Diagram

Product Usage Instructions

1. Remove the button head screw securing the aluminum ring and spark arrester to the muffler and remove the spark arrester.
2. Using a wire brush, remove carbon deposits from the spark arrester screen. Inspect the screen for excessive wear or damage. If a spark arrester is excessively worn or damaged, the spark arrester must be replaced. Cleaning and inspection should be performed after every 60 hours of use. Caution: Gloves and safety glasses should be worn while cleaning the spark arrester.
3. Re-install the spark arrester and aluminum ring.
   • Note: It is recommended that a low-strength Loctite is used on the spark arrester securing bolt.
4. Apply the USFS-certified spark arrester label on the muffler where visible.

It is important to regularly clean and inspect the spark arrestor to ensure it is functioning properly and reducing the risk of fire. The Yoshimura TEC-SD15 Spark Arrestor Kit should only be installed by a qualified mechanic or technician familiar with exhaust system installation. For more information or assistance, please visit
www.yoshimura-rd.com.

Parts Diagram

1. Remove button head screw securing the aluminum ring and spark arrester to the muffler and remove spark arrester.
2. Using a wire brush, remove carbon deposits from spark arrester screen. Inspect the screen for excessive wear or damage. If spark arrester is excessively worn or damaged, the spark arrester must be replaced. Cleaning and inspection should be performed after every 60 hours of use.
   • Caution: Gloves and safety glasses should be worn while cleaning spark arrester.
3. Re-install spark arrester and aluminum ring.
   • Note: It is recommended that a low strength “Loc-tite” is used on the spark arrester securing bolt.
4. Apply USFS certified spark arrester label on muffler where visible.

• RESEARCH&DEVELOPMENT OF AMERICA, INC.
• 5420 DANIELS STREET SUITE A, CHINO, CA 91710
• (800) 634-9166
• (909) 628-4722
• FAX (909) 591-2198
• www.yoshimura-rd.com
