PPQ Vertical CABEL MARKING
PPQ Vertical Cabel Marking

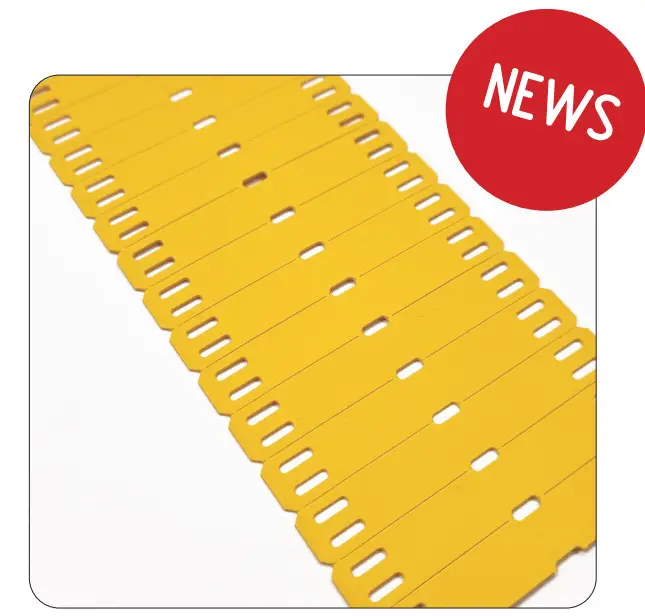

NEWS! PPQ now also available i vertical format for faster print of profile and cost savings on ink ribbon for the thermal transfer printers.
- Flat cable marker with pre punched holes
- Easy mounted on the cable with cable ties
- Printed in Partex MK10 or EOS printers. Also avaliable pre-printed as customized markers.
General information
Design

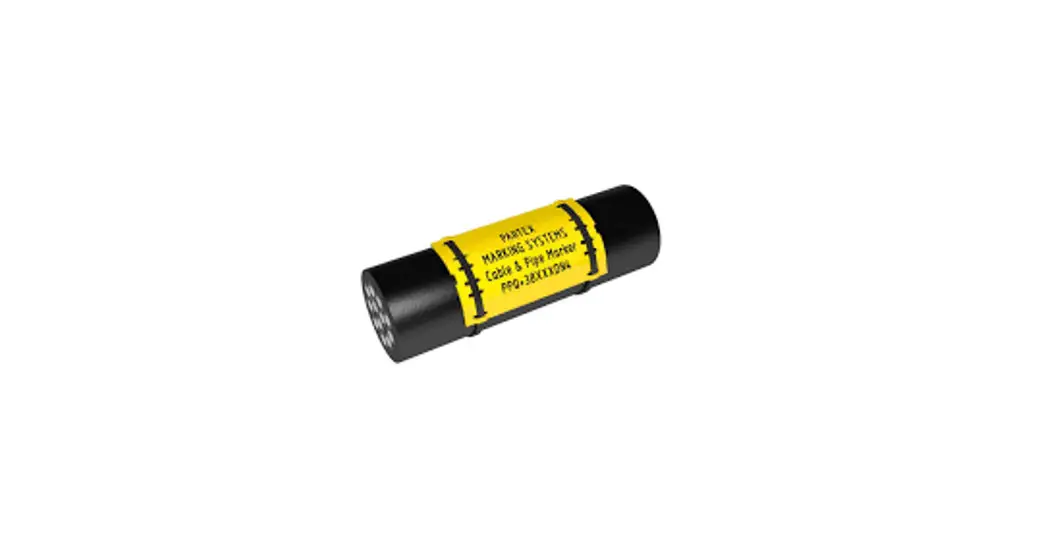

PPQ is a flat profile with pre-punched holes for mounting with cable ties. The profile is elastic which means that the marker is firmly attached to the cable.
Print
The profile can either be ordered as customized pre-printed markers or as an profile for own printing on Partex MK10 or EOS printers.
Technical information
Working temperature
PVC: –20°C to +60°C
Storage
+10°C till +27°C < 95% Rh
Material
PVC: Soft PVC
Color
PVC: Standard are white and yellow. Other colors are red and light blue.
Product and order information
| Profile | ||||
| Article nr | Information | Profile width mm | Profile length mm | Markers /reel Material |
| PPQ+06010DN* | Platt profil, B: 10mm L: 60mm | 10 | 60 | 1000 PVC |
* = color code

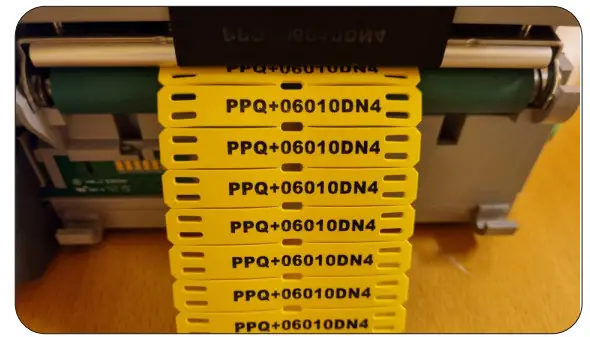

Fast print with Partex EOS or MK10 printers. Up to 50 markers on 6 seconds!
