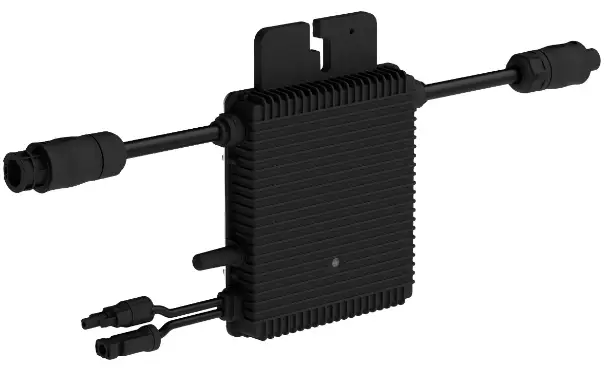

PV Micro Inverter 300W/600W TX-203/TX-204

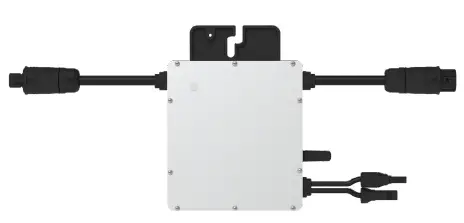

PV Micro Inverter 300W TX-203

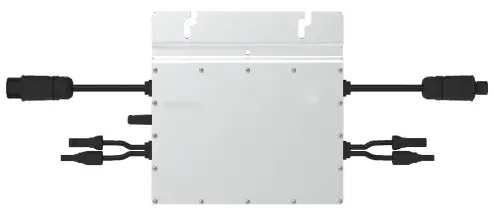

PV Micro Inverter 600W TX-204
Features
- Easy installation, just plug and play
- Lightweight and compact micro inverter
- Direct mounting on the racking system or panel frame
- Ideal for balcony power plants and mini solar systems
- On-grid system, for feeding power into the 230V household grid via socket plug
- MC4 connector for solar panel connection
- Max. solar panel power 240-380W
- Integrated MPPT charge controller for solar panels: particularly efficient power yield
- MPPT voltage range: DC29-48V
- VDE-certified: meets highest safety standards
- Waterproof IP67
Characteristics
- Compliance: VDE-AR-N 4105:2018, EN50549-1:2019, VFR2019, IEC/EN 62109-1/-2, IEC/EN 61000-3-2/-3, IEC/EN-61000-6-1/-2/-3/-4
Package contents
- 1x PV Micro Inverter, 1x AC input end cap, 1x Female Betteri adapter, User manual
Note: This publication summarizes product warranty and Specifications which are subject to change without notice. Product photos are for reference only, on behalf of actual product

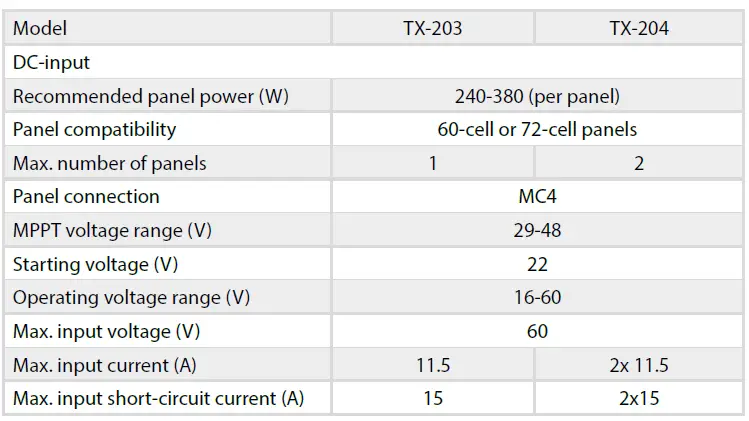

Technical specifications

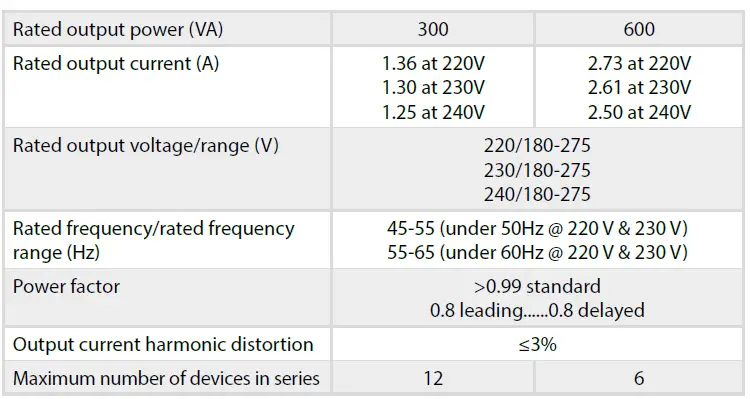

AC-Output

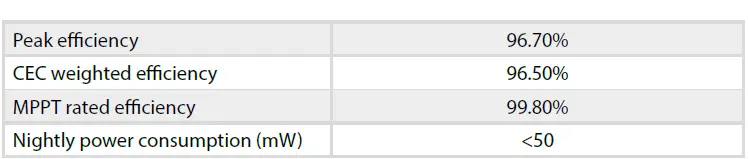

Efficiency, safety and protection

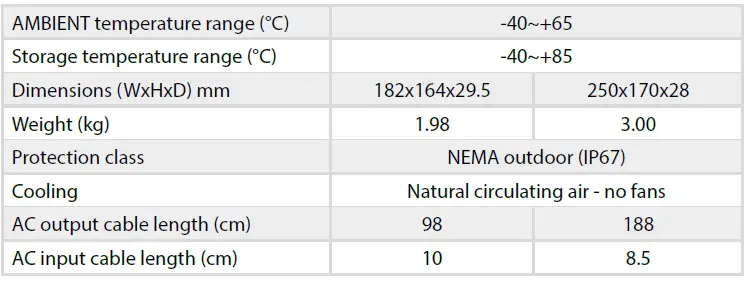

Mechanical data
Manufactured for
Technaxx Deutschland GmbH & Co.KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany WEEE-Reg.-Nr. DE94626913 www.technaxx.de
Prod ID. 5012 Prod ID. 5013
