Instruction Manual

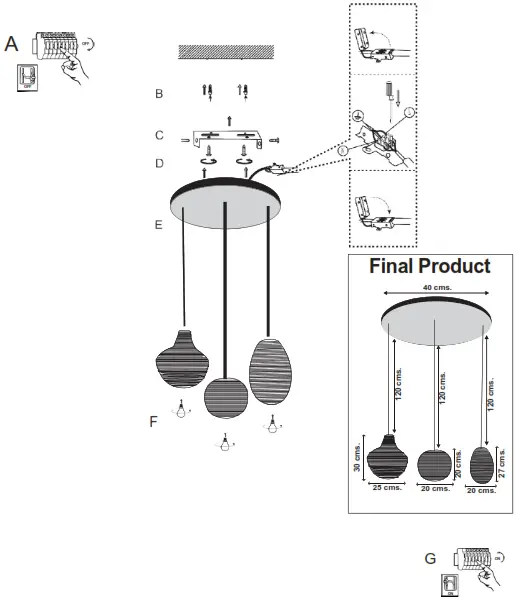

Sarella HL 3 Black Gold Copper Round
104537

SAFETY INSTRUCTION

Please study the instruction manual and below information carefully before installing or using this product. Please keep this user manual for further reference

1. The luminaires may only be installed by authorized and qualified technicians according to the valid regulations for electrical installation.
2. Maintenance of the luminaires is limited to their surfaces. During maintenance, no moisture can come into contact with any areas of the terminal connections or voltage control parts.
3. The electrical supply must be switched off at the outset, preferably by means of o switch in the distribution box, before any installation, maintenance, or repair work is undertaken.
4. Exterior lighting must not be installed during rain.
5. Take into account the minimum separation distance from other objects and the room required around the fitting.
6. If in any doubt, consult o professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.
7. Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V low voltage conductors.
8. When replacing a halogen lamp, wait for it to cool, for a minimum of 5 minutes.
9. Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical components
10. Take account of all available technical information.
11. Take note of the symbols when connecting wires:
    N =Neutral  L =Live  =Earth

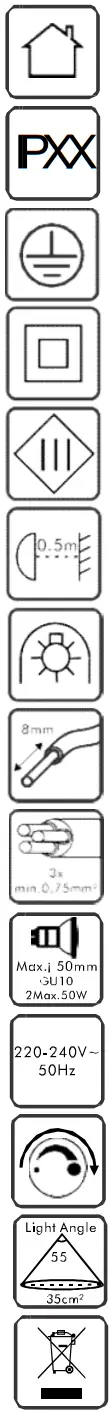

12. Meaning of symbols:

	For indoor use only, where direct contact with water is impossible
	This icon indicates the level of water-proof and dust-proof
	Protection Class I: the fitting must be earthed
	Protection Class II: the fitting is doubled insulated and does not require earthing
	Protection Class Ill: the fitting is low voltage
	Minimum distance from lighted objects (meters)
	Only the self-shielded halogen lamp should be used with the luminaire
	Strip the wire to the indicated length (mm); different items require different lengths
	Connect using the specified cable; different items require different cables
	The type of lamp and maximum size and wattage indicated in each lighting unit must not be exceeded; different items require different kinds of light sources with different bulb icons
	The armature is designed to work only with the indicated voltage. Different items require different working voltages.
	The luminaire can be used in combination with a dimmer
	The reference light angle and light space of the luminaire
	This luminaire cannot be disposed of together with normal domestic waste in standard rubbish con, but you have to bring it to a staging area for electrical waste

Fittin Q B.V.
Smarogclweg 52, 5527 LB Hapert, The Netherlands
