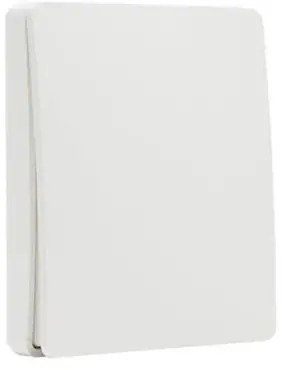

Kinetic CUL 40030 Series Wall Switches

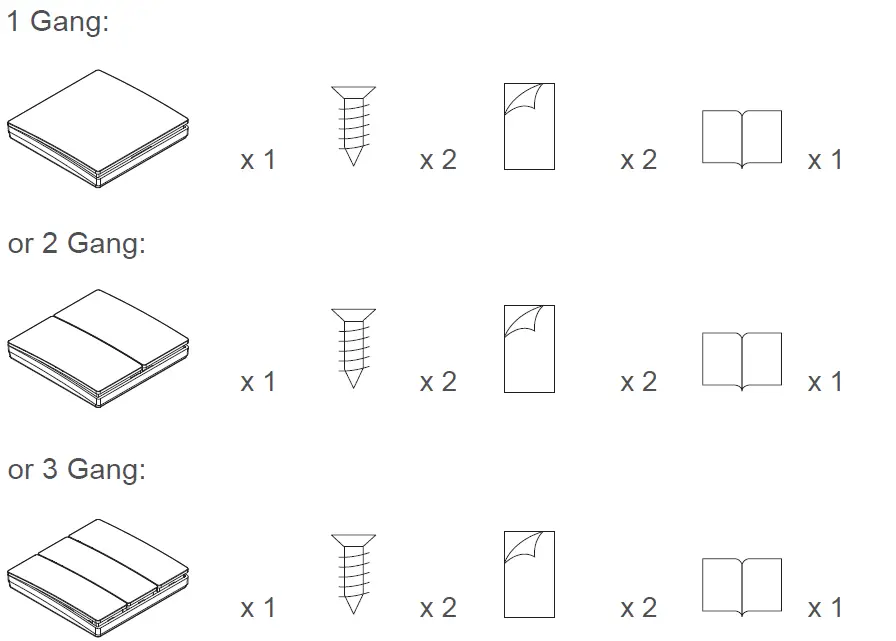

What is in the box
Specifications

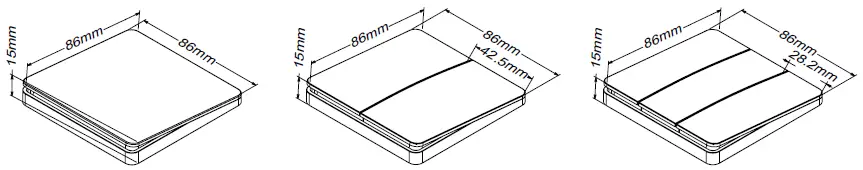

Dimensions
Power Source:
Self Powered (Kinetic)
Radio Frenquency:
433 MHz
Switching Type:
Push Switch
Dimming Type:
Push Selected Only available on 2 Gang Switch
IP Rating:
IP42
Body Material:
Polycarbonate
Transmission Range:
Outdoor 150m (no barrier) Indoor 25m (plaster board; drywall) Indoor 12m (concret, glass walls) (Range may vary depending on surrounding situation)
Installations
Screw Installation

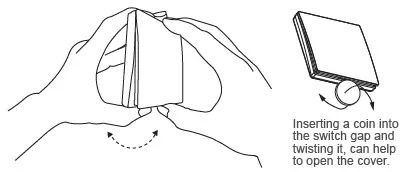

- Remove front cover
- Fix to back box
- Reinstall front cover;
- Installation Completed
Surface Installation
- Remove sticker cover;
- Apply to the switch
- Clean the surface
- Attach the switch to surface.

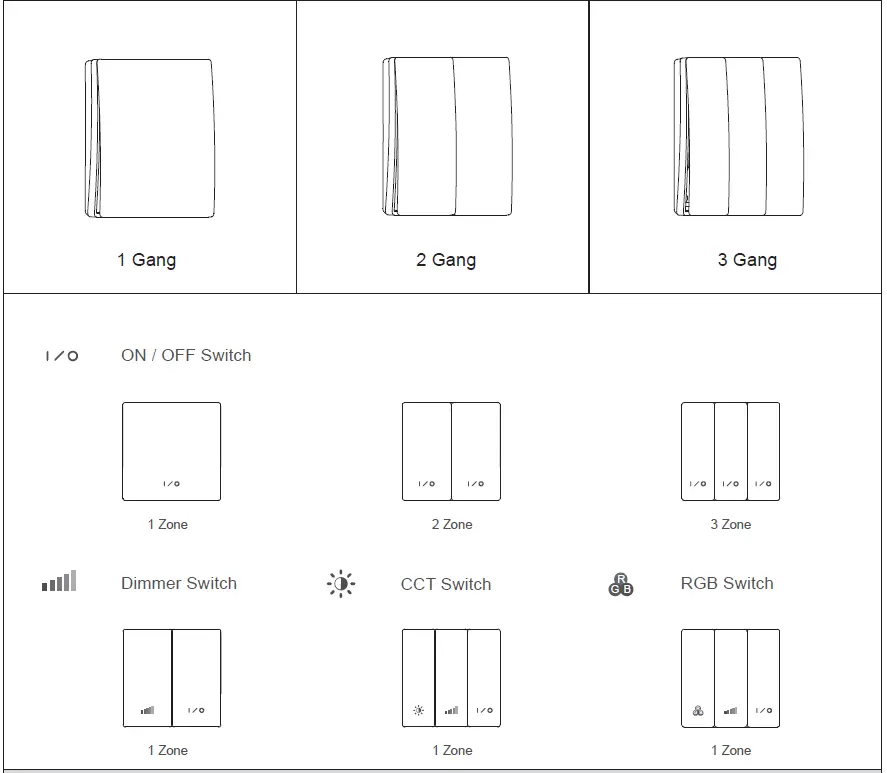

Operation

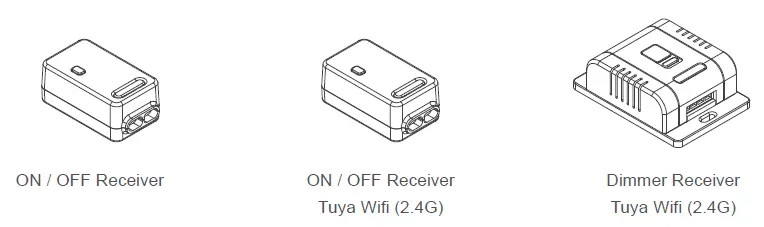

Compatible controllers (Order seperately)
