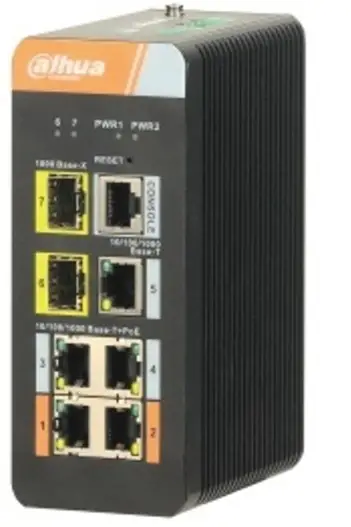

dahua DH-PFS4207-4GT-DP 7-port Gigabit Industrial Switch
System Overview
The device is a layer-2 switch. Equipped with high performance switching engine and large buffer memory, it features low transmission delay and high reliability. The solid and sealed all-metal case design and efficient surface heat dissipation make it can work in the environment from –40 °C to +75 °C. The protection for power input end overcurrent, overvoltage and EMC can effectively resist the interference from static electricity, lightning, and pulse. Redundant power supply guarantees stable operation for the system. With Telnet, WEB management, SNMP and other functions, the device can be remotely managed. It can directly connect to iLinc’s-View.
Functions

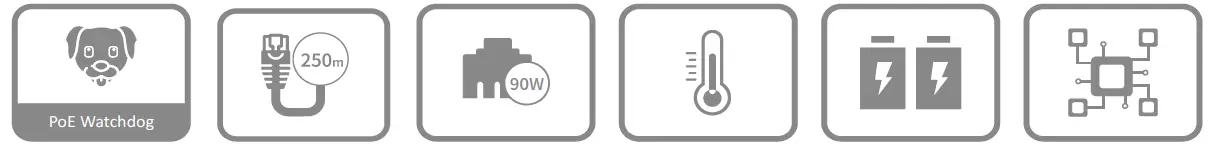

PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long-distance PoE
By dialing or enabling long-distance transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the
requirements of wired transmission (bandwidth reduced to 10 Mbps).
Red Port 90W
The red ports support IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt standards, with a maximum output power consumption rate of 90W per
port. Suitable for powering high-power devices.
Wide Operating Temperature
Supports working in temperatures between -40 °C to +75 °C. It has built-in professional mine-proof circuits, which effectively reduce the impact of thunderstorms on network systems and improves system robustness, allowing it to readily adapt to harsh environments.
- * The parameters and datasheets below can only be applied to V2.0 (version 2.0)
- All-gigabit port design
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt(red port) standards
- 250 m long-distance PoE transmission (10 Mbps)
- PoE Watchdog
- Supports STP, RSTP, and MSTP
- IEEE802.1Q-based VLAN configuration
- Manual link aggregation and static LACP
- Wide voltage design (9 V–57 V)
- Desktop mount and DIN-rail mount
Redundant Power Supply
Redundant power supply ensures that the device is still powered when one power port malfunctions, vastly improving device reliability.
Fast Loop Convergence
Supports ERPS protocol to provide loop protection. Convergence time can be no more than 50 ms when a link disconnection occurs.
Scene
The device is applicable for use in different scenarios, including corridors and offices.
Technical Specification
| PoE | Yes |
| Ethernet Port | 5 |
| Optical Port | 2 |
| Ethernet Port Speed | 10 Mbps/100 Mbps/1000 Mbps |
| Optical Port Speed | 1000 Mbps |
| Console Port | 1 |
| Power Supply Mode | 48 V–57 VDC (Power supply module not included) |
| Operating Temperature | –40 °C to +75°C (–40 °F to +167 °F) |
| Operating Humidity | 10%–90% (RH) |
| Power Consumption | Idling: ≤ 9 W Full load: 120 W |
Performance
| Layer | L2 |
| Managed | Yes |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 10.42 Mpps |
| Packet Buffer Size | 1.75 Mbits |
| Communication Standard | IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x; IEEE 802.3z |
| MAC Table Size | 4K |
Function
| PoE Protocol | IEEE 802.3af (PoE); IEEE 802.3at (PoE+); Hi-PoE; IEEE 802.3bt |
| PoE Power | Port 1-2: ≤ 90 W Port 3-4: ≤ 30 W Total: ≤ 120 W |
| PoE Power Consumption Management | Power consumption management PoE power on and off Power off when PoE power is overloaded Green PoE |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE Transmission | Yes |
| Jumbo Frame | 9,000 bytes |
| Spanning Tree Protocol | ERPS |
| VLAN Function | 802.1Q |
| Flow Control | Full-duplex flow control (back pressure) Full-duplex flow control (PAUSE) |
| Link Aggregation | Static link aggregation; LACP |
| Port Mirroring | Multiple-to-one port mirroring |
| Multicast | Yes |
| DHCP Function | DHCP client DHCP-Server DHCP-Snooping |
| Security | User management HTTPS SSH SNMP V1/V2C/V3 ACL 802.1x Loop protection |
| QoS | CoS/DPL based QoS 8 output queue for each port Port shaping SP, WRR queue scheduling DSCP-based QoS |
| Maintenance | Uploading/downloading configuration files Online upgrade System logs |
| Device Management | Web; SNMP; CLI |
General
| Statics Protection | Air discharge: 15 kV Contact discharge: 8 kV |
| Lighting Protection | Common mode: 6 kV Differential mode: 4 kV |
| Net Weight | 0.65 kg (1.43 lb) |
| Gross Weight | 2.8 kg (6.17 lb) |
| Product Dimensions | 94.4 mm × 53.5 mm × 135 mm (3.7” × 2.11”× 5.31″) (L × W × H) |
| Packing Dimensions | 254 mm × 187 mm × 101 mm (10.00” × 7.36”× 3.97″) (L × W × H) |
| Ordering Information | ||
| Type | Model | Description |
| SFP module | GSFP-850-MMF | 1.25G, 850 nm, 550 m, LC, Multi-mode |
| GSFP-1310-20-SMF | 1.25G, 1310 nm, 20 km, LC, Single-mode | |
| GSFP-1310T-20-SMF | 1.25G 1310/1550 nm, 20 km, LC, Single-mode | |
| GSFP-1310R-20-SMF | 1.25G 1550/1310 nm, 20 km, LC, Single-mode | |
| Power Supply Module | DRL-48V120W1AA | 120 W, 100–240 VAC-48 V 2.5 A |

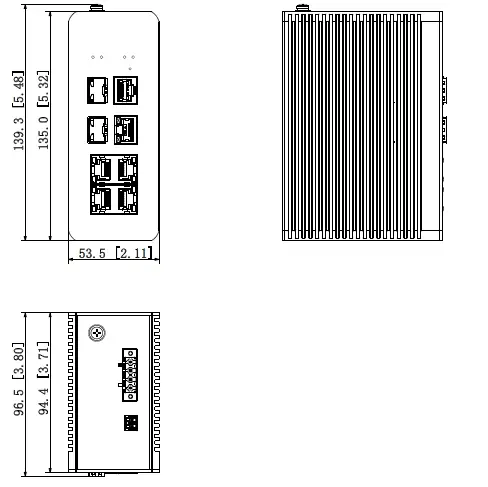

Dimensions (mm[inch])

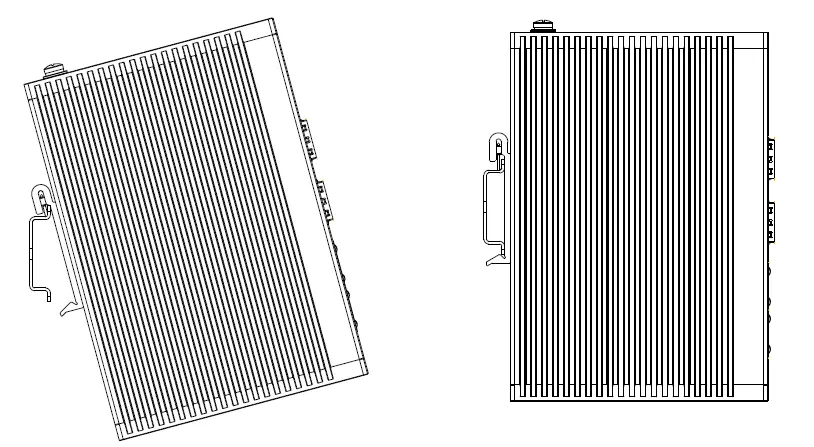

Installation
