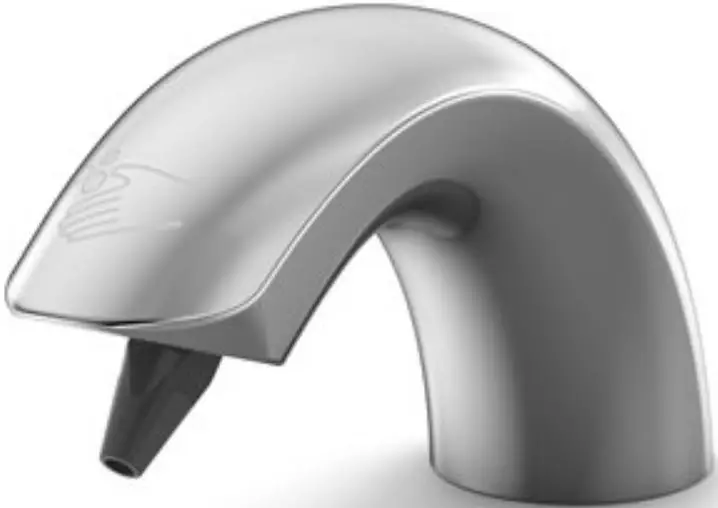

TOTO TES205AA#CP Auto Soap Dispenser 3 Spout Controller and Tank Reservoir User Manual

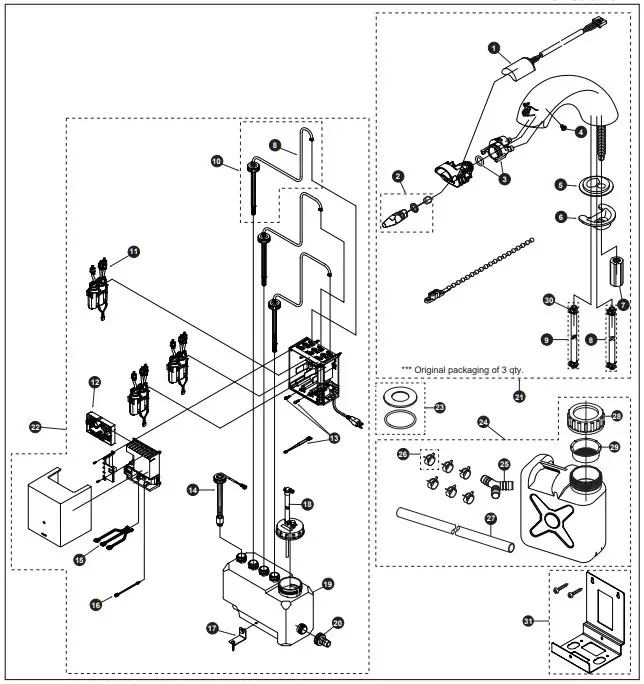

Part Description
| Item | Part | Description |
| 1 | THP3337 | Sensor |
| 2 | THP3338 | Spout nozzle |
| 3 | THP3363 | Soap Mixing Chamber |
| 4 | THP3339 | Screw M3x4 |
| 5 | THP3340 | Rubber Gasket |
| 6 | THP5369 | Washer |
| 7 | THP5370 | Mounting Nut |
| 8 | THP3341 | Clear soap hose (L=78-3/4”, 2000mm) |
| 9 | THP3342 | Blue air hose (L=66-15/16”, 1700mm) |
| 10 | THP3343 | Tank joint |
| 11 | THP3344 | Soap and air pump |
| 12 | THP3391 | Controller board |
| 13 | THP3346 | Ground wire w/ screws |
| 14 | THP3347 | Float switch |
| 15 | THP3348 | Sensor sockets |
| 16 | THP3349 | Float switch connector |
| 17 | THP3350 | Soap tank bracket set |
| 18 | THP3353 | Air deflation hose set |
| 19 | THP3354 | Soap Tank |
| 20 | THP3355 | Coupling cap |
| 21 | TLK03001G#CP | Spout*** |
| 22 | TLK01107UA | Controller |
| 23 | THP3140#CP | Escutcheon for 1-1/8”~1-1/2” (28~38mm) hole |
| 24 | TLK01401U | Sub Tank |
| 25 | THP3369 | Y-Shaped Nipple |
| 26 | THP3370 | Hose Clamp |
| 27 | THP3371 | Connecting Tube, 16.4’ (5 m) |
| 28 | THP3372 | Cap, Sub Tank |
| 29 | THP3373 | Strainer, Sub Tank |
| 30 | THP3365 | Hose Clamp |
| 31 | THP3374 | Mount Bracket |
