Liquid Soap Dispenser
Instruction Manual
Installation instructions for HALO soap dispenser
Box Contents:
- 1 Dispenser
- 1 Opening Key
- 4 Fitting Screws and Plugs
Tools Required:
- Drill
- Screwdriver

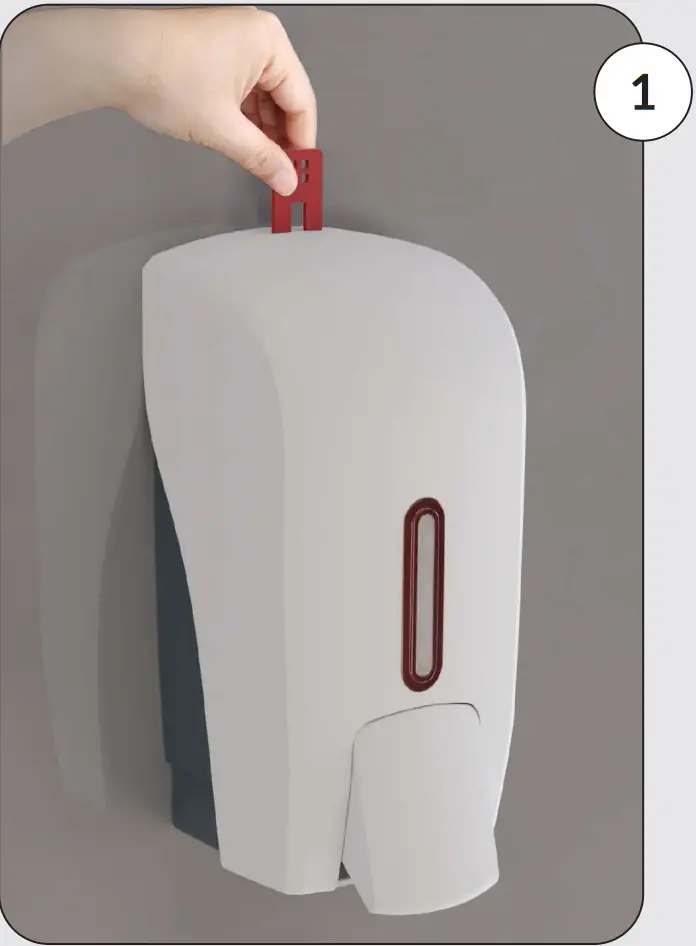

Open the unit with the key provided.

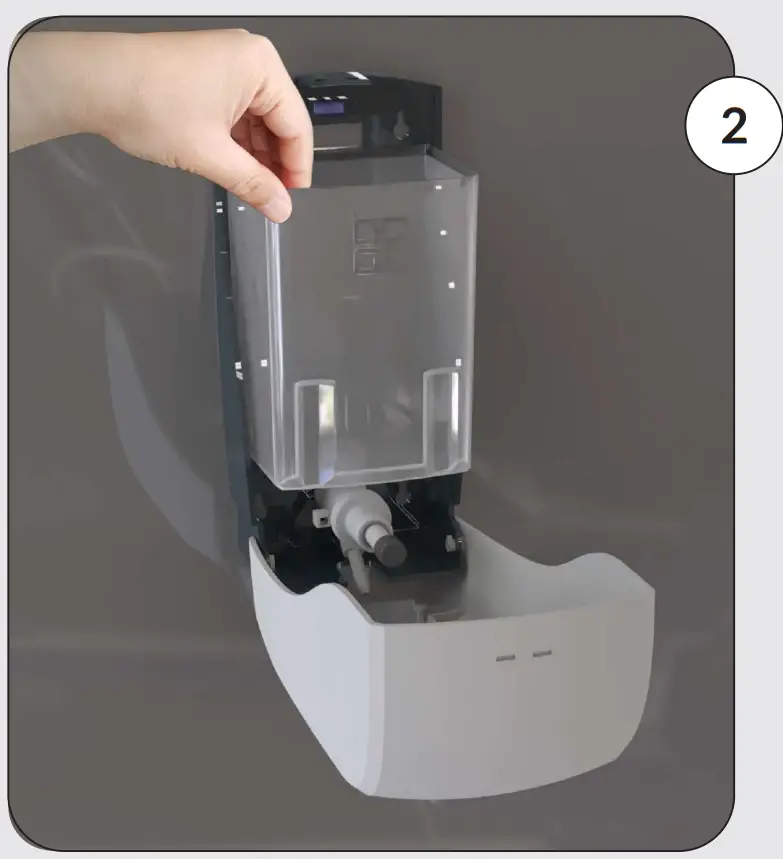

Remove the reservoir and put to aside for installation.
Mark out the holes for fixings.

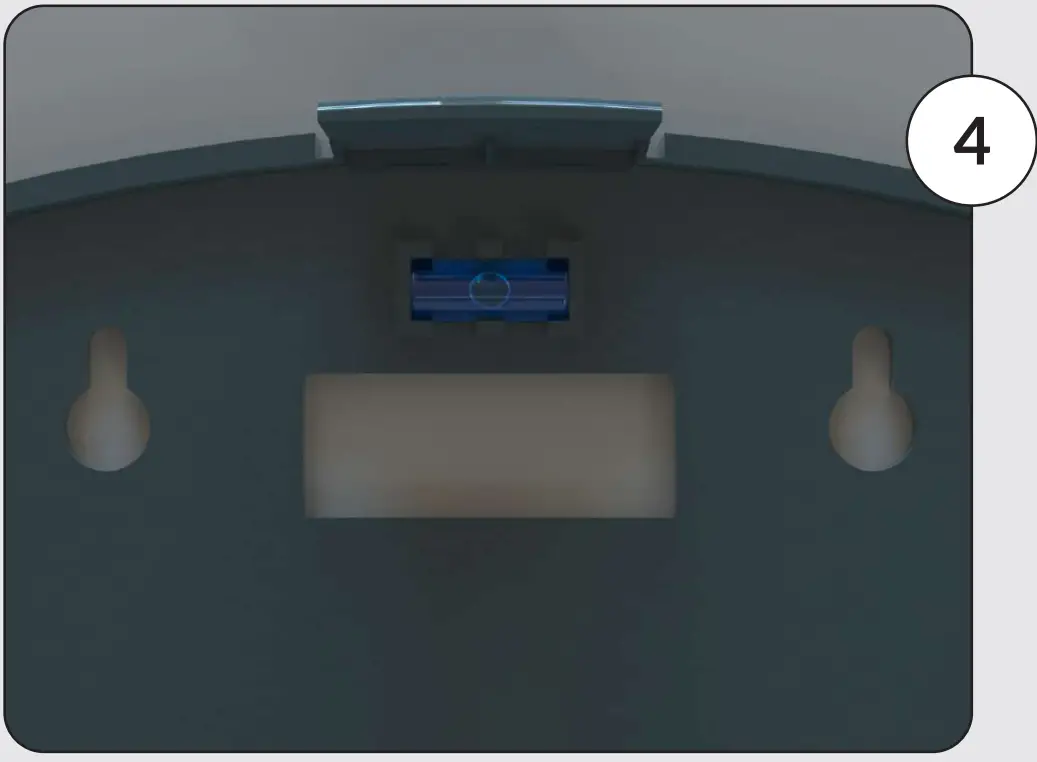

Please see the pre-installed spirit level to aid installation.

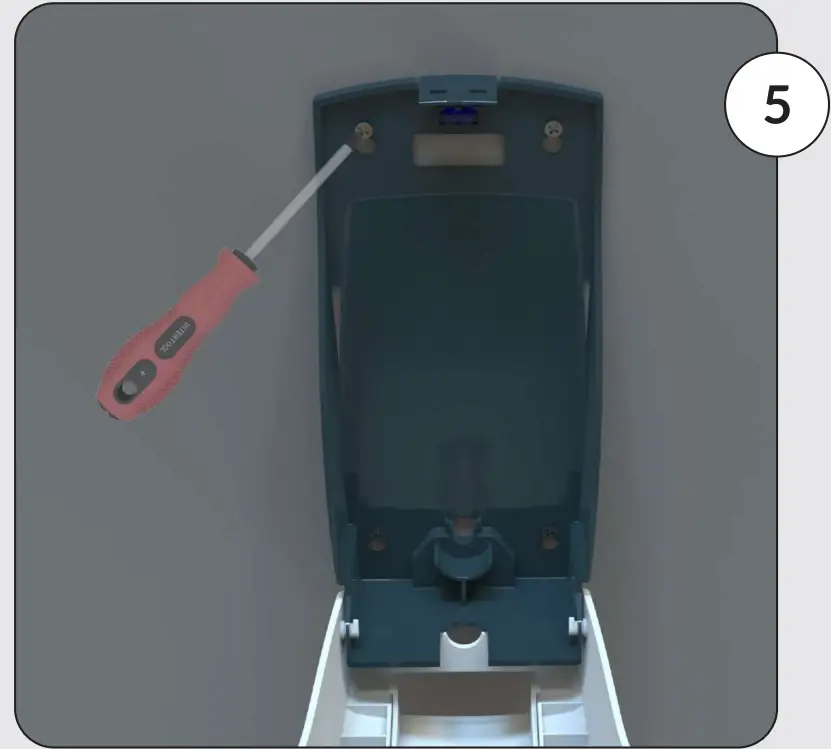

Drill the marked-out holes to the size of the fixings provided then use a screwdriver to fix the unit to the wall. The unit should be hand-tight to the wall.

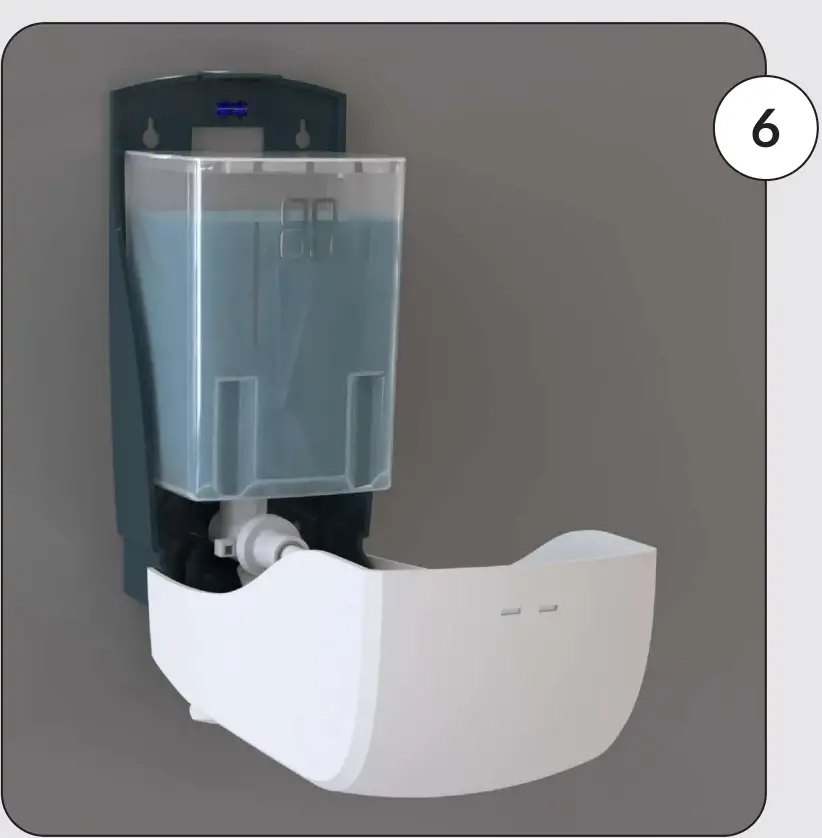

Reattach the reservoir and fill it with the relevant product to the pump supplied.

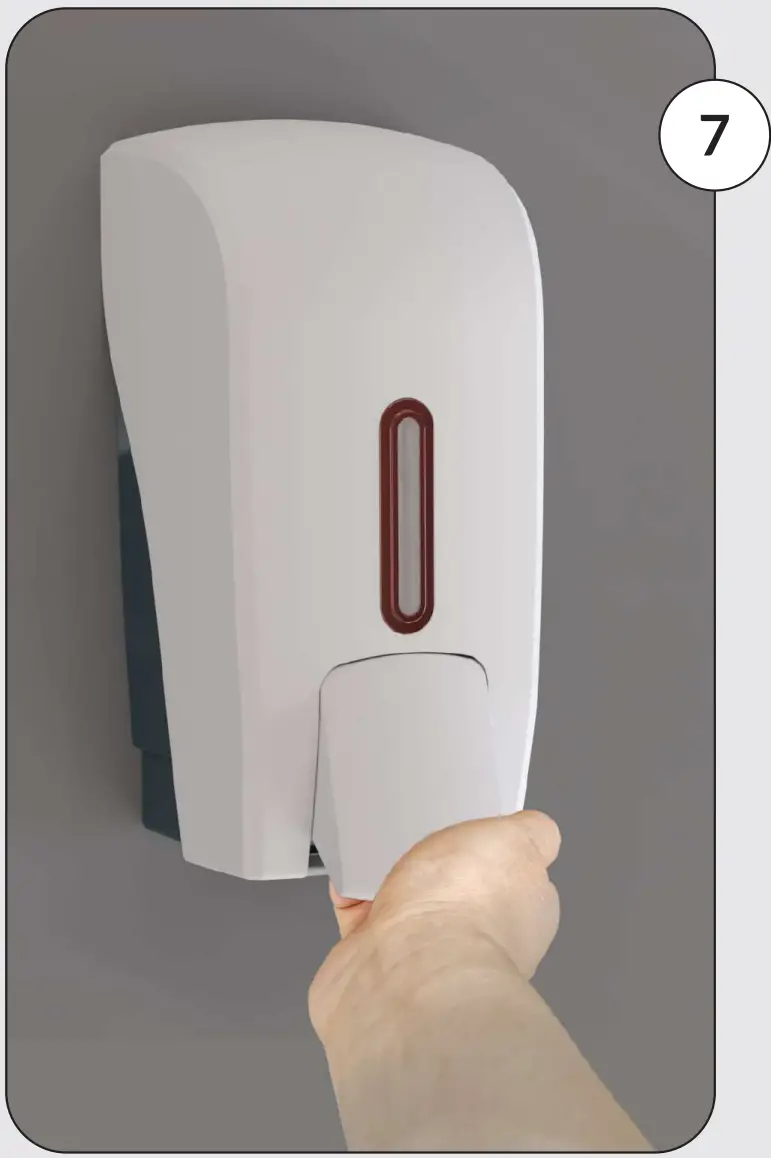

Prime the dispenser by pushing the button, after a few pumps, the soap should start to flow, and the unit is ready to be used.
