HUBERT Automatic Soap Dispenser Stand User Manual
Check all components
| Part | QTY |
| Soap dispenser | 1 |
| Base | 1 |
| Pole | 3 |
| Drip tray | 1 |
| Paper bill board | 1 |
| Black plate | 1 |
| Screw accessories | 1bag |
| Key | 1 |
| Tableting | 1 |

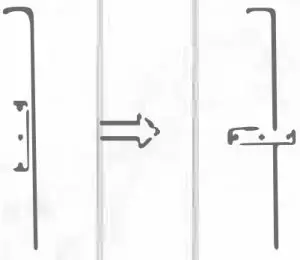

Step 1
There is a tabletting whcih above the stainless steel tube, rotate it 90 degress,
make it as·+· shape.

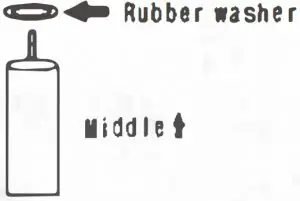

Step 2
There are 3parts of poles(up+mlddle+down), put a washer between each pole.connect them by fully lightened all the bolts.

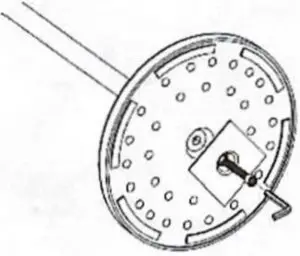

Step 3
Make the screw hole end the tube aim at the screw hole on the platform, and insert the big steel plate.use the large hexagon screw fix It.
Step 4

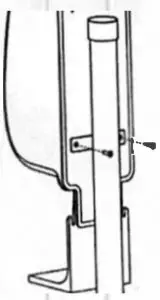

Install the soap dispenser into the top of the stainless steel tube, aim at the screw hole on tab letting and use the screw fix It.

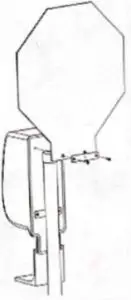

Step 5
Make the screw hole downside the billboard aim at the screw hole on the top of stainless steel back plane, use the tab letting and screw fix it.
