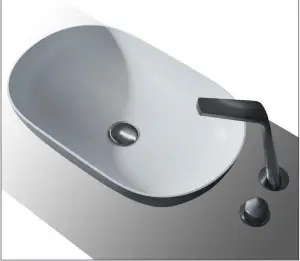

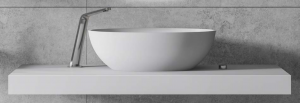

WASCHTISCHARMATUR XELO-Flex
MONTAGEANLEITUNG – IIII / 2020
ASSEMBLY INSTRUCTIONS
PARTS LIST

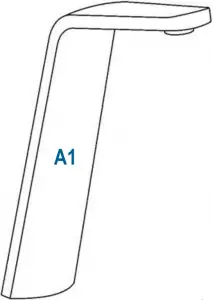

A1 Water tap big
A2 Faucet rosette

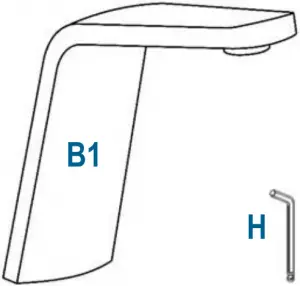

B1 Water tap little

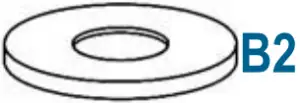

B2 Faucet rosette

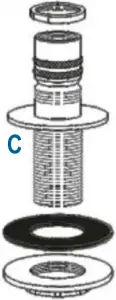

C Outlet attachment 1
D Connecting hoses 3
E Mixer tap 1
F Cartridge rosette 1
G Mixer knob 1
H Installation tool 1
Please rinse the pipes before installation. Impurities can cause errors in the function of the valve.
2

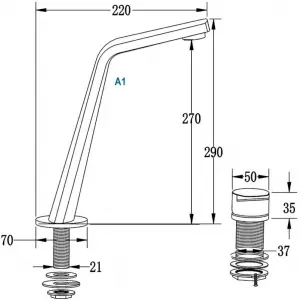

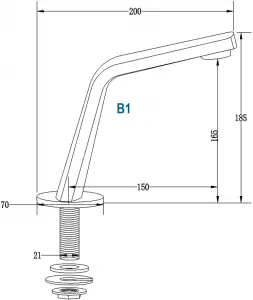

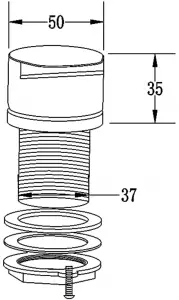

TECHNICAL DRAWINGS
3

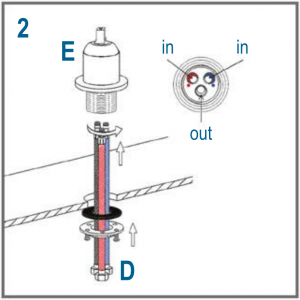

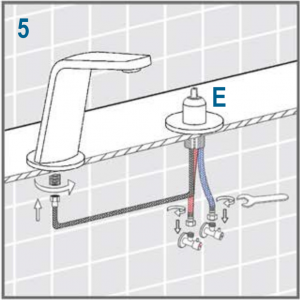

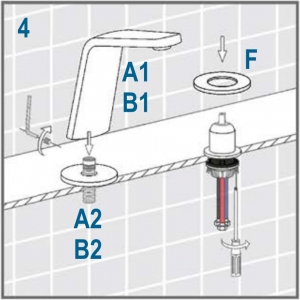

Maintenance Advice
Before you start: ATTENTION
Please read these instructions carefully before starting the installation. Incorrect assembly can have consequences that are not covered by the guarantee.
If the water flow is low, this indicates foreign bodies in the fitting or one of the inlets.
Please only use a soft cloth for cleaning and do not use harsh cleaning agents.
4
Disclaimer of Warranties
No guarantee is given for damage caused by the following reasons:
- Cut and scratch marks
- Normal wear and tear
- Improper use
- Failure to follow the descaling instructions
- Lack of care
- Broken glass
- Failure to follow these operating instructions
- Repairs not carried out properly
- Installation of a non-original version corresponding spare parts
The guarantee claim extends exclusively normal, intended use.
