Radtel Rt12 Walkie Talkies Two Way Radio User Guide

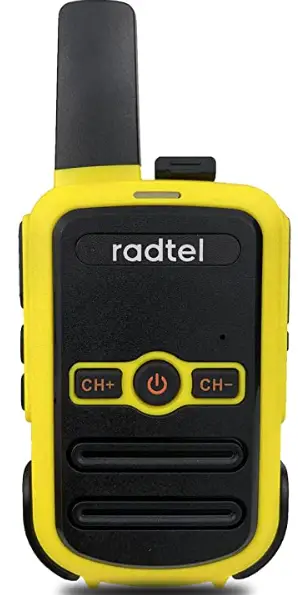

Radtel RT12 Walkie Talkies Two Way Radio

INTRODUCTION

• Xiamen Radtel Electronics Co.,Ltd thank you for the trust deposited in this product, we are convinced that it will be highly pleased with the quality and operation functions of this equipment.
• For a use of the sure equipment, read in a complete way these instructions manual.
• This transceiver has been manufactured for users that specify a equipment of communication of easy operation, of the highest quality and yield besides excellent reliability.
• The transceiver that he has just purchased has been manufactured of agreement with a strict quality control of the manufacturing company.
• This equipment is given in a packing that muffles the blows and vibrations of the transport, guaranteeing this way an excellent state in the acquisition moment.
• After retiring the packing, verify that the equipment or their accessories are not damaged. In the event of doubt it doesn’t use and contact the Technical Service or distributor.
• The packing materials (plastic bags, etc.), they should not be left within reach of the children, since they are a potential danger source.
• The manufacturer and the salesperson decline any responsibility for derived damages of an inadequate, incorrect or imprudent use of the equipment.
• It is important to stress that some of the functions of the equipment are explained in relation to information given in remote or previous chapters, if you only read some concrete parts of this manual, he will take a risk to not understanding the complete explanation of the functions of those that it prepares the equipment.
• Attention to the notes included in the sections squares shady.
• Make sure of understanding all the indications of this manual correctly.
• Keep this manual for future consults.
• The equipment reparations or internal adjustments should always be carried out in a Technical Authorized Service.
• Equipment internal manipulation, alteration or change of the technical characteristics performed by personnel unaware to the Technical Service, it invalidates the guarantee.
• This equipment has come out of the distributor’s warehouses under technical use conditions adapted to the effective country legislation of use this transceiver. To change this characteristic, to carry out internal adjustments or not authorized modifications can take to illegal use of the equipment constituting an infraction sanction as well as to generate interferences that can harm other legally-established communications.
• Improper use of this equipment is the exclusive responsibility of the user.
• Free use transceiver, it is not necessary administrative authorization or licenses for its use and it is dedicated to be used in the following EU countries.
  Notes
  • The transceiver operation can be prohibited in certain places or enclosures; follow the use restrictions.
  • Follow the country legislation in the use of transceivers radiocommunications.

WARNING

• Only use this equipment for the end that this has been manufactured. The manufacturer and the salesperson won’t accept any responsibility and the guarantee will invalidity in the event of inadequate use of the transceiver.
• This equipment doesn’t have components that the user can repair. Always consult to the Authorized Technical Service for any repair.
• It should not put into operation equipment nor turned off it installing and removing the battery pack. Always use the ON/OFF control.
• Install the battery pack and the accessories (optionals) correctly, according to the indications given in this instruction manual.
• Never transmit with the transceiver if the anttena is damaged.
• Don´t transmit with the transceiver for extended period of time.
• Don´t touch the antenna with the hand or with any part of the body when the equipment is transmitting.
• In the event malfunction of the transceiver or of their battery charger (scent to burnt, smoke, etc.), turn off it immediately or disconnect the battery charger of the AC wall outlet and consult to the Technical Service.
• Don’t introduce any object for the holes of the speaker or for the transceiver connectors.
• If it uses an external headset (optional), reduce to the possible the maximum volume level; avoid levels of very high audio.
• Don’t expose the equipment or the battery charger direct to the water, direct to the sunlight for an extended period of time, not place near a heat source (radiators, etc.) to blows, to the powder excess or dirt, to the fire, to explosive or another type of dangerous conditions. Don´t stored the transceiver inside a vehicle that is parked in the sunlight.
• Avoid the humidity condensation. The air humidity is deposited in the transceiver when place of a cold atmosphere to other warm, making that the equipment doesn’t work correctly. If condensation takes place in the equipment, clean a dry cloth and wait to that dries off to light it.
• Don’t place anything on the transceiver that can spill out on the same one.
• If the transceiver caused interferences in the video recorder, DVD, radio and television receiver, or to any other electronic equipments, take it away from the apparatus in question.
• Don’t use this transceiver in the vicinity of other electronic equipments, especially next to medical equipments. It can cause interferences in other equipments.
• Turn off and do not use the equipment in areas where their use is restricted or prohibited (e.g. coal gas , areas with explosion atmosphere, areas where it can interference the operation of other equipment, onboard airships, airports, etc.).
• Don’t operate this transceiver while it is driving a vehicle, use hands-free systems (“VOX” function) and respect the traffic police indications.
• To clean the equipment and/or the battery charger being OFF and with an antistatic cloth (preferably) or a humid (not wet) cloth.
• Don’t pulverize directly with any liquid or product on the transceiver, battery pack or battery charger and never use for their cleaning polish home products, detergents, Alcohol or solvent.
• Don’t use for cleaning a dry cloth, it could cause static sock.
• The use of not compatible accessories with the transceiver could limit the operation of the transceiver, and even to damages invalidating the guarantee.
• Explosion risk if it replaces the battery pack for an incompatible one.

Approved Accessories

For a list of Radtel-approved accessories for your radio model, scan the QR code on back of the manual.

Function Operations

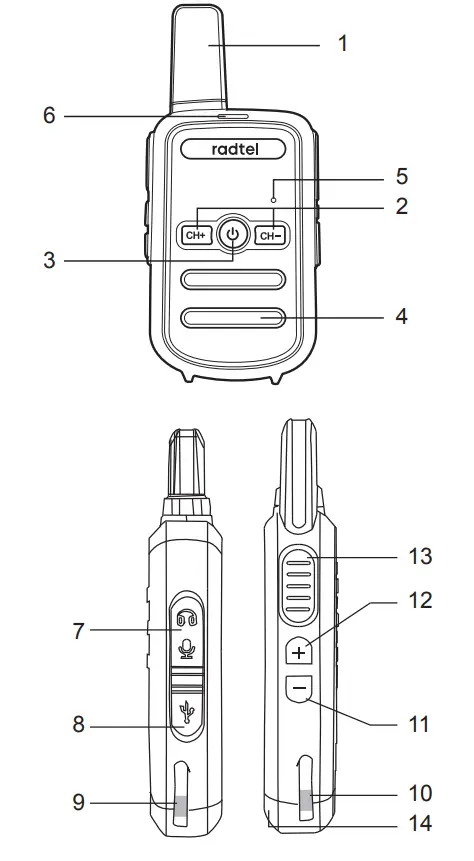

Main controls and parts of the radio

1. Antenna
2. Channel adjust : press CH+ or CH- to select the desired channel
3. Power button- Long press to power on and long press again to power off.
4. Speaker
5. Built-in microphone
6. Led indicator: RED: TX; GREEN: RX.
7. Earphone/microphone or Programming port
8. Charging Port
9. Desktop charger connector(left)
10. Desktop charger connector(Right)
11. Reduce the volumn or long press to lock keypad
12. Increase speaker’s volumn or long press to open squelch
13. pTT: push this button to transmit, release it to receive.
14. To Open back plastic cover

Main characteristics

• PMR446 Transceiver
• Voice annunciation
• Output power: ≤ 500Mw ERP
• Channel spacing:12.5KHz
• Scan
• TOT
• Busy channel lockout
• Battery save
• Monitor
• Squelch
• VOX function
• Low battery warning
• CTCSS/DCS

All articles displaying this symbol on the body, packaging or instruction manual of same, must not be thrown away into normal disposal bins but brought to specialised waste disposal centres. Here, the various materials will be divided by characteristics and recycles, thus making an important contribution to environmental protection.

Compliance with RF Exposure Standards

This two way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All RADTEL two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.who.int/en/

Local Government Regulations When two-way radios are used as a consequence of employment, the Local Government Regulations requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Retevis two way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.

Radio License Governments keep the radios in classification, most of the classified walkie-talkies need to get local government License, and operation is allowed. The detailed classification and the use of your two radios, please contact the local government radio management departments. For the following specified classification: the USA/CA FRS, Australian CB, EU PMR446, the individual license is not required.

FCC ID The FCC ID means: This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is approved for occupational use only.

IC ID This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device The CE marking means: Hereby, Xiamen Radtel Electronics Co.,Ltd declares that the radio equipment type is in compliance with the RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU. The full text of the EU declaration of conformity is available in this manual or at the following internet address: www.radtel.com.cn

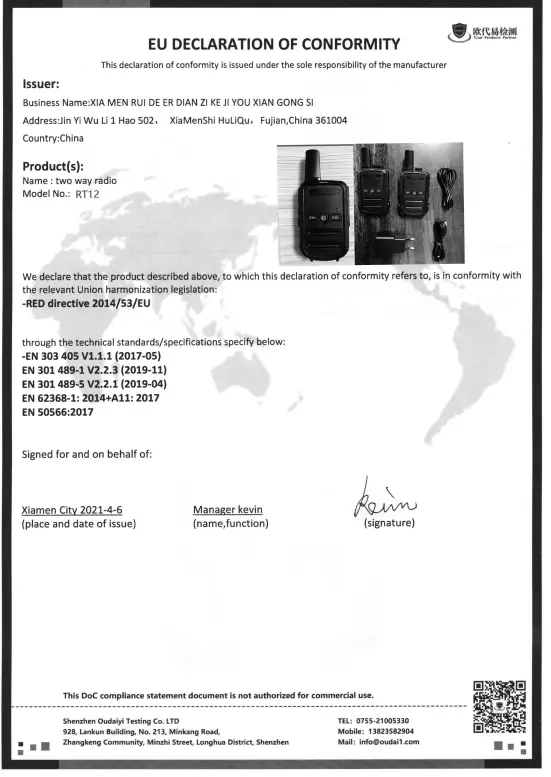

Declaration of conformity

FCC& RSS Warning

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment SAR tests are conducted using standard operating positions accepted by the FCC/ISEDC with the device transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. Before a new model is a available for sale to the public,it must be tested and certified to the FCC/ISEDC that it does not exceed the exposure limnit established by the FCC/ISEDC. Tests for each product are performed in positions and locations as required by the FCC/ISEDC. For body-worn operation, this device has been tested and meets the FCC/ISEDC RF exposure guidelines when used with an acessory designated for this product or when used with an accessory that Contains no metal. To maintain compliance with the FCC/ISEDC’s RF exposure guidelines, hold the transmitter and antenna at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away from the face. This equipment complies with FCC/ISEDC radiation exposure limits set forth for an uncontrolled environment In order to comply with the FCC/ISEDC RF exposure requirements, the antenna installation must comply with the following;

• Users must be fully aware of the hazards of the exposure and able to exercise control over their
• RF exposure to qualify for the higher exposure limits.
• Your wireless hand-held portable transceiver contains a low power transmitter. This product sends out radio frequency (RF) signals when the Push-to-Talk (PTT) button is pressed.
• The device is authorized to operate at a duty factor not to exceed 50%.
• This device complies with ISEDC licence-exempt RSS standard (s). Operation is subject to the following two conditions:

1. This device may not ause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

XIAMEN RADTEL ELECTRONICS CO.,LTD. 502, No.1, Jinyi Wuli, Huli, Xiamen, Fujian,China 361004
Web: www.radtels.com
Email: [email protected]
