User Manual
Thank you for purchasing the ZEB-VITA BT speaker. Please read this user manual carefully before operation & save it for future reference.
Note:
- Avoid the use of this product in a high-temperature and high humidity environment.
- Avoid self-disassembly of the product, or it will result in the failure of the warranty.
- Please charge the product with a power adapter output rated voltage DC 5V.
Features:
Wireless BT
Supports USB & SSD card
Built-in FM radio
AUX Input
Call function
Media / Volume control
Built-in rechargeable battery
Specifications:
| Output power (RMS) | 10W |
| BT Version | 5.0 |
| Driver size | 52mm |
| Speaker impedance | 3Ω |
| Frequency response | 100Hz-15kHz |
| S/N Ratio | ≥70dB |
| Max. Supported USB/SSD memory size | 32GB |
| Supported audio formats | MP3 |
| Charging time | 4 H |
| Playback time | 5 H* |
| Product dimension | 175 x 62 x 61.5 mm (W x D x H) |
| Net. weight | 440g |

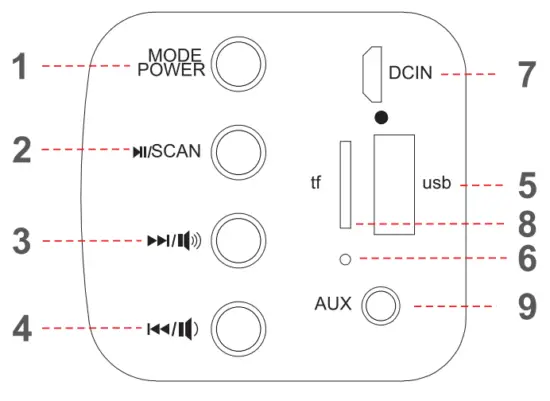

- Power / Mode Button
- play/Pause, Scan Button
- Next / Volume+ Button
- Prev. / Volume- Button
- USB port
- Microphone
- Micro USB Charging Port
- Micro SD card port
- AUX port
- Press the MODE button to change the input mode of the speaker.
- Short press the
button to change the Next track or channel when in BT mode or FM mode respectively. Long press the button to increase the speaker volume. - Short press the
buttons to go to the Previous track or channel in BT mode or FM mode respectively. Long press the button to decrease the speaker volume. - Press the
button to Play/Pause the track being played. Long press the same button to scan for FM channels in FM mode. - During calls, press the button to attend/end a call. Long press the button to reject an incoming call.
button to change the Next track or channel when in BT mode or FM mode respectively. Long press the button to increase the speaker volume.
buttons to go to the Previous track or channel in BT mode or FM mode respectively. Long press the button to decrease the speaker volume.Instructions for Use:
Charging the Speaker
- Connect the USB charging cable to the Micro USB Charging port of the speaker and insert the other end into a USB power source/adapter.
- Red LED glows indicating that the battery is being charged. The Red LED will turn off once it is fully charged.
Pairing your device with Bluetooth Speaker
- Power ON the speaker until you hear the indication tone for Bluetooth mode.
- Blue LED indicates that your speaker is now ON and is in pairing mode.
- Switch ON BT on your phone or tablet and search for nearby BT devices.
- Search for the BT name “ZEB-VITA” and tap to connect it.
Micro SD / USB mode
Connect the Micro SD card / USB device to the respective ports of ZEB-VITA and the speaker would automatically start playing songs from the Micro SD card/USB device.
AUX mode
Connect the speaker to an audio source (Phone/Laptop) using a 3.5mm to 3.5mm AUX cable. Once connected, change the speaker to AUX mode and thereafter audio can be streamed via the speaker from the connected source.
FM Radio mode
Switch the speaker into FM mode, and long-press the
button once to start scanning for FM channels. Once the scanning is complete, press the
button to change the channels.
TWS function (requires two speakers)
a. Keep both speakers in Bluetooth mode.
b. Press the play/pause button for 5 secs on either of the speakers and a notification tone for the TWS function can be heard.
c. Now switch ON the phone Bluetooth to search for “ZEB-VITA” and tap to pair it.
d. If you would like to disconnect the two speakers, press the Play/Pause button for 3 secs.
ISO 9001:2015 Certified Company
www.zebronics.com
