4 Tier Home Gym
Storage Rack
Assembly instructions UH7000

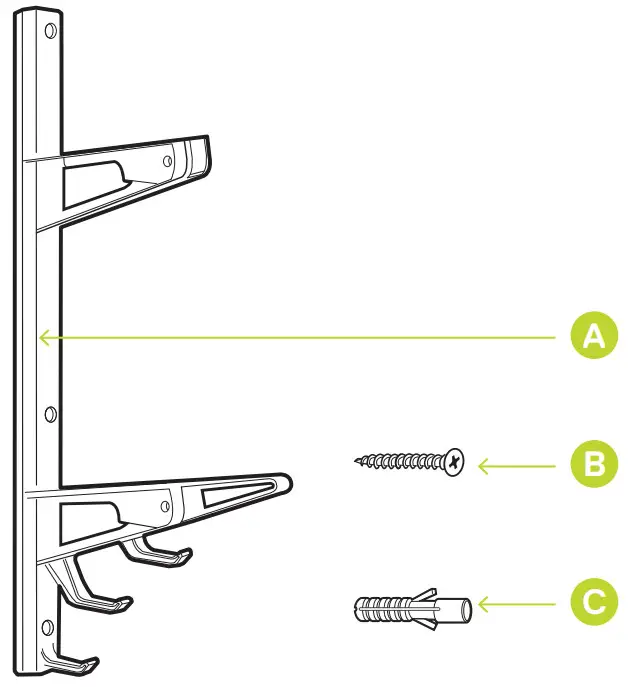

Parts
A x4 — Uprights with Arms
B x12 — Screws
C x12 — Drywall Anchors
Tools Required
| Hand Drill 10/32″ (8mm) for drywall |  |
| Spirit Level |  |
| Tape Measure |  |
Way of locating studs within the wall (see hardware store for advice)

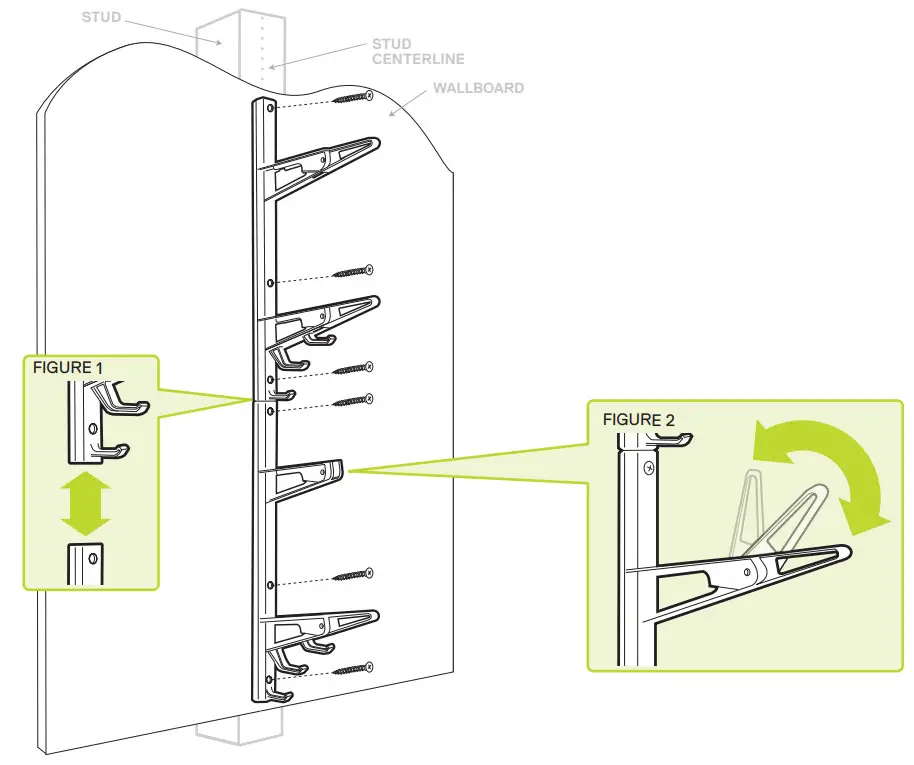

- Place uprights against located stud on wall and mark location for holes. Be sure top and bottom uprights are vertically aligned (FIGURE 1). Ensure the second set of uprights are horizontally aligned. Then secure the uprights to the wall using the screws provided.
NOTE: If a wall stud cannot be located using the included drywall anchors. Drywall anchors require 8mm pilot holes. Once holes are drilled gently tap drywall anchors into place, then secure uprights using the screws provided.
IMPORTANT SAFETY NOTE
Beware of drilling into electrical wire or pipes within walls! - Swing out arms as desired. (FIGURE 2) (Arms can be rotated to provide extra length for additional storage capacity)
WARNING
Do not allow children to play or hang from Rack.
Maximum weight on properly installed rack 60 lbs (27.2 kg) total 15 lbs (6.8 kg) per tier
Service: Please do not return to store; for an immediate response email [email protected]
