Refined Fabric Vertical Blinds
Thank you for choosing our Refined Fabric Vertical Blinds for your Residential or Commercial space.
In this guide, you will find useful information about installation, child safety, cleaning, and warranty when using your blind.
READ ALL INSTALLATION INSTRUCTIONS BEFORE INSTALLING
PLEASE KEEP FOR FUTURE REFERENCE / TROUBLESHOOTING
SUGGESTED TOOLS (not included)
 | DRILL 1/16″ drill bit, and 1/4″ hex driver |
| LEVEL | |
| PENCIL |
 | SCREWDRIVER Flat blade, Phillips, or 1/4″ hex driver |
| TAPE MEASURE | |
| LADDER |
THINGS TO CONSIDER BEFORE YOU BEGIN YOUR INSTALLATION
Your new blind is custom-made to your specifications from the finest fabrics available. The installation should be easy and your blind will look elegant.

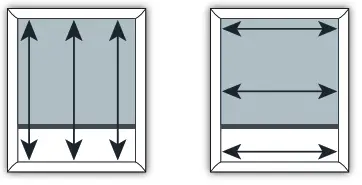

MOUNTING OPTIONS:
Inside mount (IB):
The Blind is mounted inside to the top of the window frame.
Outside mount (OB): The Blind is mounted either on or outside the window frame.
Mounting NOTES: Mounting screws provided are suitable for most mounting surfaces. See below for additional suggestions.
- For wallboard or plaster: Use hollow wall anchors for added support. (not included)
- For concrete, stone, brick or tile: Use an appropriate drill and appropriate anchors before fastening the screws. (not included)
- For metal surfaces: Pre-drill holes and use appropriate anchors before fastening the screws. (not included)
INCLUDED IN YOUR PACKAGE

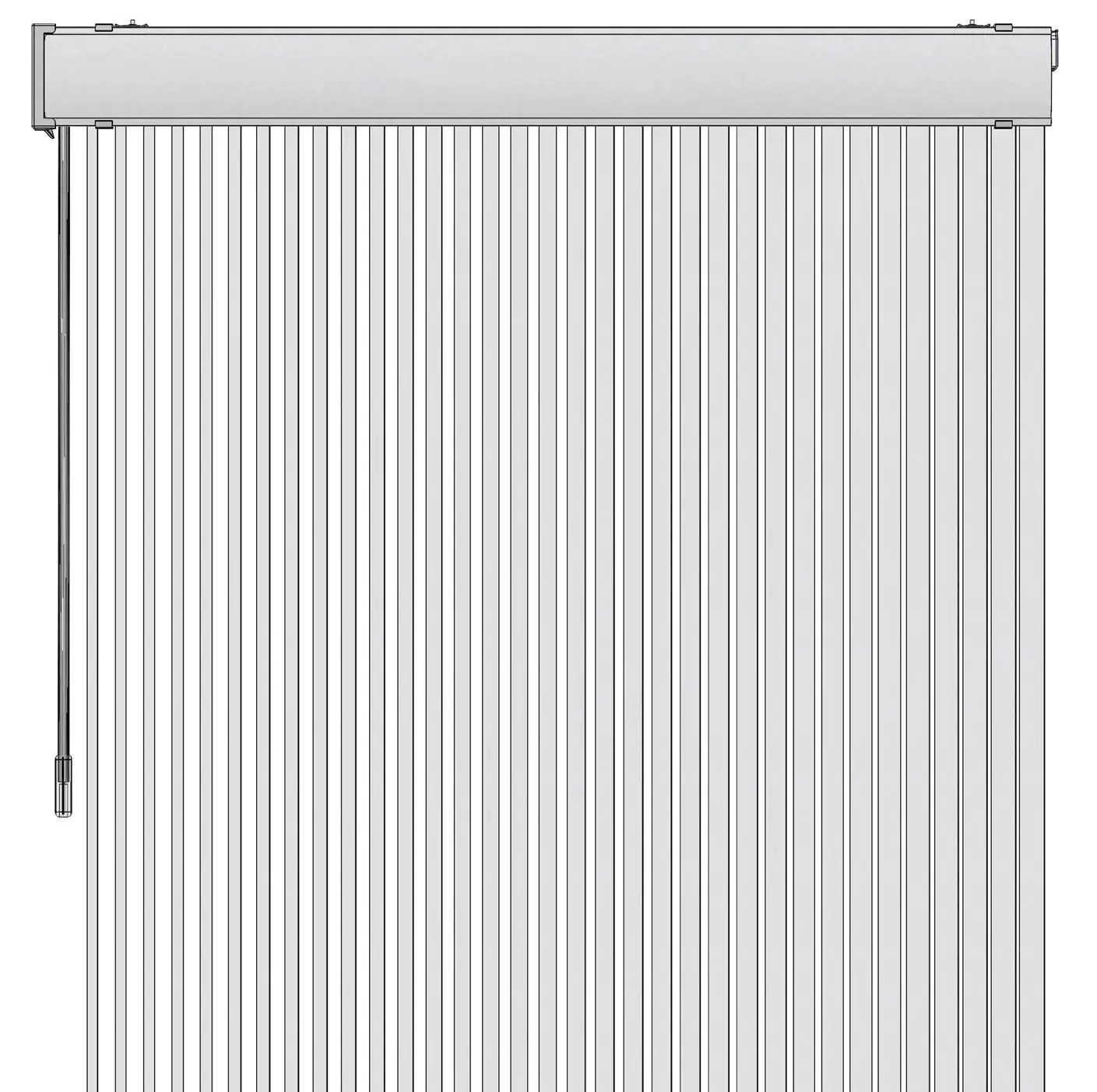

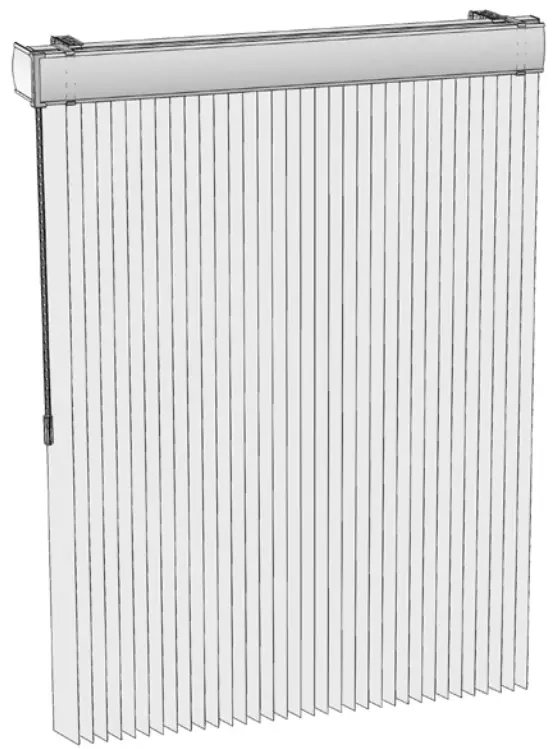

Refined Fabric Vertical Blinds
Mounting L Bracket
| Ceiling Clip |  |

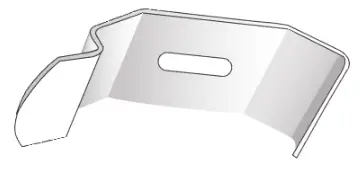

| Valance Clip |  |
| Screw & Nut Use to connect Ceiling Clip to Mounting L Bracket |  |
| Mounting Screw |  |
ILLUSTRATION
PLACEMENT AND INSTALLATION BRACKETS

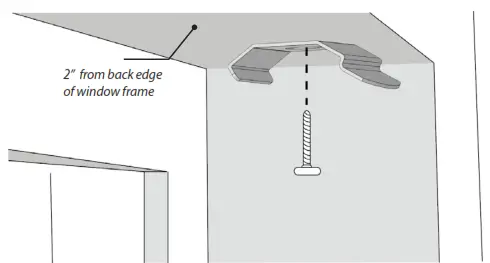

Inside mount: Mount ceiling brackets with a minimum of 2” from the back edge of the window sill.

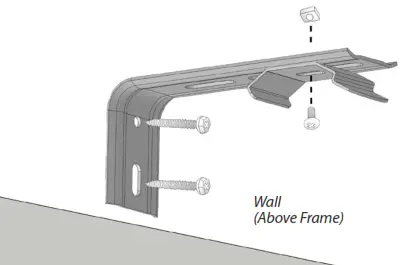

Outside Mount: Use wall anchors for a secure hold.
Mark the position of the L bracket as illustrated. You will need min 2” space to secure brackets.

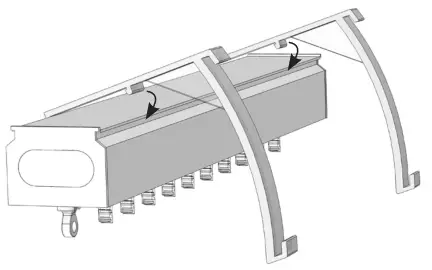

ATTACH VALANCE CLIPS ON RAIL

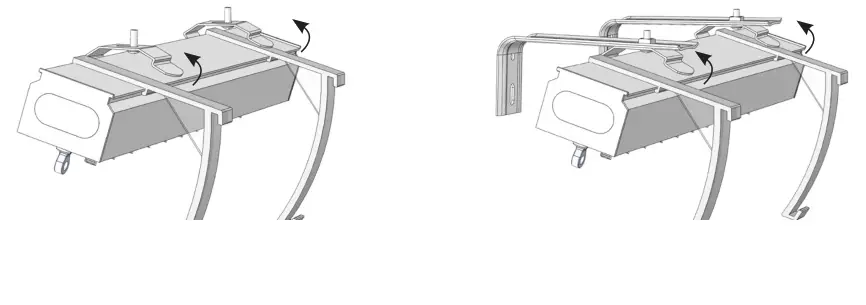

INSTALL HEADRAIL ON BRACKETS
- Insert headrail at an angle facing the window.
- Hook in back of bracket first and then push upward to snap it into the front of bracket.

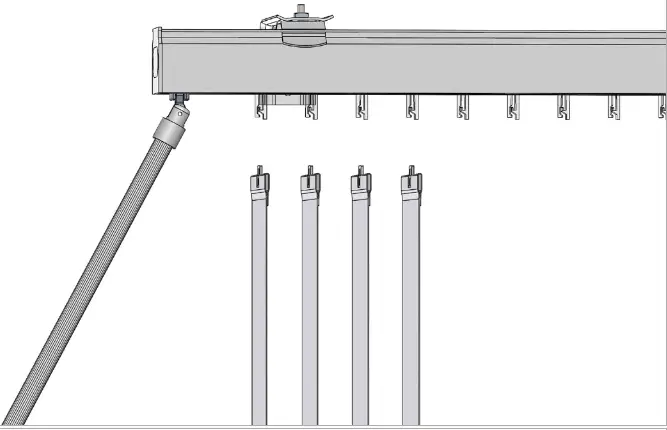

INSTALL VANES ON HEADRAIL
Insert vanes in open position.

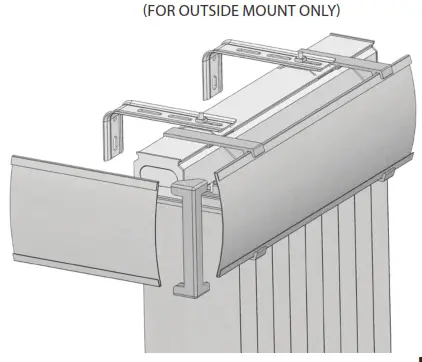

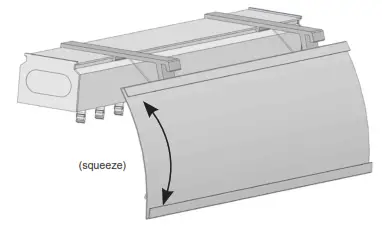

INSTALL VALANCE ON CLIPS ON HEADRAIL

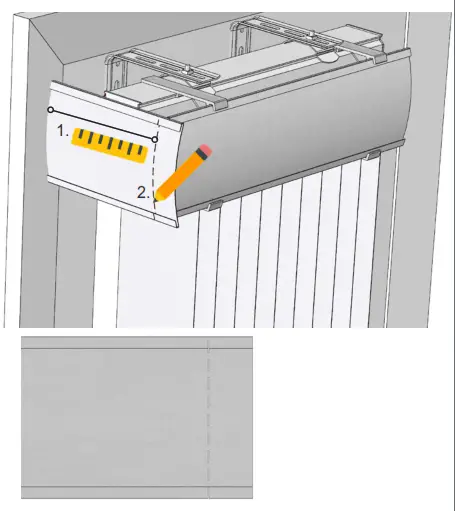

Measuring:
- Measure edge of the wall to the valance.
- Mark it.
- Cut using scissors.
(FOR OUTSIDE MOUNT ONLY)

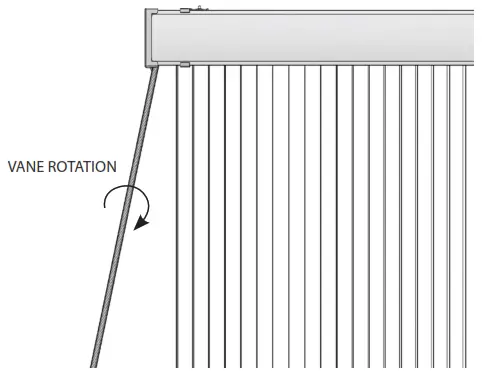

OPERATING YOUR VERTICAL BLINDS
OPEN AND CLOSE
CLEANING YOUR BLIND:
Lightly wipe with a damp cloth or dust for regular maintenance.
NOTE:
The Warning labels on the bottom rails of corded window coverings contain important safety information. These warning labels are designed to be permanent, in accordance with the industry’s safety standards, and must not be removed.
