DT20XX Pure POP Hand Steamer
User Guide
DT20XX
www.tefal.com

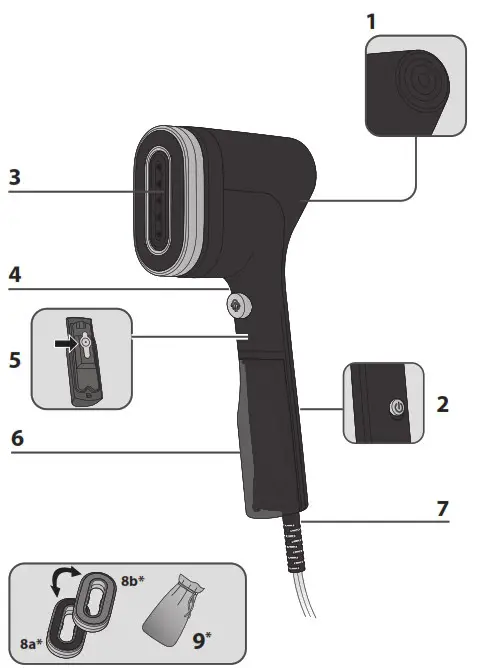

PRODUCT DESCRIPTION
Depending on model
| 1. Heating light indicator | 6. Removable water tank (approx. 70ml) |
| 2. On/Off button | 7. Cord exit |
| 3. Steam head | 8a. Velvet side of reversible pad to DE wrinkle |
| 4. Steam button | 8b. Lint side of reversible pad to remove lint and hairs |
| 5. Water tank inlet cap | 9.Travel pouch |
BEFORE USE
 |  |
| Remove the water tank by sliding it down. | Open the water inlet cap. |
 |  |
| Fill the water tank with water to the limit of max level (See section «what water to use»). | Close the water inlet cap. |
 |  |
| Return the water tank to its place by sliding it up until completely set. Make sure that water tank is fully set in place. | As steam is very hot: never attempt to remove creases from a garment while it is being worn, always hang garments on a clothes hanger. |
ACCESSORIES
 |  |

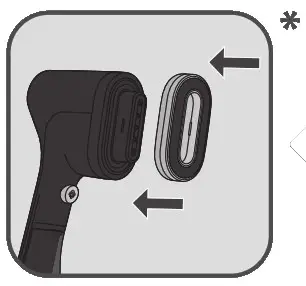

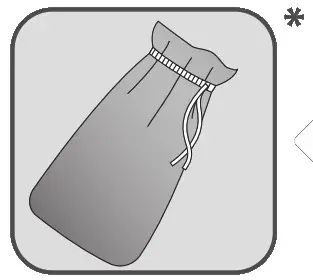

| The reversible pad*, is composed of one side with soft velvet fabric to dewrinkle your garments with no damage and the other side with lint & hair remover to brush the surface of the textile. Before removing or attaching the pad*, unplug your appliance and allow it to cool down, for one hour. | The travel pouch* is used to store your appliance or to travel with. Before using the travel pouch, unplug your appliance, empty the water tank and allow it to cool down for one hour. |
USE
 |  |

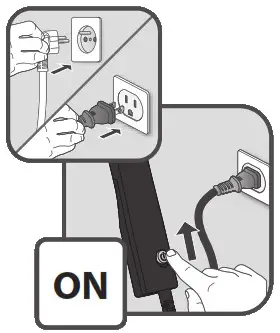

| Plug-in the appliance. Switch on the appliance by sliding the switch on button. | Wait at least 15 seconds before pressing the steam button. The light indicator switches off when the product is ready. |
 |  |
| Press the steam button with the steam head facing away from you holding it in a vertical position. | For optimal use, pass the steam jets over your garment from top to bottom in a vertical position, at 30 degrees or 90 degras but never in a horizontal position. Tips: Check the fabric’s label for recommendations. We recommended that you test acrylic, nylon or other synthetic fabrics in an inconspicuous area to ensure these fabrics are not damaged by hot steam. |
 |  |
| For optimal results, always pass the steamer in contact with your garment. | Warning : Never steam a garment while it is being worn. |
AFTER USE
 |  |
| Switch off the appliance. | Unplug the appliance. |
 |  |

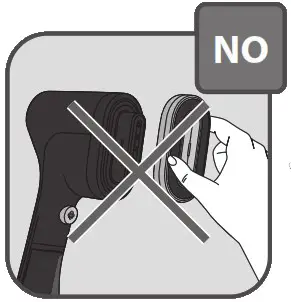

| Warning: Never touch the steam head of the appliance while it is hot. | Wait for an hour for your appliance to cool down before storing. |
 |  |

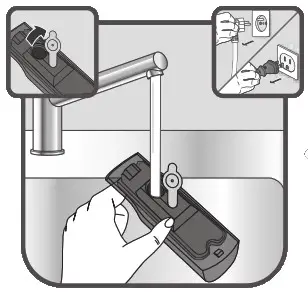

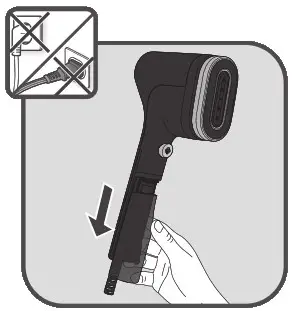

| Take out the water tank by sliding it down. | Empty the water tank completely and then close the water inlet cap. |
 | Return the water tank to its place on the appliance, make sure it is completely in place. |
ANTI CALC
 |  |
| Anti-calc operation can be done if you notice your appliance performance has decreased. Do this operation in a vented room. | Remove the pad* before operation. Remove the water tank by sliding it down. |
 |  |
| Fill the water tank with 50% water and 50% white vinegar. Do not use other descaling products. | Return the water tank to its place on the appliance. Make sure the water tank is fully set in place. |
 |  |
| Plug the appliance. Switch on the appliance. | Wait at least 15 seconds before pressing the steam button. The light indicator switches off when it is ready. |
 |  |
| Allow the appliance to run until the water tank has completely emptied. | Fill the water tank with 100% water and repeat the operation until the water tank is completely empty in order to rinse the appliance. |
CLEANING
 |  |
| Wait an hour for the appliance to completely cool down. | Remove the pad* from the appliance. Clean the plastic parts of the appliance with a dry cloth. Do not use any detergent. |
 |  |
| Never wash or rinse appliance directly over a sink. | The reversible pad* can be hand washed with clear water and soap. Let it dry before reusing it. |
1820010387
