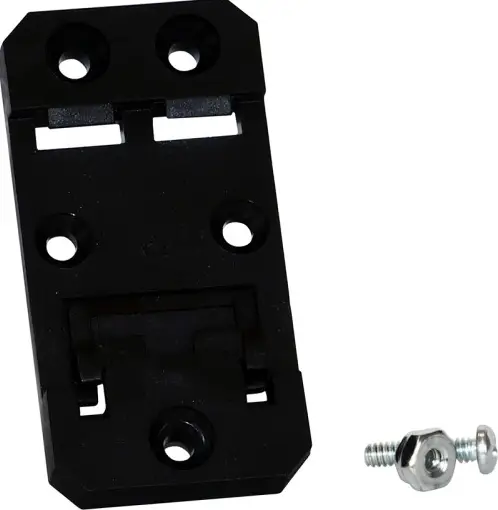

Altronix DCL1 DIN Rail Mounting Clip

Overview

Altronix DCL1 DIN Rail Mounting Clip allows for easy installation of Altronix eBridge, NetWay, and Pace models onto a standard 35mm DIN rail such as Altronix D10.

Compatible Altronix Models

eBridge:

• eBridge1CR
• eBridge1CT
• eBridge1PCR
• eBridge1PCRX
• eBridge1PCT
• eBridge1PCTX
• eBridge1PCRM
• eBridge100SPR
• eBridge100RM
• eBridge100TM

NetWay:

• NetWay1,
• NetWay1X,
• NetWay2ES,
• NetWay3012,
• NetWayXT,
• NetWayXTG,
• NetWayXTL,
• NetWayXTX

NetWay Spectrum:

• NetWaySP1A
• NetWaySP1P
• NetWaySP2P

Pace:

• Pace1PRD
• Pace1PRM
• Pace1PTM

Voltage Regulators:

• VR5T
• VR5BT

Installation Instructions

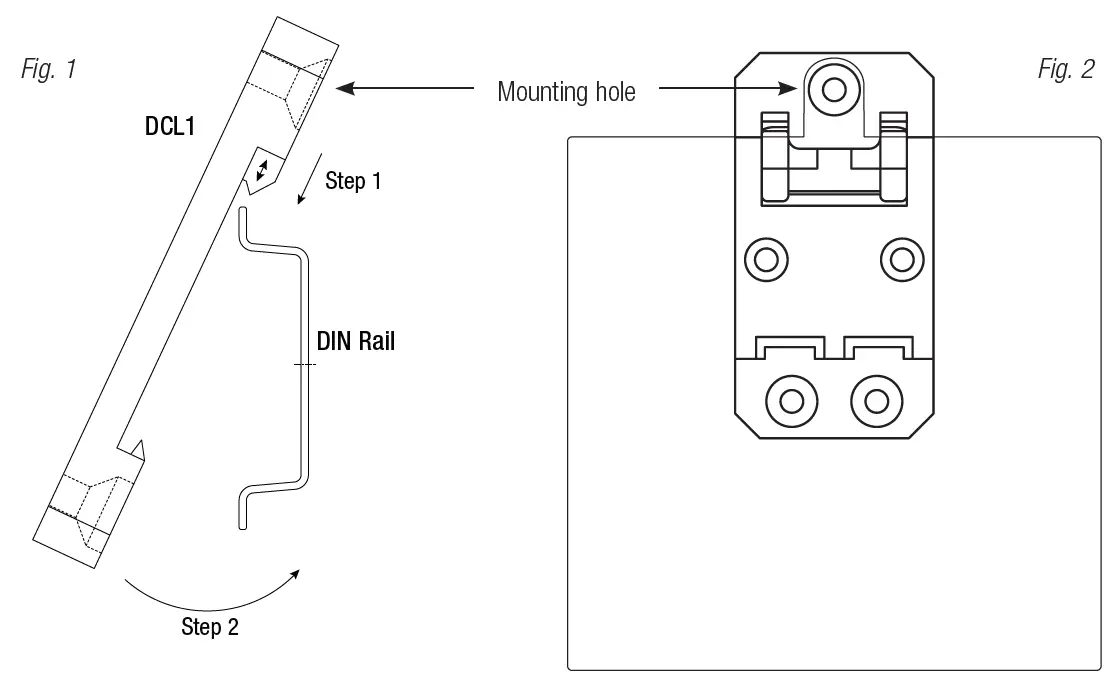

1. Attach DCL1 to the DIN rail as shown on Fig. 1 below.
2. Secure Altronix adapter to the DCL1 using included mounting screw (Fig. 2).

Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: [email protected]
