MAVAULAR 11042 Atenas TV Stand
Product Information

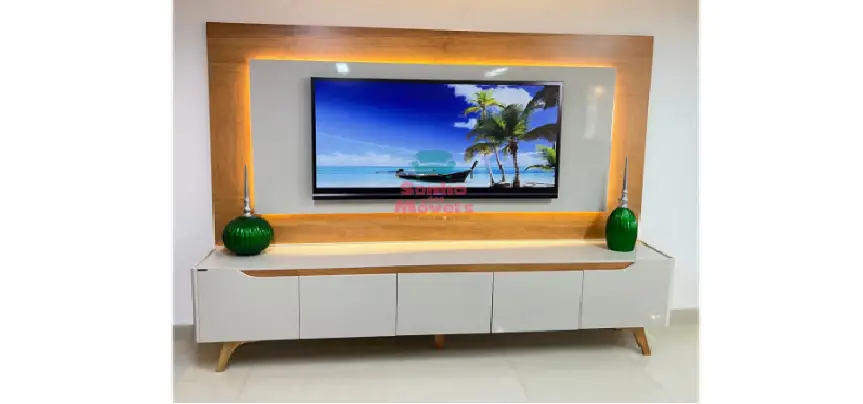

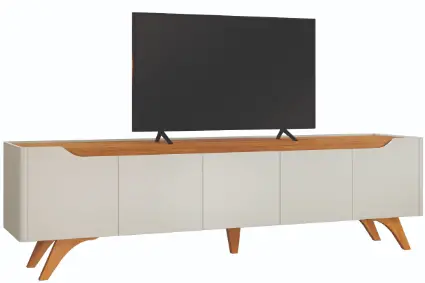

The Atenas TV stand is a furniture piece designed for holding and displaying a television. It is made of wood and features a sturdy construction. The TV stand comes with various components, including a superior division, cover, left side, right side, back rail, frontal rail, frame, wooden foot, center foot, basis, back, center back, left side of drawer, right side of drawer, front of drawer, drawer bottom, back of drawer, central door, and left door.
The dimensions of the Atenas TV stand are as follows
- Length: 2170 mm
- Width: 406 mm
- Depth: 340 mm
The TV stand is designed to be resistant to mold and termites. However, it is recommended to use termiticides in infested places before installing the furniture. It is also important to avoid exposing the furniture to direct sunlight.
Product Usage Instructions
To assemble the Atenas TV stand, follow these steps

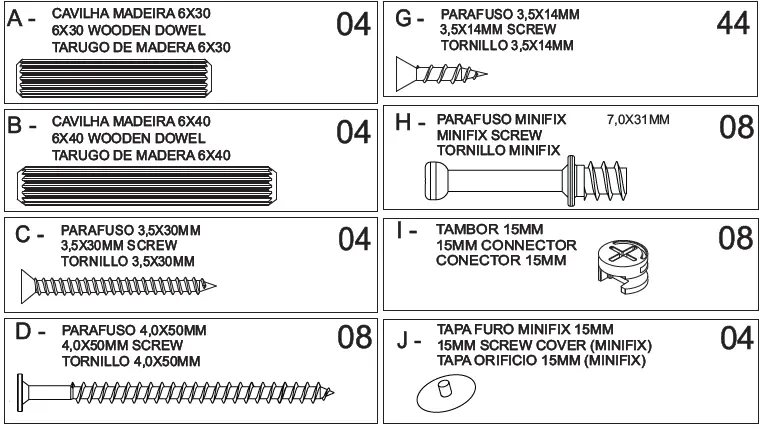

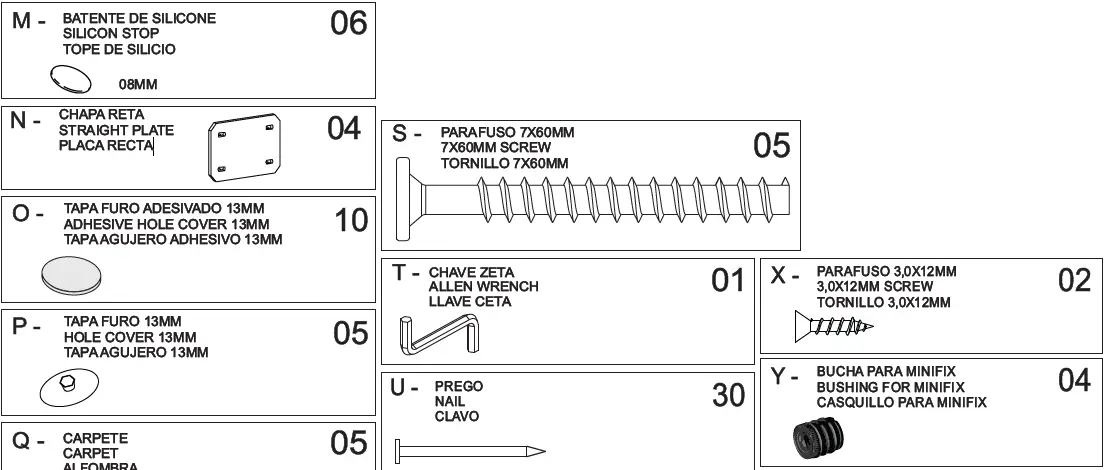

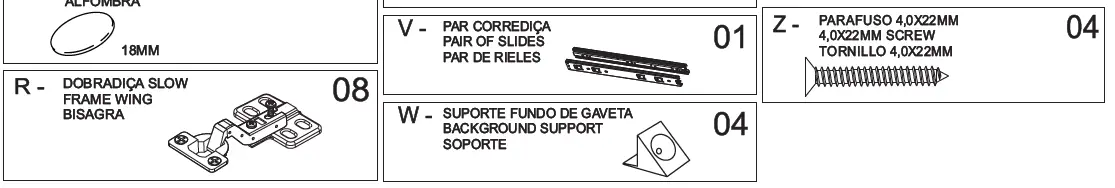

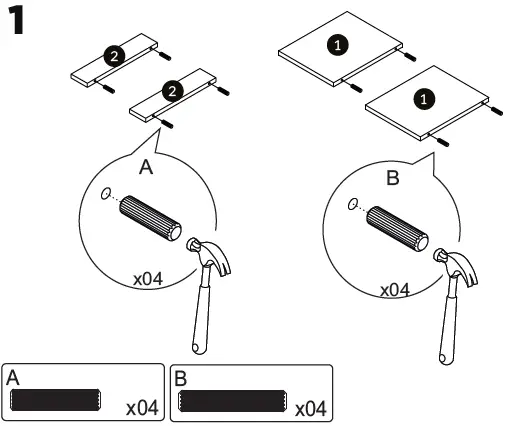

- Identify the different components using the provided codes listed in the manual.

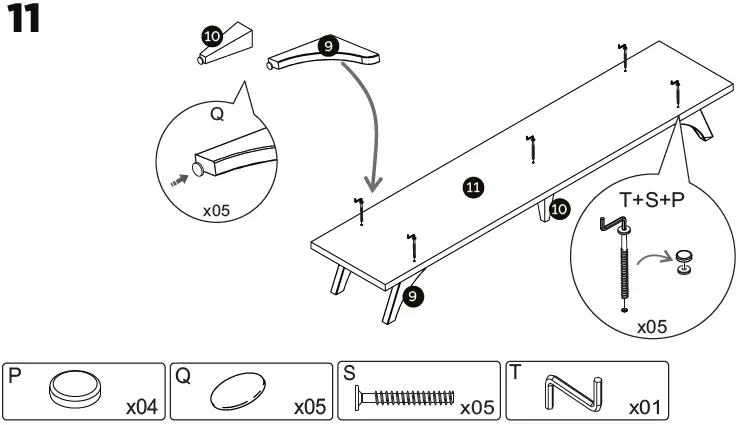

- Start assembling by connecting the wooden foot and center foot to the basis using the provided wooden dowels and screws.

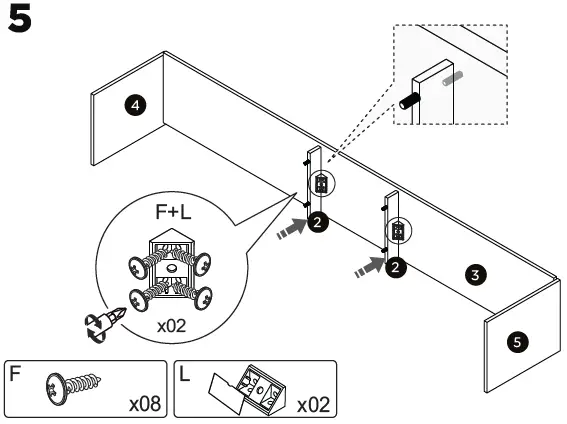

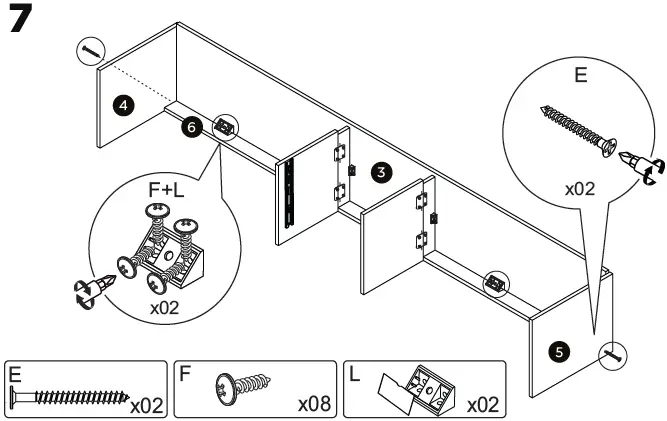

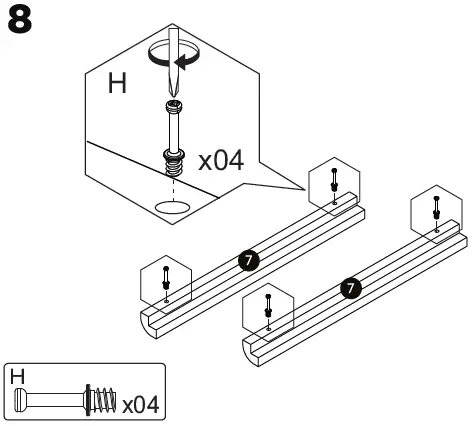

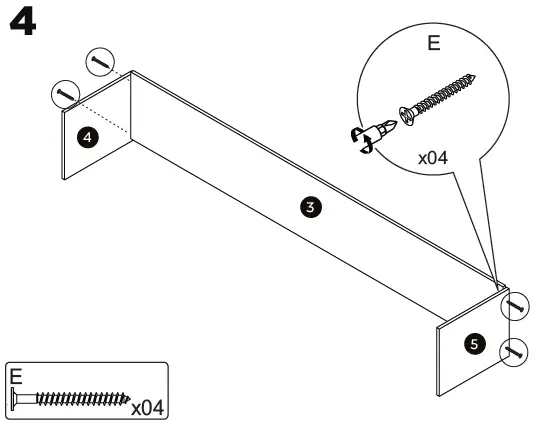

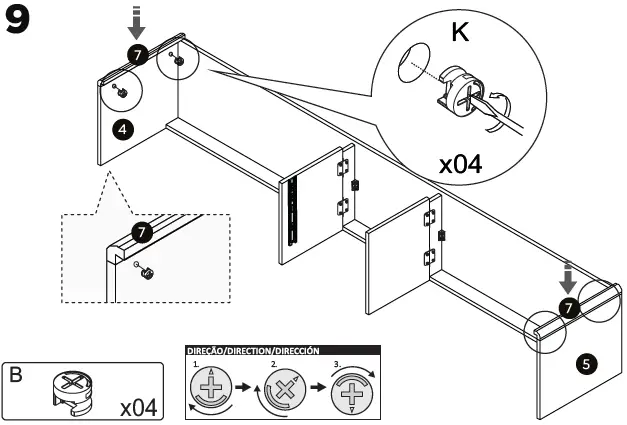

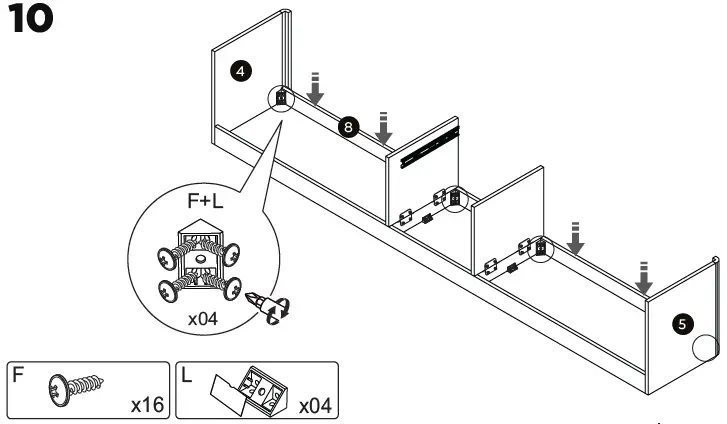

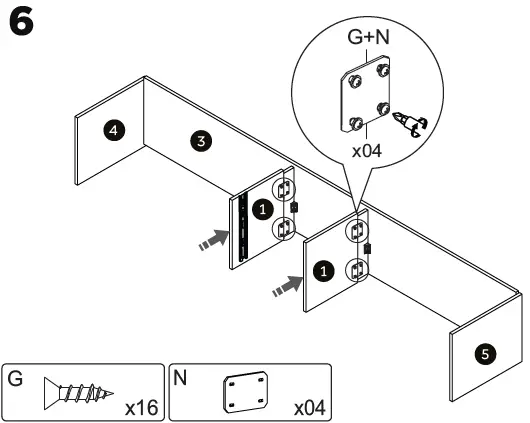

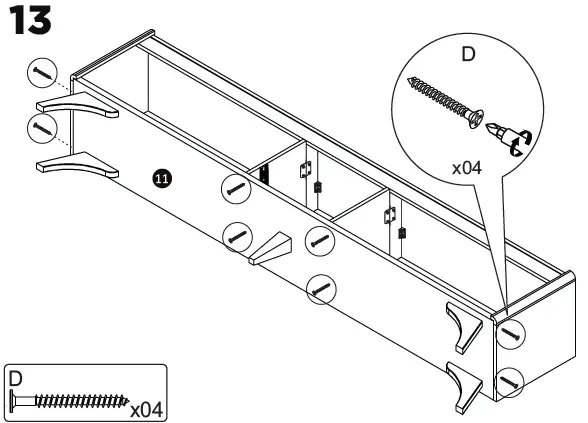

- Attach the superior division, cover, left side, right side, back rail, frontal rail, and frame according to the provided instructions.

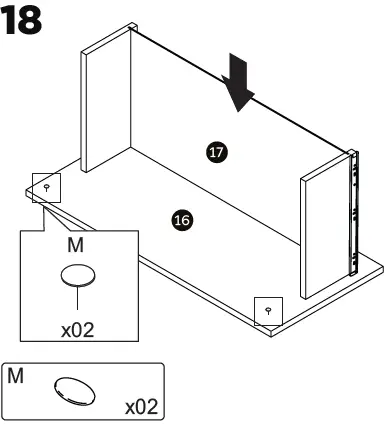

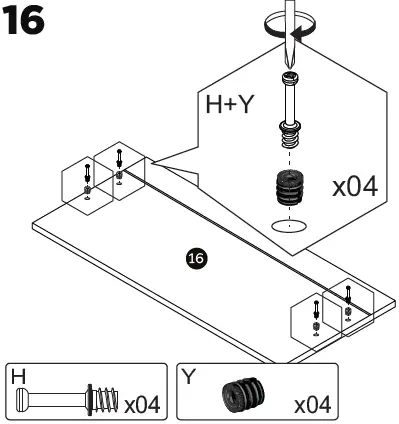

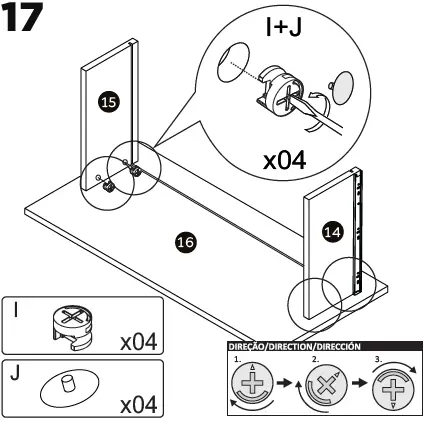

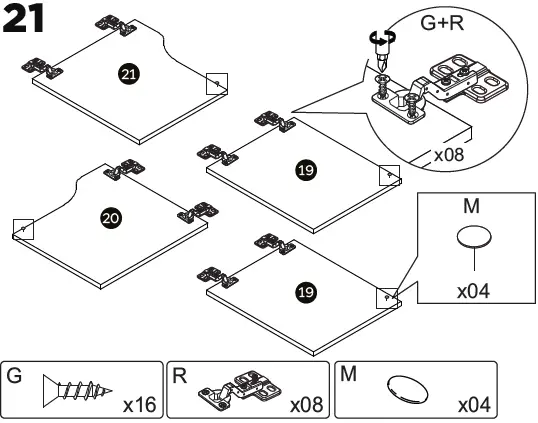

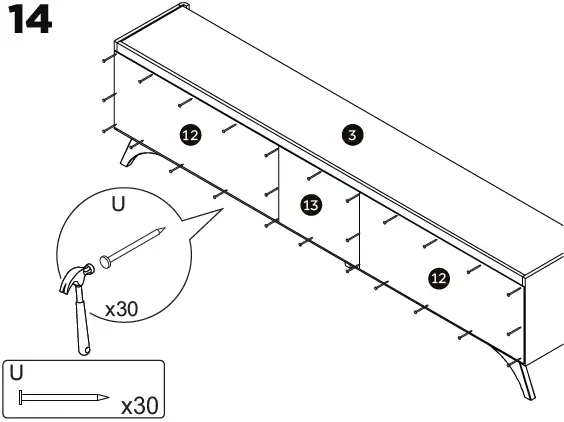

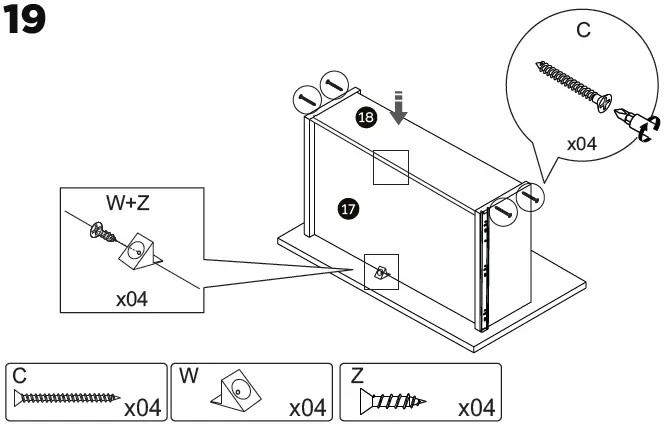

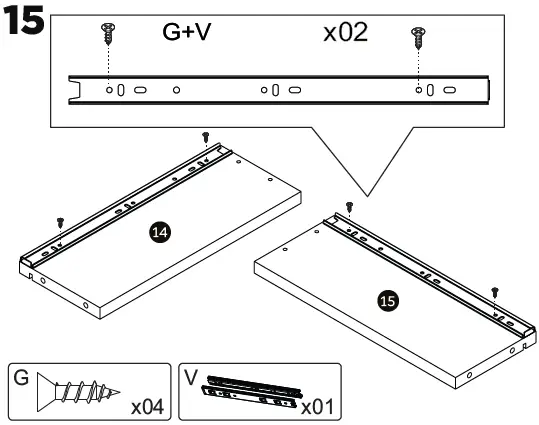

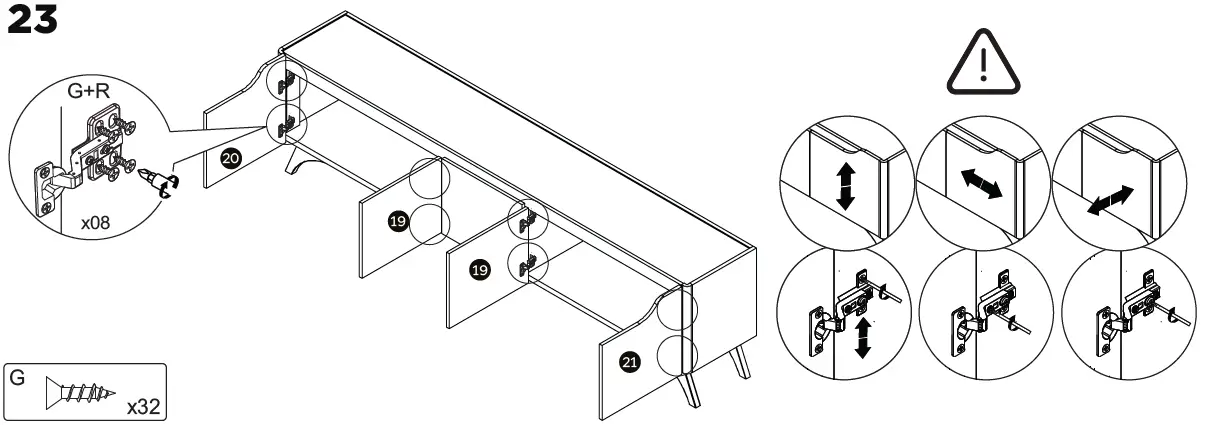

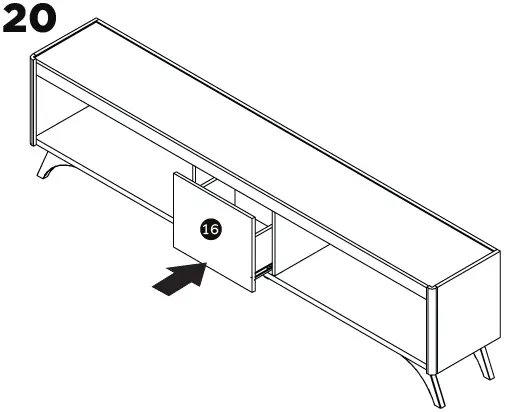

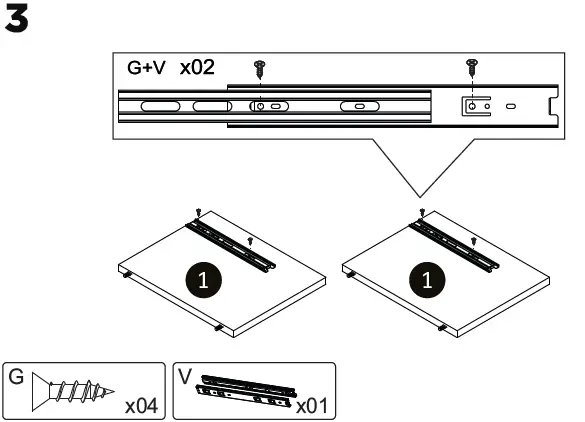

- Continue assembling by attaching the various components such as the drawers, doors, and back using the corresponding screws and dowels.

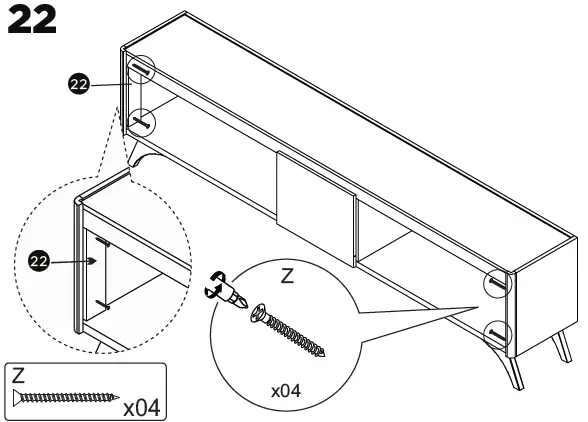

- Ensure all components are securely attached and tightened.

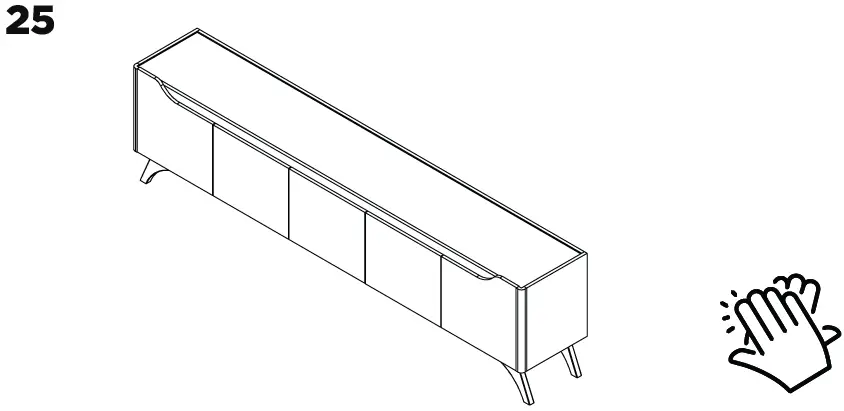

Once assembled, you can place your television on the TV stand and arrange any additional media devices or decorations as desired.
For cleaning and maintenance
- Use a moist cloth to wipe down the wood furniture and remove any dust or dirt.
- Ensure the furniture is thoroughly dried after cleaning to prevent damage or mold growth.
- Avoid using chemical products, scouring powders, or steel scrubber pads, as they can scratch the furniture’s surface.
- Avoid covering the furniture with colored plastic or paper sheets.
- Avoid dragging objects on top of the furniture to prevent scratches.
Following these instructions will help you maintain the quality and appearance of your Atenas TV stand.
TAKING GOOD CARE OF YOUR FURNITURE
Cleaning and caring instructions
- Wipe the wood furniture down with a moist cloth to properly clean the furniture.
- Do not forget to dry your furniture out. Humidity can damage the finish or create mould.
- Chemical products are not recommended;
- Never clean the furniture with scouring powders, steel scrubber pads or any other product which can scratch its surface.
- Furniture surfaces should not be covered with colored plastic or paper sheets.
- Avoid dragging objects on top of the furniture. They might scratch the finishing.
- Wood furniture are made of mold and termites resistant materials, however, it is recommended to use termiticides in infested places before installing the furniture.
- Avoid furniture exposure to direct Sun light. Drapers suggested.
The necessary tools for assembly aren’t supplied.
Assembly

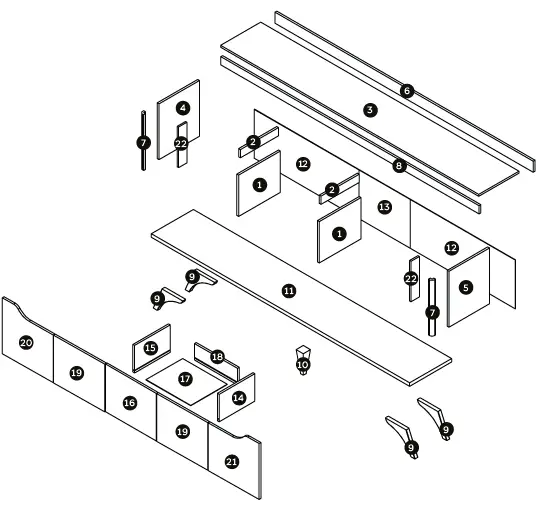

| LEN. LON. | WID. ANC. | DEP. ESP. | ||||||
| 1 | 10726 | Division | 350 | 301 | 15 | 2 | ||
| 2 | 10727 | Superior division | 320 | 60 | 15 | 2 | ||
| 3 | 10713 | Cover | 2170 | 337 | 15 | 1 | ||
| 4 | 10714 | Left side | 406 | 340 | 15 | 1 | ||
| 5 | 11557 | Right side | 406 | 340 | 15 | 1 | ||
| 6 | 10720 | Back rail | 2170 | 80 | 15 | 1 | ||
| 8 | 10719 | Frontal rail | 2170 | 60 | 15 | 1 | ||
| 7 | 10972 | Frame | 407 | 42 | 16 | 2 | ||
| 9 | 10841 | Wooden foot | 200 | 160 | 30 | 4 | ||
| 10 | 7174 | Center foot | 197 | 60 | 30 | 1 | ||
| 11 | 10711 | Basis | Base | 2170 | 353 | 25 | 1 | |
| 12 | 11174 | Back | 882 | 355 | 3 | 2 | ||
| 13 | 10800 | Center Back | 430 | 355 | 3 | 1 | ||
| 14 | 11044 | Right side of drawer | 300 | 200 | 15 | 1 | ||
| 15 | 11217 | Left side of drawer | 300 | 200 | 15 | 1 | ||
| 16 | 10728 | Front of drawer | 430 | 345 | 15 | 1 | ||
| 17 | 11048 | Drawer bottom | 375 | 308 | 3 | 1 | ||
| 18 | 11045 | Back of drawer | 361 | 120 | 15 | 1 | ||
| 19 | 10717 | Central door | 425 | 347 | 15 | 2 | ||
| 20 | 10715 | Left door | 425 | 407 | 15 | 1 | ||
Installation Instruction
