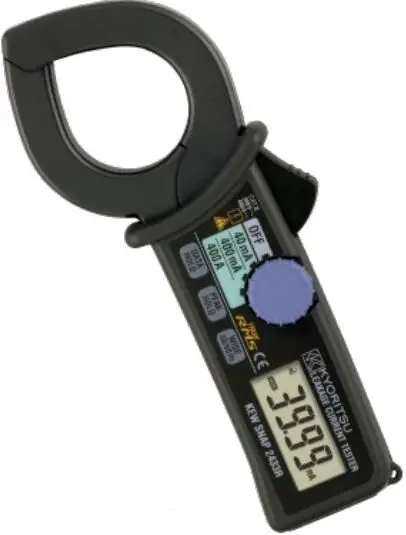

KYORITSU 2433R Leakage Clamp Meters
MODEL 2433R
- Frequency Selector Switch to eliminate the effect of harmonics.
- Three AC current ranges: 40mA/400mA/400A.
- Resolution 0.01mA.
| AC A (50/60Hz) | 40/400mA/400A ±1%rdg±5dgt (40/400mA) ±1%rdg±5dgt (0 – 300A) ±2%rdg (300.1 – 399.9A) |
| AC A (WIDE) | 40/400mA/400A ±2.5%rdg±10dgt [20Hz – 1kHz] (40/400mA) ±2.5%rdg±10dgt [40Hz – 1kHz] (0 – 300A) ±5%rdg [40Hz – 1kHz] (300.1 – 399.9A) |
| Maximum circuit voltage | 600V AC/DC (between line/neutral) 300V AC/DC (against earth) |
| Conductor size | Ø40mm max. |
| Frequency response | 20Hz – 1kHz [40Hz – 1kHz:400A] |
| Effect of External Stray Magnetic Field | 10mA AC approx. in proximity to a 15mm- dia conductor carrying 100A AC |
| Applicable standards | IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-032 |
| Response Time | Approx. 2 seconds |
| Power source | Two R03 or equivalent (DC1.5V) batteries |
| Dimensions | 185(L) × 81(W) × 32(D)mm |
| Weight | 270g approx. |
| Included Accessories | 9052 (Carrying Case) R03 (1.5V) × 2 Instruction Manual |
