SONBEST QG816 Isolated USB-CAN Converter
QG816 using the standard USB,easy access to PLC，DCS and other instruments or systems for monitoring CAN1 state quantities.The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.
Technical Parameters
| Technical parameter | Parameter value |
| Brand | TRANBALL |
| Input Interface | CAN BUS |
| Default Rate | 50kbps |
| Communication Interface | USB |
| Default baud rate | 9600 8 n 1 |
| Power | DC5V 1A |
| Running temperature | -40~80°C |
| Working humidity | 5%RH~90%RH |

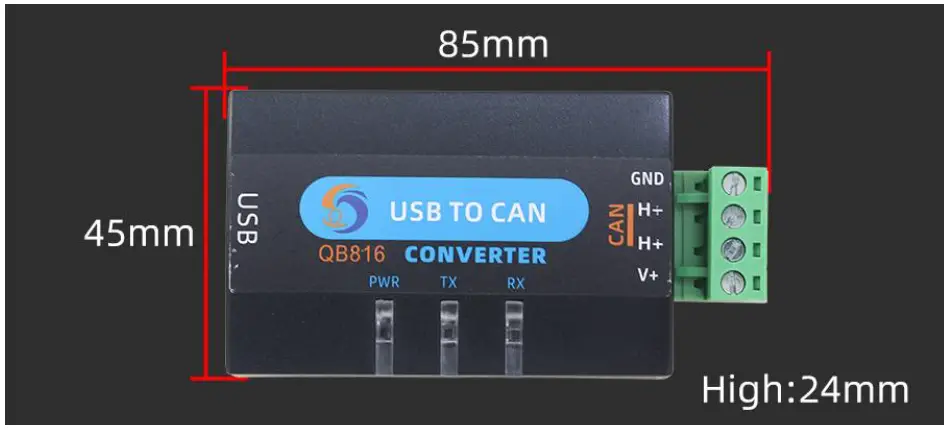

Product Size

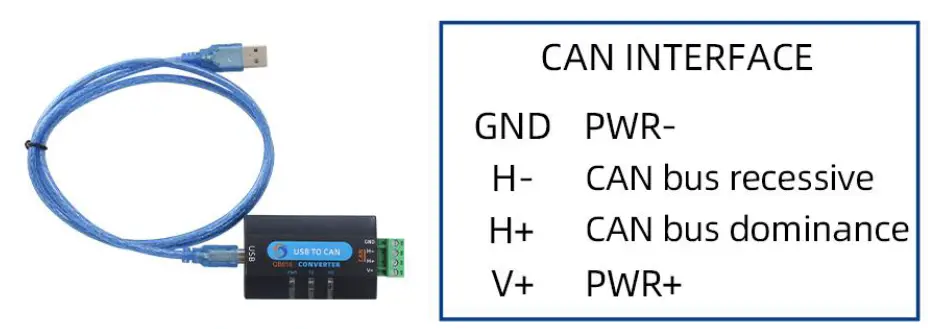

How to wiring?
Note: V+ defaults to output DC5V, optional DC12V, output current can reach 0.5A
Application solution
