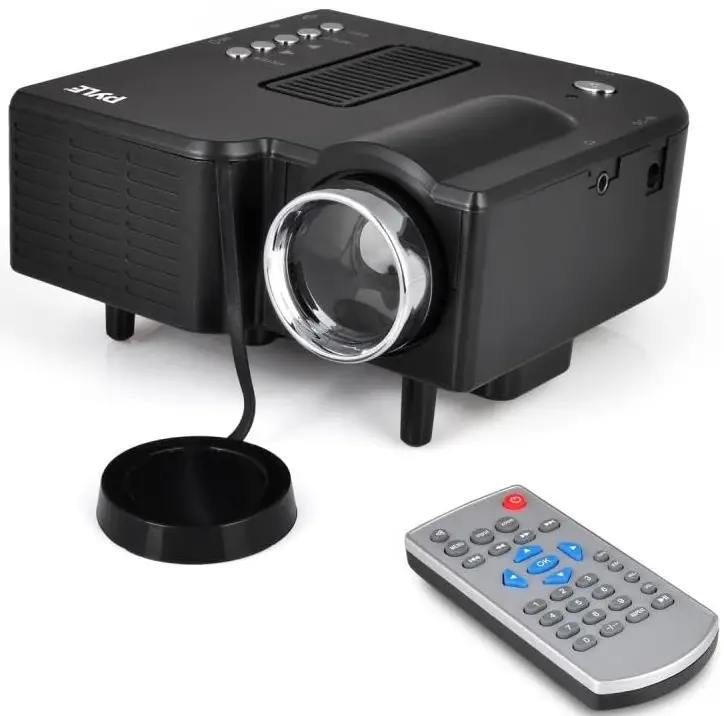

Pyle PRJG48 Mini Portable Pocket Video
ATTENTION
- Please read this manual carefully before using it.
- To ensure stable power supply, please use good supply line and outlet with grounding.
- Please use the power supply indicated on the projector and the wire provided with the projector.
- Please do not dismantle the projector without authorization; otherwise the supplier bears no responsibility for maintenance service.
- Do not look into the lens while the projector is on working to prevent eyes from hurting.
- Do not place the projector on the articles which may become obstacles for ventilation.
- This projector has no waterproof function; you need to keep it away from water. And vessels with water should not be placed around it.
- To avoid electric shock, please keep the projector from rain and dampness.
- Please shut off the projector and unplug the wire if the projector will not be used for a long time.
- When the projector is transported, please use the plastic foam and other anti-shock materials provided with the projector.
- If the projector is found to be damaged, please do not try to repair by yourself and please contact the distributor.
This manual is for reference only. If you have any question, please contact the distributor.
Product Features
- All sealed design, release you from daily internal cleaning
- Using of the 20 thousand hours long life RBG-LED lamp, which makes it more colorful and abundant details.
- Electronics zooming function and free image size setting. 4 Professional trouble shooting and protection design.
- Small in size and light in weight.
- Free exchange from 16:9 to 4:3.
- Low noise design and dust free design, free you from internal cleaning.
- Image rolling function support upwards and
- Downwards installing
- Power consumption lower to 24W.
- Multi input interface: A V, VGA, USB, SD, HDMI vehicle power supported

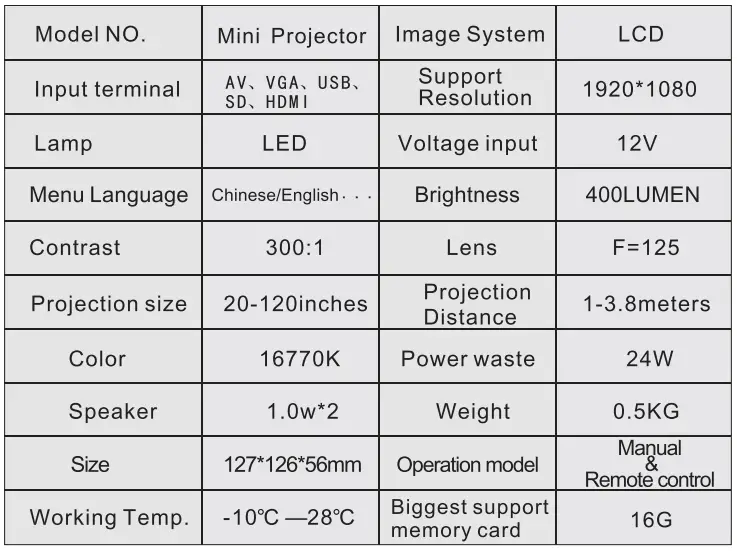

Specification

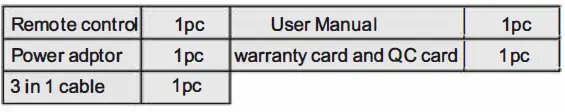

Fittings
Please check if the fitting is complete before you buy this projector

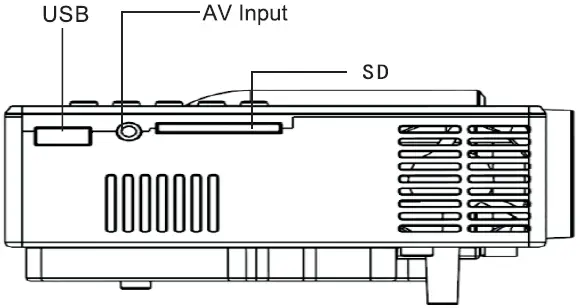

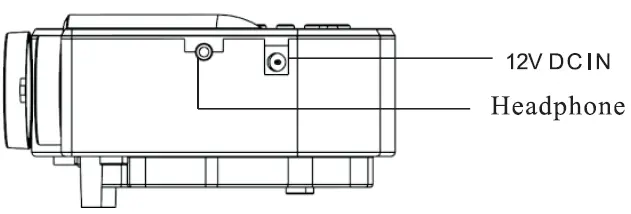

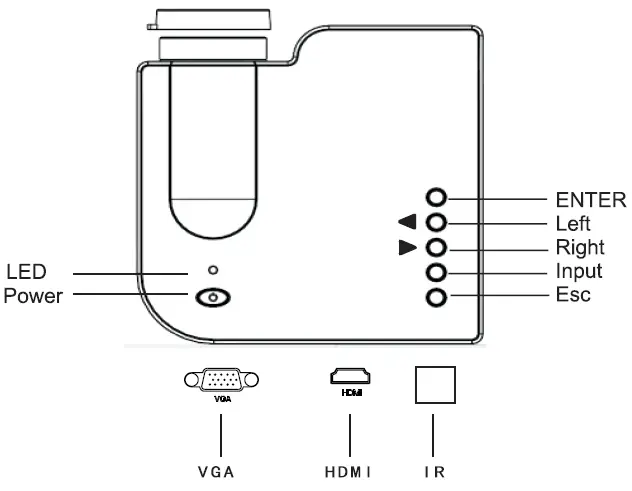

Connection
Function Operation
Switch-on and off
After powering though the power adaptor, then projector is under standby status.
Switch on: Press the power button or the power button on the remote control once, and then the projector is powered on.
Switch off: When you want to shut the projector, please press the power button beside the indicate light or the power button on the remote control once, and then the projector is off.
Image Focus: Place the projector vertical to the projection screen, and then rotate the lens slightly, until the brilliant image presented.
Attention
Please connect the power adapter with the projector first, then plug the socket into the outlet. Finally power on the projector.
Signal Source Selection
Press signal input selection button on the remote control or input button on the projector, then press up or down button to select the signal source you need, use OK or enter to confirm.

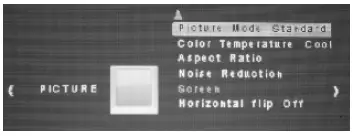

Sub-menu Adjustment
Press “MENU” enter into the main menu, press “◄/►”button to choose “picture” “sound” ” Clock II or ” setting” menu to adjust the parameters you.
USB Menu
After you have choose Media signal source, the interface change to the above picture, and then you can play correspondent files through “photo”, “music”, “movie”, “text” icon by the projector accordingly.,

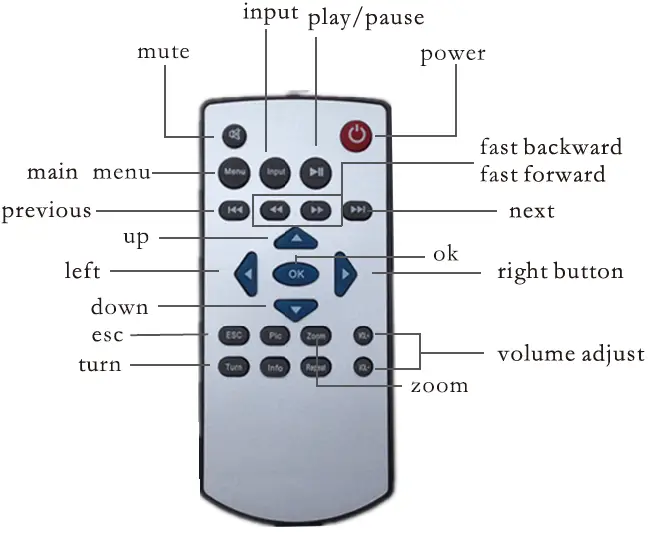

Remote Control
Frequently Asked Questions
They’ll display it on rear projection screens. On the device itself, there aren’t any true back projection settings, though.
Pyle PRJG48 Multimedia Projector Dimensions: 7.5″ x 6.3″ x 2.7″ Weight: 3.28 lbs.
They’ll display it on rear projection screens. On the device itself, there aren’t any true back projection settings, though.
The projector is called the KECAG Mini. The HDMI port is a standard size; it is not tiny.
Any phone and an HDMI converter are OK.
No matter the Bluetooth speaker
It was connected to the laptop with an HDMI connection. It might have Wi-Fi, but I’m not sure.
The brightness is 5500 Lux, and the native resolution is 480P. Hope that was of use.
It does. It is simple to secure to my tripod.
It already has a speaker built in. If you desire speakers with more sound, you can also buy some.
Projector lamps typically last 1,500 to 2,000 hours, although more contemporary models can last up to 5,000 hours before needing to be replaced. Projectors are dependable tools in either situation; you just need to utilize them sensibly, like not leaving them on nonstop for a month.
It differs. Many portable projectors have built-in batteries that enable them to run without an electrical outlet for two to three hours. Some can operate without being plugged in by connecting to external USB battery packs.
The projector can alternatively be powered by a battery bank. Your powered projector: The USB-C connection on the projector should be linked to the USB-C end of the USB Type-C cable. The USB Type-C cable’s other end needs to be attached to the power bank.
The projector is secure as long as it has received the necessary upkeep throughout its life and has continuously worked under ordinary conditions. But having a projector in a pristine, dust-free environment also helps. It would be advantageous to maintain your projector in a cool area with enough airflow to prevent overheating.
Most wireless projectors on the market use a transmitter and receiver setup. A transmitter, such as a USB stick or dongle, is plugged into your computer (or another source device), and the projector’s WiFi chip acts as a receiver.
