Lighting GmbH Schweizerstrasse 30
6850 Dornbim AUSTRIA
Owner’s Manual

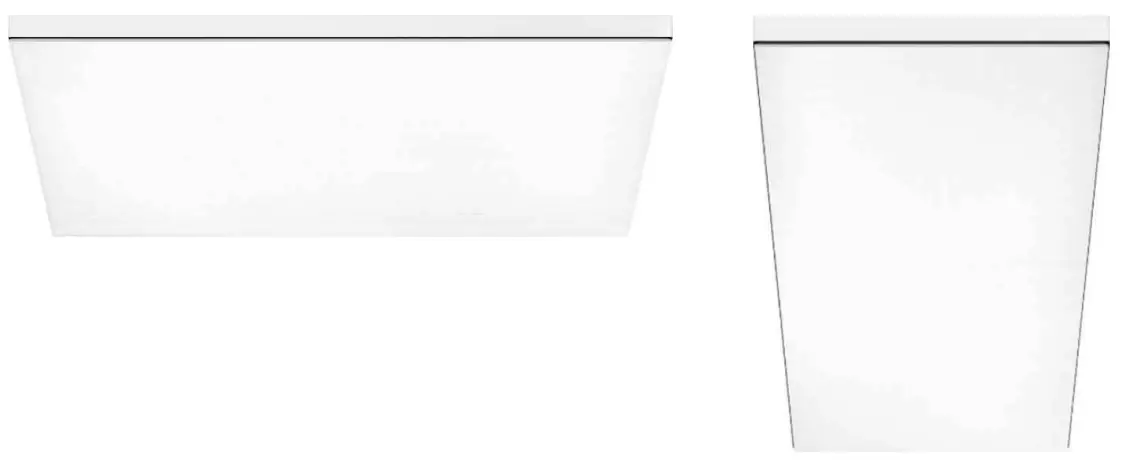

Light Fields III
LIGHT FIELDS III surface-mounted
http://www.zumtobel.com/lightfields
LF3 A MINI/Q/L12/L15
EVG, LDO
BC
Emergency options: E3D (self-contained) ECD (centrally supplied)

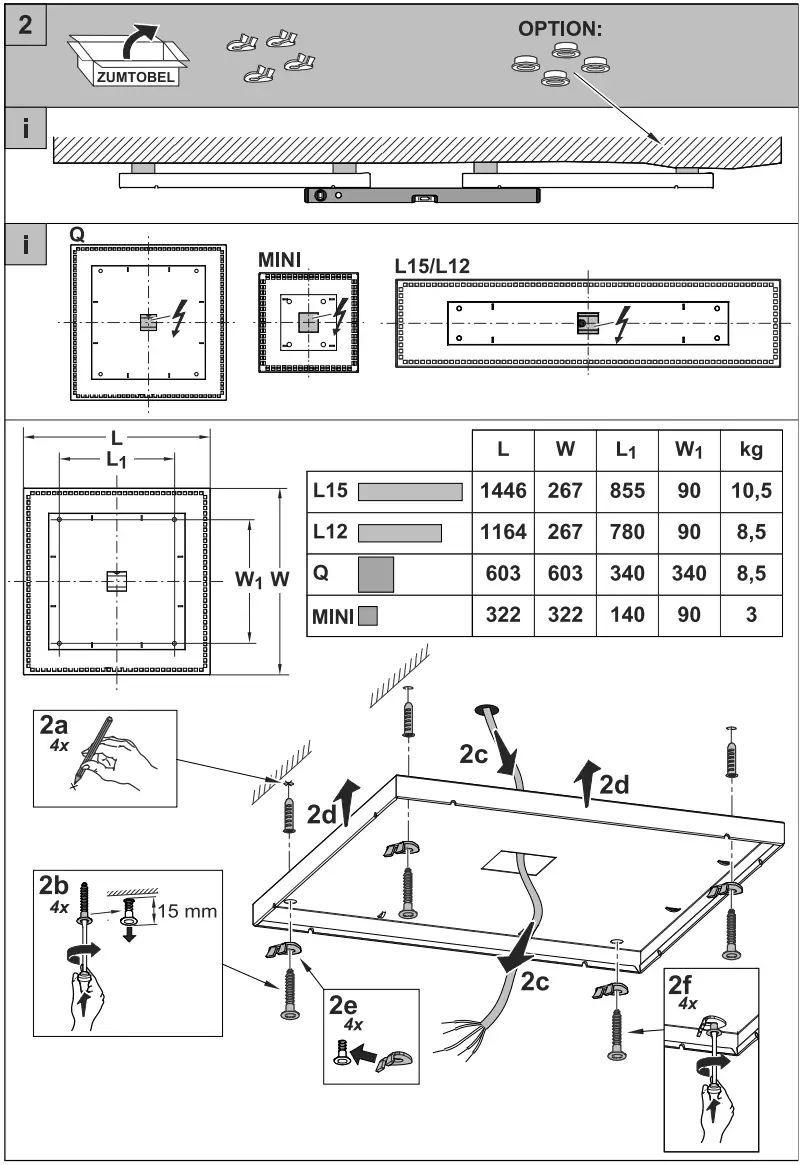

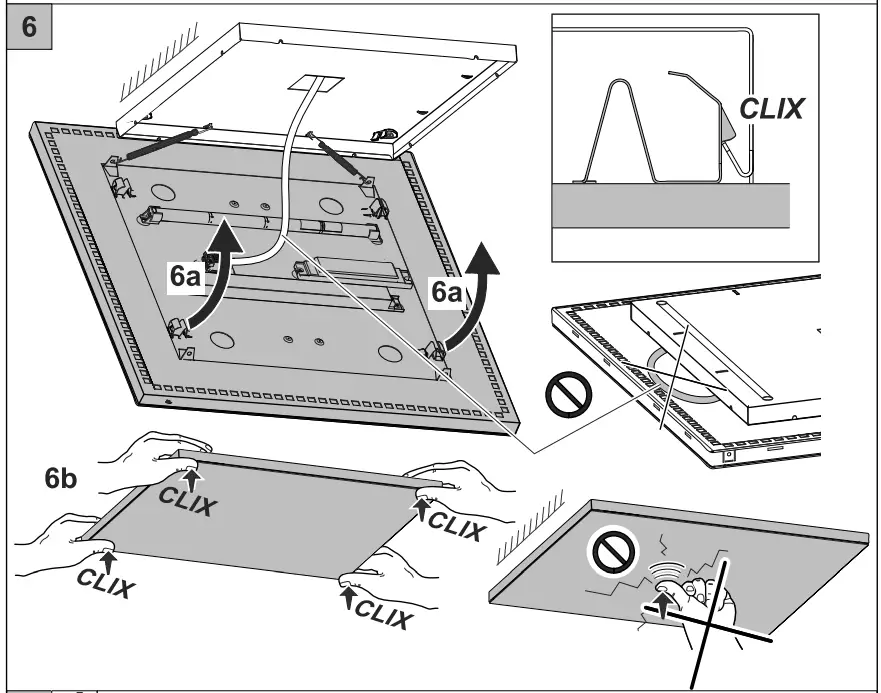

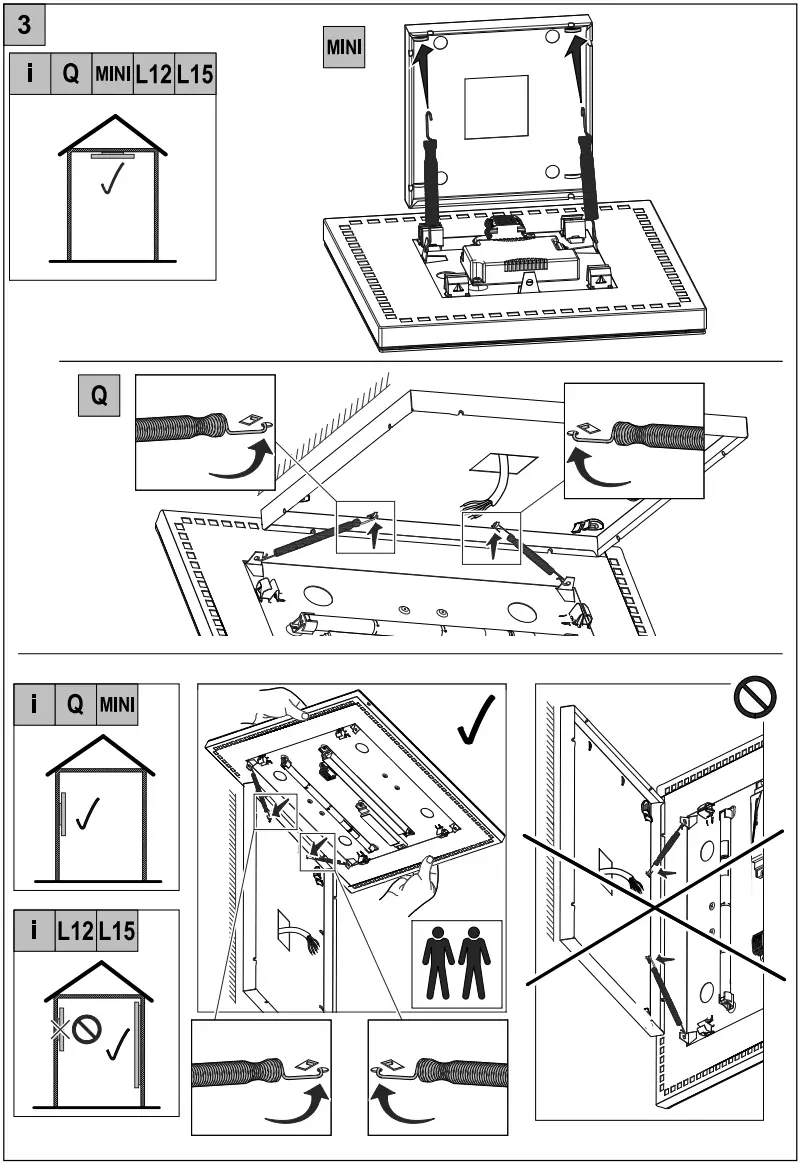

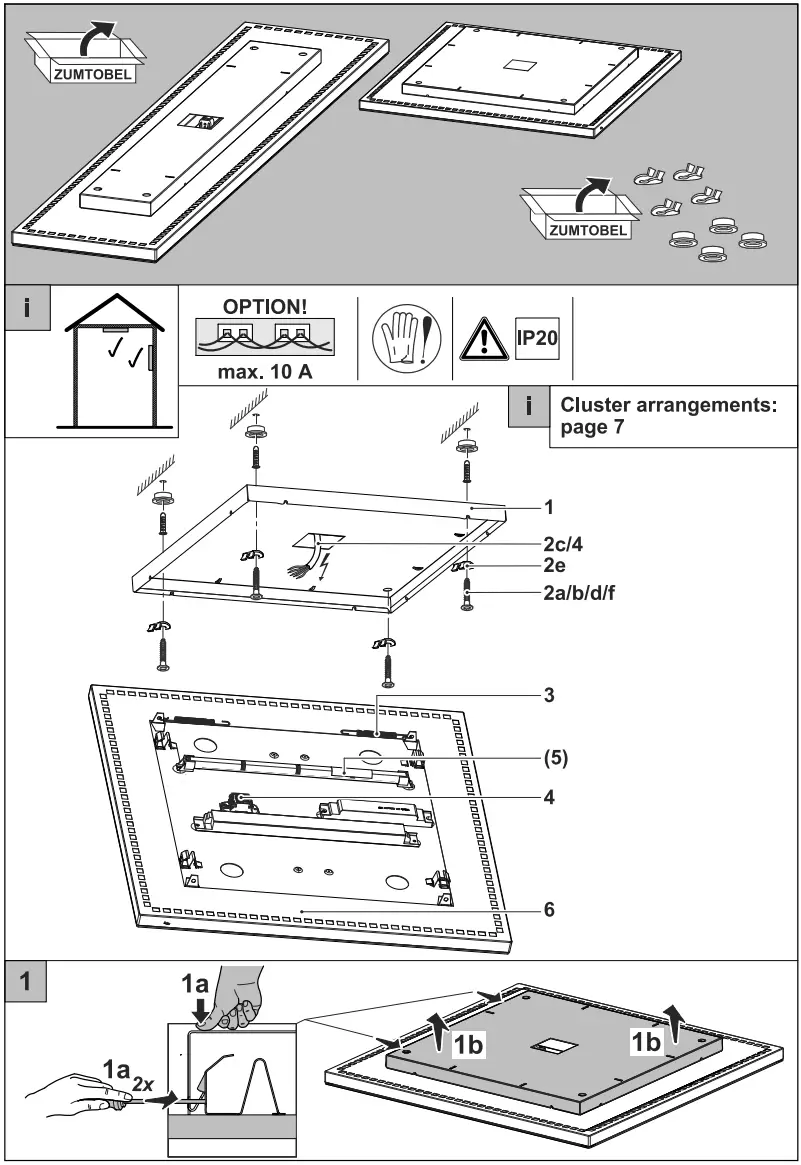

Mounting instructions
Important notices. Please, read first! Keep the instructions safe! Specifications are subject to change without notice! If you have questions, please contact the manufacturer.

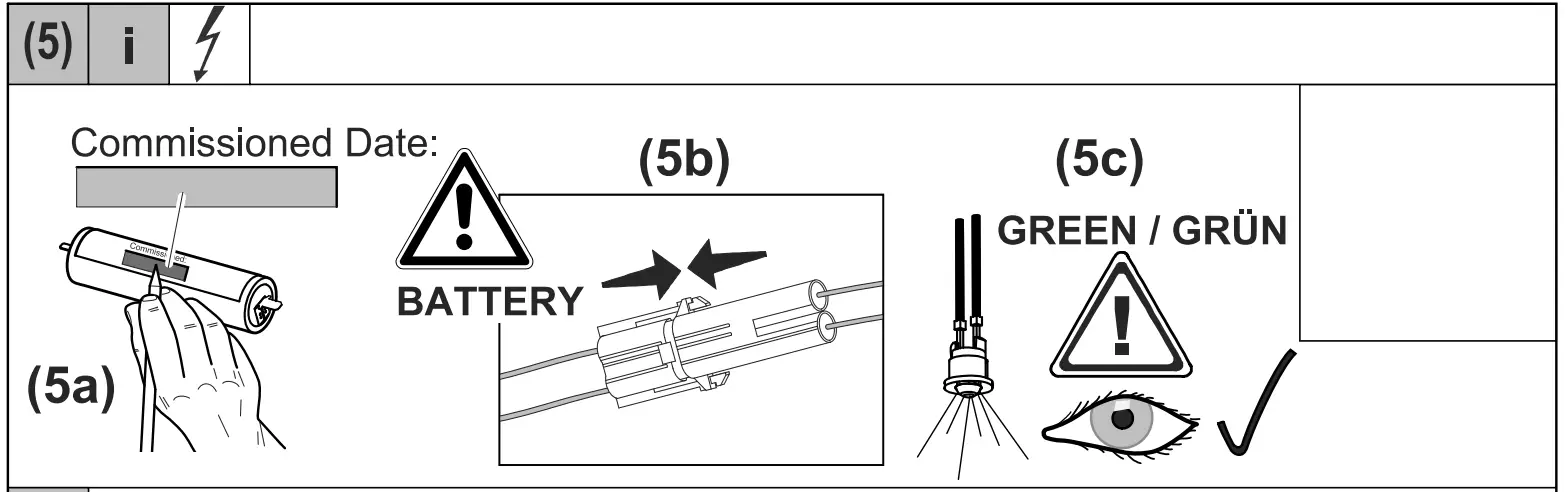

OPTION: Emergency Lighting
 |  |
 |  |
http://www.zumtobel.com/PDB/Ressource/manual/00107338%20Akku-Wechsel.pdf
OPTION: Emergency Lighting (centrally supplied)
Note: Due to problems with chemical resistance, choose cleaning materials which are suitable for plastic.

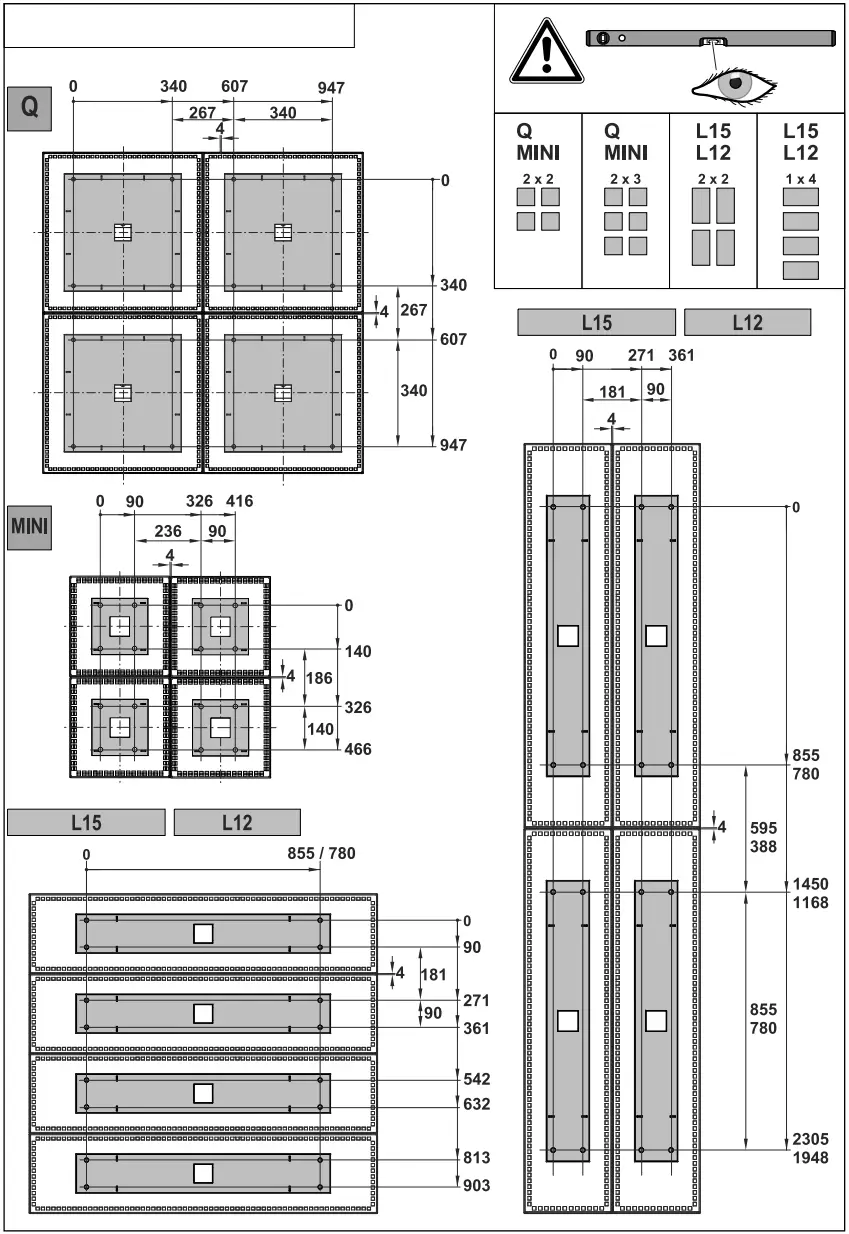

Cluster arrangements
Instructions for installation and operation!
The installation and commissioning of the luminaire as well as any modification to the luminaire may only be performed by authorized personnel (qualified electrician). National installation regulations must be observed. Before any work on the appliance is done, it must be disconnected from mains.
Hot plug-in is not an option and may cause damage to the lamp or luminaire!
The manufacturer is not liable for damages resulting from improper or faulty installation or operation or from unauthorized modifications to the luminaire.
Caution, risk of electric shock! Specifications are subject to change without notice! If you have questions, please contact the manufacturer.

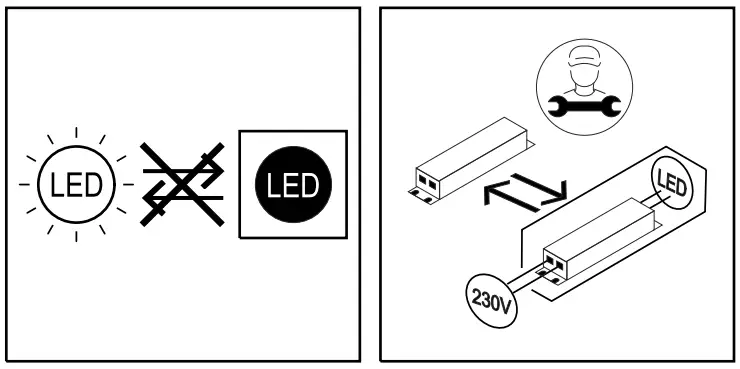

Info on (non-) replaceability:
https://resources.zumtobel.com/assets/SLR_ELR_Components/download/Replaceability_Instruction_Luminaire_Zumtobel.pdf
www.zumtobel.com
00157308/4/03/MG/02.2022
