JACQUES LEMANS PX82 Men’s Classic Watches Instruction Manual

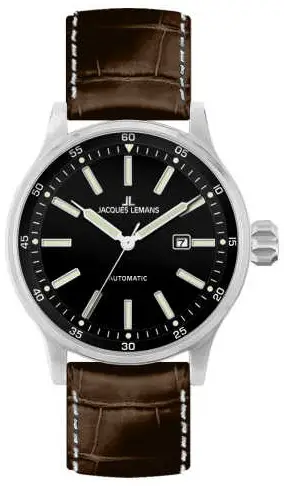

JACQUES LEMANS PX82 Men's Classic Watches

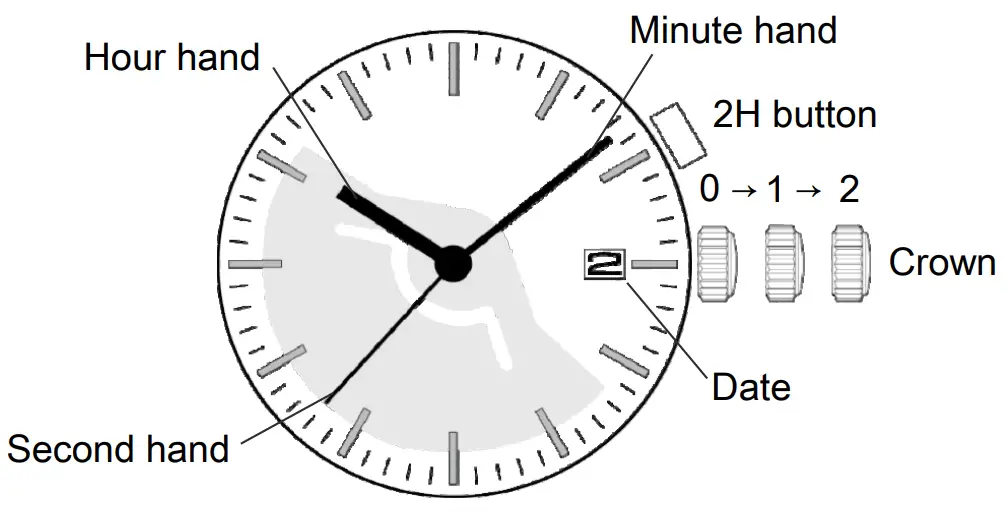

Display

Display

Crown operation

 Crown position
0 click1st click2nd click
CrownFreeTurn clockwise for date changeTime setting
2H buttonPower Storage IndicatorPower Storage IndicatorFree

* Do not set the date between 9:00 PM and 1:00 AM. Otherwise, the date may not change properly.

Power storage indicator

  1. How to use
    Push the button at 2H position.
  2. Indication
    By pressing the button, the second hand moves quickly a certain amount of seconds depending on the power storage in a watch.
    The second hand starts to move quickly from current position.
    After the second hand moves quickly a certain amount of seconds, it keeps stopping until the current time is caught up with the second hand.

Relationship between the quick movement of the second hand and power storage

Quick movement of second handPower storage

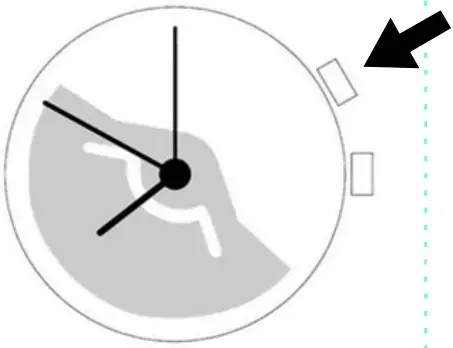

No moveButton instructionsThe watch may run down soon. Please be sure to recharge the watch. The second hand moves two-second interval.

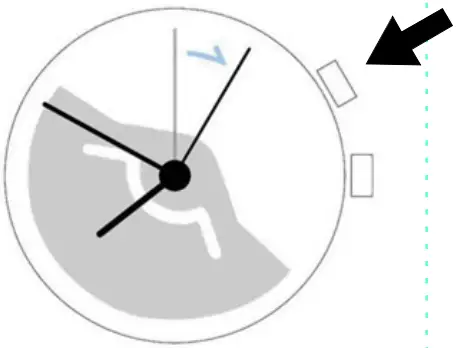

5 secondsButton instructionsApproximately more than 1 day of power storage is available.

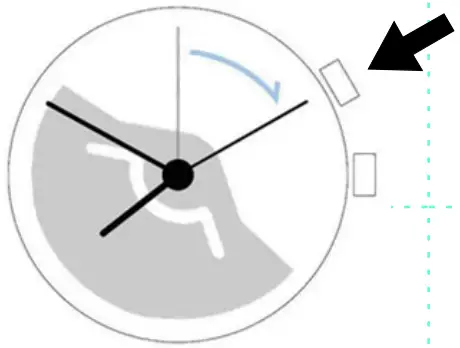

10 secondsButton instructionsApproximately more than 7 days of power storage is available.

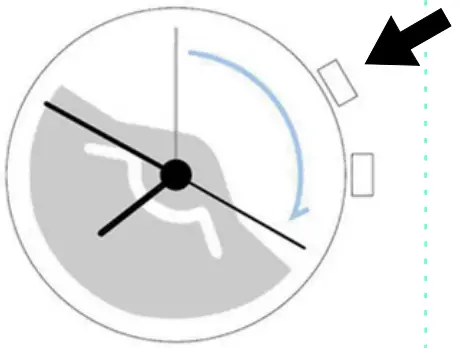

20 secondsButton instructionsApproximately 1 month of power storage is available.
30 secondsButton instructionsApproximately 4 to 6 months of power storage is available.

Recheck the power storage

You can check the power storage one more time immediately by pushing the button.

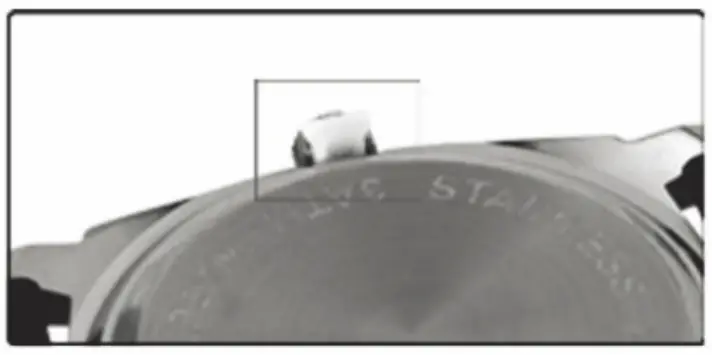

Stopper

Before initial operation please remove stopper behind crown.
Stopper

  • When the watch is underwater or wet, never use the pushers/ bezels, or set the time. Watch cases and metal bracelets should be rinsed thoroughly in fresh water after being in salt water.
SymbolSymbolSymbolSymbol
SymbolSymbolSymbolSymbolSymbol
WATER RESISTANTSymbolSymbolSymbolSymbol
3ATM 30M (3 BAR)SymbolSymbolSymbolSymbol
5ATM 50M (5 BAR)SymbolSymbolSymbolSymbol
10ATM-20ATM 100M-200M (10-20 BAR)SymbolSymbolSymbolSymbol
  • Always set the crown in the normal position/Tighten screw-lock crown completely.
  • When the watch is underwater or wet, never use the pushers/ bezels, or set the time. Watch cases and metal bracelets should be rinsed thoroughly in fresh water after being in salt water.
