Uline Plastic And Fiber Drum Truck H-3012 User Manual

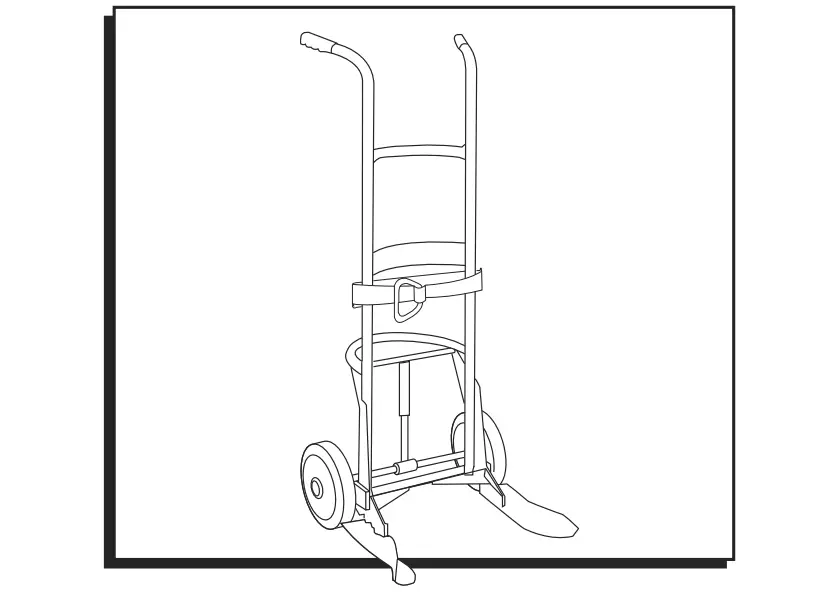

ULINE H-3012 Plastic and Fiber Drum Truck User Manual

1-800-295-5510
uline.com

OPERATION

WARNING! Read all instructions before using this truck.

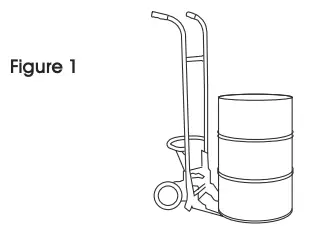

1. Position truck with both nose pads in contact with bottom edge of drum. (See Figure 1)

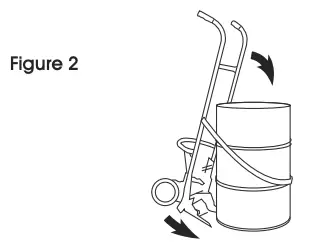

2. Wrap belt around drum and place in fork grooves, if existing. (See Figure 2)

   NOTE: Make sure belt is not twisted.

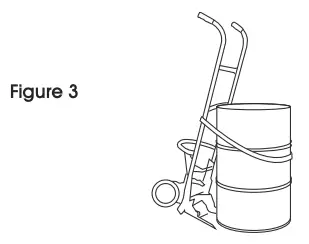

3. Tighten belt so that truck frame touches upper part of drum. (See Figure 3)

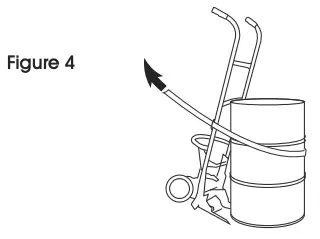

4. Pull truck back carefully just until drum rests on nose pads, then re-tighten belt. (See Figure 4)

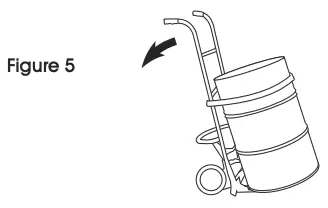

5. You are now ready to transport the drum. (See Figure 5)

   NOTE: With heavier drums, place foot on backrest for better leverage.

CAUTION! 1,000 lb/454kg MAXIMUM CAPACITY.

• DO NOT OVERLOAD.
• DO NOT USE WITHOUT BELT.
• USE ON LEVEL SURFACES ONLY.
• DO NOT USE ON STAIRS OR RAMPS.

CAUTION! Make sure drum rests securely on nose pads before moving. When unloading, be sure to hold truck securely when loosening belt.

0521 IH-3012
