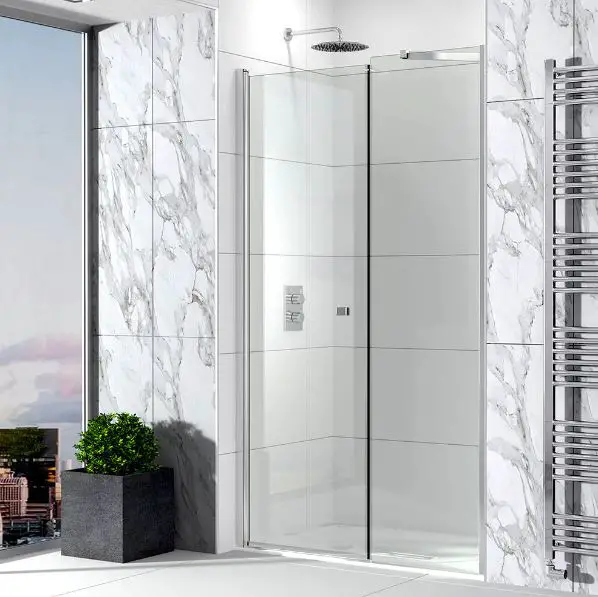

SCHULTE EP237006 Shower Door with Pivoting Side Panel

Product Usage Instructions

1. Cover the shower tray completely.
2. Wear safety goggles.
3. Wear safety shoes.
4. Recommended assembly with 2 persons.
5. Get information about the location of the power line.
6. Get information about the location of the water pipe.
7. Wear gloves with pulse protection.
8. Check the condition of the masonry before installation. The fixing material included in the scope of delivery may not be suitable for fixing.
9. The installation surface of the shower enclosure must be level. The montagevlak van de douchewand moet waterpas zijn.
10. Every shower enclosure has a fixation side. The fixation side is the side where the door panel is mounted on the wall. There are two possible fixation sides: fixation on the left (a) and fixation on the right (b). This assembly instruction describes an assembly with fixation on the left. The assembly steps on the right are then to be carried out in mirror image.
11. Montage auf Duschwanne (Mounting on shower tray) or Montage auf Fliese (Mitte Glas) (Mounting on tile, middle of the glass) depending on the specific product.

SAFETY INSTRUCTIONS

• Cover the shower tray completely.
• Wear safety goggles.
• Wear safety shoes.
• Assembly recommended with 2 persons.
• get information about the location of the power line.
• get information about the location of the water pipe.
• Protect glass.
• wear gloves with pulse protection.

Installation Instructions

NOTE

• Check the condition of the masonry before installation. The fixing material included in the scope of delivery may not be suitable for fixing.

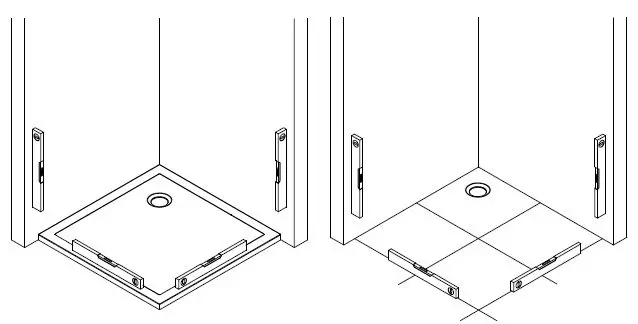

• The installation surface of the shower enclosure must be level.

STOP

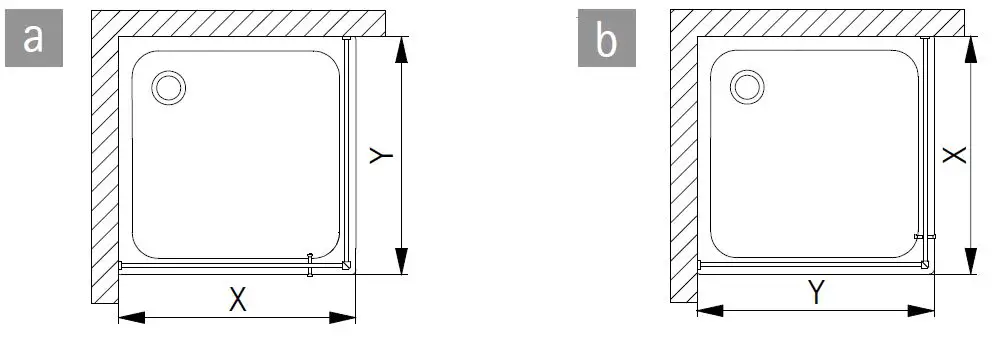

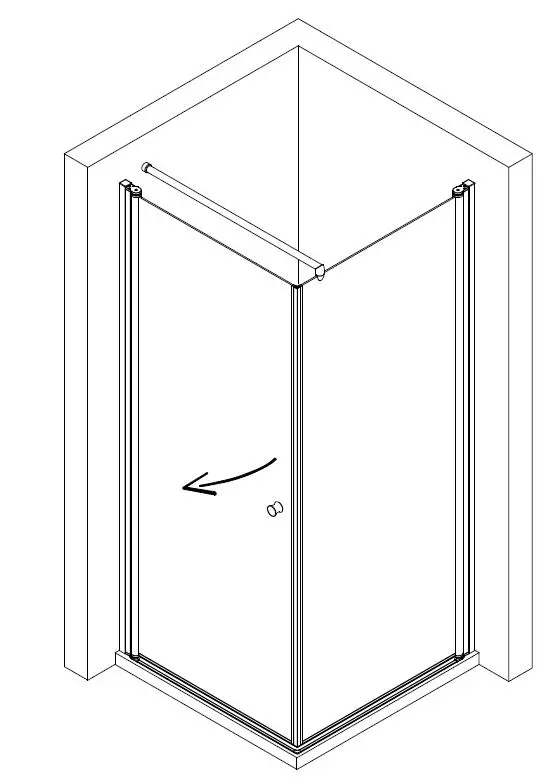

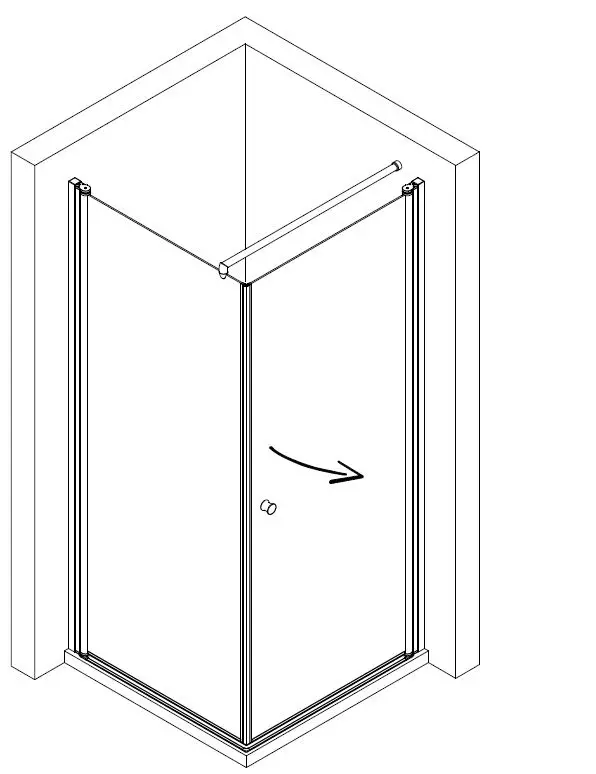

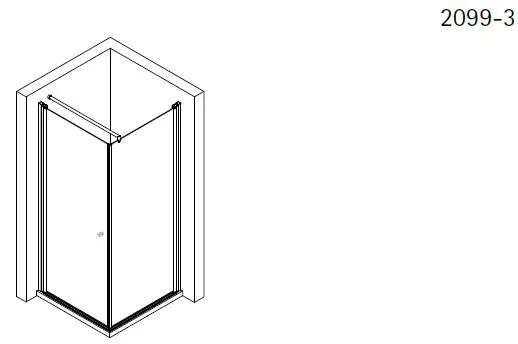

• Every shower enclosure has a “fixation side”. The “fixation side” is the side where the door panel is mounted on the wall.
• There are two possible fixation sides: fixation on the left (a) and fixation on the right (b).
• This assembly instruction describes an assembly with “fixation on the left”. The assembly steps on the right are then to be carried out in mirror image.

stop left

stop right

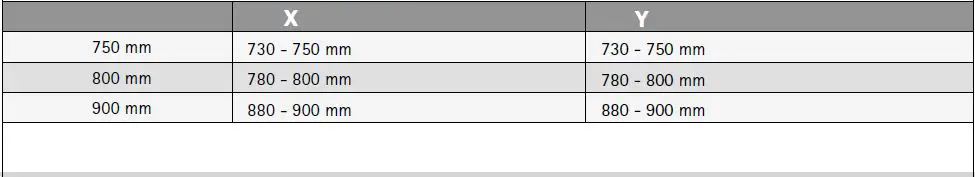

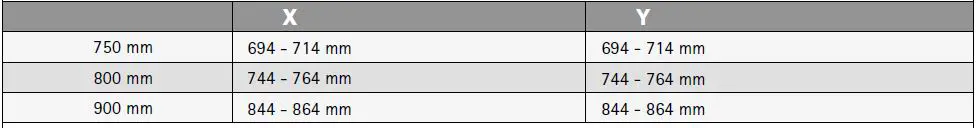

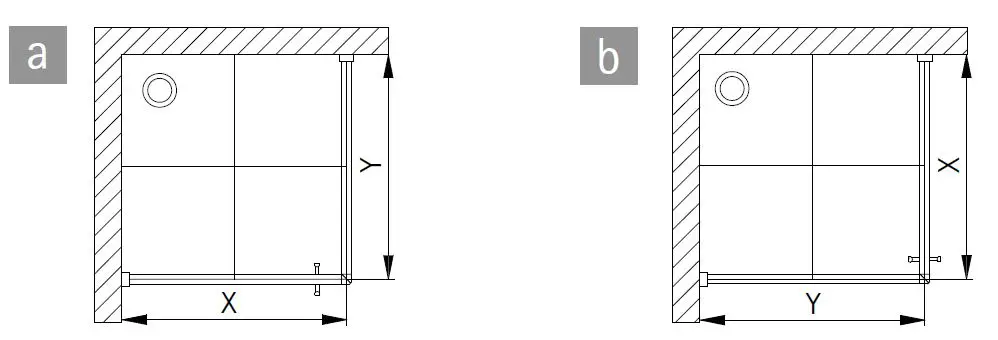

DIMENSIONS

• check if the measured dimensions correspond to the table values (X,Y)

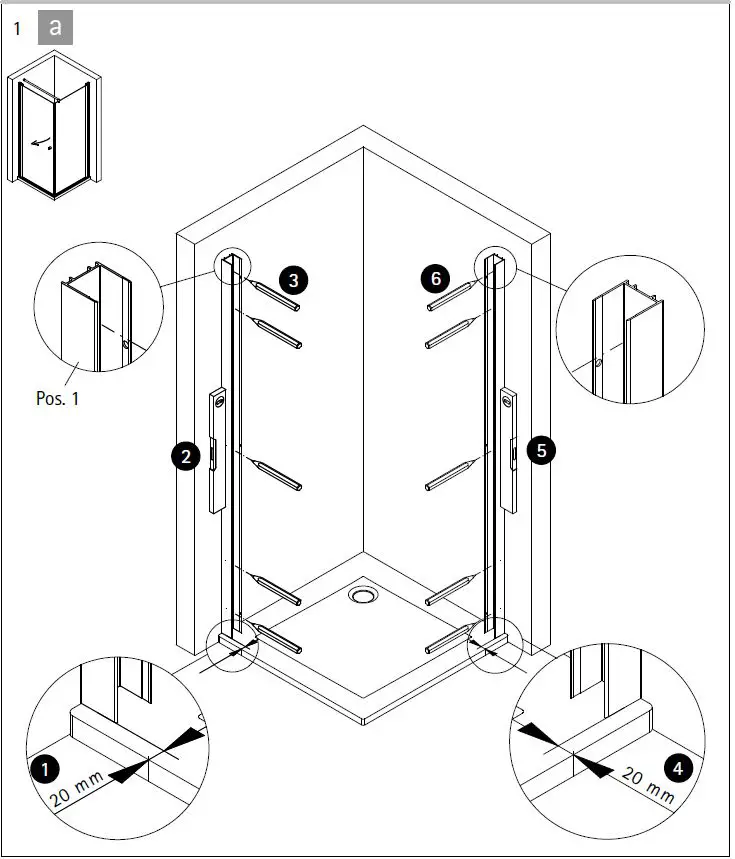

Mounting on the shower tray

Mounting on tile (middle of the glass)

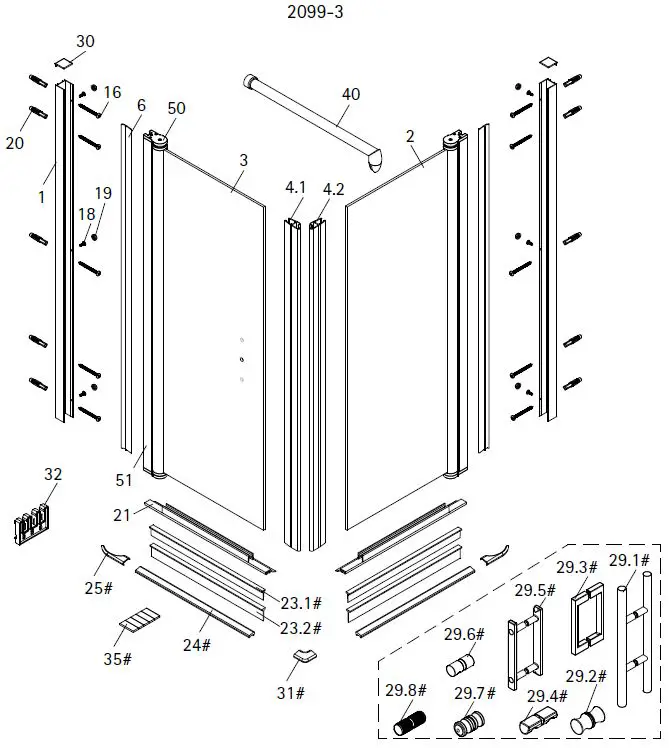

Item /Designation /Spare part no

• 1 2x wall connection profile E85230 piece €86.95 29.1# 1x bar handle E100140-6 piece €82.95
• 2 1x swing-away side panel 29.2# 1x button handle E100140-1 piece 32.95 €
• 3 1x door element 29.3# 1x bow handle E100140-59 piece €82.95
• 4.1 1x magnet profile 45°, 1962 mm 29.4# 1x knob handle E100140-51 piece €32.95
• 4.2 1x magnet profile 45°, 1962 mm 29.5# 1x rod handle E100140-39 pieces 82.95 €
• 5 2x brush seal (pre-assembled) E100170 piece €24.95 29.6# 1x knob handle E100140-3 piece €32.95
• 6 2x outer seal (pre-assembled) E100166 piece €24.95 29.7# 1x handle with buffer E100140-45 piece €32.95
• 16* 10x pan-head self-tapping screw 4.2 x 45mm 29.8# 1x knob handle with knurl E100140-25 pieces €42.95
• 18* 6x self-tapping screw with cap head 3.5 x 9.5mm 30 1x cover cap set E85205-3 Set 11.95 €
• 19* 6x cap for screw 31# 1x water strip end cap 90°
• 20* 10x dowels Ø 6mm 32 4x installation aid E100201 Set 12.00 €
• 21 2x water repellent profile E100058-6 pieces €23.00 35# 2x adhesive strip set
• 23.1# 2x push-in seal 14.5 mm E100067-145-10 pieces €14.95 40 1x stabilization bracket E85330 piece €46.95
• 23.2# 2x push-in seal 18.5 mm E100067-185-10 pieces 14.95 € 50 2x pivot bearing top/bottom E100082-1 ​​set per side 31.95 €
• 24# 2x water strip (incl. item 35) E100050-1-2 set €35.00 51 2x side profile E85231 piece €86.95
• 25# 2x water strip end caps left/ right (incl. item 31) E100212-4 Set 9.95 €
• Screw and cap set E85200-3 €16.95 # optional

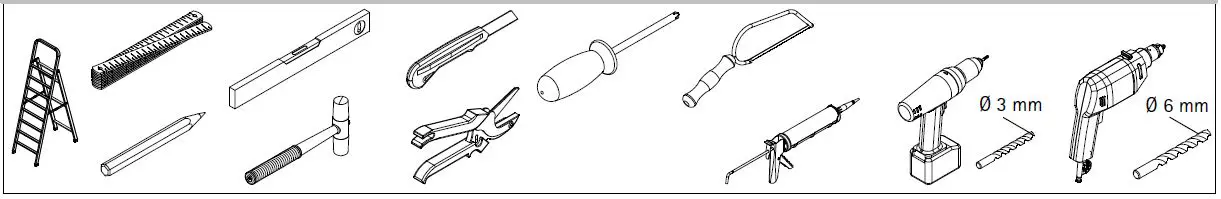

TOOL NEEDED

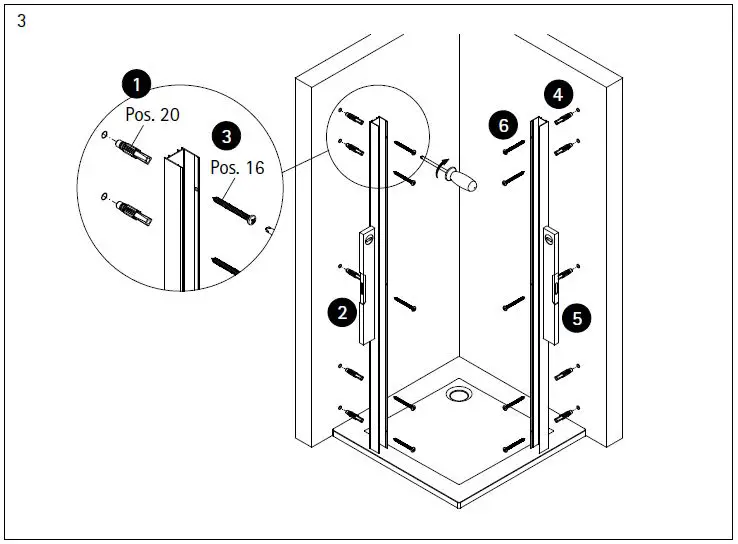

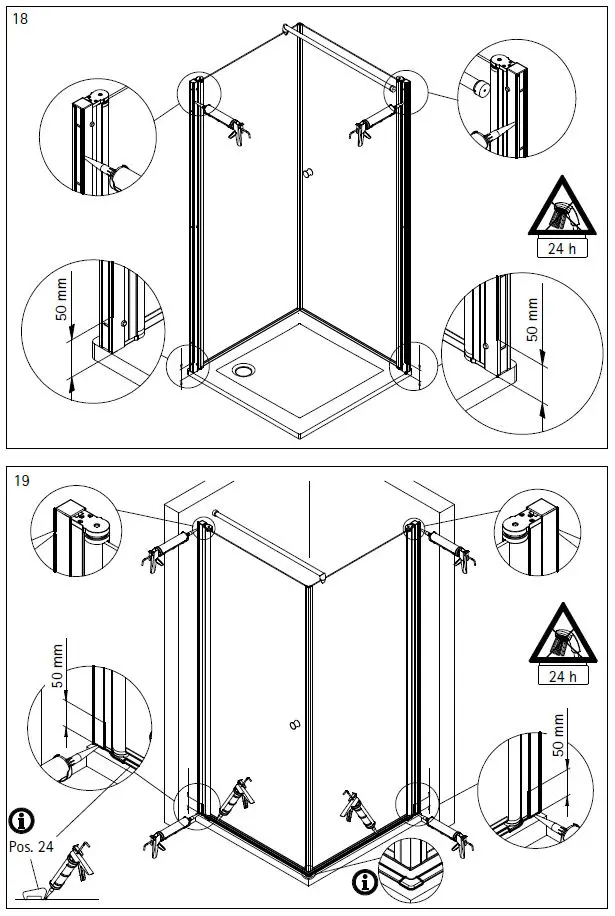

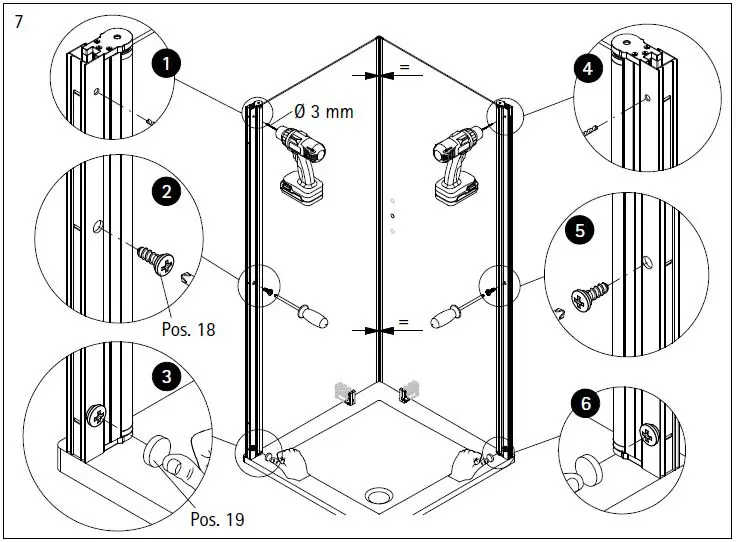

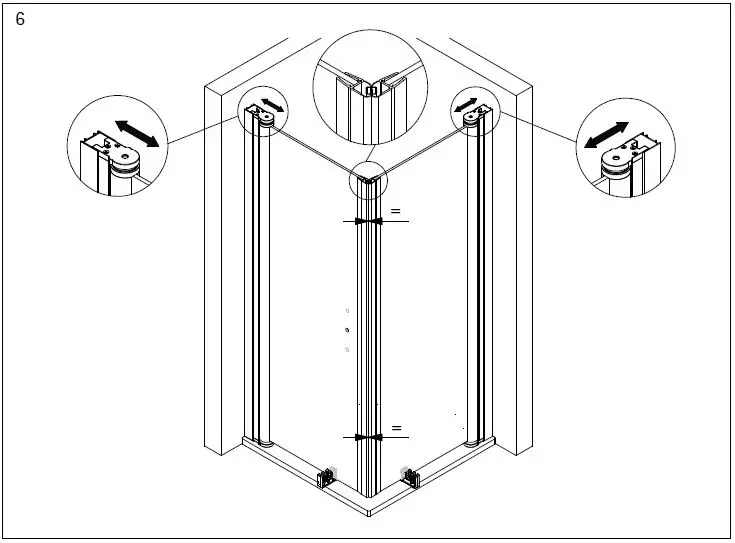

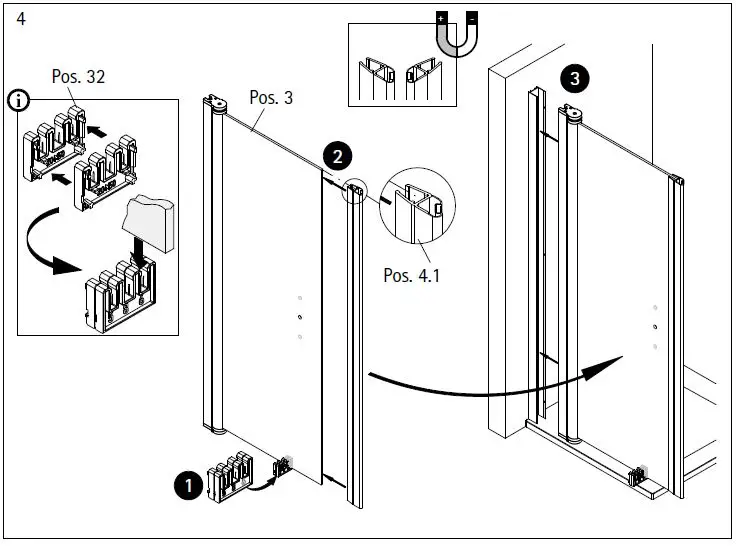

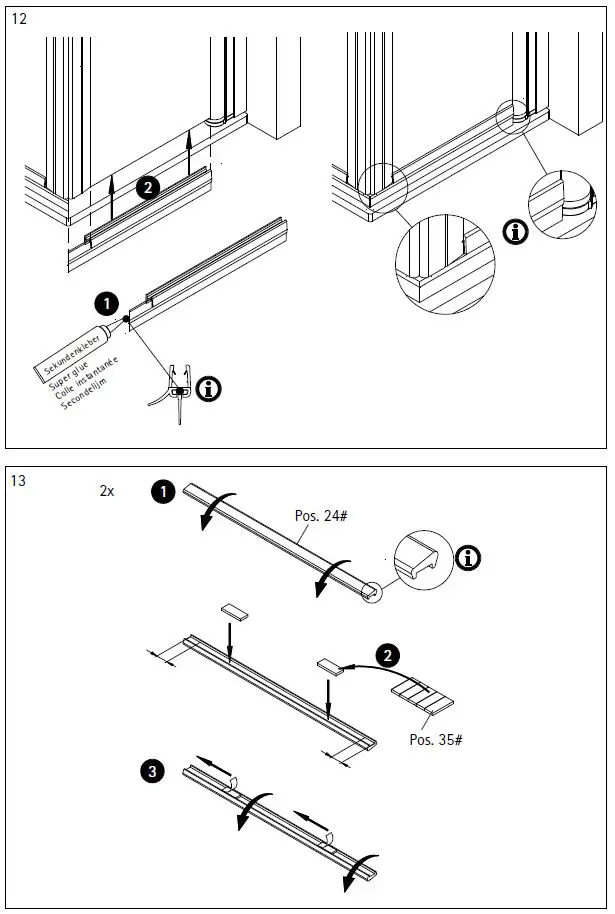

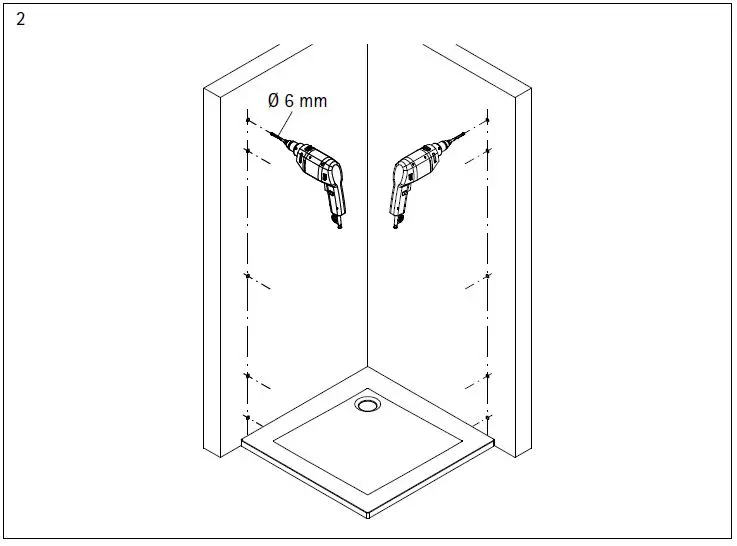

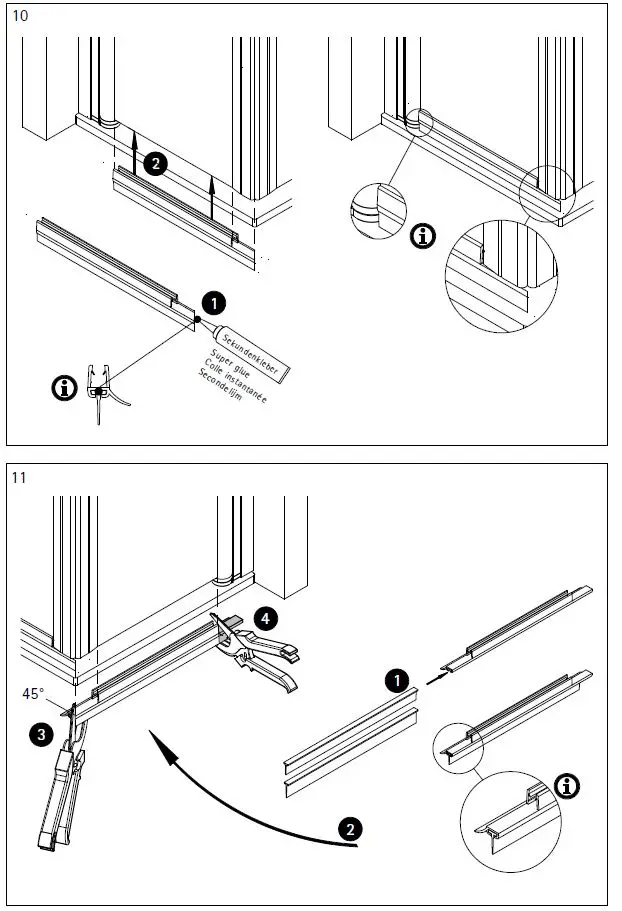

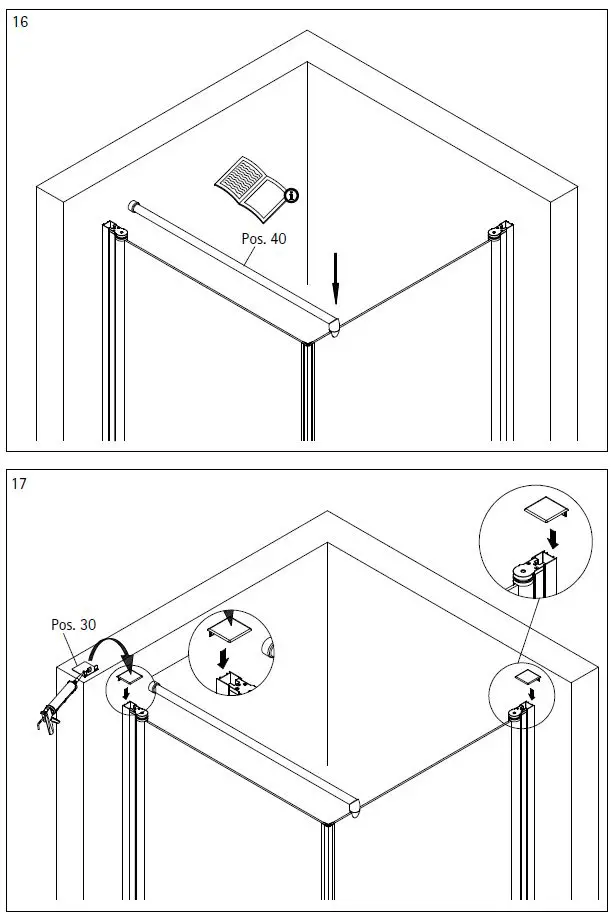

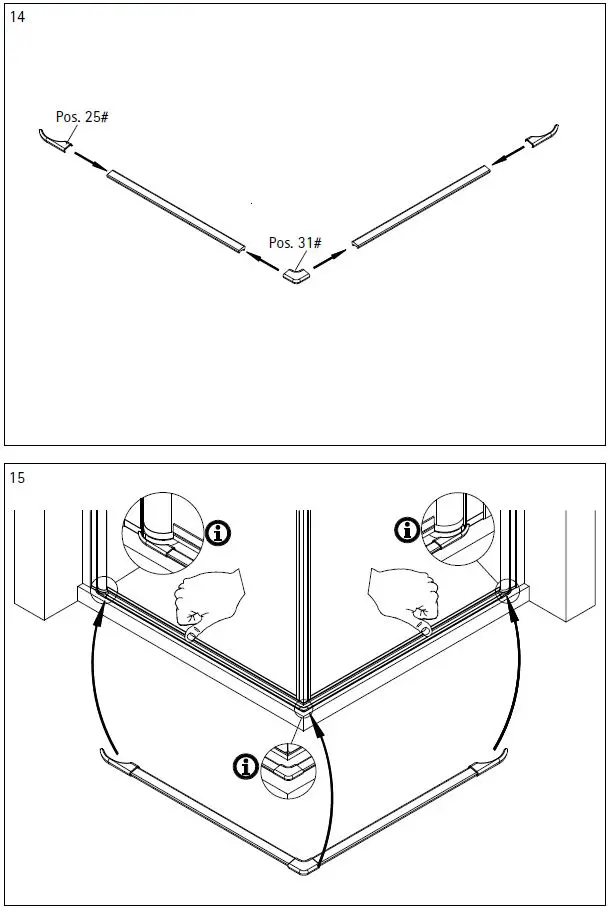

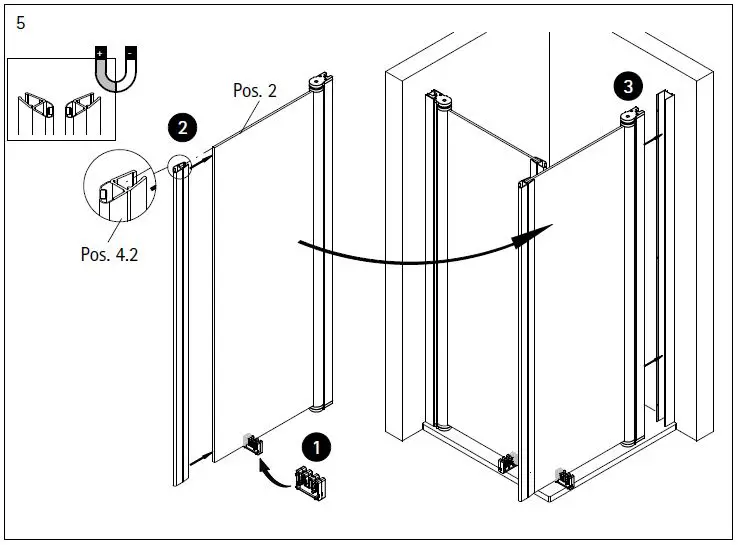

ASSEMBLY

More Information

Inspection Number

• spare parts order/Fax 02962 / 972-4260
• technical help/Telefon 02962 / 972-40
• E-Mail: [email protected].
• Duschservice Zum Hohlen Morgen 22 59939 Olsberg /Germany

Status 02/23 Subject to technical changes
© The duplication of texts and images is not permitted.
