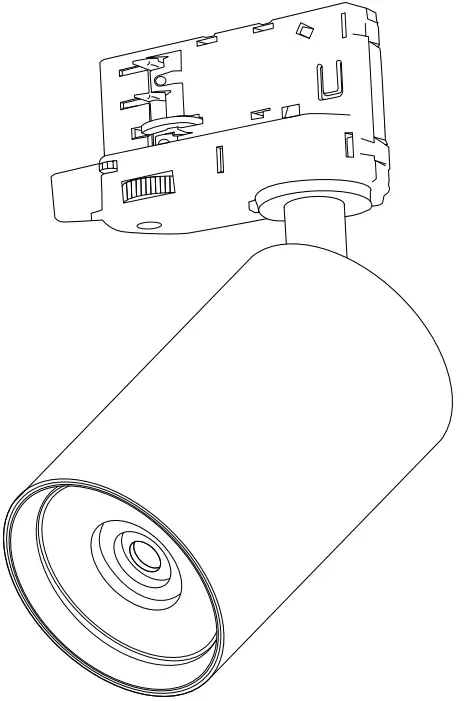

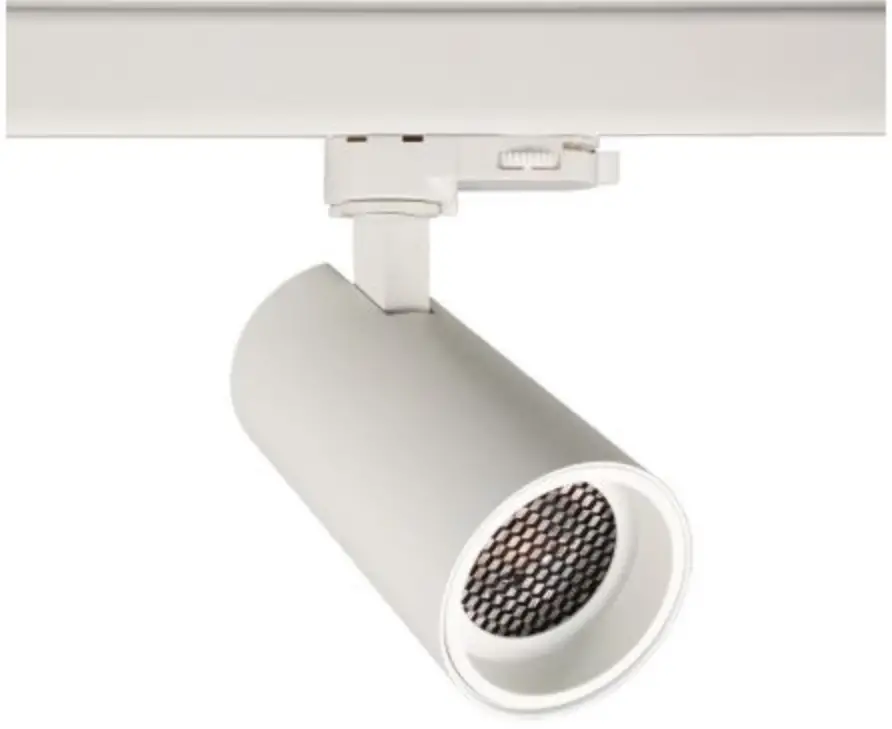

T-LED KULO KUL001 LED Spotlight For 3 Circuit Tracks Installation Guide
Technical specification
Technical specification| Watts | 33W | 33W | 33W |
| Volts | 220-240V | 220-240V | 220-240V |
| Ingress protectio | IP20 | IP20 | IP20 |
| Beam angle | 36° | 36° | 36° |
| Colour temperature | 3000K | 4000K | 6500K |
| Luminous flux | 3100lm | 3100lm | 3100lm |

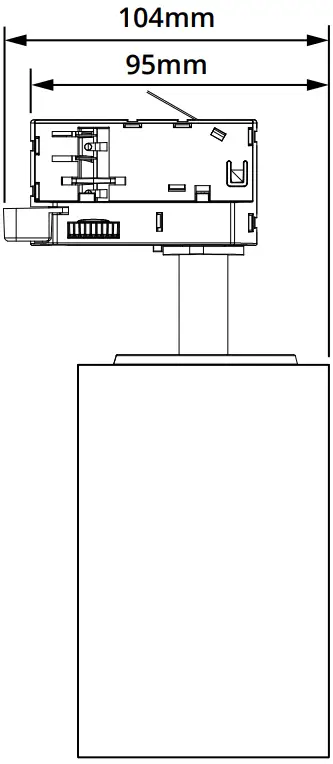

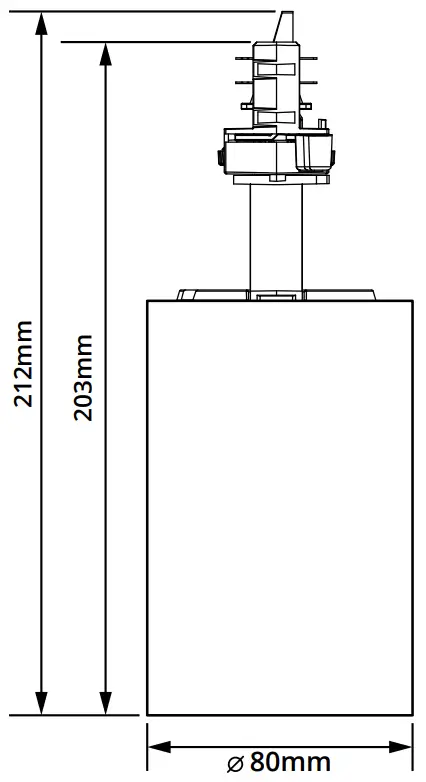

Dimensions
Dimensions
What is in the box
Installation guide
- All handling with the luminaire must be carried out only when the luminaire is disconnected from the mains.

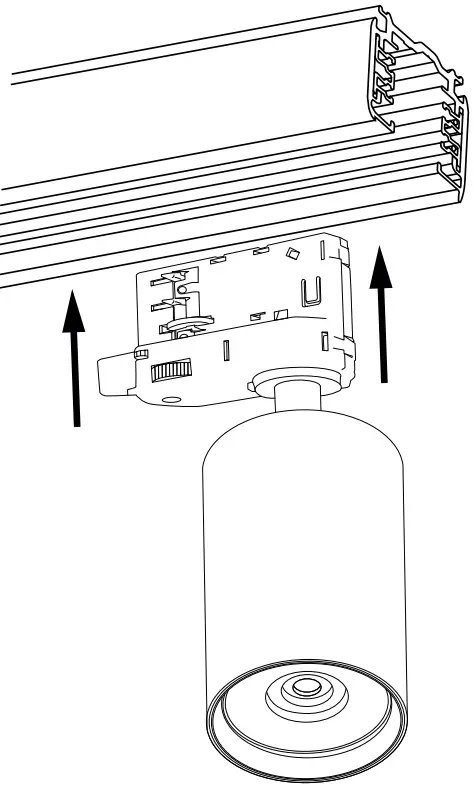

- Insert the luminaire to the 3 circuit track.

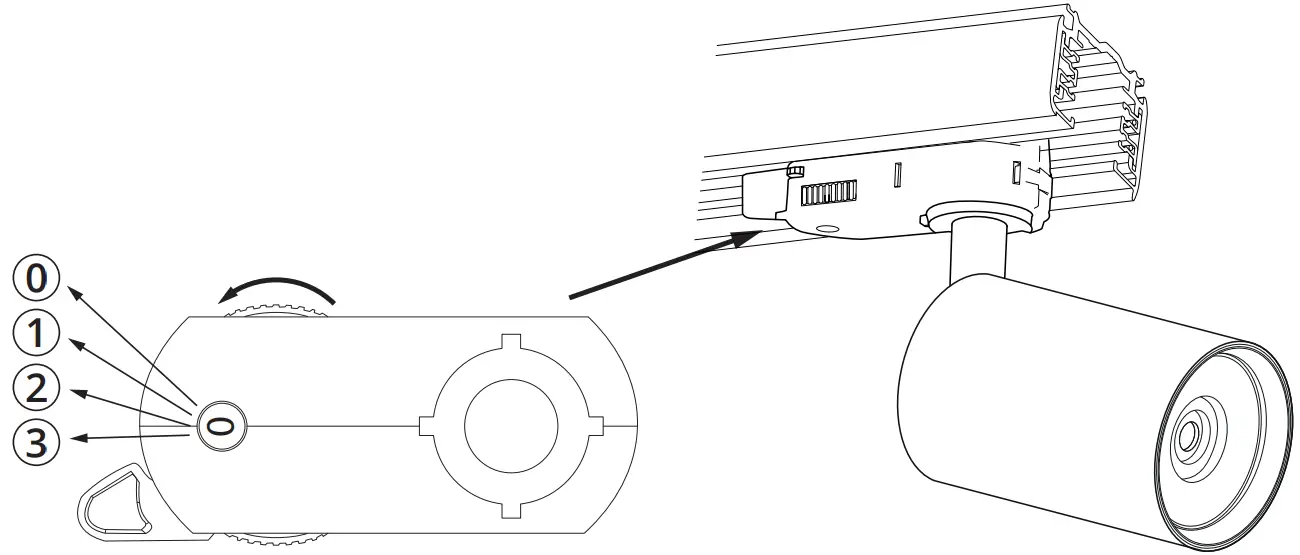

- Choose a phase (1,2,3).

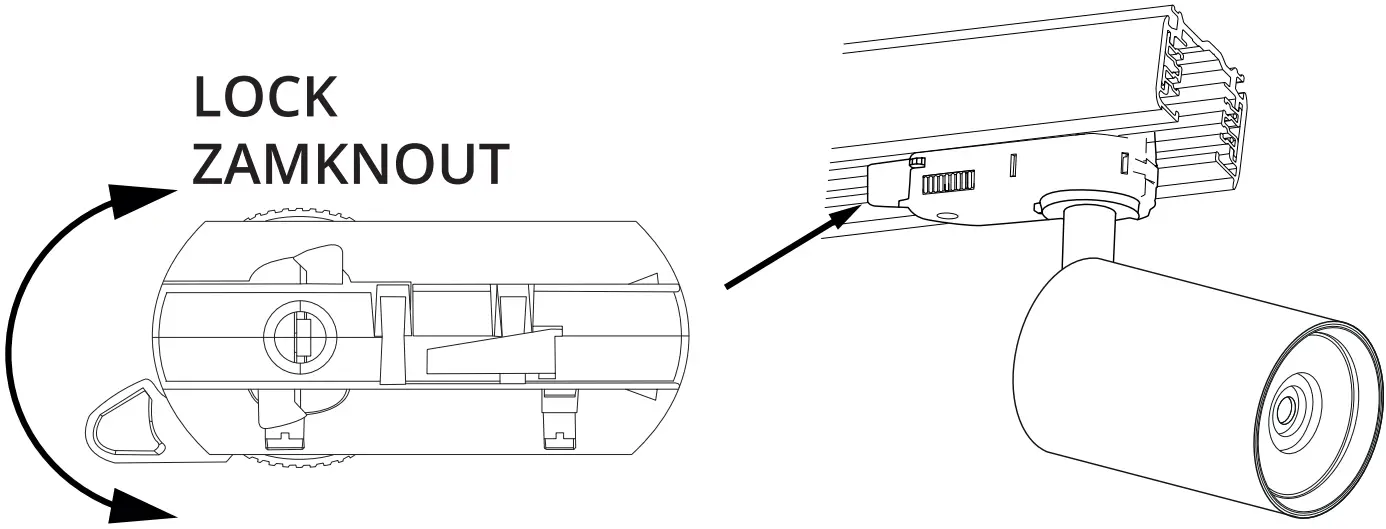

- Lock the luminaire in the track.
- Turn on the switch of the mains.
WARNING
Installation can be carried out by a qualified person only.
