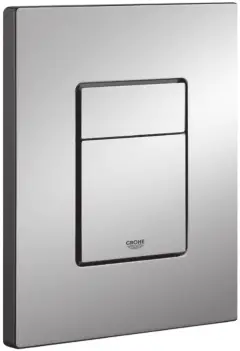

38 732 Skate Wall Plate
Instructions
STANDARD SPECIFICATION:
- GROHE EcoJoy® Technology for less water and perfect flow
- GROHE StarLight® Finish
- For dual flush or start and stop actuation
- For dual flush only (BR0)

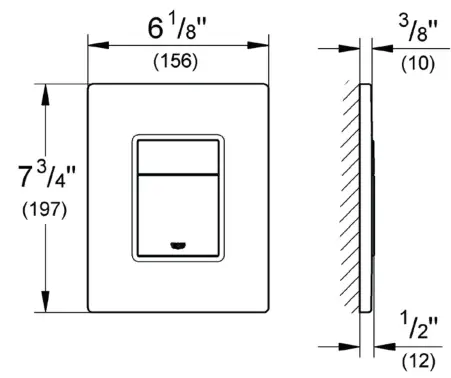

- 6 1⁄4” x 7 3⁄4” (156 mm x 197mm)
- For vertical and horizontal installation
- For use with Rapid SLX please order shaft (66 791 000) (sold separately)
- Made of ABS
PRODUCT FEATURES:
 | GROHE StarLight® |
 | GROHE EcoJoy™ |
CERTIFICATIONS:
- ADA
- Energy Policy Act of 1992
- CSA B125.1
- ASME A112.18.1
AVAILABLE FINISHES:
| 38732000 |  | GROHE StarLight® Chrome |
| 38732A00 |  | Hard Graphite |
| 38732BE0 |  | Polished Nickel lnfinityFinish™ |
| 38732BR0 |  | Titanium |
| 38732EN0 |  | Brushed Nickel lnfinityFinish™ |
| 38732GN0 |  | Brushed Cool Sunrise |
| 38732P00 |  | Matte Chrome |
| 38732SD0 |  | Stainless Steel |
| 38732SH0 |  | Alpine White |
TECHNICAL DATA:
NOTE: Install this product according to the installation guide. ADA, CSA compliant when installed to the specific requirements of these regulations.
We reserve the right to make revisions without notice to product specifications. 12-02-2021
US
Tel: 1.630.582.7711
Fax: 1.630.582.7722
For the most current Specification Sheet,go to www.grohe.us.
Canada
Tel: 1.888.644.7643
Fax: 1.905.366.2071
For the most current Specification Sheet, go to www.grohe.ca.
