Gude Grp 160 Vibrating Plate Instruction Manual

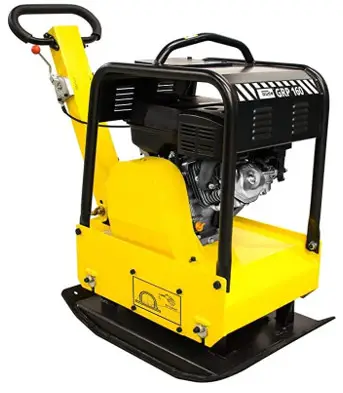

GRP 160 Vibrating Plate
Instruction Manual

Please read the instructions carefully before starting the machine.

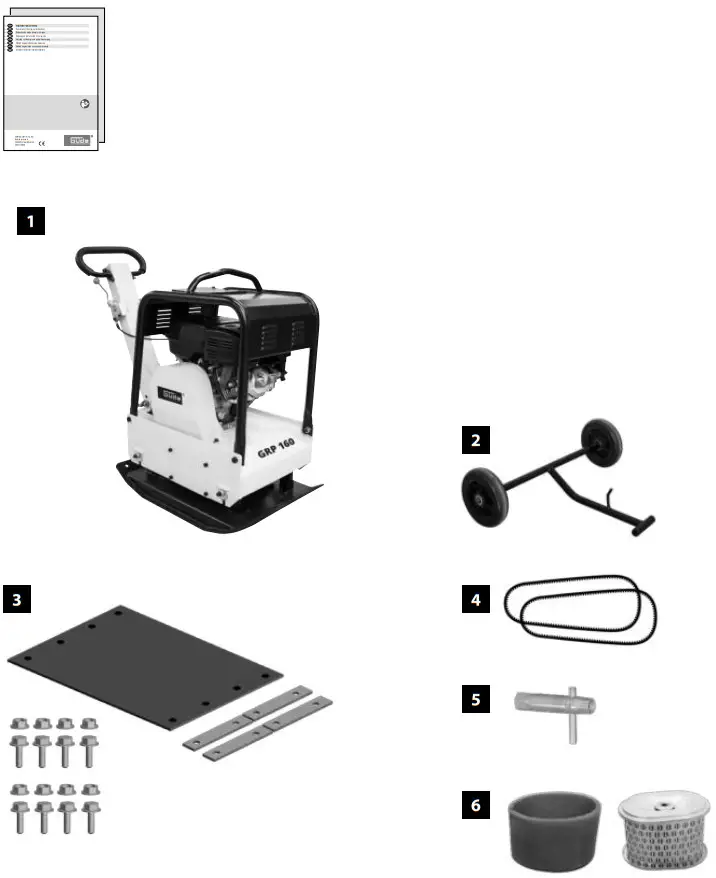

DELIVERED ITEMS

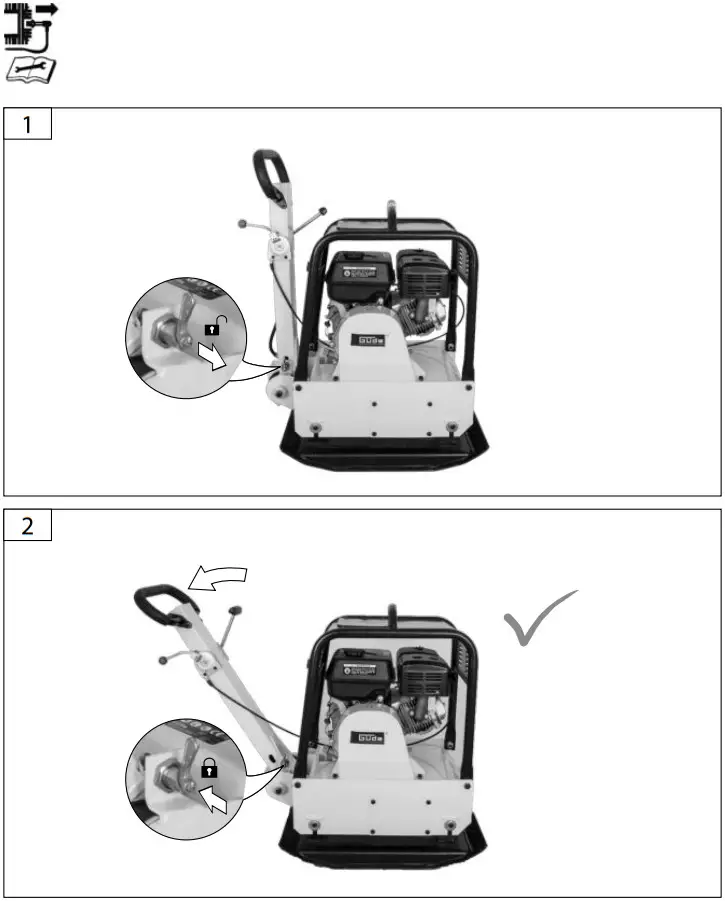

Assembly

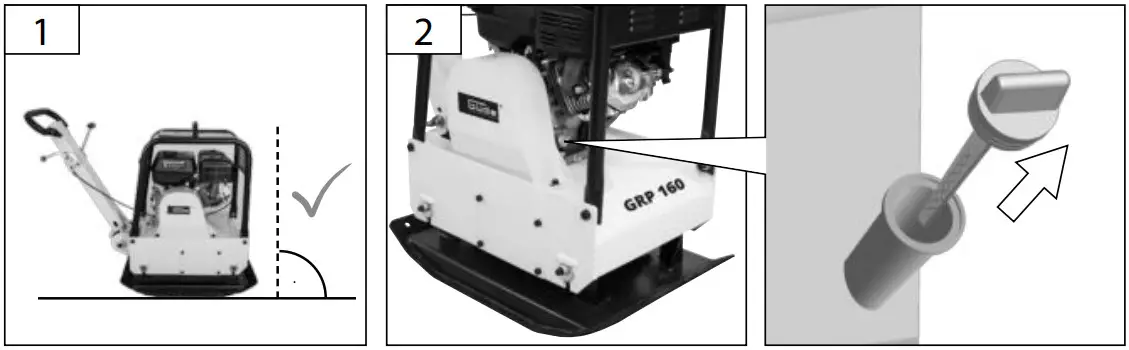

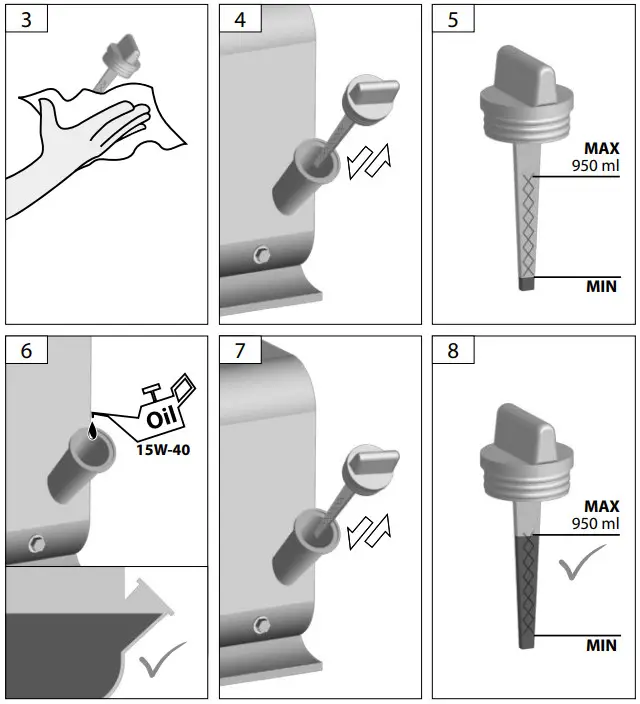

Oil level inspection

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

To ensure quality, every piece of equipment is subject to a test operation and filled with motor oil. Oil is drained before transport; however, there can be some motor oil remains on the dip stick. Please check carefully the oil level and add motor oil again.

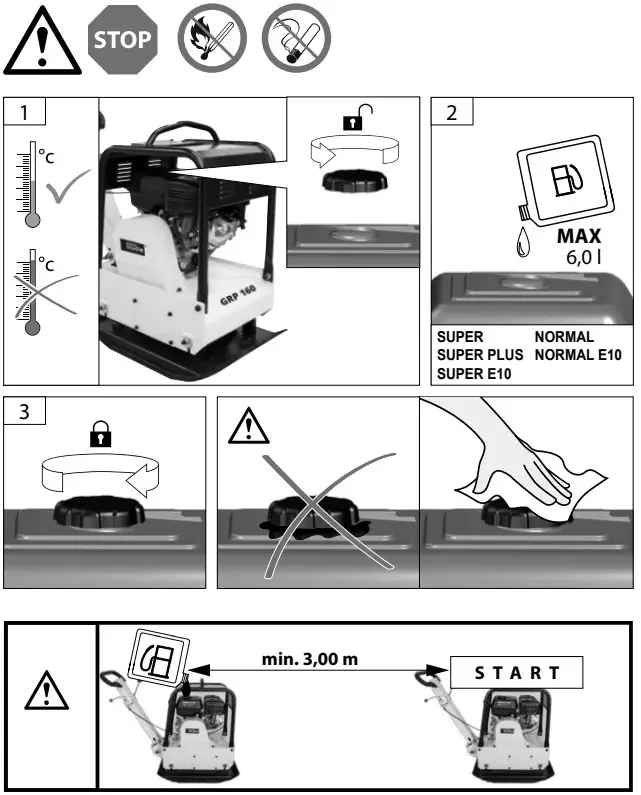

Fuel tank filling

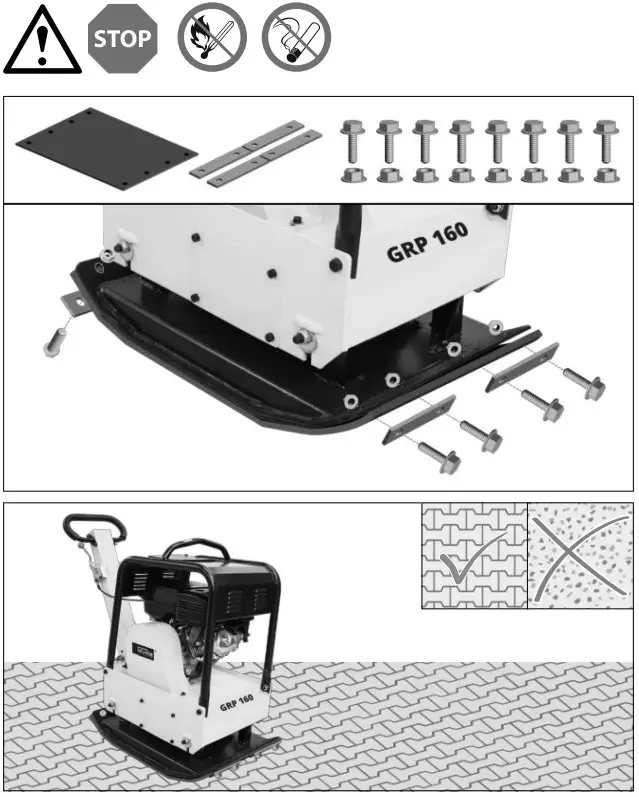

Rubber mat

Working instructions

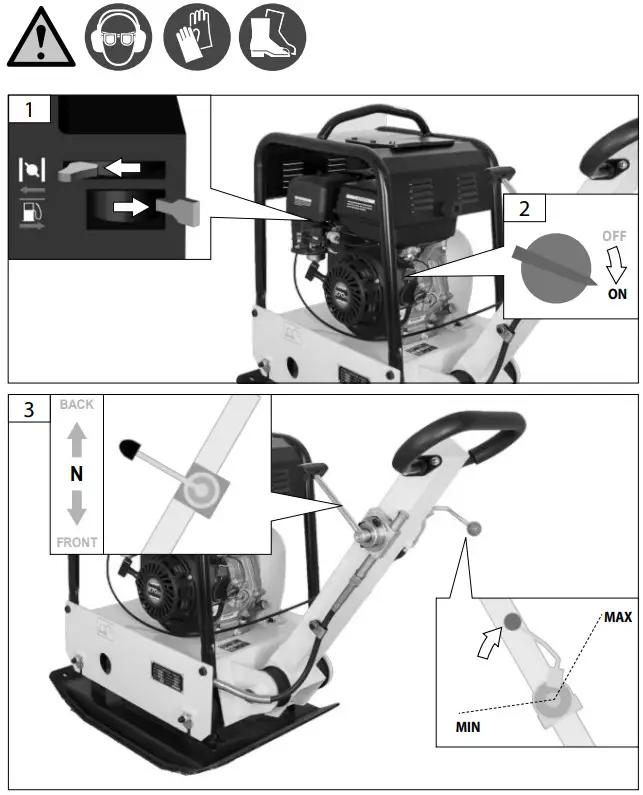

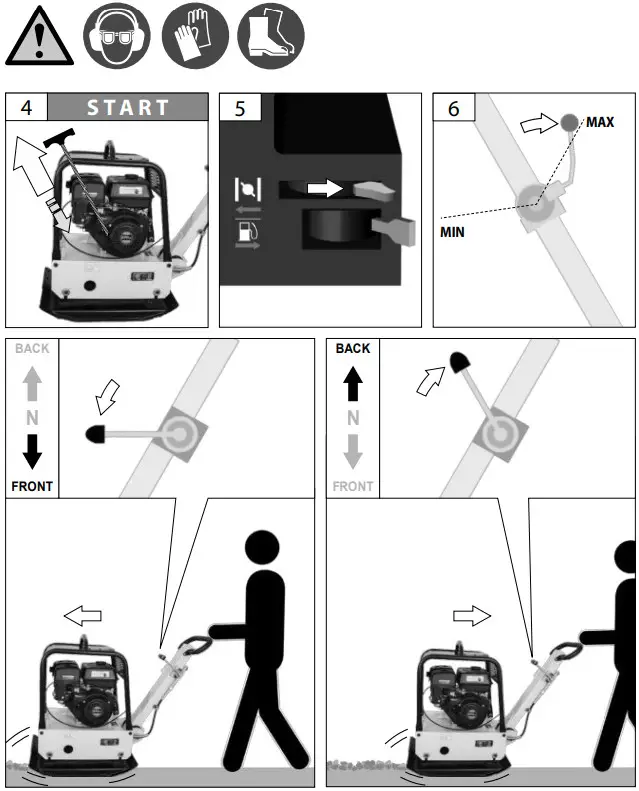

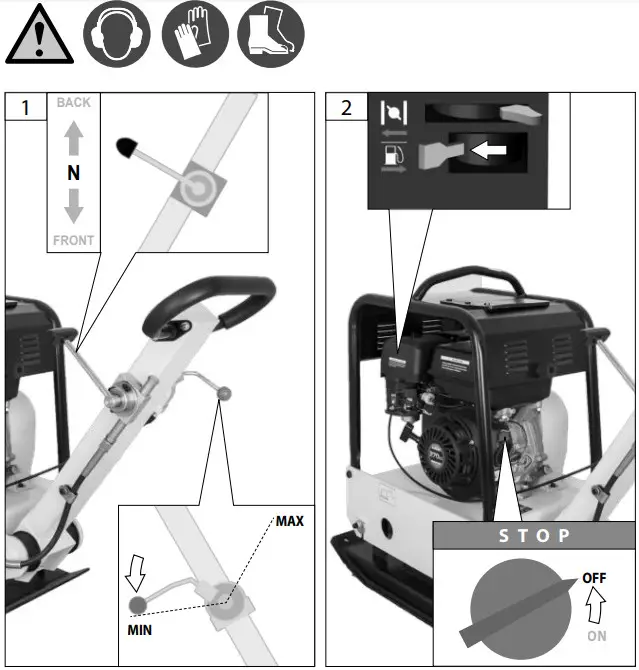

Operation – START

Operation – STOP

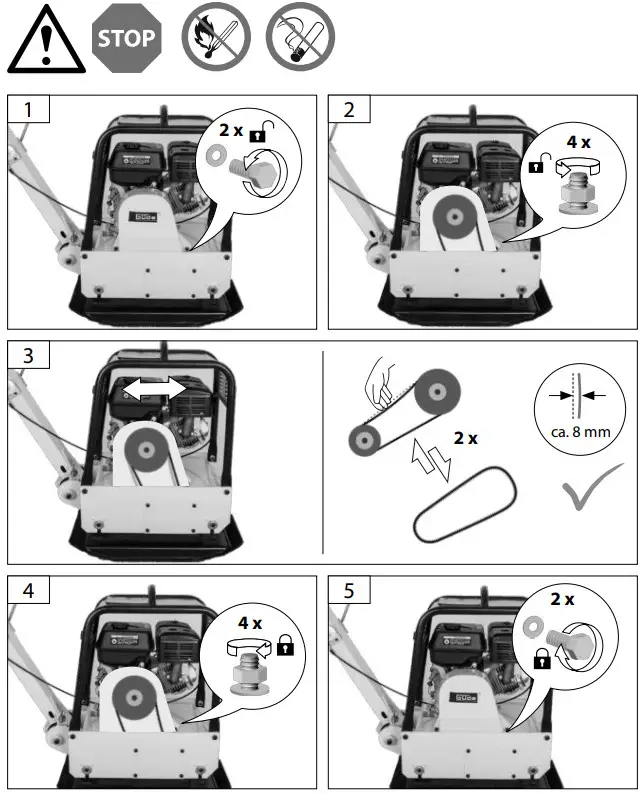

V-belt tensioning

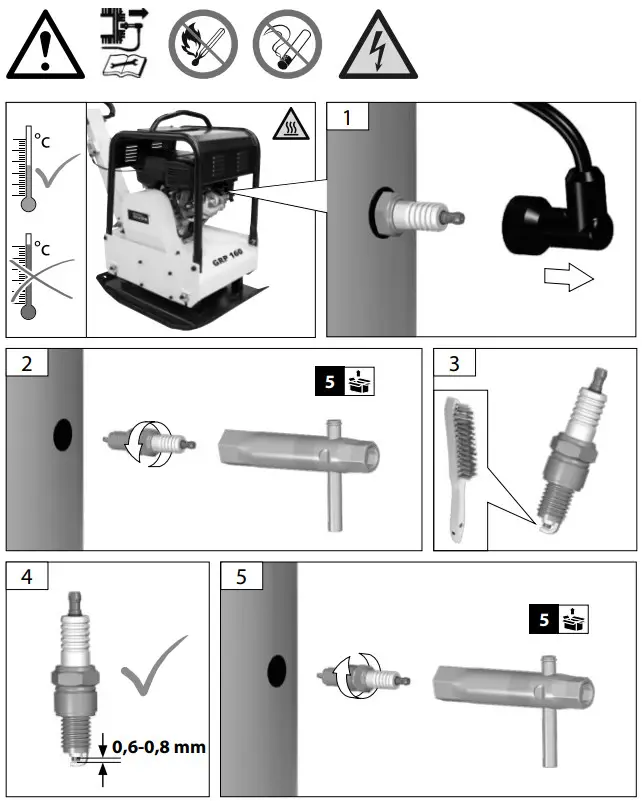

Spark plug

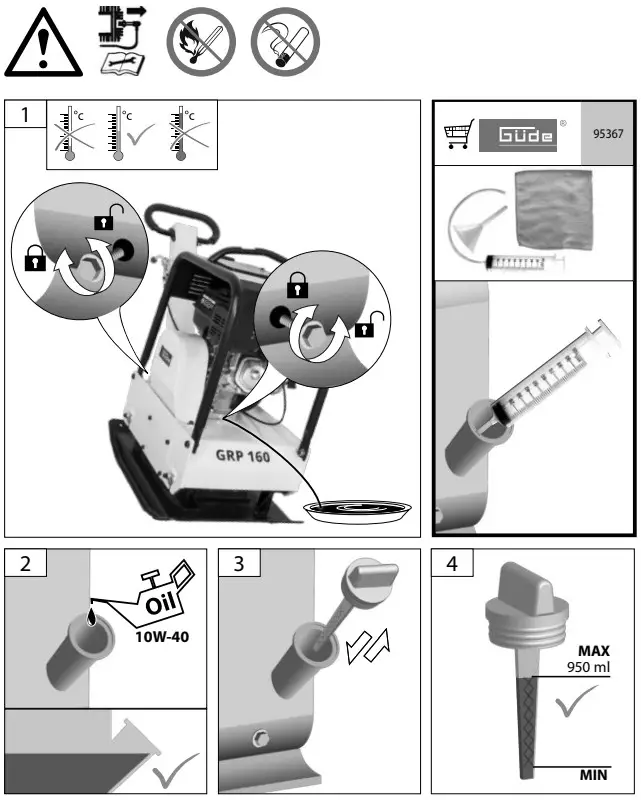

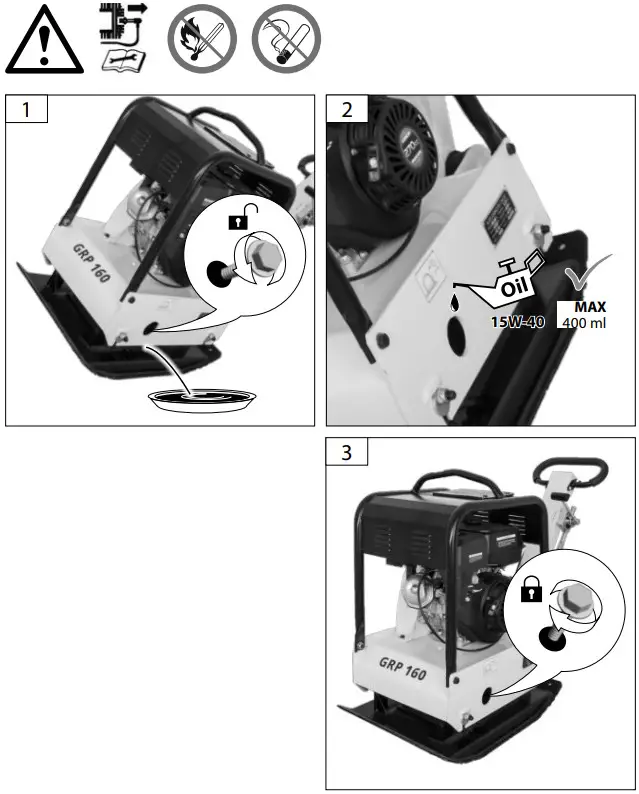

Oil change

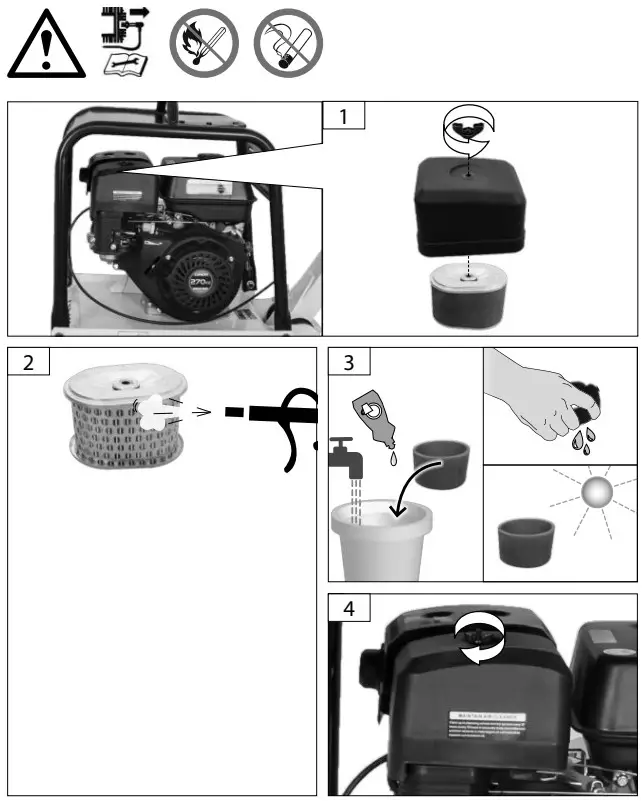

Air filter

Paper filter to be cleaned with compressed air only!
Never use water!

Technical Data

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.
The vibration emission level may be used to compare one tool with another.
It may be used for a preliminary assessment of exposure.
An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organization of work patterns.
Read and understand the operating instructions before using the appliance. Familiarize with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.
The operator is responsible for accidents or risks to third parties.
In case of any doubts about connection and operation refer please to our customer center
Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.
Children must be supervised in order not to play with the machine.

Specified Conditions Of Use

The vibrating plate is exclusively intended to be used for compressing small to medium areas, foundations, terraces, pavements and driveways made of the following materials:
sand, shingle, gravel, crushed stone, asphalt, low cohesive mixing materials
The following materials require the use of a rubber mat: paving stones, bricks
  The machine is intended only for use on construction sites where on-site conditions are conducive to the use of machinery.
Always place the unit on a firm and flat surface! Please ensure that the machine does not tip over, slide or fall during use.
Please maintain enough distance from the secured edges of the construction pit as well as any embankments.
The machine must never be used on a slope.
Do not work with the unit in an environment with a risk of explosion where there are flammable liquids, gases or dust.
The machine must never be used in deep pits, tunnels or caves (> 1.5  m).
The work site must be free of electric cables as well as gas and water lines that could sustain damage from the vibrations.
Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
The machine may only be used in a technically perfect condition and taking into account all safety information.
The use of the machine is at the discretion of the operator; use at your own risk.
Residual risks
Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.
Risk of fire!
Never operate the unit near highly flammable materials.
Fuel is highly flammable.
Keep the fuel in suitable containers only.
The appliance may only be refueled outdoors and not near open fire or burning cigarettes.
Refuel the engine only when switched off. Refuel before starting the appliance. If the engine is running or still hot, it must not be refueled or the tank cover opened.
After use, let the unit cool down for at least 10 minutes before refueling.
Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.
Replace all fuel tank and container caps securely.
Fuel tank to be emptied outdoors only.
  Risk of poisoning!
Exhaust gases, fuel and lubricants are toxic. Inhaling exhaust gases may be fatal!
Do not operate the unit in closed spaces where dangerous carbon monoxide gases may accumulate.
Risk of explosion!!
Petrol and petrol vapors are highly flammable, explosive.
Do not work with the unit in an environment with a risk of explosion where there are flammable liquids, gases or dust.
Refuel the engine only when switched off.
Do not store any fuel near the unit.
Never keep the unit with petrol in the tank inside a building where petrol vapors could get in contact with open fire or sparks.
Hearing damage
A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!
Risk of crushing
Keep hands and feet away from moving parts. Wear safety shoes with steel reinforcement!
Damage to health arising from vibrations to hand and arms if the device is used for a long time or if the device is not guided and evaluated properly.
Vibration damping systems are no guaranteed protection against white finger disease or carpal tunnel syndrome. Therefore, it is necessary to carefully check the state of your fingers and wrist if you have regularly used the appliance for a long time. If any symptom of the diseases above appears, seek medical advice immediately. To reduce the white finger disease risk, keep your hands warm and take regular breaks during your work.
Danger of burns !
Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler. Contacting hot parts of the unit may cause burns. Pay attention to the warnings on the advice.
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)

Safety instructions

WARNING
Read all safety warnings and all instructions.  Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
Keep children and bystanders away while operating a power tool.  Minimum safe distance is 5 m.
Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
Check carefully the terrain where the appliance is being used and remove any items that could get caught and be thrown away.
Poor lighting/light conditions represent a high safety risk. Provide adequate lighting or good lighting conditions when working with the machine.
Before work can begin, operators must familiarize themselves with the work site. Elements of the work site include, for example, obstacles around the site or in the surrounding traffic, the load bearing capacity of the earth and ensuring the construction site is safe and secured.
Safe operation requires sufficient operator knowledge of the functions and positions of the controls and indicators or meters. Pay attention to the illustrated pages in the front section of the manual.
The appliance should only be used when in a perfect state. Carry out a visual inspection before switching the appliance on. Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately. Replace any damaged parts before the appliance is put into operation if necessary.
The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.
It is strictly prohibited to disassemble, modify and purposely remove the protective equipment on the unit and fit other protective equipment instead.
No change can be made in respect of engine and unit setting.
When working with this machine, do not use spare parts other than those recommended by us. Using spare parts not recommend by us can result in serious injuries to persons or damage to the machine. Oil products must not come into contact with skin, eyes and clothing.

Transport and storage

• Secure the device against shifting and toppling during transport.
• Take care to prevent from fuel and oil leakage during transport.
• Handling equipment to be used only when handling the machine.
• The load bearing capacity of the earth must be high enough to carry the weight of the machine.
• It is prohibited to stand or work under suspended loads.
• Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.
• Machine to be stored in a dry place. When the appliance is not going to be used for a long time, store it with an empty tank.

Symbols

	Caution!
	Warning against hot surfaces! Danger of burns !
	Warning against dangerous electric voltage
	Warning about inflammable substances
	Observe to keep out of dangerous zone Minimum safe distance is 5 m.
	Read the operating instructions to reduce the risk of injury.
	Wear ear protectors! Wear eye protective goggles !
	Wear gloves!
	Wear safety shoes with steel reinforcement!
	Slow
	Quickly
	Switch off the engine before any work on it.
	Prohibited smoking and open fire using.
	Warning against risk of tripping
	Warning against thrown-off items
	Risk of poisoning! Use the appliance only outside, never use it in confined and bad ventilated areas.
	Risk of crushing
	Handling equipment to be used only when handling the machine.
	Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centers. Dispose of old oil in an environmentally friendly manner. Make sure the oil products do not enter the soil.
	CE marking

	Guaranteed sound power level LWA
	Unleaded petrol

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until the unit has cooled down.
Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!
Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only. Repairs and works specified in these Instructions may only be performed by qualified authorized staff.
Use only original accessories and original spare parts. Carry out a visual inspection before switching the appliance on.
Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately.
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.
The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.
The guarantee does not cover any unauthorized use such as appliance overloading, use of violence, damage as a result of any unauthorized interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.
Important information for the customer
Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.
Service
Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions?
We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.
Tel.: +49 (0) 79 04 / 700-360
Fax: +49 (0) 79 04 / 700-51999
E-Mail: [email protected]

Inspection and maintenance plan

Repairs and works specified in these Instructions may only be performed by qualified authorized staff. Use only original accessories and original spare parts.

Regular servicing period		Before any start-up	After 1 month or 20 hours of operation	After 3 months or 50 hours of operation	After 6 months or 100 hours of operation	After 200 hours of operation
Engine oil	Inspection
	Change
Eccentric oil	Change
Petrol hose Exhaust system Choke Cable starter	Inspection
Air filter	Clean
	Change
Petrol filter	Clean
Spark plug	Inspection Clean

Tip: To ensure reliable operation of the appliance, we strongly recommend using fuel additives and performing 2-3 test operations after a longer time of not using the unit.
Failure removal

Translation of the EC-Declaration of Conformity
We, hereby declare the conception and construction of the below mentioned appliances correspond – at the type of construction being launched – to appropriate basic safety and hygienic requirements of EC Directives.
In case of any change to the appliance not discussed with us the Declaration expires.
Vibrating plate
55539 GRP 160
Appropriate EU Directives

97/68/EC_
2010/26/EU
Emission No.:
2000/14/EC_2005/88/EC
Method of compliance assessment
Annex V
Wolpertshausen,
08/09/2017

Harmonized standards used
Helmut Arnold
Managing Director
Gide GmbH & Co. KG,
Birkichstraße 6,
74549 Wolpertshausen, Germany
EN 500-1:2006/A1:2009
EN 500-4:2011
EN 55012:2007/A1:2009
EN 61000-6-1:2007
Guaranteed sound power level: L_WA 105 dB (A)
Measured sound power level: L_WA 102 dB (A)
Authorized to compile the technical file

GÜDE GmbH & Co. KG
Birkichstrasse 6
74549 Wolpertshausen
Deutschland
Tel.: +49-(0)7904/700-0
Fax.: +49-(0)7904/700-250
E-Mail: [email protected]
TN 55539
2017-10
