SIEMENS ET6..CEA1. Hob
Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome
Safety
Observe the following safety instructions.
General information
- Read this instruction manual
- Keep the instructions, the appliance pass and the product information safe for future reference or for the next
- Do not connect the appliance if it has been damaged in transit
Intended use
Only a licensed professional may connect appliances without plugs. Damage caused by in- correct connection is not covered under the warranty.
| Only use this appliance: ▪ To prepare meals and drinks. ▪ Under supervision. Never leave the appliance unattended when cooking for short periods. ▪ In private households and in enclosed spaces in a domestic environment. ▪ Up to an altitude of max. 2000 m above sea level. |
| Do not use the appliance: ▪ With an external timer or a separate remote control. This does not apply if operation with appliances included in EN 50615 is switched off. |
Restriction on user group
This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inad- equate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised. Keep children under the age of 8 years away from the appliance and power cable.
Safe use
WARNING ‒ Risk of fire!
Leaving fat or oil cooking on an unattended hob can be dangerous and may lead to fires.
- Never leave hot oil or fat unattended.
- Never attempt to extinguish a fire using water; instead, switch off the appliance and then cover with a lid or a fire blanket.
The cooking surface becomes very hot.
|
The appliance will become hot.
|
Hob covers can cause accidents, for example due to overheating, catching fire or materials shattering.
|
Food may catch fire.
|
WARNING ‒ Risk of burns!
The appliance and its parts that can be touched become hot during use, particularly the hob surround, if fitted.
- Caution should be exercised here in order to avoid touching heating elements.
- Young children under 8 years of age must be kept away from the appliance.
Hob protective grilles may cause accidents.
|
The appliance becomes hot during operation.
|
WARNING ‒ Risk of electric shock!
- Incorrect repairs are dangerous.
- Repairs to the appliance should only be carried out by trained specialist staff.
- Only use genuine spare parts when repairing the appliance.
- If the power cord of this appliance is dam-aged, it must be replaced with a special connection cable, which is available from the manufacturer or his Customer Service
A damaged appliance is dangerous. - Never operate a damaged appliance.
- If the surface is cracked, you must switch off the appliance in order to prevent a possible electrical shock. To do this, switch off the appliance via the fuse in the fuse box.
- Set the hotplate control to zero.
- Call customer service.
- Repairs to the appliance must only be carried out by trained and qualified personnel.
- An ingress of moisture can cause an electrics hock.
- Do not use steam- or high-pressure cleaners to clean the appliance.
- The insulation on cables of electrical appliances may melt if it touches hot parts of the appliance.
- Never bring electrical appliance cables into contact with hot parts of the appliance.
WARNING ‒ Risk of injury! - Saucepans may suddenly jump due to liquid between the saucepan base and the hotplate.
- Always keep hotplates and sauce pan bases dry.
WARNING ‒ Risk of suffocation! - Children may put packaging material over their heads or wrap themselves up in it and suffocate.
- Keep packaging material away from children’s.
- Do not let children play with packaging material.
- Children may breathe in or swallow small parts, causing them to suffocate.
- Keep small parts away from children.
- Do not let children play with small parts
Preventing material damage
ATTENTION!
- Rough pot and pan bases will scratch the ceramic.
- Check your cookware.
- Boiling pans dry may damage cookware or the appliance.
- Never place empty pans on a heated hotplate or al-low to boil dry.
- Incorrectly positioned cookware can cause the appliance to overheat.
- Never place hot pots or pans on the controls or the hob surround.
- Damage can occur if hard or pointed objects fall onto the hob.
- Do not let hard or pointed objects fall onto the hob.
- Non heat-resistant materials will melt on heated hot-plates.
- Do not use oven protective foil.
- Do not use aluminum foil or plastic containers
Overview of the most common damage
Here you can find the most common types of damage and tips on how to avoid them.
| Damage | Cause | Measure |
| Stains | Food boiling over | Remove boiled-over food immediately with a glass scraper. |
| Stains | Unsuitable cleaning products | Only use cleaning products that are suitable for glass ceramic. |
| Scratches | Salt, sugar or sand | Do not use the hob as a work surface or storage space. |
| Scratches | Rough pot or pan bases | Check your cookware. |
| Discol-ouration | Unsuitable cleaning products | Only use cleaning products that are suitable for glass ceramic. |
| Discol- ouration | Pan abrasion, e.g. aluminium | Lift pots and pans to move on the hob. |
| Blisters | Sugar or food with a high sugar content | Remove boiled-over food immediately with a glass scraper. |
Environmental protection and saving energy
Disposing of packaging
- The packaging materials are environmentally compatible and can be recycled.
Sort the individual components by type and dispose of them separately
Saving energy
If you follow these instructions, your appliance will use less energy. Select the cooking zone to match the size of your pan. Centre the cookware on the hob. Use cookware whose base diameter is the same diameter as the hotplate.
Tip: Cookware manufacturers often give the upper diameter of the saucepan. It is often larger than the base diameter.
- Unsuitable cookware or incompletely covered cooking zones consume a lot of energy.
- Cover saucepans with suitable lids.
- Cooking without a lid consumes far more energy.
- Lift lids as infrequently as possible.
- When you lift a lid, a lot of energy escapes.
- Using a glass lid
- You can see into the pan through a glass lid without having to lift it.
- Use pots and pans with flat bases.
- Uneven bases increase energy consumption.
- Use cookware suited to the quantity of food.
- Large items of cookware containing little food need more energy to heat up.
- Cook with little water.
- The more water contained in cookware, the more energy is required to heat it up.
- Turn down to a lower heat setting early on. Use a suit-able ongoing cooking setting to continue cooking.
- If you continue cooking with an ongoing cooking setting that is too high, you’ll waste energy
- Take advantage of the hob’s residual heat. With longer cooking times switch off the hotplate5-10 minutes before the end of cooking.
- Unused residual heat increases energy consumption.

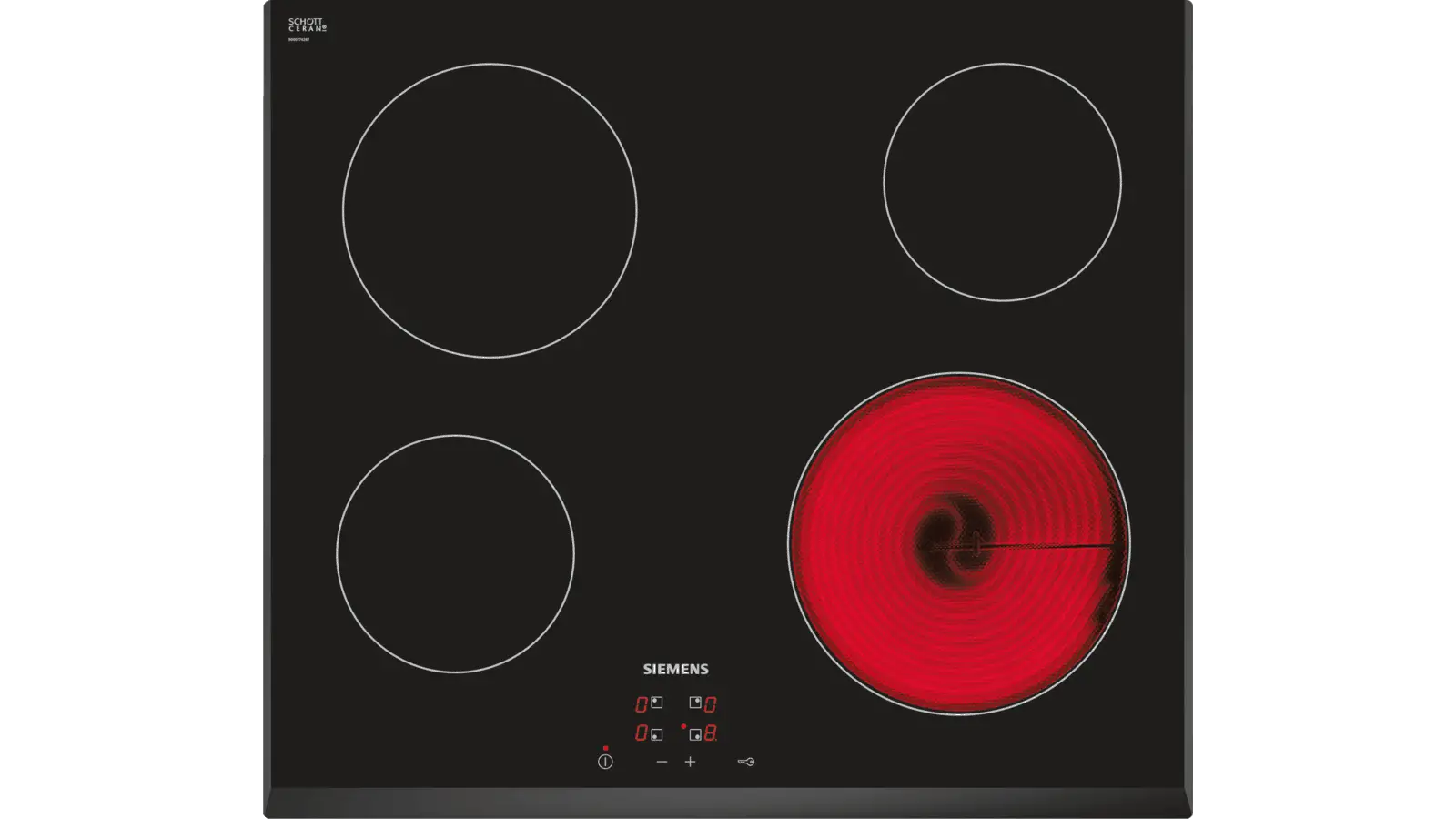

Familiarizing yourself with your appliance
The instruction manual is the same for various different hobs. You can find the hob dimensions in the overview of models. → Page 2
Control panel
You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

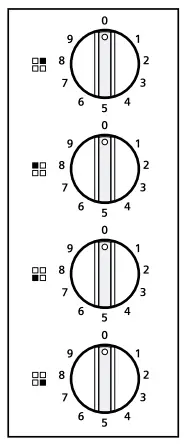

Hotplate controls
The hotplate controls are permanently fixed in place. They must not be removed. Forcibly removing the hot- plate controls leads to them being destroyed.
Hotplate display and residual heat indicator
The hob has a hotplate display and a residual heat indicator. The display lights up when a hotplate is warm.
| Display | Meaning |
| Hotplate display | Lights up during operation, shortly after switching on. |
| Residual heat indic- ator | Lit up after cooking when the hotplate is still warm. Note: You can keep small dishes warm or melt cooking chocolate. |
Basic operation
Switching the hob on or off
You can switch the hob on and off with the hotplate switch.
Setting the hotplates
You can use the hotplate control to adjust the heat out- put of the hotplate.
| Heat setting | |
| 1 | Lowest setting |
| 9 | Highest setting |
The symbol in the display panel indicates the hotplate which the display refers to, e.g. for the right rear hot- plate.
Information on the hotplates
Dark areas in the glow pattern of the hotplate are part of the technical design. They do not affect the function- ality of the hotplate.
The hotplate regulates the temperature by switching the heat on and off. The heat may also switch on and off when at the highest setting.
Reasons:
- Easily damaged components are protected against overheating.
- The appliance is protected against electrical over- load.
Recommended cooking settings
You can find an overview of different foods with appropriate power levels here. The cooking time varies depending on the type, weight, thickness and quality of the food. The ongoing power level depends on the cookware used.
Cooking tips
- To bring food to the boil, use heat setting
- Stir thick liquids
- Food that needs to be seared quickly or that initially loses a lot of liquid during frying should be fried in small
- Tips for saving energy when cooking. →Page 5
Melting
| Food | Ongoing cooking setting | Ongoing cooking time in minutes |
| Butter, gelatine | 1 | – |
Heating or keeping warm
| Stew, e.g. lentil stew | 1 | – |
| Milk1 | 1–2 | – |
| 1 Prepare the dish without the lid. | ||
Poaching or simmering
| Dumplings1, 2 | 3–4 | 20–30 |
| Fish1, 2 | 3 | 10–15 |
| White sauce, e.g. béchamel | 1 | 3–6 |
| 1 Bring the water to the boil with the lid on. 2 Continue to cook the dish without a lid. | ||
Boiling, steaming or stewing
| Rice with double the volume of water | 3 | 15–30 |
| Unpeeled boiled potatoes | 3–4 | 25–30 |
| Boiled potatoes | 3–4 | 15–25 |
| Pasta, noodles1, 2 | 5 | 6–10 |
| Stew, soup | 3–4 | 15–60 |
| Vegetables, fresh or frozen | 3–4 | 10–20 |
| Food in a pressure cooker | 3–4 | – |
| 1 Bring the water to the boil with the lid on. 2 Continue to cook the dish without a lid. | ||
Braising
| Roulades | 3–4 | 50–60 |
| Pot roast | 3–4 | 60–100 |
| Goulash | 3–4 | 50–60 |
Frying with little oil
Fry food without a lid.
| Escalope, plain or breaded | 6–7 | 6–10 |
| Chops, plain or breaded1 | 6–7 | 8–12 |
| Steak, 3 cm thick | 7–8 | 8–12 |
| Fish or fish fillet, plain or breaded | 4–5 | 8–20 |
| Fish or fish fillet, breaded and frozen, e.g. fish fingers | 6–7 | 8–12 |
| Stir fry, frozen | 6–7 | 6–10 |
| Pancakes | 5–6 | one by one |
| 1 Turn the dish several times. | ||
Cleaning and servicing
To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.
Cleaning products
You can obtain suitable cleaning products and glass scrapers from customer service, the online shop or a retailer.
ATTENTION!
Unsuitable cleaning products may damage the sur- faces of the appliance. Never use unsuitable cleaning products.
Unsuitable cleaning products
- Undiluted detergent
- Detergent intended for dishwashers
- Abrasive cleaners
- Aggressive cleaning products such as oven spray or stain remover
- Abrasive sponges
- High-pressure or steam jetliners
Cleaning the glass ceramic
Clean the hob after every use to stop cooking residues from getting burnt on.
| Note: Note the information on unsuitable cleaning products. → Page 7 | |
| Requirement: The hob has cooled down. | |
| 1. | Remove heavy dirt using a glass scraper. |
| 2. | Clean the hob with a cleaning product for glass ceramic. Follow the cleaning instructions on the product packaging. Tip: You can achieve good cleaning results if you use a special sponge for glass ceramic. |
Cleaning the hob surround
Clean the hob frame after use if dirty or stained.
Note the information on unsuitable cleaning products. → Page 7
Do not use the glass scraper.
- Clean the hob frame with hot soapy water and a soft cloth Wash new sponge cloths thoroughly before use.
- Dry with a soft cloth.
Disposal
Find out here how to dispose of old appliances correctly.
Disposing of old appliance
- Valuable raw materials can be reused by recycling.
- Dispose of the appliance in an environmentally friendly manner.
- Information about current disposal methods are available from your specialist dealer or local authority
WARNING
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used elec- trical and electronic appliances (waste electrical and electronic equipment – WEEE).The guideline determines the frame- work for the return and recycling of used appliances as applicable throughout the EU.
Customer Service
If you have any queries on use, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Function-relevant genuine spare parts according to the corresponding Eco-design Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.
Note: Under the terms of the manufacturer’s warranty the use of Customer Service is free of charge.
Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
Product number (E-Nr.) and production number (FD)
You can find the product number (E-Nr.) and the pro- duction number (FD) on the appliance’s rating plate. The rating plate can be found:
- on the appliance
- on the lower section of the
Make a note of your appliance’s details and the Customer Service telephone number to find them again quickly.
BSH Hausgeräte GmbH
Carl-Wery-Straße 34 81739 München GERMANY www.siemens-home.bsh-group.com
Valid within Great Britain:
Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolver ton Road Wolver ton, Milton Keynes MK12 5PT United Kingdom
Manufactured by BSH Hausgeräte GmbH under the trademark license of Siemens AG
