Electrolux Hoi630pf Hob User Manual

HOI630PF Hob
HOI630PF
User Manual

electrolux.com/register

HOI630PF Hob

WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support
Register your product for better service: www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: Keep children and pets away from the appliance when it operates or when it cools down.
  Accessible parts become hot during use.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Danger of fire: Do not store items on the cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use the appliance before installing it in the built-in structure.
• Do not use a steam cleaner to clean the appliance.
• After use, switch off the hob element by its control and do not rely on the pan detector.
• If the glass ceramic surface / glass surface is cracked, switch off the appliance and unplug it from the mains. In case the appliance is connected to the mains directly using junction box, remove the fuse to disconnect the appliance from power supply. In either case contact the Authorised Service Centre.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

SAFETY INSTRUCTIONS

2.1 Installation
WARNING!
Only a qualified person must install this appliance.

• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Keep the minimum distance from other appliances and units.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to prevent moisture from causing swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance next to a door or under a window. This prevents hot cookware from falling from the appliance when the door or the window is opened.
• Each appliance has cooling fans on the bottom.
• If the appliance is installed above a drawer:
  – Do not store any small pieces or sheets of paper that could be pulled in, as they can damage the cooling fans or impair the cooling system.
  – Keep a distance of minimum 2 cm between the bottom of the appliance and parts stored in the drawer.
• Remove any separator panels installed in the cabinet below the appliance.

2.2 Electrical Connection

WARNING!
Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.

WARNING!
Risk of injury or damage to the appliance.

• Remove all the packaging.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to a socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation.
  Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles.
  The isolation device must have a contact opening width of minimum 3 mm.

2.3 Use
WARNING!
Risk of injury, burns and electric shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.
• This appliance is for household (indoors) use only.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to “off” after each use.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation.
• When you place food into hot oil, it may splash.

WARNING!

Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!
Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not put a hot pan cover on the glass surface of the hob.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can causescratches on the glass / glass ceramic.
  Always lift these objects up when you have to move them on the cooking surface.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

2.4 Care and cleaning

• Clean the appliance regularly to prevent the deterioration of the surface material.
• Switch off the appliance and let it cool down before cleaning.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

 2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
• Concerning the lamp(s) inside this product and spare part lamps sold separately:
  These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal
WARNING!
Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

INSTALLATION

WARNING!
Refer to Safety chapters.
3.1 Before the installation
Before you install the hob, write down the information below from the rating plate. The rating plate is on the bottom of the hob.
Serial number ………………………
3.2 Built-in hobs
Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.
3.3 Connection cable

• The hob is supplied with a connection cable.
• To replace the damaged mains cable, use the cable type: H05V2V2-F which withstands a temperature of 90 °C or higher. Contact an Authorised Service Centre. The connection cable may only be replaced by a qualified electrician.

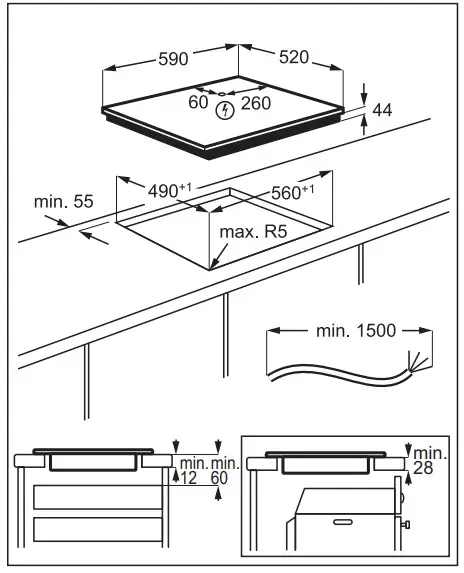

3.4 Assembly

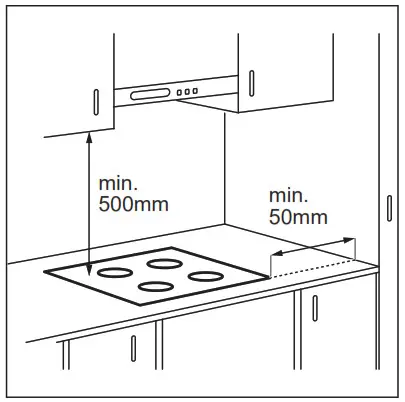

If you install the hob under a hood, please see the installation instructions of the hood for the minimum distance between the appliances.If the appliance is installed above a drawer, the hob ventilation can warm up the items stored in the drawer during the cooking process.Find the video tutorial “How to install your Electrolux Induction Hob – Worktop installation” by typing out the full name indicated in the graphic below.

www.youtube.com/electrolux
www.youtube.com/aeg

How to install your Electrolux
Induction Hob – Worktop installation

PRODUCT DESCRIPTION

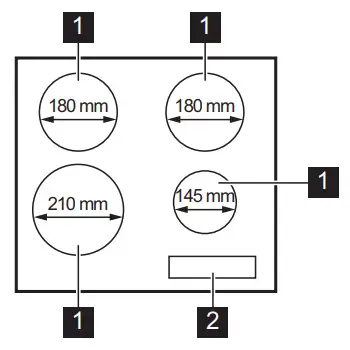

4.1 Cooking surface layout

1. Induction cooking zone
2. Control panel

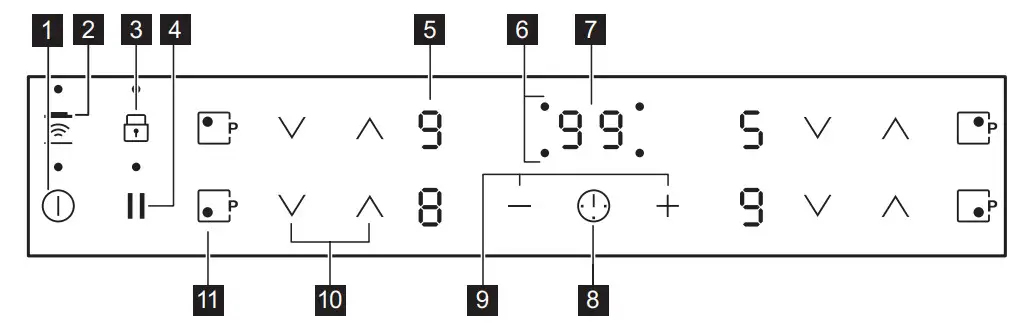

4.2 Control panel layoutUse the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

Sensor field	Function	Comment
1.	ON / OFF	To activate and deactivate the hob.
2.	Hob2Hood	To activate and deactivate the manual mode of the function.
3.	Lock / Child Safety Device	To lock / unlock the control panel.
4.	Pause	To activate and deactivate the function.
5. –	Heat setting display	To show the heat setting.
6. –	Timer indicators of cooking zones	To show for which zone you set the time.
7. –	Timer display	To show the time in minutes.

8.	–	To select the cooking zone.
9. +/-	–	To increase or decrease the time.
10.	–	To set a heat setting.
11.	PowerBoost	To activate the function.

4.3 Heat setting displays

Display	Description
	The cooking zone is deactivated.
	The cooking zone operates. The dot means a change by half of a heating level.
	Pause operates.
	Automatic Heat Up operates.
	PowerBoost operates.
	There is a malfunction.
	OptiHeat Control (3 step Residual heat indicator): continue cooking / keep warm / resid‐ ual heat.
	Lock / Child Safety Device operates.
	Incorrect or too small cookware or no cookware on the cooking zone.
	Automatic Switch Off operates.

4.4 OptiHeat Control (3 step Residual heat indicator)

WARNING!

As long as the indicator is on, there is a risk of burns from residual heat.
The induction cooking zones produce the heat necessary for the cooking process directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.
The indicators appear when a cooking zone is hot. They show the level of the residual heat for the cooking zones you are currently using.
The indicator may also appear:

• for the neighbouring cooking zones even if you are not using them,
• when hot cookware is placed on cold cooking zone,
• when the hob is deactivated but the cooking zone is still hot.

The indicator disappears when the cooking zone has cooled down.

DAILY USE

WARNING!
Refer to Safety chapters.
5.1 Activating and deactivating
Touch for 1 second to activate or deactivate the hob.

5.2 Automatic Switch Off
The function deactivates the hob automatically if:

• all cooking zones are deactivated,
• you do not set the heat setting after you activate the hob,
• you spill something or put something on the control panel for more than 10 seconds (a pan, a cloth, etc.). An acoustic signal sounds and the hob deactivates.
  Remove the object or clean the control panel.
• the hob gets too hot (e.g. when a saucepan boils dry). Let the cooking zone cool down before you use the hob again.
• you use incorrect cookware. The symbol comes on and the cooking zone deactivates automatically after 2 minutes.
• you do not deactivate a cooking zone or change the heat setting. After some time comes on and the hob deactivates.

The relation between the heat setting and the time after which the hob deactivates:

Heat setting	The hob deactivates after
1 – 2	6 hours
3 – 4	5 hours
5	4 hours
6 – 9	1.5 hour

5.3 The heat setting

Touch to increase the heat setting. Touchto decrease the heat setting. Touchand at the same time to deactivate the cooking zone.

5.4 Automatic Heat Up

If you activate this function you can get a necessary heat setting in a shorter time. The function sets the highest heat setting for some time and then decreases to the correct
heat setting.
To activate the function the cooking zone must be cold.
o activate the function for a cooking zone: touch(comes on). Immediately touch(comes on). Immediately touchuntil the correct heat setting comes on.
After 3 seconds comes on.
To deactivate the function: touch

5.5 PowerBoost
This function makes more power available to the induction cooking zones. The function can be activated for the induction cooking zone only for a limited period of time. After this time the induction cooking zone automatically sets back to the highest heat setting.
Refer to “Technical data” chapter.

To activate the function for a cooking zone: touch.comes on.
To deactivate the function: touchor.

5.6 Timer

• Count Down Timer
  You can use this function to set the length of a single cooking session.
  First set the heat setting for the cooking zone, then set the function.

To set the cooking zone: touchrepeatedly until the indicator of a cooking zone appears.
To activate the function or change the
time: touch +or- of the timer to set the time (00 – 99 minutes). When the indicator of the cooking zone starts to flash, the time counts down.
To see the remaining time: touchto set the cooking zone. The indicator of the cooking zone starts to flash. The display shows the remaining time.
To deactivate the function: touchto set the cooking zone and then touch -. The remaining time counts down to 00. The indicator of the cooking zone disappears.
When the countdown ends, an acoustic signal sounds and 00 flashes. The cooking zone deactivates.
To stop the sound: touch.
• Minute Minder
You can use this function when the hob is activated and the cooking zones do not operate. The heat setting display shows.
To activate the function: touch and then touch +or -of the timer to set the time.
When the time finishes, an acoustic signal sounds and 00 flashes.
To stop the sound: touch.
To deactivate the function: touch and then touch- . The remaining time counts down to 00.
The function has no effect on the operation of the cooking zones.

5.7 Pause
This function sets all cooking zones that operate to the lowest heat setting.
When the function operates, all other symbols on the control panels are locked.
The function does not stop the timer functions.

1. To activate the function: press.comes on. The heat setting is lowered to1.
2. To deactivate the function: press.The previous heat setting comes on.

5.8 Lock

You can lock the control panel while cooking zones operate. It prevents an accidental change of the heat setting.

Set the heat setting first.
To activate the function: touch. comes on for 4 seconds. The Timer stays on.
To deactivate the function: touch. The previous heat setting comes on.
When you deactivate the hob, you also deactivate this function.
5.9 Child Safety Device
This function prevents an accidental operation of the hob.
To activate the function: activate the hob with. Do not set any heat setting. Touchfor 4 seconds.comes on. Deactivate the hob with.
To deactivate the function: activate the hob with. Do not set any heat setting. Touchfor 4 seconds. comes on. Deactivate the hob with.
To override the function for only one
cooking time: activate the hob with. comes on. Touch for 4 seconds. Set the heat setting in 10 seconds. You can operate the hob. When you deactivate the hob with the function operates again.
5.10 Power management
If multiple zones are active and the consumed power exceeds the limitation of the power supply, this function divides theavailable power between all cooking zones.
The hob controls heat settings to protect the fuses of the house installation.

• Cooking zones are grouped according to the location and number of the phases in the hob. Each phase has a maximum electricity loading (3700 W). If the hob reaches the limit of maximum available power within one phase, the power of the cooking zones will be automatically reduced.
• The heat setting of the cooking zone selected last is always prioritised. The remaining power will be divided between the previously activated cooking zones in reverse order of selection.
• The heat setting display of the reduced zones changes between the initially selected heat setting and the reduced heat setting.
• Wait until the display stops flashing or reduce the heat setting of the cooking zone selected last. The cooking zones will continue operating with the reduced heat setting. Change the heat settings of the cooking zones manually, if necessary.

 Refer to the illustration for possible combinations in which power can be distributed among the cooking zones.

5.11 Hob²Hood
It is an advanced automatic function which connects the hob to a special hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined
automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan from the hob manually.
For most of the hoods the remote system is originally deactivated. Activate it before you use the function. For more information refer to hood user manual.

Operating the function automatically
To operate the function automatically set the automatic mode to H1 – H6. The hob is originally set to H5. The hood reacts whenever you operate the hob. The hob recognizes temperature of the cookware automatically and adjusts the speed of the fan.
Automatic modes

1. The hob detects the boiling process and acti‐ vates fan speed in accordance with automatic mode.
2. The hob detects the frying process and acti‐ vates fan speed in accordance with automatic mode.
3. This mode activates the fan and the light and does not rely on the temperature.

Changing the automatic mode

1. Deactivate the appliance.
2. Touch for 3 seconds. The display comes on and goes off.
3. Touchfor 3 seconds.
4. Touch a few times until comes on.
5.  Touch + of the Timer to select an automatic mode.

To operate the hood directly on the hood panel deactivate the automatic mode of the function.
When you finish cooking and deactivate the hob, the hood fan may still operate for a certain period of time. After that time the system deactivates the fan automatically and prevents you from accidental activation of the fan for the next 30 seconds.

Operating the fan speed manually
You can also operate the function manually.
To do that touchwhen the hob is active.
This deactivates automatic operation of the function and allows you to change the fan you raise the fan speed by one. When you reach speed manually. When you press
again you will set fan speed to 0 which deactivates the hood fan. To start the fan again with fan an intensive level and press speed 1 touch .
To activate automatic operation of the function, deactivate the hob and activate it again.
Activating the light
You can set the hob to activate the light automatically whenever you activate the hob.
To do so set the automatic mode to H1 – H6.
The light on the hood deactivates 2 minutes after deactivating the hob.

HINTS AND TIPS

WARNING!
Refer to Safety chapters.

6.1 Cookware
For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.
Use the induction cooking zones with suitable cookware.

• The bottom of the cookware must be as thick and flat as possible.
• Ensure pan bases are clean and dry before placing on the hob surface.
• In order to avoid scratches, do not slide or rub the pot across the ceramic glass.

 Cookware material

• correct: cast iron, steel, enamelled steel, stainless steel, multi-layer bottom (with a correct marking from a manufacturer).
• not correct: aluminium, copper, brass, glass, ceramic, porcelain.

 Cookware is suitable for an induction hob if:

• water boils very quickly on a zone set to the highest heat setting.
• a magnet pulls on to the bottom of the cookware.

 Cookware dimensions

• Induction cooking zones adapt to the dimension of the bottom of the cookware automatically.
• The cooking zone efficiency is related to the diameter of the cookware. The cookware with a diameter smaller than the minimum receives only a part of the power generated by the cooking zone.
• For both safety reasons and optimal cooking results, do not use cookware larger than indicated in “Cooking zones specification”. Avoid keeping cookware close to the control panel during the cooking session. This might impact the functioning of the control panel or accidentally activate hob functions.

Refer to “Technical data”.

6.2 The noises during operation If you can hear:

• crack noise: cookware is made of different materials (a sandwich construction).
• whistle sound: you use a cooking zone with a high power level and the cookware is made of different materials (a sandwich construction).
• humming: you use a high power level.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.

The noises are normal and do not indicate any malfunction.

6.3 Examples of cooking applications
The correlation between the heat setting of a zone and its consumption of power is not linear. When you increase the heat setting, it is not proportional to the increase of the
consumption of power. It means that a cooking zone with the medium heat setting uses less than a half of its power.
The data in the table is for guidance only.

Heat setting	Use to:	Time (min)	Hints
-1	Keep cooked food warm.	as neces- saw	Put a lid on the cookware.
1 – 2.	Hollandaise sauce, melt: butter, choco- late, gelatine.	5 – 25	Mix from time to time.
1 – 2.	Solidify: fluffy omelettes, baked eggs.	10 – 40	Cook with a lid on.
2.- 3.	Simmer rice and milkbased dishes, heat up ready-cooked meals.	25 – 50	Add at least twice as much liquid as rice, mix milk dishes halfway through the procedure.
3.- 4.	Steam vegetables, fish, meat.	20 – 45	Add a couple of tablespoons of liquid.
4.- 5.	Steam potatoes.	20 – 60	Use max. IA I of water for 750 g of potatoes.
4. – 5.	Cook larger quantities of food, stews and soups.	60 – 150	Up to 3 I of liquid plus ingredients.
5.- 7	Gentle fry: escalope, veal cordon bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts.	as neces- sary	Turn halfway through.
7 – 8	Heavy fry, hash browns, loin steaks, steaks.	5 – 15	Turn halfway through.
9	Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
	Boil large quantities of water. PowerBoost is activated.

6.4 Hints and Tips for Hob²Hood
When you operate the hob with the function:

• Protect the hood panel from direct sunlight.
• Do not spot halogen light on the hood panel.
• Do not cover the hob control panel.
• Do not interrupt the signal between the hob and the hood (e.g. with the hand, a cookware handle or a tall pot). See the picture.

 The hood in the picture is only exemplary. Other remotely controlled appliances may block the signal.
Do not use any such appliances near to the hob while Hob²Hood is on.
Cooker hoods with the Hob²Hood function To find the full range of cooker hoods which work with this function refer to our consumer website. The Electrolux cooker hoods that work with this function must have the symbol.

CARE AND CLEANING

WARNING!
Refer to Safety chapters.

7.1 General information

• Clean the hob after each use.
• Always use cookware with a clean base.
• Scratches or dark stains on the surface have no effect on how the hob operates.
• Use a special cleaner suitable for the surface of the hob.
• Use a special scraper for the glass.

 7.2 Cleaning the hob

• Remove immediately: melted plastic, plastic foil, sugar and food with sugar,otherwise, the dirt can cause damage to the hob. Take care to avoid burns. Use a
  special hob scraper on the glass surface at an acute angle and move the blade on the surface.
• Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and a nonabrasive detergent. After cleaning, wipe the hob dry with a soft cloth.
• Remove shiny metallic discoloration: use a solution of water with vinegar and clean the glass surface with a cloth.

TROUBLESHOOTING

WARNING!
Refer to Safety chapters.

8.1 What to do if…

8.2 If you cannot find a solution…
If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on. Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The information about guarantee period and Authorised Service Centres are in the guarantee booklet.

TECHNICAL DATA

9.1 Rating plate

Model HOI630PF	PNC 949 599 148 00
Typ 61 B4A 00 AA	220 – 240 V / 400 V 2N 50 – 60 Hz
Induction 7.35 kW	Made in: Germany
Ser.Nr. ……………..	7.35 kW
ELECTROLUX

9.2 Cooking zones specification

The power of the cooking zones can be different in some small range from the data in the table. It changes with the material and dimensions of the cookware.
For optimal cooking results use cookware no larger than the diameter in the table.

ENERGY EFFICIENCY

10.1 Product information*

* For European Union according to EU 66/2014. For Belarus according to STB 2477-2017, Annex A. For Ukraine according to 742/2019.
EN 60350-2 – Household electric cooking appliances – Part 2: Hobs – Methods for measuring performance

10.2 Energy saving
You can save energy during everyday cooking if you follow below hints.

• When you heat up water, use only the amount you need.
• If it is possible, always put the lids on the cookware.
• Before you activate the cooking zone put the cookware on it.
• Put the smaller cookware on the smaller cooking zones.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical
and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

867372739-A-382021
electrolux.com

References

• Electrolux
• Register Your Appliance – Product Registration – Electrolux
• Electrolux
• Electrolux
• Register Your Appliance – Product Registration – Electrolux
