Godox Geniusmic Lt Compact Directional Microphone With Lightning Connector Instruction Manual

Geniusmic LT Compact Directional Microphone with Lightning Connector
Instruction Manual

Geniusmic LT
Compact Directional Microphone with Lightning Connector
INSTRUCTION MANUAL

Forward

Thank you for purchasing Compact Directional Microphone with Lightning Connector. This product is directly connected to the mobile phone. It’ s suitable for outdoor living broadcast, playing games, taking a video or other audio recording, etc.Please read this manual carefully before using to make sure the correct operation and exert the optimum function.

Duct Features

• Compact and lightweight;
• MFi certificated Lightning plug,with extra power supply ;
• Aluminum alloy materials with stronger RFI resistance;
• With windproof Sponge and wind cap;
• A condenser microphone with strict sensitivity control;
• Dedicated for mobile phones, support real time monitoring
• High signal noise ratio and low distortion degree.

Warning

Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.
  Always keep this product dry. Do not use in rain or in damp conditions.
  Keep out of reach of children.
Do not use the flash unit in the presence of flammable gas. In certain circumstance, please pay attention to the relevant warnings.
Do not leave or store the product if the ambient temperature reads over 60°C.
This product is suitable for most main stream phones of lightning interface in ter face in the market.
  Please carefully read and observe the warning or direction offered by the manufacture.

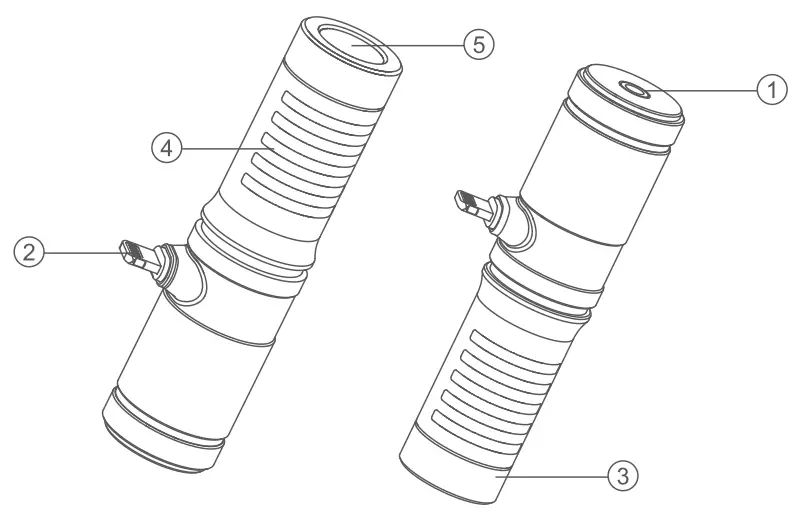

Structure of Product

• 3.5mm TRS connector
• MFi certificated Lightning connector plug
• Hypercardioid radio microphone
• Protective Steel Mesh
• MIC Steel Mesh

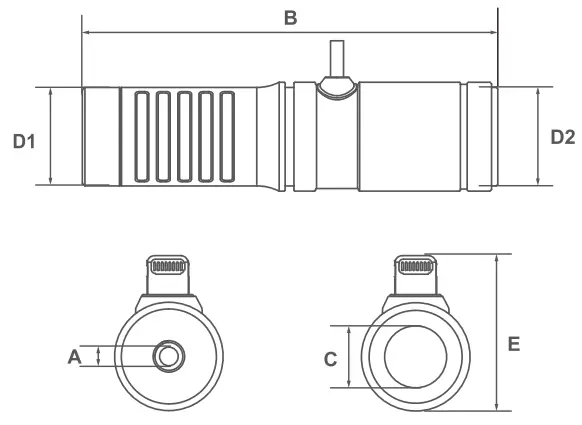

Dimension of Product

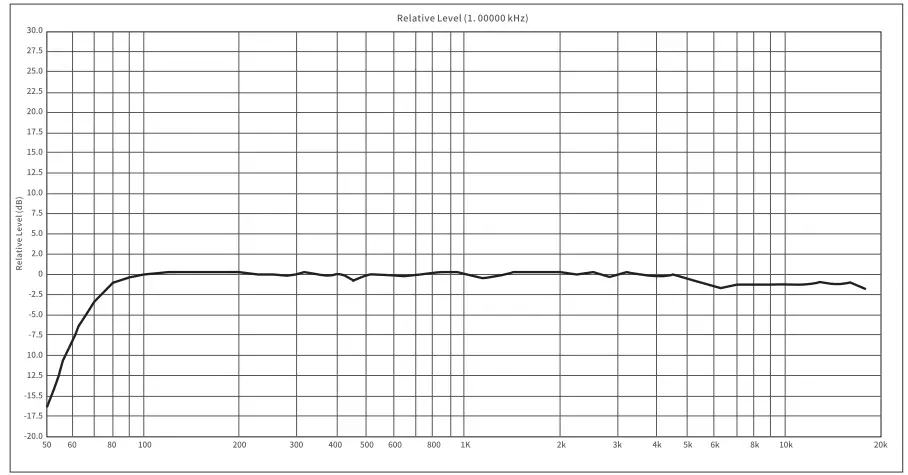

Frequency Response Graph

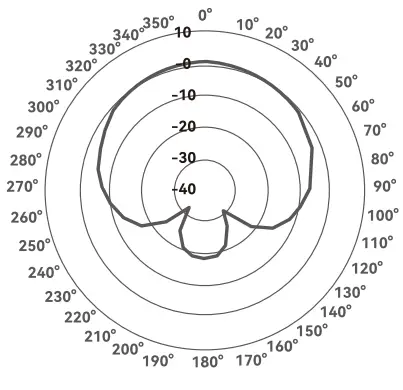

Polar Pattern
Frequency Response Graph

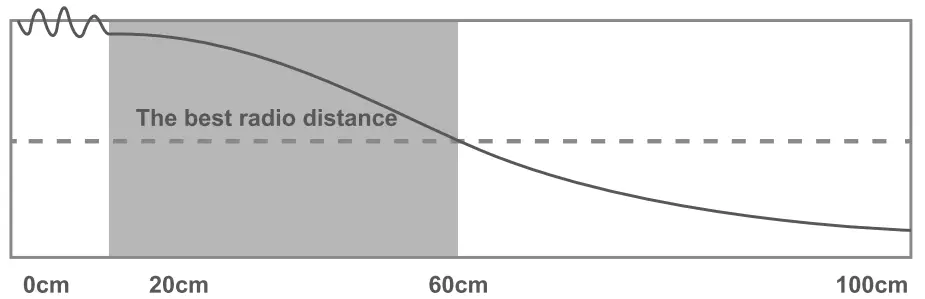

The best radio range is 20cm-60cm. If the distance is too close, the noise such as breathing will be recorded.lf the distance is too far, the sound will be attenuated.

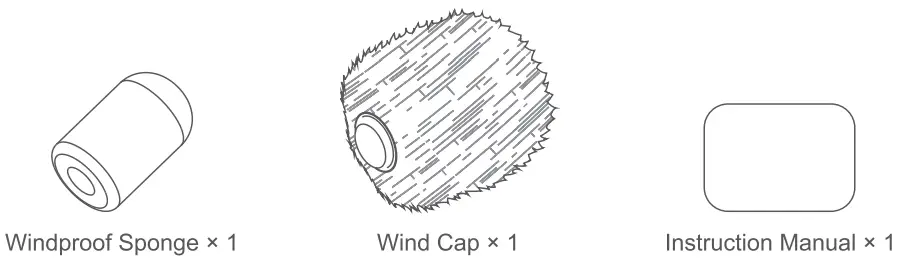

What’s in the Box

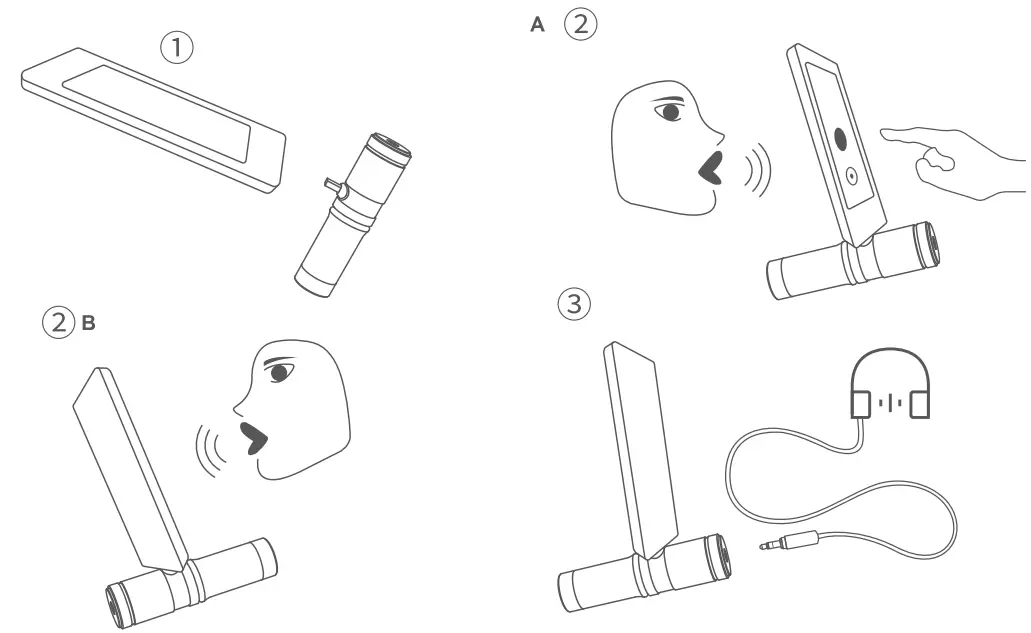

Usage Instruction.

According to different scenes, use windproof sponge or wind cap to prevent wind and eliminate wheat spraying. 1.Install the windproof sponge or wind cap onto the former end of the microphone to the suitable place.

Operation

To exert the optimum function of this product, please do not use non-official included accessories e.g. Windproof Sponge or wind cap, etc. The microphone may do not work properly or be seriously damaged if using other manufacture’s audio cables.
Do not block or shield any sound hole, otherwise, the microphone’s performance may be influenced.
The product doesn’t need extra battery,Plug in the phone to use. Please refer to the microphone input instructions of your phone to know more about the audio settings and adjustments, which will contributes a lot to use this product.

Technical Data

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Declaration of Conformity:
GODOX Photo Equipment Co,Ltd. hereby declares_that the Thisequipment are in compliance with the essential requirements andother relevant provisions of EU Directive 2014/30/EU. They areallowed to be used in all EU member states.
For more information_of DoC,Please click this web link: http://www.godox.com/DOC/Godox_Geniusmic_LT_DOC.pdf

Warranty

Dear customers, as this warranty card is an important certificate to apply for our mainte-nance service, please fill in the following form in coordination with the seller and safekeep it. Thank you!

Note: This form shall be sealed by the seller.
Applicable Product
The document applies to the products listed on the Product Maintenance Information (see below for further information). Other products or accessories (e.g. promotional items,giveaways and additional accessories attached,etc.) are notincluded in this warranty scope.
Warranty Period
The warranty period of products and accessories isimplemented according to the relevant Product Maintenancelnformation. The warranty period is calculated from the day (purchase date) when the product is bought for the first time,And the purchase date is considered as the date registered onthe warranty card when buying the product.
How to Get the Maintenance Service
If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide valid wananty card. If you cannot provide valid warranty card, we may offer you maintenance service once confirmed that the product or accessory is involved in the maintenance scope, but that shall not be considered as our obligation.
Inapplicable Cases
The guarantee and service offered by this document are not applicable in the following cases:

1. The product or accessory has expired its warranty period;
2. Breakage or damage caused by Inappropriate usage, maintenance or preservation, such as improper packing, improper usage, improper plugging in/out external equipment, falling off or squeezing by external force, contacting or exposing to the improper temperature, solvent, acid, base, flooding and damp environments, etc;
3. Breakage or damage caused by non-authorized institution or staff in the process of installation, maintenance, alternation, addition and detachment;
4. The original identifying information of product or accessory is modified, alternated, or removed;
5. No valid warranty card;
6. Breakage or damage caused by using illegally authorized, nonstandard or non-public released software;
7. Breakage or damage caused by force majeure or accident;
8. Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories and software that beyond the warranty period or scope is not included in our maintenance scope. The normal discoloration, abrasion and consumption are not the breakage within the maintenance scope.

Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the following
Product Maintenance Information:

Godox After-sale Service Call 0755-296093204062
http://weixin.qq.com/r/vEPI0F7ERgM5rRqz9xau
Folow Wechet Officio’ I Account

LQC PASS
GODOX Photo Equipment Co., Ltd.
Add.: Building 2, Yaochuan Industrial Zone,Tangwei
Community, Fuhai Street, Bao’an District, Shenzhen 518103, China
Tel: +86-75549609320(8062)
Fax: +86-755-25723423
E-mail: [email protected]
godox.com
Made In China
