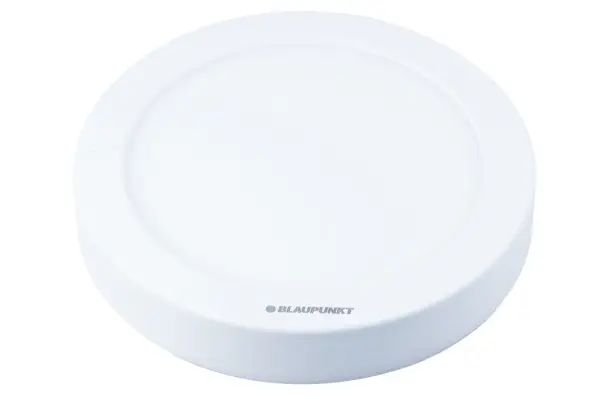

Blaupunkt LED Plafond 18W CCT User Manual
Enjoy it.
| SKU: BLAUPUNKT-PLA-18W-CCT | |
| Product size | 7” |
| Power(W) | 18 |
| Input Voltage(AC) | 165-265V AC |
| Color Temperature (K) | 3000 WW 4000 NW 6000 DL |
| Luminous Flux (Lm) | 1800-2000 |
| Recessed Round Cutout (mm) | 205 |
| Recessed Square Cutout (mm) | 205×205 |
| Lifespan (hour) | 20000 |
| Protection Rate | Front IP44 Back IP20 |
| Working Temperature (°C) | -20 ~ 40 °C |
| CRI (Ra) | ≥ 80 |

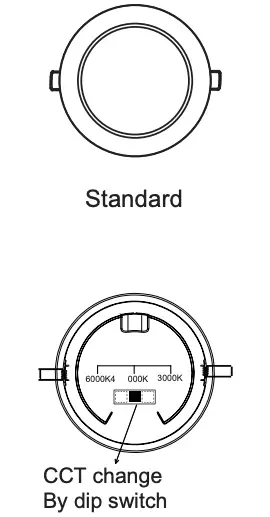

Function Options
Accessories

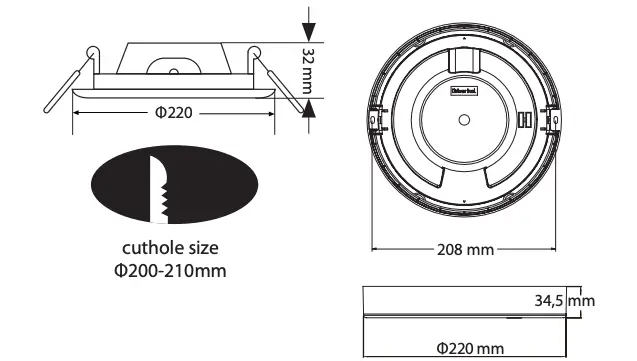

Product Size & Cutout

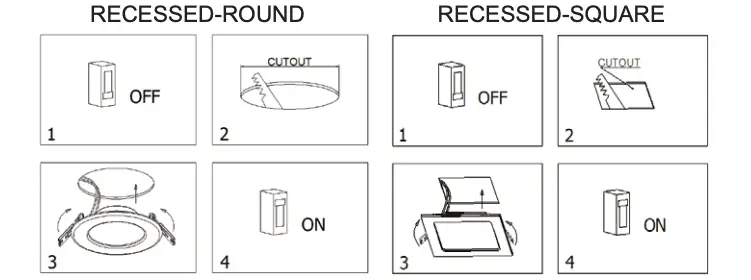

Installation
LED Slim Down Light Instruction
- Turn off the power.
- Drill a suitable mounting on the ceiling according to the light’s cutout.
- Connect input end of LED lights to commercial power. Make sure no copper wire exposed.
- Pinch both springs, then push light into installation hole. Make sure the light is fixed well.
- Turn on the power supply.
NOTES
- The panel should be driven by appointed power supply.
- All the instruction, maintenance, and checking should be operated by professional technical person to avoid any dangers.
- 75mm space should be left around the light for ventilation, no cover on the light at any time.
WARNING
- Power should be cut off before installation, maintenance or inspection.
- Please install and use the light strictly according to the instruction.
- Do not disassemble or remold the product at will to avoid accident of electric shock or light falling.
- working out of temp. range -20°C ~ + 40°C will shorten the lifetime of the luminaires.
