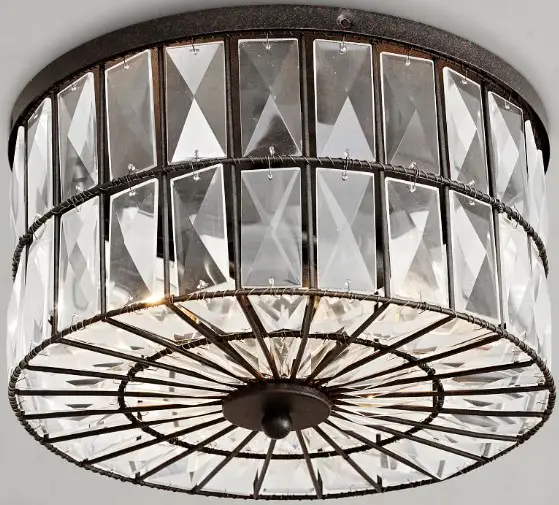

HOME DECORATORS COLLECTION 31679-HBC 60W 3 Light Bronze Flushmount User Guide
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this lighting fixture.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection!
Safety Information
- Read all the instructions before assembling and installing.
- Consult a qualified electrician for installation of this fixture.
- If you have any non-electrical questions about this fixture, please contact our Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.ca
- Please reference your item and model number.
- Keep your receipt and these instructions for proof of purchase
CAUTION: Before starting the installation of this fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box.
IMPORTANT: Do not install this lighting system in damp or wet locations.
IMPORTANT: Inspect the wire insulation for any cuts, abrasions, or exposed copper that have occurred during shipping. If there is a defect in the wire, do not continue the assembly process. Please call our Customer Service Team at 1-800-986-3460.
Warranty
LIMITED WARRANTY
WHAT IS COVERED
The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period of five (5) years from date of purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service. If this product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modification, alteration, neglect, or mishandling.
WHAT IS NOT COVERED
This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material or workmanship. This warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear. The manufacturer does not warrant and specially disclaims any warranty, whether express or implied, of fitness for a particular purpose, other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-800-986-3460 or visit www.homedepot.ca
Pre-Installation
PLANNING INSTALLATION
Read all instructions before assembly and installation. To avoid damaging this product, assemble it on a soft, non-abrasive surface, such as carpet or cardboard. Inspect each part for defects that may have occurred during shipping. Keep your receipt and these instructions for proof of purchase.

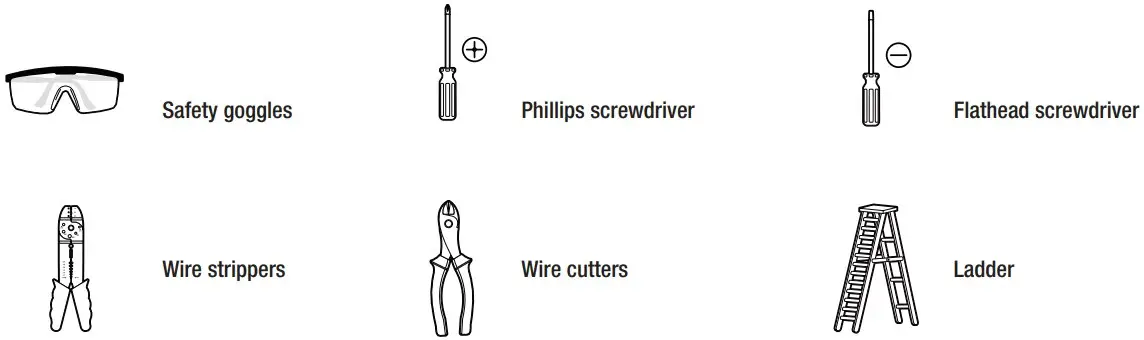

TOOLS REQUIRED

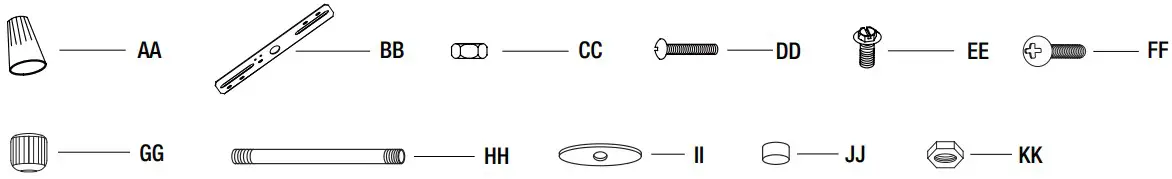

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
| Part | Description | Quantity |
| AA | Wire nut | 3 |
| BB | Single crossbar | 1 |
| CC | Hex nut (preassembled) | 2 |
| DD | Mounting screw (preassembled) | 2 |
| EE | Green ground screw (preassembled) | 1 |
| FF | Outlet box screw | 2 |
| GG | Lock nut | 2 |
| HH | Center rod | 1 |
| II | Washer | 1 |
| JJ | Ball nut | 1 |
| KK | Fixing nut | 1 |

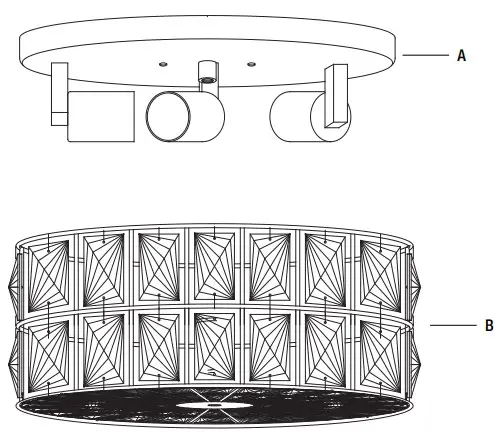

PACKAGE CONTENTS
| Part | Description | Quantity |
| A | Fixture body | 1 |
| B | Lamp shade | 1 |
Installation

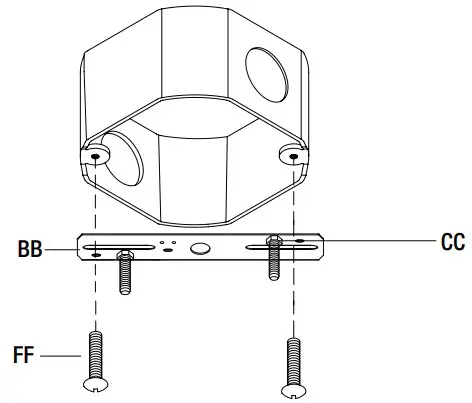

Installing the crossbar
WARNING: Turn off the power at the main fuse box.
Attach the single crossbar (BB) to the junction box (not included) with the two outlet box screws (FF) provided.

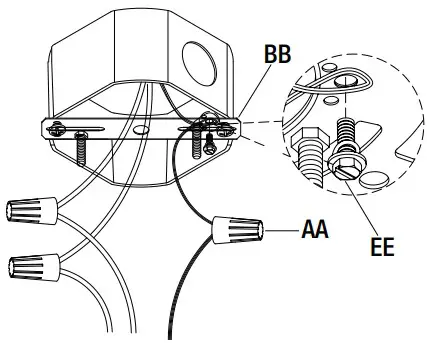

Making the electrical connections
NOTE: Always use wire nuts (AA) to connect wires and push all the excess wires and connections back into the junction box.
- Connect the ground wire (bare copper or green wire) from the branch circuit to the green ground screw (EE) on the single crossbar (BB).

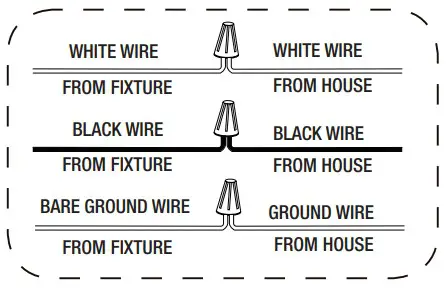

- Connect the fixture wires as follows:

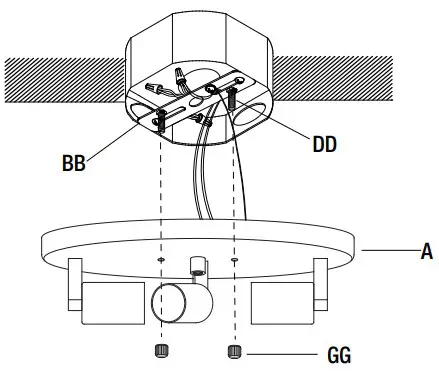

Installing the fixture body
Align the mounting holes on the fixture body (A) with the mounting screws (DD) on the single crossbar (BB) and secure with the lock nuts (GG).

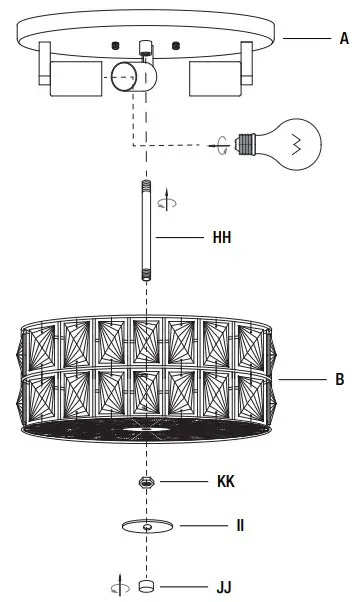

Installing the bulbs and lamp shade
- Install 60W MAX A19 bulbs (not included) to each socket of the fixture body (A).
- Install the center rod (HH) to fixture body (A) at the center nut.
- Pass the center hole of the lamp shade (B) through the nipple of the center rod (HH), and then use the fixing nut (KK) to lock the lamp shade (B).
- Install the washer (II) to the center rod (HH) by the ball nut (JJ).
Care and Cleaning
Clean the light fixture carefully with a soft, dry cloth. Do not use any cleaners with chemicals, solvents, or harsh abrasives.
Troubleshooting
| Problem | Possible Cause | Solution |
| The product will not light. | The bulb is burned out. | Replace the light bulb. |
| The power is off. | Ensure that the power supply is turned on. | |
| The circuit breaker is off. | Ensure that the circuit breaker is set to the ON position. | |
| The fuse blows or the circuit breaker trips when the light is turned on. | There are too many items on one circuit. | Unplug the other items on the circuit. Contact a qualified electrician or call the Customer Service Team at 1-800-986-3460. |
Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.CA
Retain this manual for future use.
