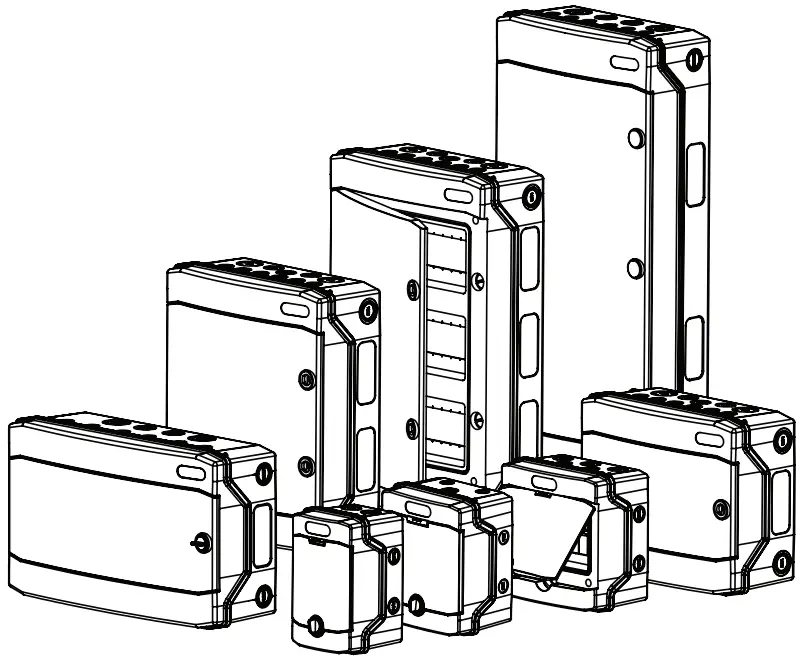

NoarK PHS 4T Mounting Plastic distributor
Consumer unit IP65

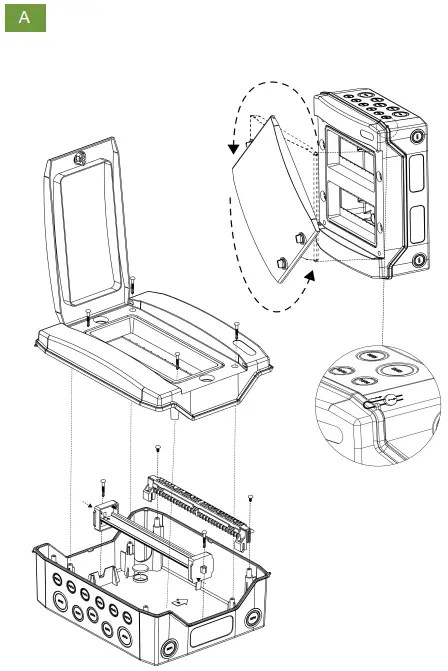

Mounting instruction
Caution: Installation by electricians only

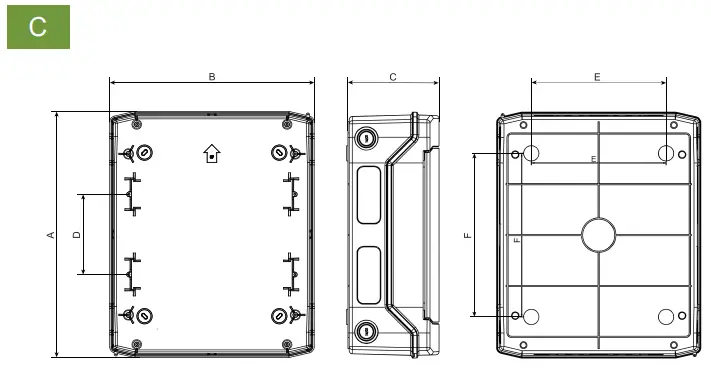

| A | B | C | D | E | F | Pde | Static load | |
| PHS 4T | 201mm | 128mm | 120mm | – | – | 140mm | 10W | 0.65kg |
| PHS 6T | 201mm | 165mm | 118mm | – | 63mm | 140mm | 10W | 0.98kg |
| PHS 8T | 201mm | 202mm | 120mm | – | 100mm | 140mm | 13W | 1.30kg |
| PHS 12T | 259mm | 319mm | 144mm | – | 210mm | 130mm | 16W | 1.95kg |
| PHS 18T | 259mm | 428mm | 144mm | – | 259mm | 130mm | 20W | 2.93kg |
| PHS 24T | 384mm | 319mm | 144mm | 125mm | 210mm | 255mm | 24W | 1.95kg |
| PHS 36T | 535mm | 319mm | 144mm | 125mm | 210mm | 380mm | 26W | 1.95kg |
| PHS 48T | 664mm | 319mm | 144mm | 125mm | 210mm | 505mm | 28W | 1.95kg |
CUSTOMER SUPPORT
Copyright Noark Electric 2022. All Rights Reserved. www.noark-electric.eu
Noark Electric Europe s.r.o., Sezemicka 2757/2, Prague, Czech Rep.
