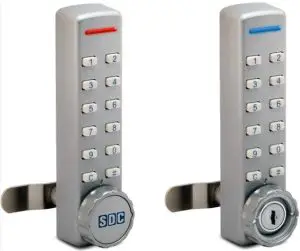

SDC 295 Programmable Cabinet Lock

Features & Applications

  • Ideal for new installations, or a quick retrofit for keyed cam locks
  • Suitable applications include: cabinets, cupboards, medical carts, lockers, etc.
  • Keypad with 12 individual buttons (0-9, C, #)
  • Easily programmable codes:
    • 1 Master Code, 1 Sub-master Code, & 30 User Codes
  • Configurable code length – 4 to 6 digits
  • Three Operation Modes available:
    • Multiple User mode, Code Free mode, & Single Use
      mode (locker mode)
  • 15,000 operations on 2 x AAA batteries (included)
  • Non-volatile memory
  • Battery failure override using a 9V battery and Master Code

Installation

Parts Included:

  • Cabinet Lock w/ key cylinder and spindle
  • Lock mounting screw & lock washer (x 2)
  • Cam, cam mounting screw & lock washer
  • Keys (x2)
  • Installation instructions & template

Technical Information:

  • Door Thickness: up to 3/4″
  • Cam mounting: 5/16″ square spindle
  • Hole required for spindle: 15/16″ diameter
  • Batteries: 2 x AAA Alkaline (included)

Replacing an existing cam lock with the Cabinet Lock

  1. Remove existing cam lock.
  2. Place supplied template over the existing hole. Align the 15/16″ spindle hole on the template with the hole left by cam lock. Mark the upper & lower mounting holes.
  3. Drill the two 3/16″ mounting holes.
  4. Mount the cabinet lock to the door using the supplied lock washer & mounting screws.
  5. From the inside of the door select and attach the appropriate cam using the supplied cam mounting screw & washer.
  6. Before closing and locking the door, test the operation of the lock using the default Master and User Codes (See Basic Operation).
  7. It is recommended that the default Master and User Codes be changed at this time (See Quick Start Programming)

New installations:

  1. Place the supplied template on door.
    NOTE: Before drilling fixing holes, verify that the position of the Cabinet Lock when fitted will allow enough clearance for the cam to work.
  2. Continue the installation from steps 3 though 7 above.

Programming Overview

Operational Notes

  • The 295 can store 1 Master Code, 1 Sub-Master Code, and up to 30 User Codes (ID Number 01 through 30).
  • Codes may be 4, 5, or 6 digits long. The length of the Sub-Master Code and User Codes must be the same length as the Master Code.
  • Changing the length of the Master Code from the default length (5 digits) will delete the existing Sub-Master Code and all other User Codes.
  • The “C” button may be used to clear a previous entry code if a mistake is made.
  • If an incorrect code is entered 3 times, the 295 keypad will be locked out for a period of 10 seconds.

Operational Modes
NOTE: Before changing the default programming codes, decide which operation mode best suits your application.

There are two (2) user modes:

  • Multiple User Mode: This is the default mode. Up to 30 different user codes may be programmed. Each user code can be used multiple times.
  • Single Use Mode (Locker Mode): The lock is normally unlocked. The user enters a single use code which will lock the cabinet lock. Re‐ entering the same user code will open the lock only once and then be erased. The lock will now remain unlocked until the next single use code is entered into the lock.

If Single Use Mode is desired,

  • Step 1 – Proceed to Advanced Programming. Enter Programming Mode.
  • Step 2 – Use Function 01 to set the user code length and change the default Master Code.
  • Step 3 – Use Function 12 to change the lock mode to Single Use Mode.
  • Step 4 – Use Function 00 to Exit Programming Mode.

Factory Reset Procedure (if Master Code is lost)

  • Remove one of the batteries
  • Press & hold the “C” button and replace the battery
  • Wait until the Blue LED flashes twice, and release the “C” button
  • Within 3 seconds, Press the “C” button three times
    {The Blue LED will flash twice and the lock will be reset to factory default}

Battery Fail Override (in lieu of key override)

  • Place the contact points of a 9V battery against the contact points at the bottom of the cabinet lock (The positive +9V terminal should line up with the ‘#’ button and the negative -9V terminal with the “C” button.)
  • Enter the Master Code. When the motor activates, remove the battery and open the lock. Replace the expired batteries.

Function Summary

Function
No.
Function DescriptionMinimum Access Level
MasterSub-Master
Enter Programming Modexx
4Add/Change User Codexx
5Delete ALL User Codesxx
6Suspend Any User Codexx
7Restore Any User Codexx
8Suspend ALL User Codesxx
9Restore ALL User Codesxx
13Hold Open (Code Free Mode)xx
14Cancel Hold Openxx
15Change Unlock Timexx
1Change Master Code/Code Lengthx
2Add/Change Sub-Master Codex
3Delete Sub-Master Codex
11Change to Multilple User Modex
12Change to Single Use Modex
80Reset to Factory Settingsx
0Exit Programming Modexx

NOTE: Although Users do not have programming rights, any user may change their individual code by performing the following steps:
#User Code  LEDNew User Code LED New User Code LED
Example,
#56789 LED 98765 LED 98765 LED
Old Code: 56789, New Code: 98765

Advanced Programming

Before any function is performed, you must first Enter Programming Mode.
NOTE: It is important that you wait for the appropriate LED response before continuing to the next intermediate step.
After entering programming mode, you have 30 seconds to press any key before the unit automatically exits programming mode.
Once a function # is entered, you have 5 seconds between intermediate steps. If you take too long and get a Red LED, wait until you see the blue pulse every 2 seconds, and restart the function.
After completing any function, the BLUE LED will blink twice (1 flash per second) as confirmation. The unit will remain in programming mode until you exit programming mode using Function 00, or by waiting 30 seconds for the automatic timeout.

  • Enter Programming Mode
    Press # 12345 LED {The Blue LED will pulse once every two seconds while in programming mode.}
  • Function 00: Exit Programming Mode
    Press 00 LED # LED
  • Function 01: Change the Master Code / Change Code Length
    Press 01 LED Length of Code LED Enter new Master code LED Re-enter Master Code LED
    Example: 01 LED 5 LED 99999 LED5 LED 99999 LED{Sets the code length = 5. Sets the Master Code to ‘99999’}
  • Function 04: Add or Change a User Code
    Press 04 LED User ID# LED Enter new User code LED
    Example: 04 LED 02 LED 98765 LED {Adds User ID 02 with code ‘98765’}
    IMPORTANT:
    User ID# ranges from 01 to 30.
    User Codes must be same length as Master Code.
    User Codes must be unique or they will be rejected.
  • Function 05: Delete All User Codes
    Press 05 LED 05 {LED will pulse quickly, and then flash for 1 second}
    IMPORTANT:
    All codes (User ID 01 – 30) will be erased.
    Master & Sub-Master Codes are not affected.
  • Function 06: Suspend Any Authorized User Code
    Press 06 LED User ID# LED
    Example: 06 LED 10 LED {User code with User ID 10 is suspended}
    IMPORTANT:
    User ID# ranges from 01 to 30.
    If User ID # is not an authorized user, an error will occur.
  • Function 07: Restore Any Authorized User Code
    Press 07 LED User ID# LED
    Example: 07 LED10 LED {User code with User ID 10 is restored access}
    IMPORTANT:
    User ID# ranges from 01 to 30.
    If User ID # is not an authorized user, an error will occur.
  • Function 08: Suspend ALL Authorized User Codes
    Press 08 LED 08 LED {All authorized user codes are suspended}
    IMPORTANT:
    Any users added after this function is activated, will also be suspended.
    Master & Sub-Master Codes are not affected.
  • Function 09: Restore ALL Authorized User Codes
    Press 09 LED 09 LED {All authorized users are restored access}
  • Function 13: Hold Open (Code Free Mode)
    Press 13 LED 13 LED{The unit is continuously unlocked}
  • Function 14: Cancel Hold Open
    Press 14 LED 14 LED {The unit relocks and returns to normal operation}
  • Function 15: Change Unlock Time
    Press 15 LED Open Time LED
    Example: 15 LED 5 LED {Unlock time is set to 5 seconds}
    IMPORTANT:
    Default = 3 seconds
    Open Time may be set from 1 to 9 seconds.
  • Function 02: Add/Change Sub-Master Code
    Press 02 LED New Sub B -Master Code LED
    Example: 02 LED  22222 LED {Sets the Sub-Master code to ‘22222’}
  • Function 03: Delete Sub-Master Code
    Press 03 LED 03 LED {Deletes Sub-Master Code}
  • Function 11: Change from Single Use Mode to Multiple User Mode
    Press 11 LED  11 LED
    IMPORTANT:
    Performing Function 11 will reset all programming back to the factory default settings.
  • Function 12: Change from Multiple User Mode to Single Use Mode
    Press 12 LED 12 LED
    {The unit will remain unlocked. Entering a single use code will lock the unit. Re‐entering the same code will open the lock only once and then be erased. The unit will again remain unlocked until the next single use code is entered into the lock}.
  • Function 80: Reset to Factory Default Settings
    Press 80 LED 80 LED {The lock programming is set to the factory default settings}

Default Settings

The 295 Cabinet Lock comes pre-programmed with the following default settings. Pressing any of the default codes will unlock the unit:

  • Master Code = 12345 {Required for programming mode. This code may be changed, but not deleted}.
  • User Code #01 = 54321 {This is User 01. the 295 can store up to 30 User Codes (numbers 01 through 30).
    This code may be changed or deleted.}
  • Sub Master Code = None {This code can perform most programming functions. See Advanced programming}.
  • Code Length = 5 digits {This code length may be set to 4, 5 or 6 digits}.
    Unlock Time = 3 seconds {The amount of time, in seconds, a user has to turn the latch once a valid code is entered).
  • Incorrect Code Lockout Time = 10 seconds {Locks out the keypad after (3) incorrect attempts. This is a fixed amount of time}.

LED Status Legend

  • Blue LED – Single pulse (0.1 sec duration) = Keypad button pressed.
  • Blue LED – Single Flash (1 sec duration) = User code accepted, OR Programming function/step accepted.
  • Blue LED – Double Flash (1 flash per sec) + Entering/Exiting programming mode, OR Programming function completed.
  • Blue LED – Repeating pulse (1 pulse every two sec) = In programming mode.
  • Red LED – Single Flash (1 sec duration) = Code rejected, OR Programming error.
  • Blue & Red LED – Single pulse (0.1 sec duration) – System power on, OR User code suspended

Installation

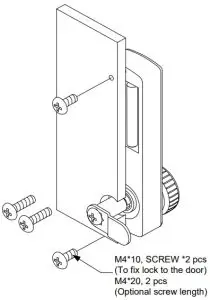

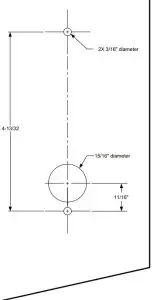

Model 295 – Programmable Cabinet Lock Mounting Template
Mounting Template
Mounting Template

Mounting Template

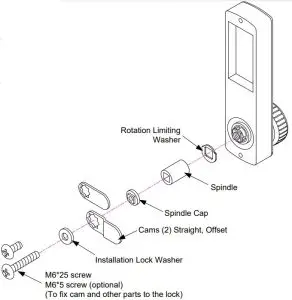

To remove and change key cylinder

Mounting Template
