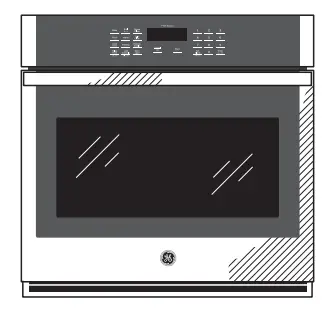

JTS3000DN/EN/SN GE® 30″ Smart Built-In Self-Clean Single Wall Oven with Never Scrub Racks
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Single wall ovens are NOT approved for stacking above or below another single wall oven.
NOTE: Wallcoverings, countertops, and cabinets surrounding the wall oven must be able to withstand a temperature of up to 200°F (94°C).

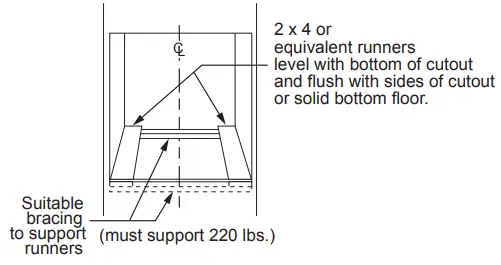

NOTE: lithe cabinet in which the wall oven is installed does not have a solid bottom, two braces or runners must be installed to support the weight of the oven.
The runners and braces must support up to 220 lbs (99 kg).
NOTE: The door handle protrudes 3″ from the door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle. ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with a plug and receptacle. They must be hard-wired into an approved junction box. IMPORTANT: Before installing, consult installation instructions packed with the product for current dimensional data.
Dimension and installation information are shown in inches.

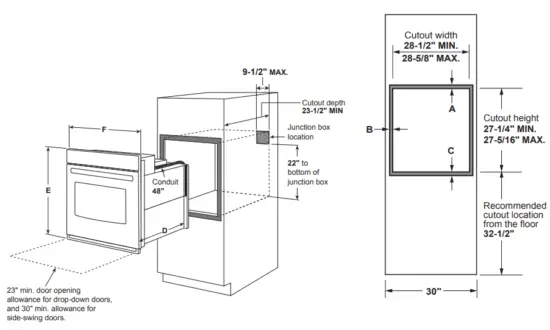

JTS3000
| Cabinet | 30″ |
| A- Overlap the oven at top of the cutout | 1″ |
| B – Overlap of the oven on another side of the edge of the cutout | 3/4″ |
| C – Overlap the oven at bottom of the cutout | 1-1/4″ |
| Oven | |
| D – Install depth | 23-1/2″ |
| E – Overall height with trim | 28-5/8″ |
| F – Overall width | 29-3/4″ |
For answers to your GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, at 800.626.2000.
JTS3000DN
GE’ 30″ Smart Built-In Self-Clean Single Wall Oven with Never Scrub Racks
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: 30″ Single electric wall ovens are approved for installation below a countertop and below certain gas and electric cooktops.
Refer to the Approved Combinations Matrix available at geappliances.com for specific information.
NOTE: 30″ Single electric wall ovens are approved for installation above 27″ and 30″ warming drawers.
ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with a plug and receptacle.
They must be hard-wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions packed with ALL products for current dimensional and combination data.

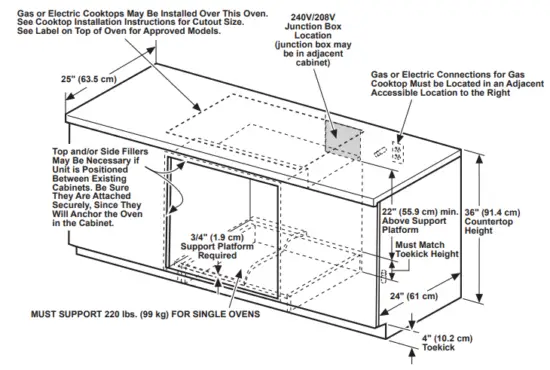

UNDERCOUNTER INSTALLATION
MUST SUPPORT 220 lbs. (99 kg) FOR SINGLE OVENS
(TWO OVENS IN SEPARATE CUTOUTS)

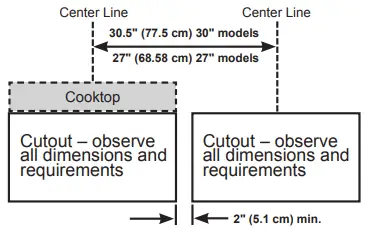

NOTE: One cooktop may be centered over either oven in the side-by-side installation.

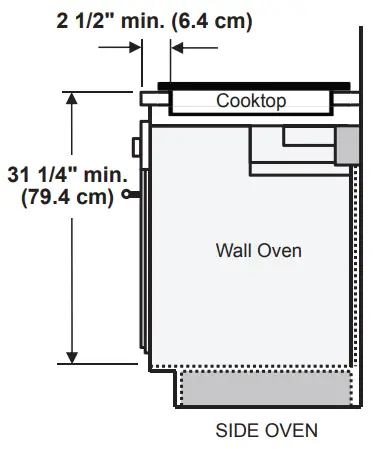

INSTALLATION BELOW A COOKTOP
IMPORTANT:
Maintain a minimum distance of 31 1/4″ from the top surface of the countertop to the wall oven platform to ensure that the cooktop and wall oven do not interfere with each other (see picture).
JTS3000DN
GE® 30″ Smart Built-In Self-Clean Single Wall Oven with Never Scrub Racks
FEATURES AND BENEFITS
Never-scrub, heavy-duty racks
Easy-clean controls Self-clean with optional
Steam Clean Anywhere control with remote notifications
Scan-to-cook
10-pass hidden bake element
8-pass broil element
Fit Guarantee
Model JTS3000DNBB — Black
Model JTS3000DNWW — White
Model JTS3000SNSS — Stainless steel
Model JTS3000ENES — Slate
FIT GUARANTEE
Replacing a similar wall oven from GE Appliances or another brand?
GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications.
Visit geappliances.com for more info
