Installation manual
WINDY
Kitchen extractor hood

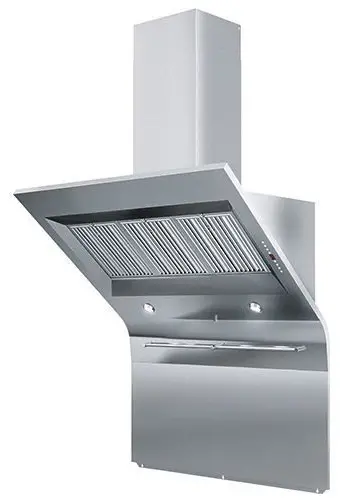

Windy Pro-2 900 90cm Inclined Chimney Hood
Installation
Installation- Make sure that the installation is carried out only by specifically trained and qualified personnel.
- During installation observe the applicable regulations concerning exhaust air.

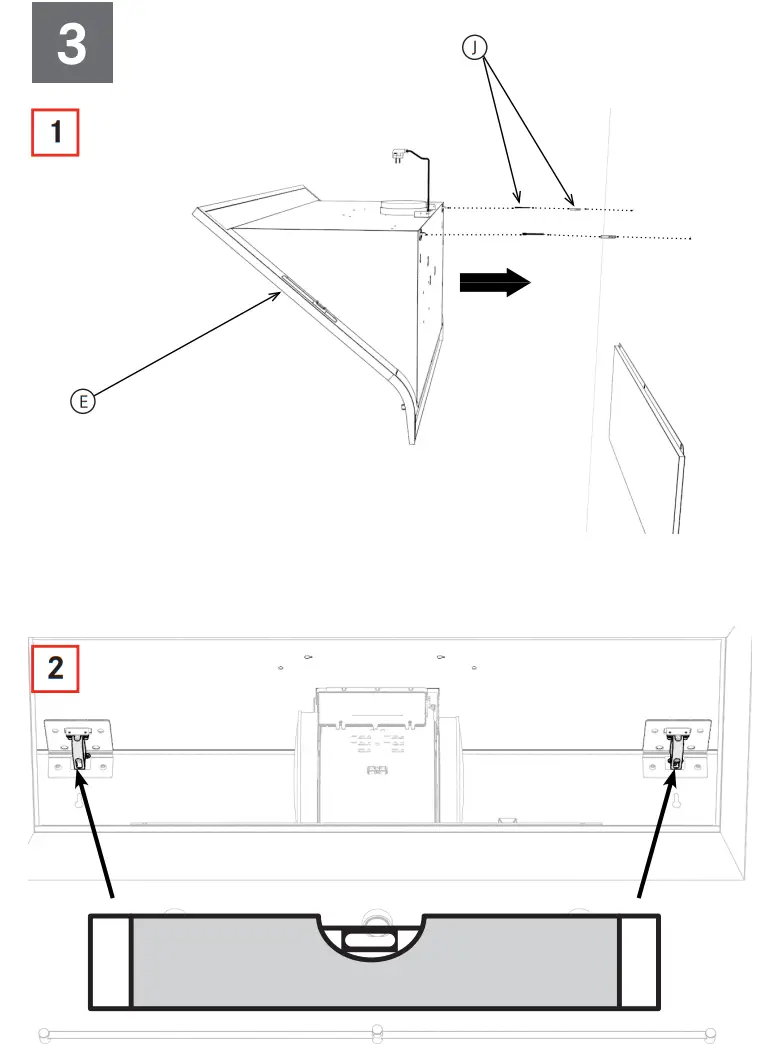

- Mount the device only with suitable fixing material.
- Make sure that damaged cables are changed by the manufacturer or the customer service.
Mounting location
- Make sure that the kitchen has an opening to the outside to ensure a sufficient air exchange.
If the hood is used along with devices that do not require electricity: - Make sure that the negative pressure in the room does not exceed 0.04 mbar to ensure that the exhaust gases will not be drawn in again.

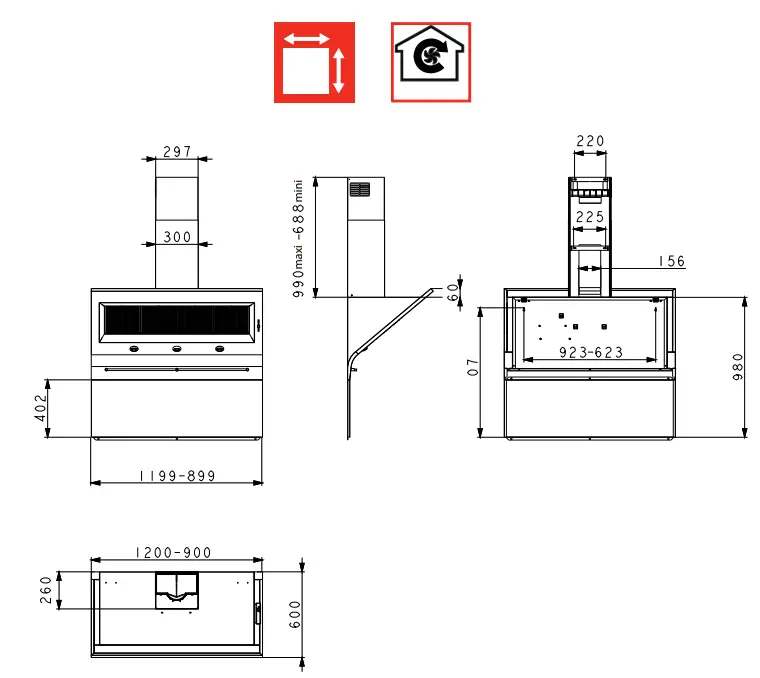

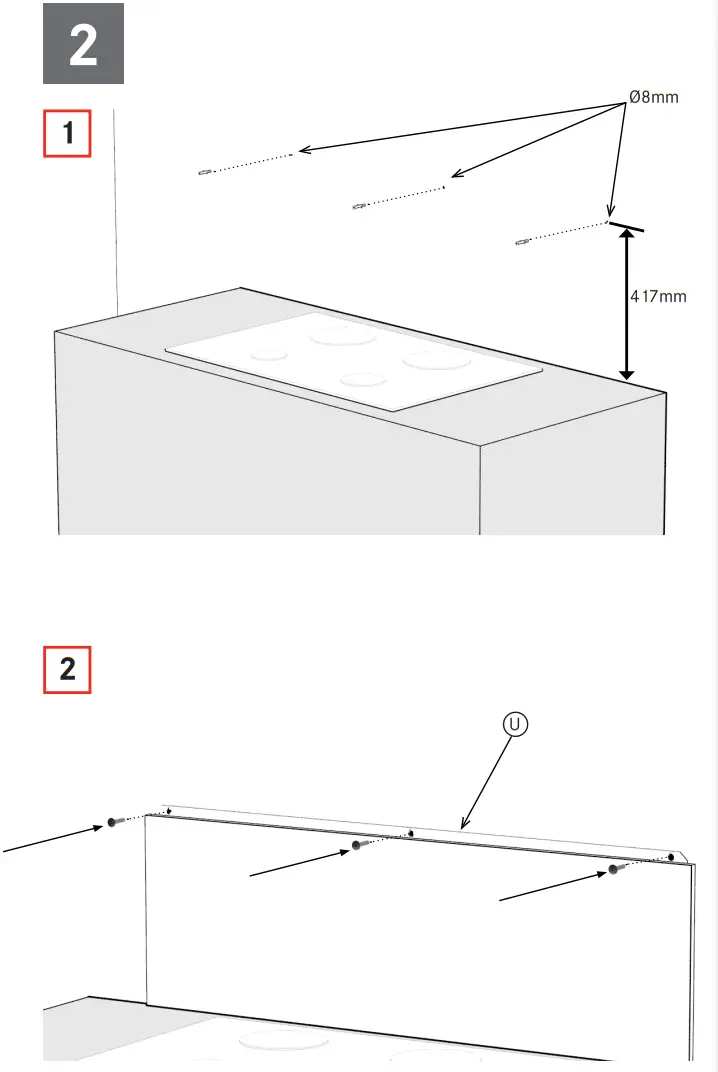

Spacing
- Observe the safety distance between stove top and hood.
If the installation instructions for a gas-powered stove top require a greater distance than specified in these installation instructions: - Observe the specifications of the gas-powered stove top.

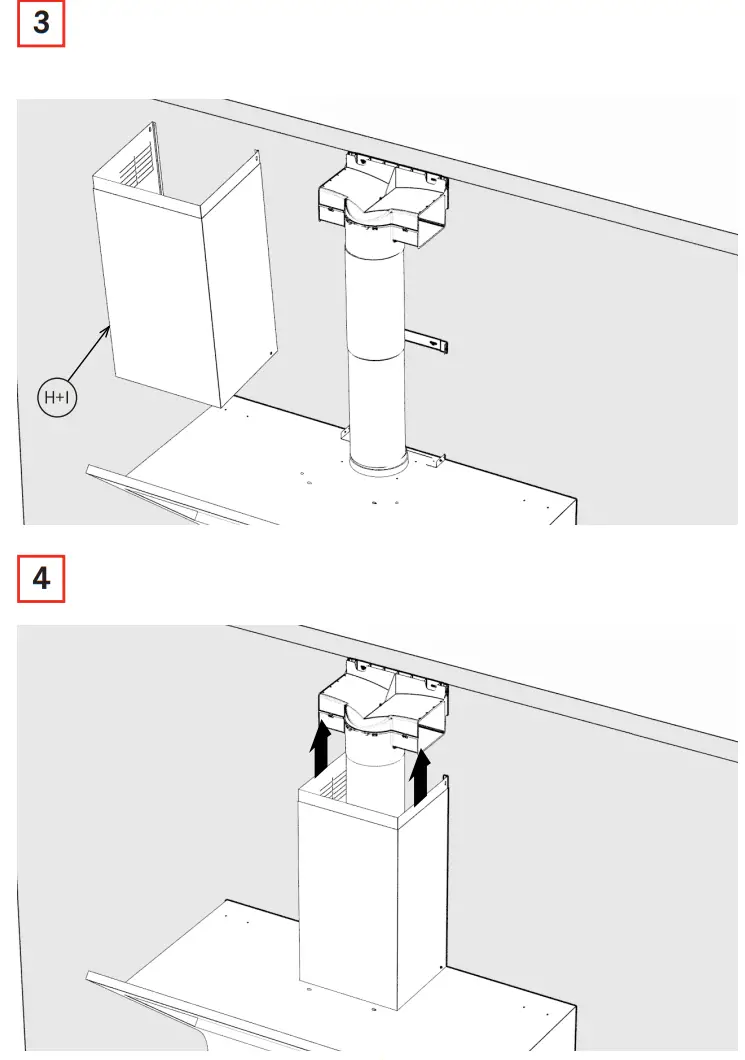

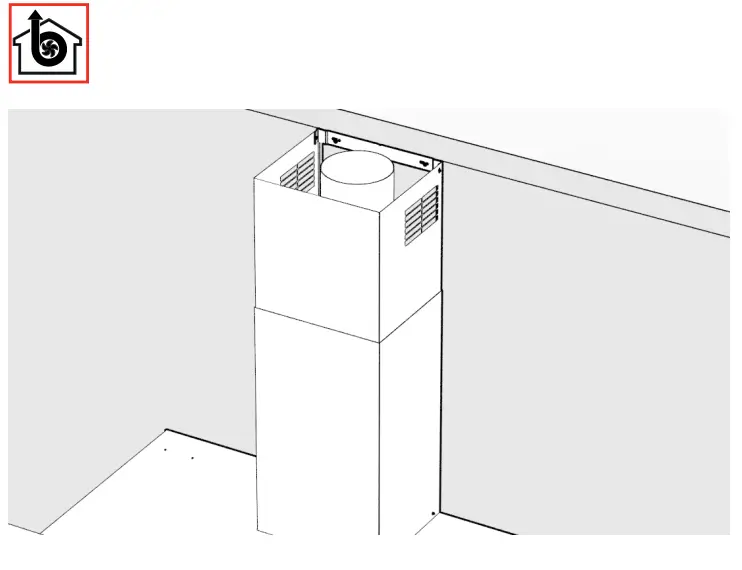

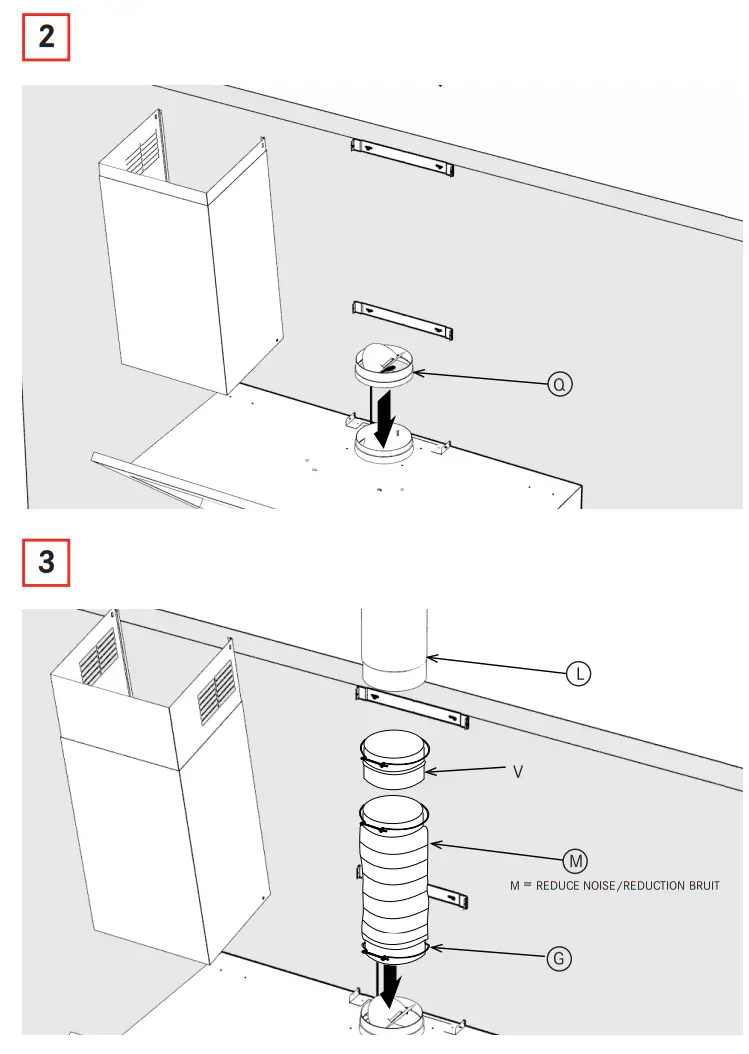

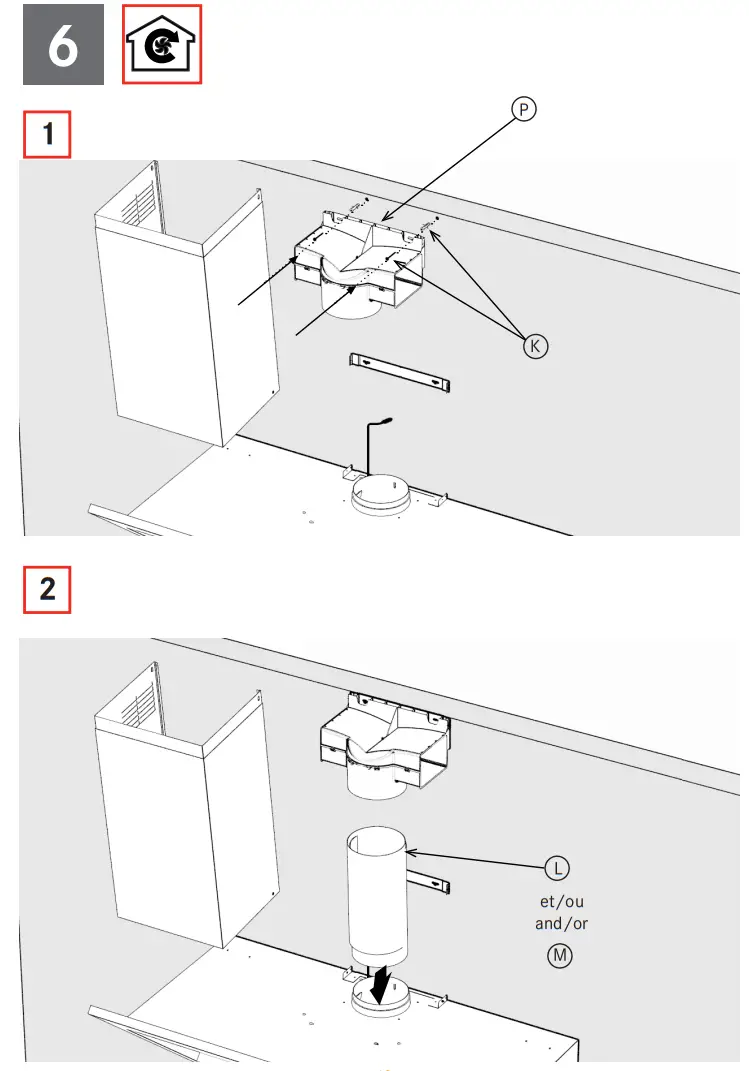

Connecting the smoke vent
- Do not connect the hood to a shaft that is used for flue gas (e.g. from a fireplace, heating system etc.).
- Connect the hood to the smoke vent with a pipe and make sure that the route of the pipe is as short as possible.
- If gas-powered devices or similar devices that do not require electricity are used in the same room as the hood: Ensure a sufficient ventilation to avoid the backflow of exhaust gases.
Electrical connection
- Observe the supply voltage (see type plate).
- For devices of class I: Make sure that the power grid in the building is earthed correctly.
- Connect the hood to the mains power supply with a double-pole switch with a contact gap width of at least 3 mm.
www.roblin.fr
Franke France S.A.S.
B.P 13 – Avenue Aristide Briand
60230 Chambly (France)
Service consommateur:
04.88.78.59.93
991.0663.765 _V2_210922
