ProTeam 107128 ProGuard 4 Portable w4 Gallon Tool Kit
ProGuard 4 Portable Wet/Dry Vacuum
The ProGuard 4 Portable Wet/Dry vacuum is a versatile and powerful vacuum designed for emergency spills, detail cleaning, and portable jobsite maintenance. Its easy-to-carry package design makes it an excellent choice for portability.
Power and versatility come together in the portable ProGuard 4 Wet/ Dry Vacuum. For emergency spills, detail cleaning and portable jobsite maintenance, there’s no better choice for true wet/dry vacuum performance in an easy-to-carry package.

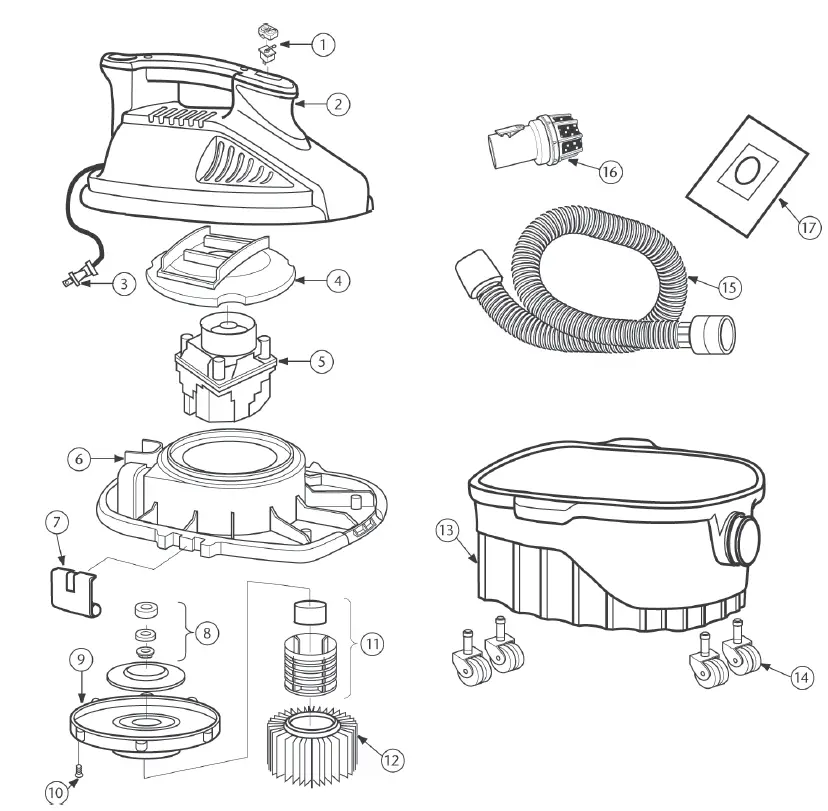

PARTS
| No. | Product Name | Qty | List Price |
| 1 510224 | Switch and Switch Cover | 1 ea. | $ 5.52 |
| 2 510225 | Motor Cover and Top Handle | 1 ea. | 43.56 |
| 3 829719-4 | Cord Assembly | 1 ea. | 14.99 |
| 4 830519 | Exhaust Duct | 1 ea. | 13.76 |
| 5 509776-19 | Motor Assembly | 1 ea. | 86.71 |
| 6 830520-2 | Lid | 1 ea. | 50.95 |
| 7 826387 | Tank Latch | 1 ea. | 10.01 |
| 8 510124 | Blower Wheel, Washer, Spacer, Nut | 1 ea. | 6.89 |
| 9 832656-1 | Plate Collector | 1 ea. | 12.83 |
| 10 820563-4 | Screw, Type AB #10 x ¾” | 1 ea. | 0.69 |
| 11 510108 | Filter Cage and Float Assembly | 1 ea. | 8.26 |
| 12 107178 | Qwik Lock Fine Dust Cartridge Filter | 1 ea. | 27.30 |
| 13 510106 | Tank (with Inlet) | 1 ea. | 20.86 |
| 14 510109 | Casters | 4/pk | 8.38 |
| 15 831337-6 | Premium Hose Assembly | 1 ea. | 59.05 |
| 16 830098 | Diffuser | 1 ea. | 7.25 |
| 17 107182 | Intercept Micro Filter Bag (optional) | 3/pk | 23.65 |
Specifications
- Motor: 1080 W/9.0 A
- Motor Airflow: 142 CFM
- Static Lift: 51
- Tank Size: 4 gallons/15.2 L
- Weight: 12 lbs./5.5 kg.
- Decibel: 76 dBA
- Fine Dust Cartridge Filter: 903 sq. in.
- Power Cord: 20′, 18 AWG
Standard Configuration
- 10′ Vacuum Hose
- Two-Piece Wand
- Master Floor Tool
- Carpet Insert
- Hard Surface Insert
- Squeegee Insert
- Crevice Tool
- Dust Brush
- Claw Nozzle
The following products are recommended to use with the ProGuard 4 Portable Wet/Dry Vacuum:
- 107182 Intercept Micro Filters, 3/pk – $23.65
Recommended Environments
The ProGuard 4 Portable Wet/Dry Vacuum is suitable for use in the following environments:
- Commercial buildings
- Hospitals and medical facilities
- Schools and universities
- Hotels and resorts
- Office buildings
- Education
- Healthcare
- Hospitality
- Facility Service Providers
Recommended Applications
- Emergency Spills
- Spot Cleaningg
- Jobsite Maintenance
- Flooding
- Day porters
Product Usage Instructions
- Attach the desired cleaning tool to the end of the vacuum hose.
- Plug in the vacuum and turn it on.
- Direct the cleaning tool to the desired area and move it back and forth to vacuum up debris.
- When the tank is full, turn off the vacuum and remove the tank from the unit.
- Empty the contents of the tank into a proper waste disposal container.
- Replace the tank onto the unit and continue cleaning as needed.
- When finished, turn off the vacuum and unplug it from the power source
- Clean and store the vacuum and accessories in a dry, secure location.
Limited Warranty
The ProGuard 4 Portable Wet/Dry Vacuum comes with a limited warranty. Please refer to the product manual for warranty details.
- 3 years on parts and labor
- 1 year on vacuum motor
- Limited lifetime on molded body parts
