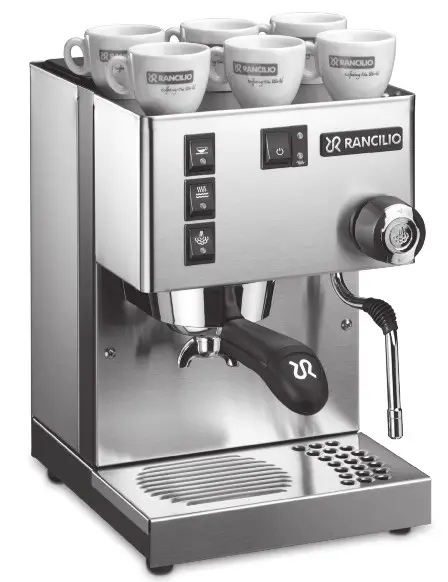

Rancilio Silvia Espresso Machine With Iron Frame User Manual

Silvia
User Manual

Dear customer
First of all, we thank you for choosing RANCILIO. We are confident that the product you have purchased will meet all your expectations. The coffee machine you are about to use is the outcome of extensive research and development. It is the most efficient, user-friendly and well designed machine of its kind. This manual outlines the correct use and maintenance and will help you to get the best results from your machine. We hope you will find our explanations clear and we may continue to earn your business in the future.
The machines in the SILVIA series have been designed to prepare espresso and other hot beverages for domestic use. They also can be used in staff kitchen areas in shops, offices and other working environments (i.e. farm houses; by clients in hotels, motels, bed and breakfast and other residential type environments).

IMPORTANT SAFEGUARDS

Read all instructions.

The appliance is not to be used by children under 8 years old or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Close supervision is necessary when any appliance is used by or near children.

Children should not play with the machine, whether they are supervised or unsupervised.

Keep the packed machine in a dry place, not exposed to environmental elements and in conditions in which the temperature does not go below 5°C.
Do not place heavy items on the packaging. Do not stack more than three items of the same kind.
Do not cover with cloths, etc.
Don’t leave the packing elements (plastic bags, expanded polystyrene, nails, cardboard, etc.) within the reach of children, as these elements are potential sources of danger.
To disconnect, turn any control to «off», then remove plug from wall outlet.
Do not place on or near a hot gas or electric burner, or in a heated oven.
Do not use appliance for other than intended use.
If liquids inside the machine freeze, leave the coffee machine in a place with a minimum temperature of 20°C for at least 20 minutes before switching it on.
Never put any vessels filled with liquid on top of the machine.
Do not let cord hang over edge of table or counter, or touch hot surfaces.
Improper installation and use can cause damage to people, animals and things for which the manufacturer cannot be considered responsible.
Improper installation and use can cause damage to people, animals and things for which the manufacturer cannot be considered responsible.
Do not use outdoors.
Leave enough free space around the machine to facilitate its use and the performance of any maintenance operations.
Install the machine on a flat, stable, dry and water repellent surface (laminate, steel, ceramic, etc.) away from heat sources (oven, cooking stove, fireplace, etc.) and in conditions in which the temperature may not go below 5°C (41° F). KEEP WARM.
The machine must not be set up in areas where water tubes or high pressure cleaners are in use! Do not immerse the machine!
Do not leave the machine exposed to environmental elements or place it in a damp room such as bathrooms.
The maximum inclination of support surface must be below 5 ° to prevent overturning.
Switch off the machine and disconnect from power supply before opening the machine or disengaging parts that move when in use.
Use only original spare parts in order to avoid compromising the safety and proper functioning of the machine.
The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
In an emergency, such as fire, unusual noise, overheating, etc., take immediate action, disconnect the power and contact customer service.

 Heating element surface is subject to residual heat after use.
For the power supply, the data listed on the type plate must be carefully consulted! When in doubt, contact customer service.
It is inadvisable to use adapters, multiple sockets and / or extensions. When their use is indispensable, only approved products may be used. Check that the current capacity limit indicated on the adapters exceeds the absorption capacity (A = ampere) of the equipment.
If the power supply cable to the machine is damaged it must be replaced by the manufacturer or his service personnel or an authorized electrician in order to prevent any risks.
To protect against fire, electric shock and injury to persons do not immerse cord or plugs in water or other liquid.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
Return appliance to the nearest authorized service facility for examination, repair or adjustment.
To reduce the risk of injury, do not drape cord over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

Save these Instructions.

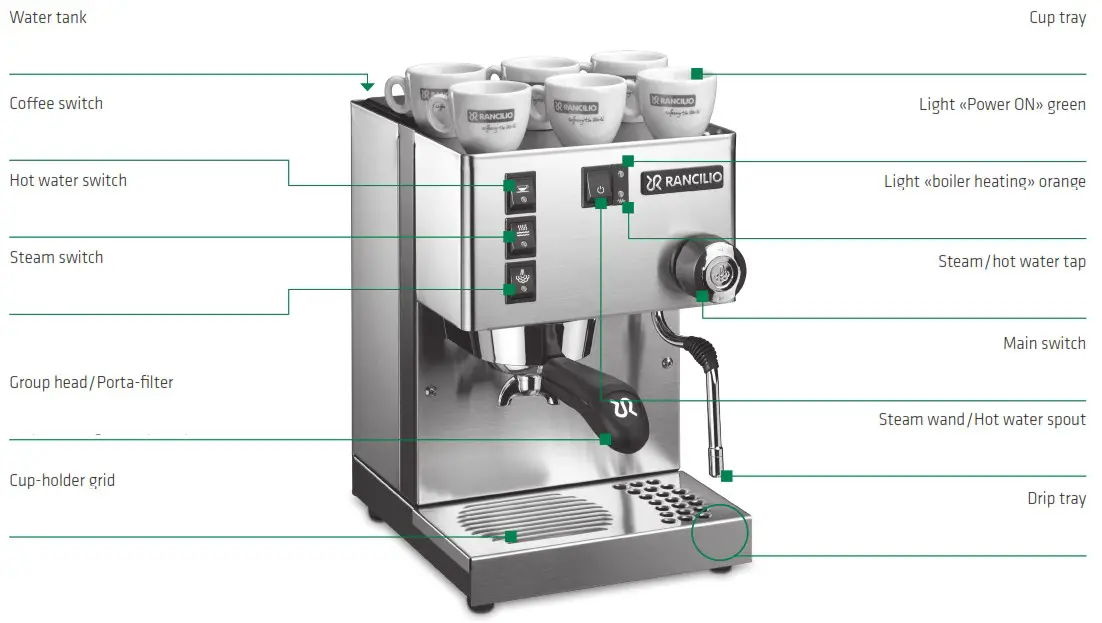

Overview

Silvia is designed for installation of our coffee pod or capsule kit. For further information, please contact your distributor.

Set up the coffee machine

Improper installation can cause damage to people, animals and things
Observe the notes on safety instructions!

Put machine on a level and stable surface Leave enough free space around	Fill water tank (ca. 2 litres) Use fresh water
Insert both hoses into water reservoir Close the lid	Open tap
Switch on coffee switch only	Connect to main power
Switch on main switch	Close tap as soon as water comes out of the steam wand

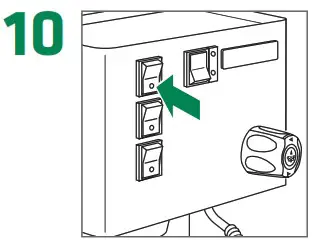

Pour 0.5 l water out of the group Place receptacle under the outlet	Switch off the coffee switch

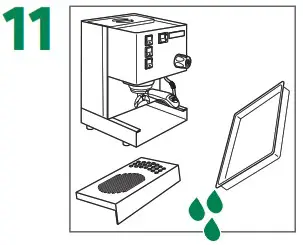

Empty the drip tray

Switch ON / OFF

Switch ON	Switch OFF
Fill water tank (ca. 2 litres) Use fresh water	Remove porta-filter, knock-out coffee Do not damage the filter
Insert both hoses into water reservoir Close the lid	Lock porta-filter holder again
Switch on main switch Green light is on	Switch off main switch Green light goes off

Don’t switch on the machine before having filled the water tank to avoid damaging the heating element!
For the first installation or after a long stop refer to the chapter «Set up the coffee machine».

Use

Wait for the orange light «boiler heating» to switch off
Don‘t touch hot surfaces. Use handles or knobs.
Check frequently the water level in the tank. Refill if necessary!

Preparing coffee	Preparing hot water (tea)
Use a filter basket for 1 or 2 coffees as required	Flush out residual steam condensation

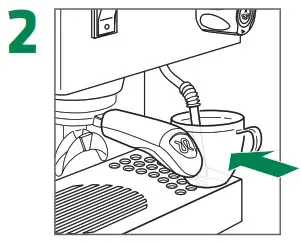

Fill with ground coffee and tamp Remove leftovers from rim of the filter	Put cup under hot water spout
Lock the porta-filter into the group head	Switch on the hot water switch
Put cup(s) under coffee outlet	Open tap slowly
Start brewing by pressing coffee switch Stop brewing by pressing coffee switch	Close tap when the desired amount is reached
Remove porta-filter, knock out coffee and lock it again Do not damage the filter	Switch off the hot water switch

For best results: store milk at ≤ 5 °C (≤ 41 °F).
Don‘t touch hot surfaces. Use handles or knobs.
Check frequently the water level in the tank. Refill if necessary!
Steam wand

Switch on steam switch	Flush out residual steam condensation
Wait for steam to be generated Wait for the orange light «boiler heating» to switch off	Submerge steam wand in milk
Open tap slowly	Close tap when the desired temperature is reached

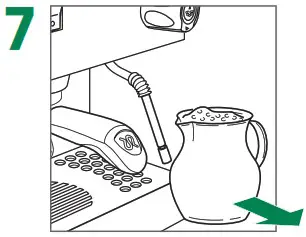

Remove product when finished	Switch off steam switch

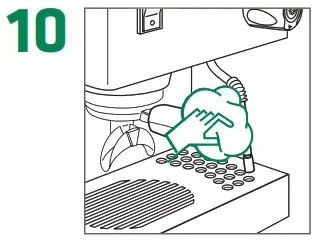

Purge steam to clean steam wand	Clean steam wand

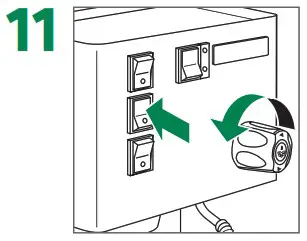

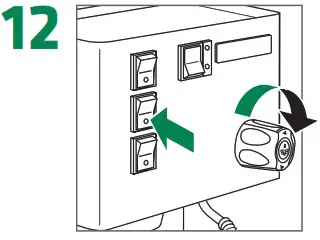

Switch on the hot water switch, open tap slowly	Close tap as soon as water comes out of the hot water spout, switch off the hot water switch

Daily cleaning

Do not use abrasive sponges and detergents or solvents! If cleaner is required, follow the instructions on the package!
Do not immerse the machine into water!

Flush brewing group	Brush the seal under the group head
Insert blind filter disk, add cleaning detergent for espresso coffee machines	Lock the porta-filter into the group head Remove cup-holder grid
Turn on coffee switch for 5 sec., then let it rest for 10 sec. Repeat until water runs clear in drip tray	Remove porta-filter with blind filter disk, rinse both under fresh water
Insert blind filter disk and lock porta-filter again	Rinse several times

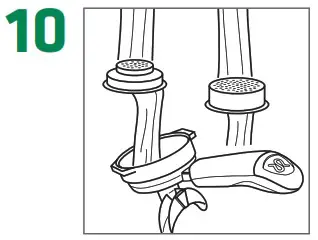

Empty drip tray	Unlock the filter basket, clean all parts Rinse with hot water to dissolve any coffee oil residue

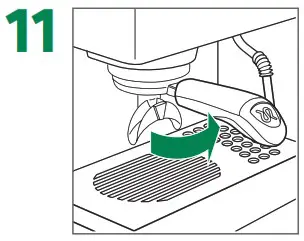

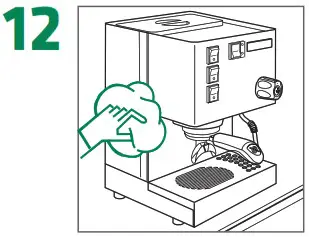

Insert filter basket into porta-filter and insert into group head, reattach cup-holder grid	Clean housing with damp cloth Follow the grain of the satin finish on stainless steel parts

Daily cleaning of steam wand

Do not use abrasive sponges and detergents or solvents! If cleaner is required, follow the instructions on the package!
Do not use container made of aluminum!

Submerge steam wand in milk cleaning solution Heat up with steam wand and allow to react. Time depends on detergent, we suggest at least 10 min.	Empty cleaning solution and fill container with fresh water
Submerge steam wand in water and heat it up	Clean steam wand

Storing the machine

Final Stop: Dispose of the machine properly, in accordance with national requirements

Empty the water tank	Empty the remaining water Stop immediately when out of water
Switch off the main switch	Clean the machine See page «Daily cleaning»
Unplug the machine	Cover the machine and place it in a dry room, not exposed to environmental elements

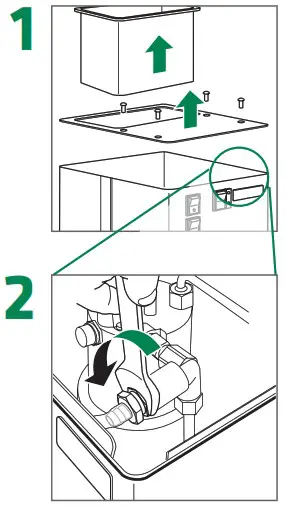

Pump pressure adjustment

This operation should only be conducted by a qualified technician

Remove the screws on top Remove the cup tray Loosen the lock nut	Tighten the lock nut
Adjust the pressure Screw in / out by maximum 1 turn	Place and lock the cup tray

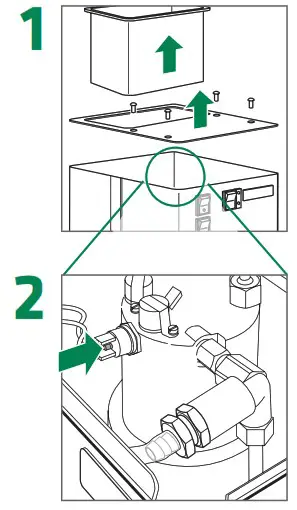

Reset the safety thermostat

To adjust the water pump pressure or to reset the safety thermostat, unplug the machine and wait until it has completely cooled down

Remove the screws on top Remove the cup tray Push in the red button	Plug in and switch on the machine Please refer to the chapter «Set up the machine»
Place and lock the cup tray	Test if the machine functions correctly When in doubt, contact customer service

What if…

The machine does not start No coffee, hot water, steam delivery Is the water tank empty? Machine not heating up The safety thermostat needs to be reset. See instructions. Irregular steam delivery Is the tip of the steam wand obstructed?

Coffee comes out too slow / too fast Are the filter and the group head ok? Is the coffee ground too finely / too coarse? Finer coffee: coffee brews slower Coarser coffee: coffee brews faster There is water under the machine This is normal

Technical data

We reserve the right to make technical changes

* Not valid for Europe

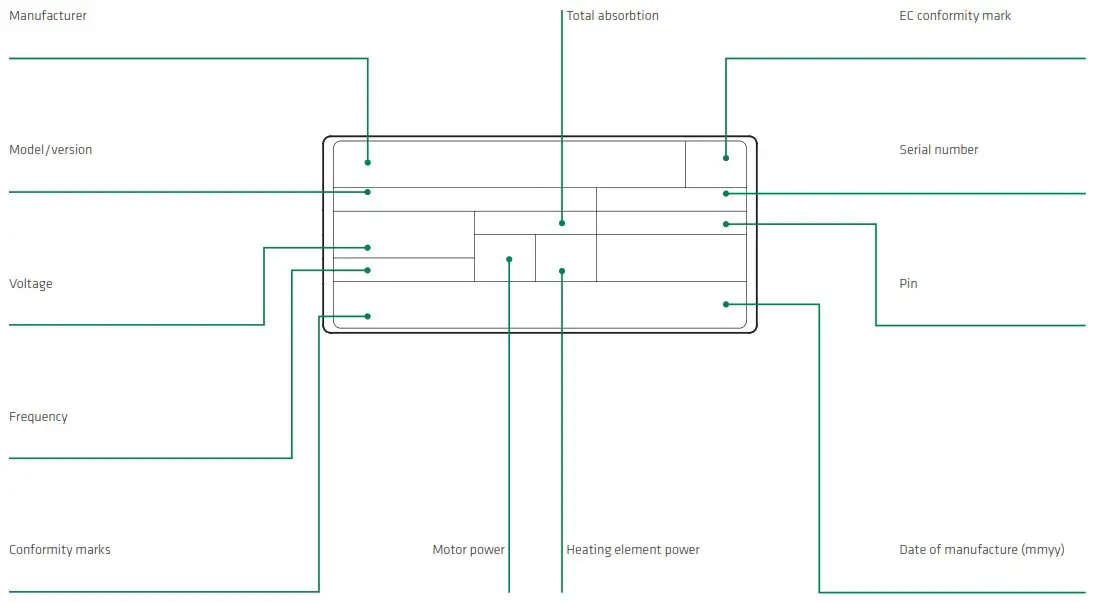

Legal information

The machine is equipped with the following protective devices: complete panelling protection of all the parts subject to heat and of the steam and hot water supplier; work surface provided with grill and tray to collect split liquids; thermal protection on the boiler; safe resistance thermal.

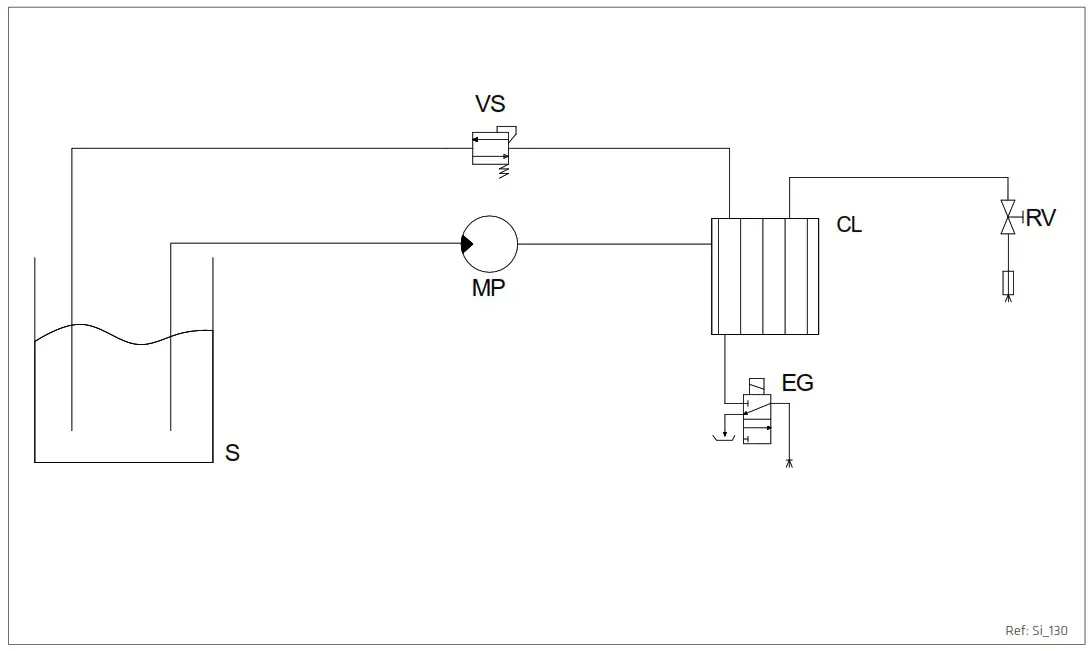

Hydraulic diagram

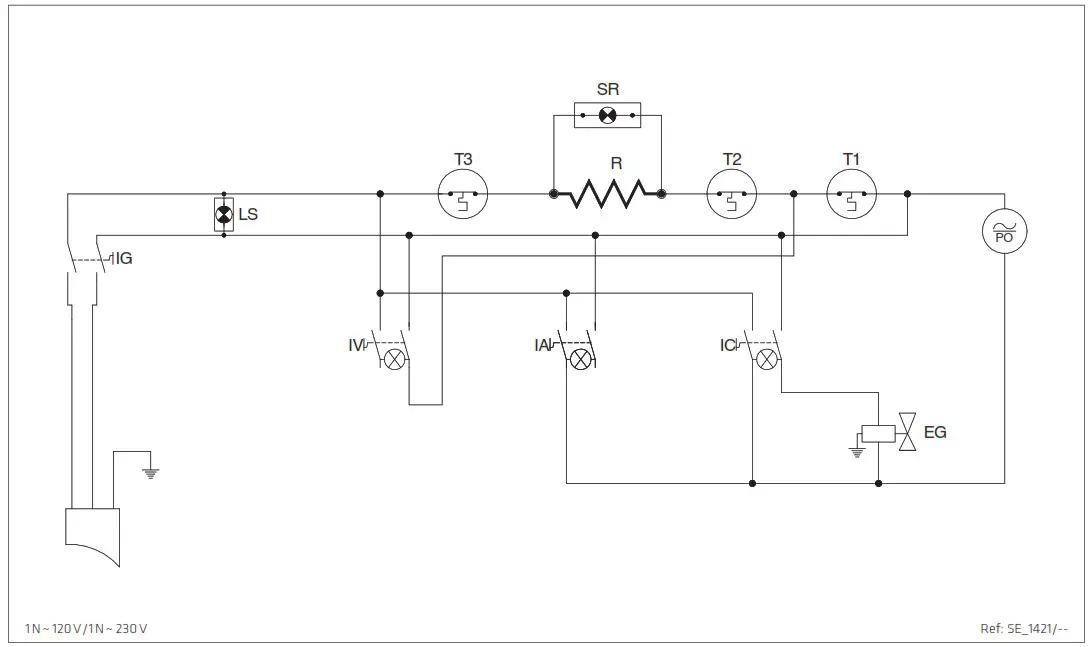

Electric diagram

Diagrams
