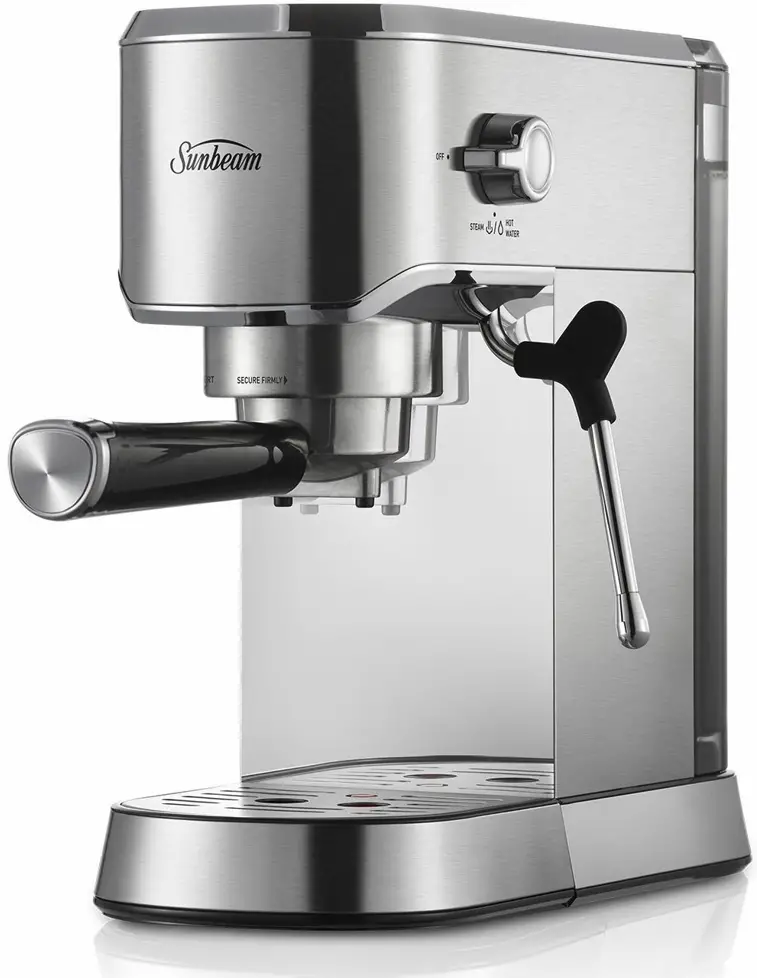

Sunbeam EMM2900 Compact Barista Espresso Machine

Espresso extraction guide

This guide will help to improve espresso extraction, to achieve great tasting coffee, every time.

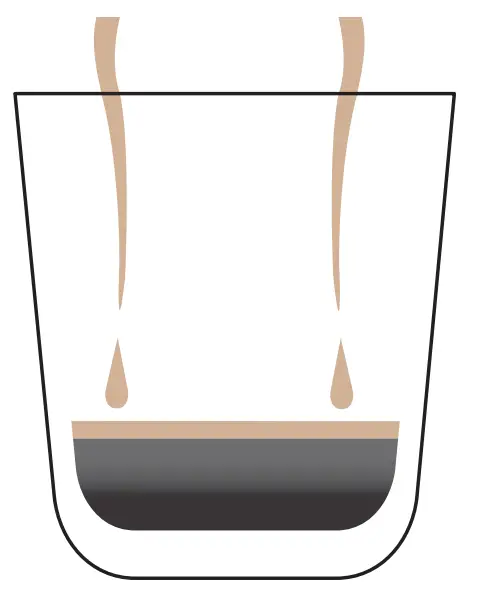

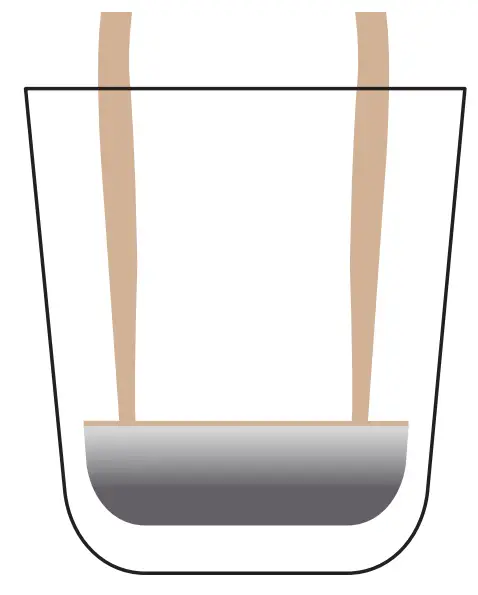

	Under Extraction	Optimum Extraction	Over Extraction

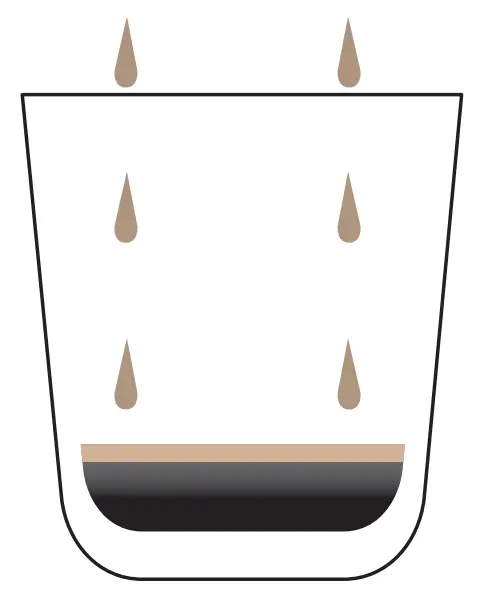

Pour	Extraction too fast Pours for under 15 sec	Steady-flow extraction Pours for 20-30 sec	Extraction too slow Pours for over 35 sec
Colour	Pale brown Crema-light brown	Rich caramel Crema-dark golden	Very dark brown Crema-dark brown
Taste	Sour, acidic, watery	Rich, sweet, vibrant	Bitter, dry, grainy
Grind Size	Too coarse	Just right	Too fine
Dosage	Not enough grinds. Use more grinds.	3mm below the top of the filter basket after tamping	Too many grinds. Use less grinds.
Tamp	Not enough tamp force Tamp firmer	Just right-firm force 10-15Kg of force	Too much tamp force Tamp lighter

Let’s get you started

Scan the QR code to watch the Quick Start Guide video.

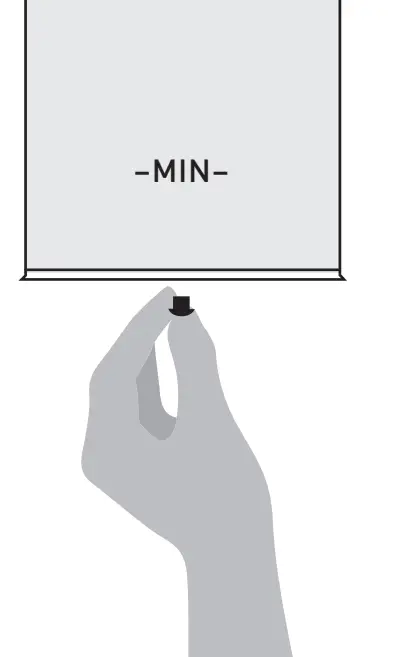

1. Remove plug from water tank
   Remove the plug at the bottom of the water tank.

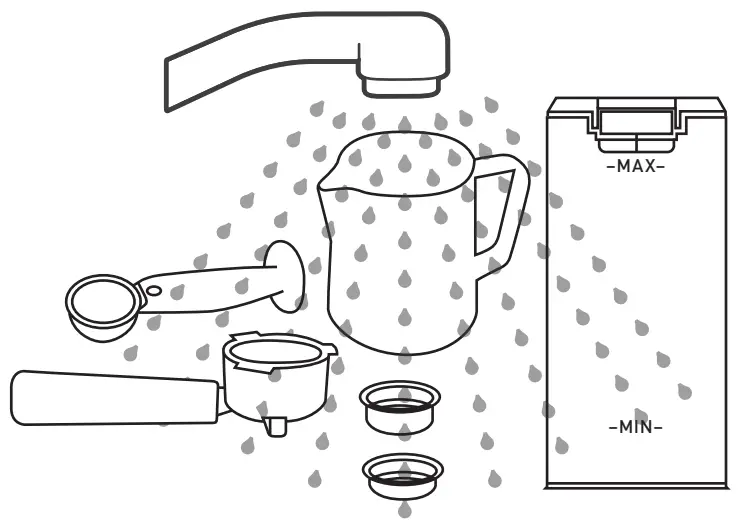

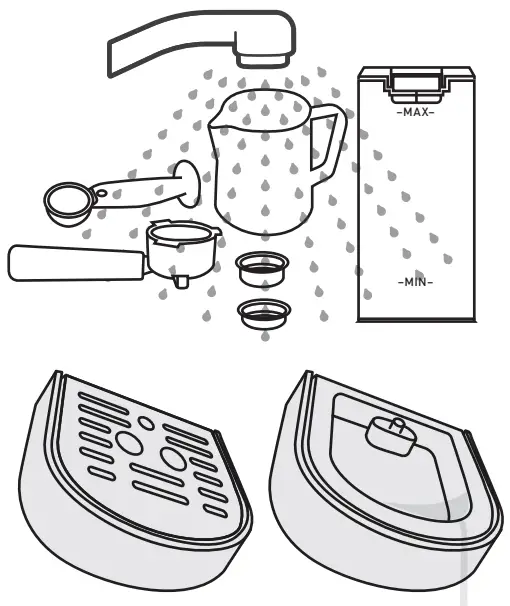

2. Wash and dry part
   Wash the water tank, milk jug, group handle, tamper measuring spoon, 1 CUP & 2 CUP filter baskets in warm water with a milk detergent. Rinse and allow thorough air drying

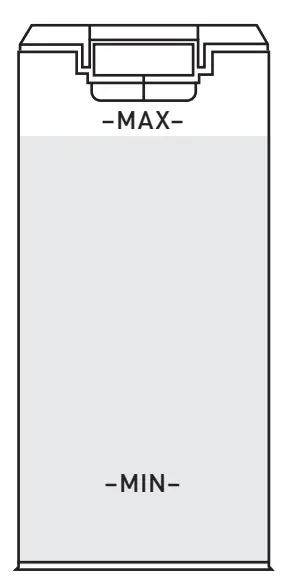

3. Fill and insert water tank

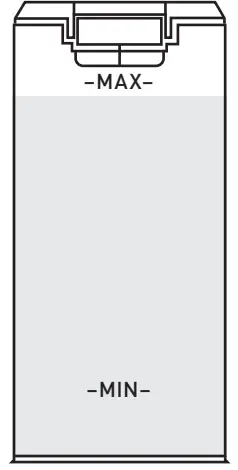

   Fill the water tank with cold water to the MAX level. Use filtered water for best results.

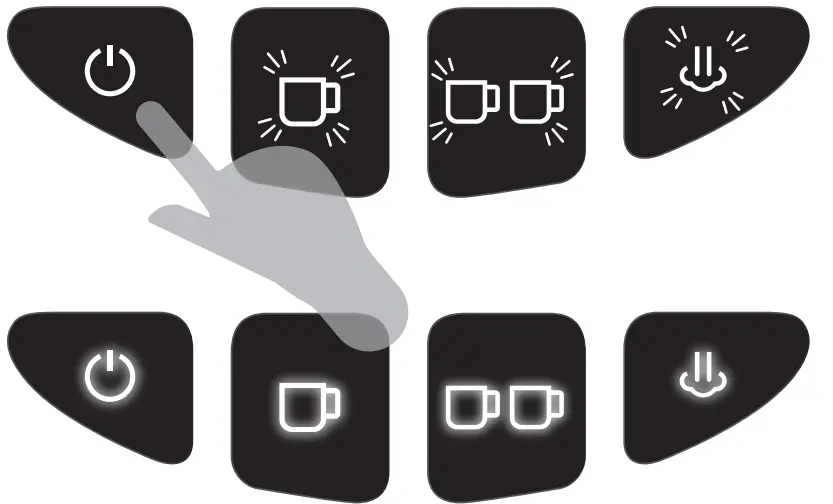

4. Start up

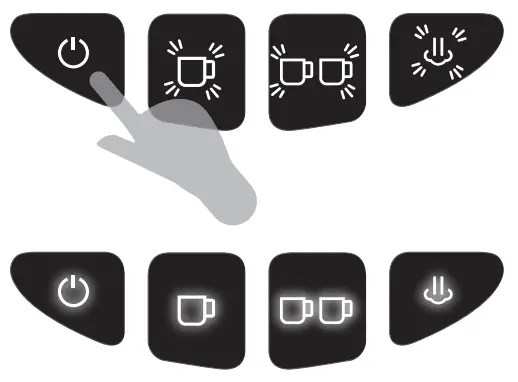

   Insert the power plug into the power outlet and press the STANDBY button. When STANDBY, 1 CUP, 2 CUP & STEAM buttons are illuminated, the machine is ready for use.

5. Prime machine

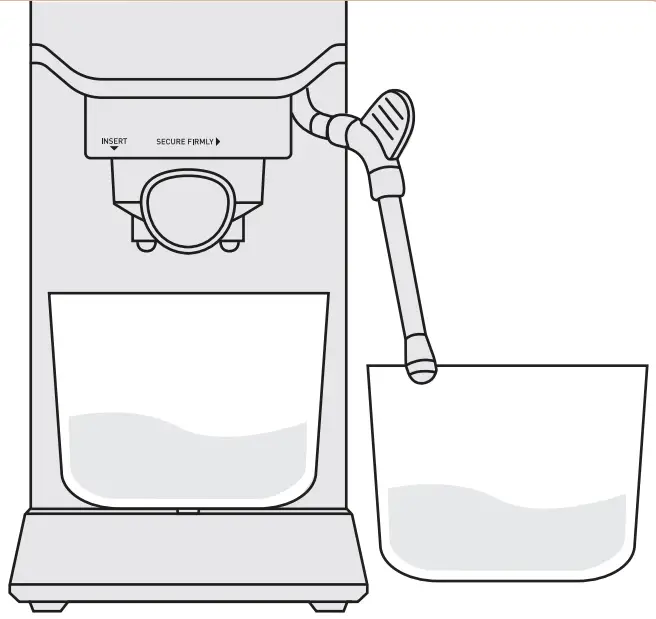

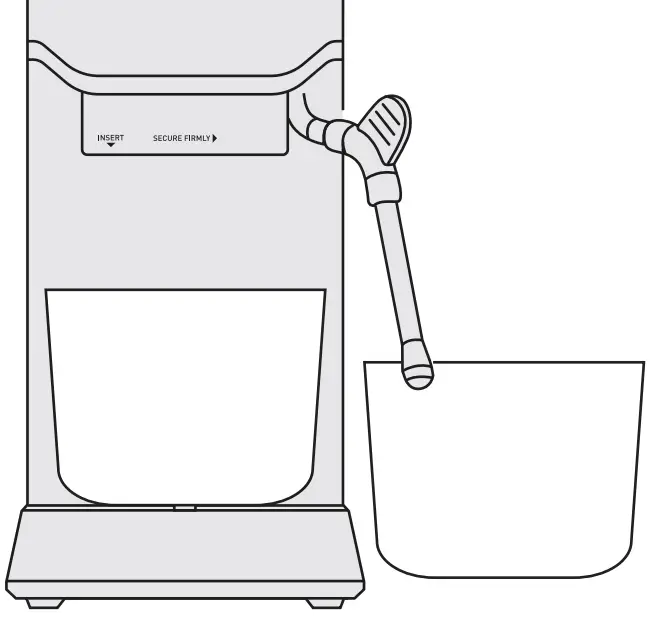

   Place 2 large cups under the group head and steam wand

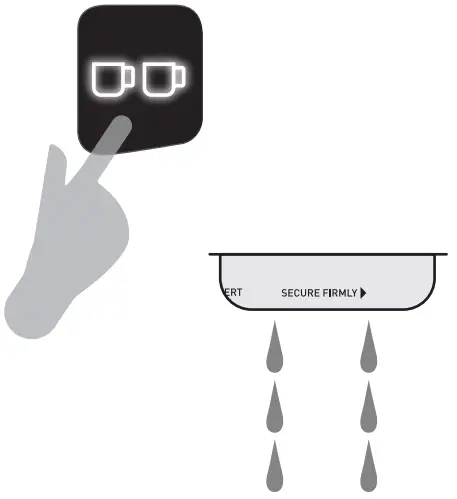

   Press the 2 CUP button and water will start flowing from the group head.

   Allow water to run through until it stops.

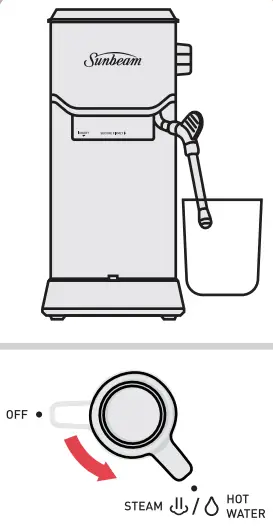

   Turn dial to the HOT WATER position.

   Allow hot water to run through for 20 seconds.

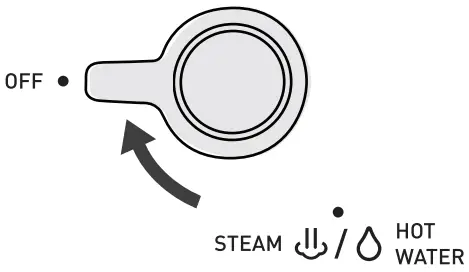

   Return dial to OFF position.



Making your first café style coffee

Use the guide below to help you make café style coffee.

1. Check water tank is full
   Use filtered water for best results.

2. Start up
   Press the STANDBY button. When STANDBY, 1 CUP, 2 CUP & STEAM buttons are illuminated, the machine is ready for use

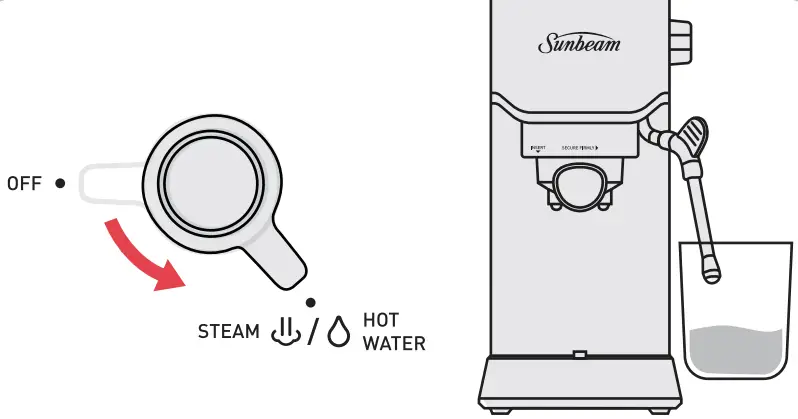

3. Warm cup

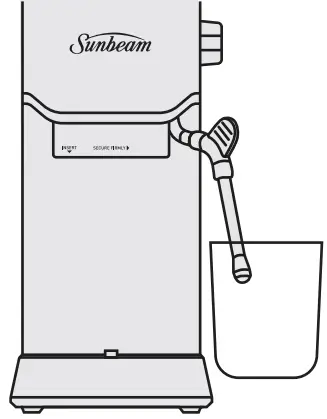

   Position steam wand in cup. Turn dial to HOT WATER.

   Quarter fill cup with hot water. Return dial to OFF position.

   Empty cup after 20 – 30 seconds.

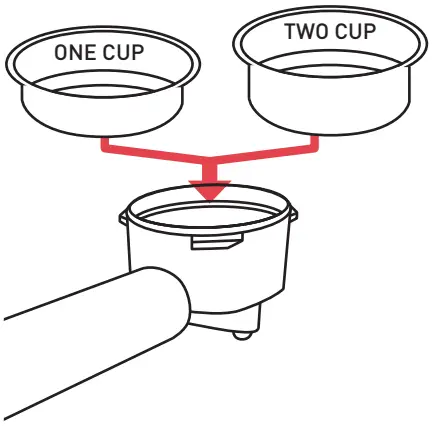

4. Select filter baskets
   Select either the 1 CUP or 2 CUP filter basket.

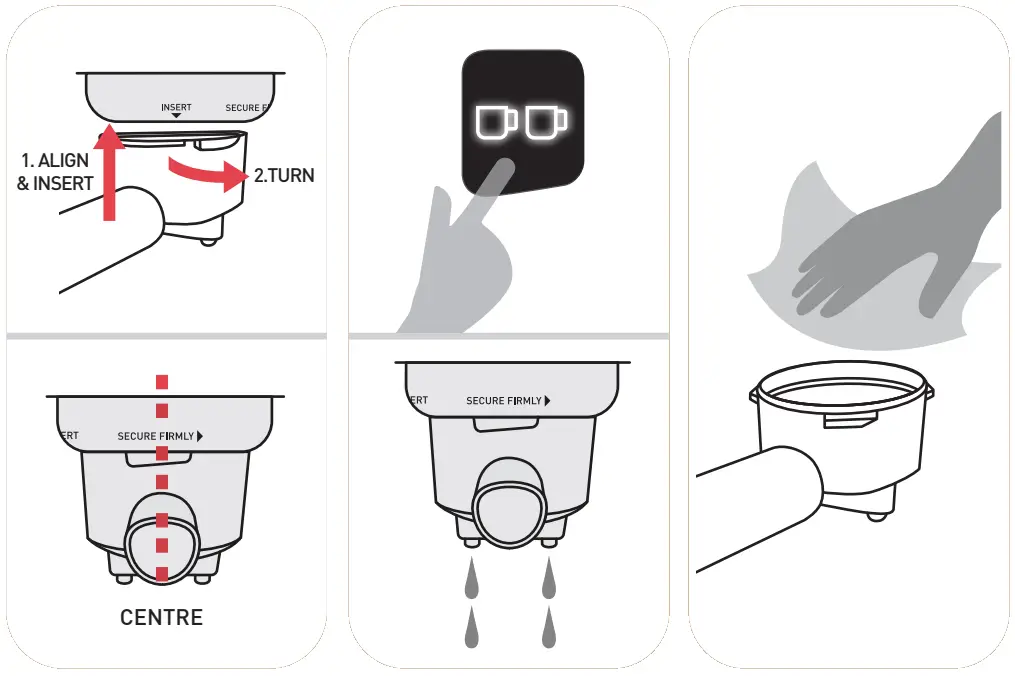

5. Warm group head, group handle & filter basket
   Insert group handle into group head. Press 2 CUP button. Wipe filter basket with a dry cloth.

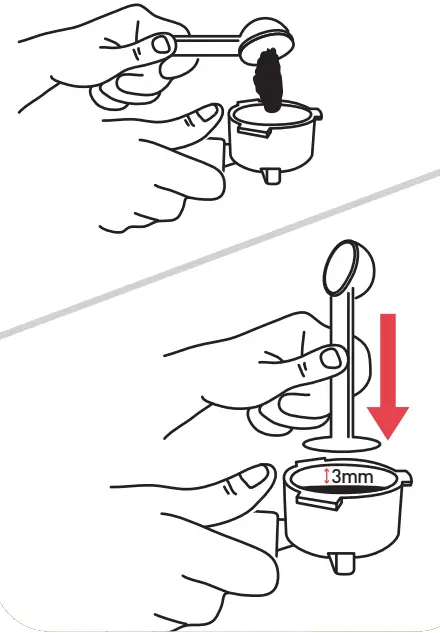

6. Dose & tamp
   Evenly tamp grinds to the level indicated.

7. Wipe edge
   Wipe away excess grinds to clear edges.

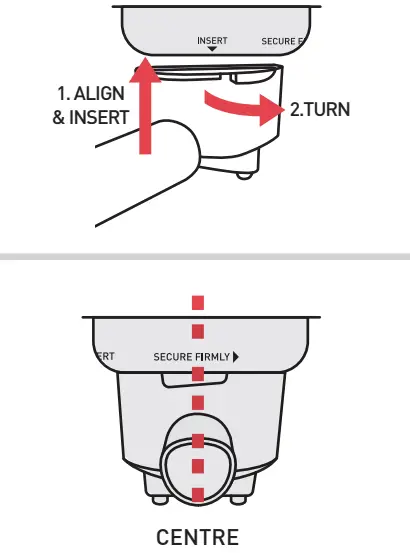

8. Insert group handle
   Insert group handle into group head. Group handle should be in the centre position.

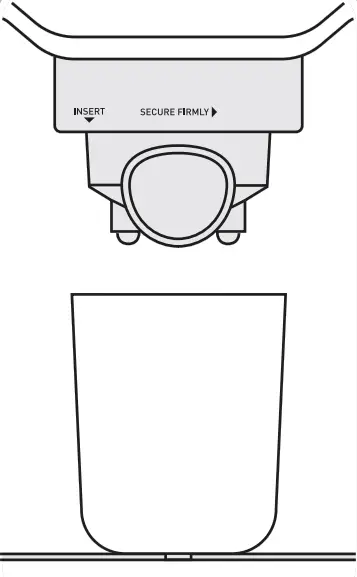

9. Position cup
   Position cup under group handle.

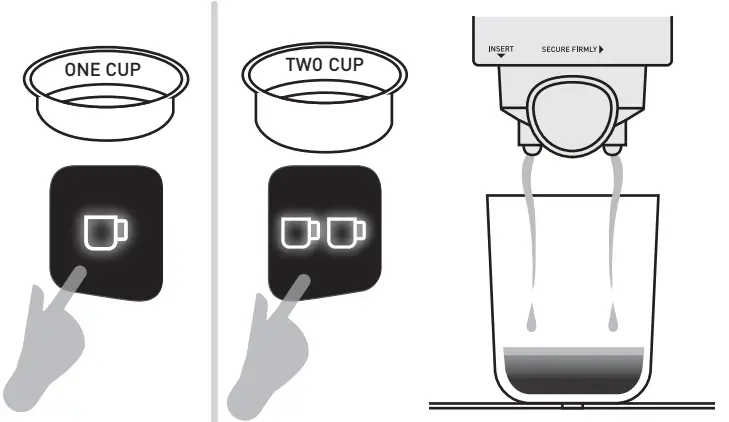

10. Espresso extraction

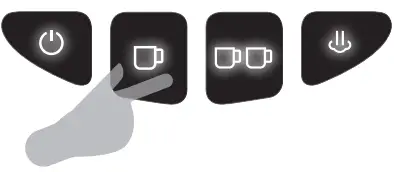

    Press either
    – 1 CUP button = 30mL shot
    – 2 CUP button = 60mL shot
    Important: To make more than one latte or cappuccino, first make all the espressos then at the end prepare the steamed milk for the latte or cappuccino.

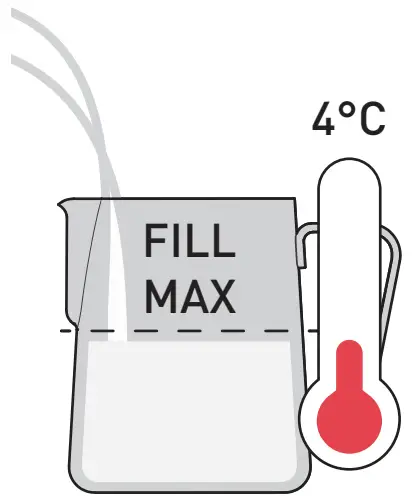

11. Prep milk jug
    Fill jug with cold milk just below the bottom of the spout.

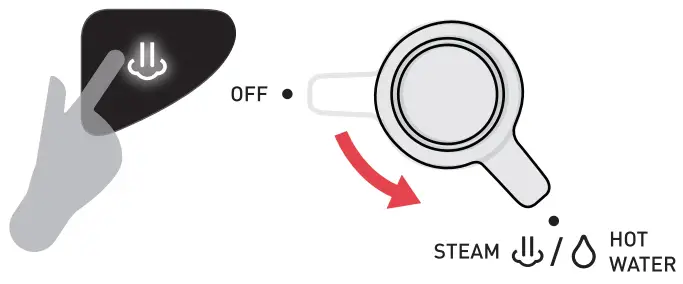

12. Before milk texturing

    Press STEAM button. Once STEAN button is illuminated, turn the dial to STEAM to warm up steam wand.

    Barista Tip: For best milk texturing results, ensure steam pressure is high before starting milk texturing

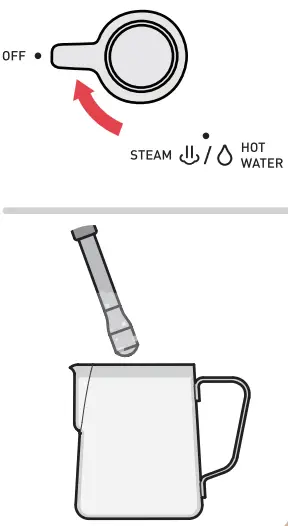

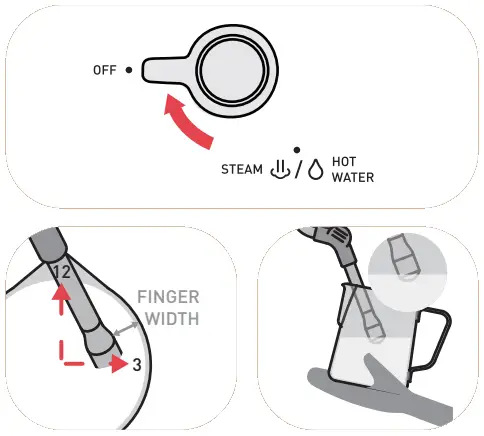

13. Position steam wand

    Return dial to OFF position.
    Insert steam wand at 12 o’clock, tip at 3 o’clock, finger width from edge and just below the surface of the milk.

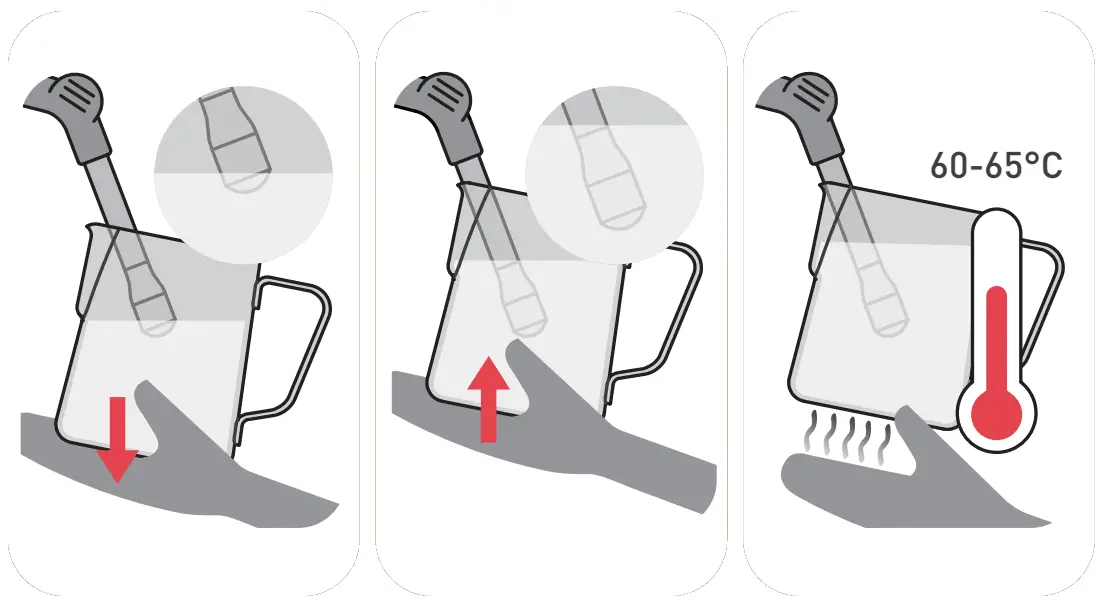

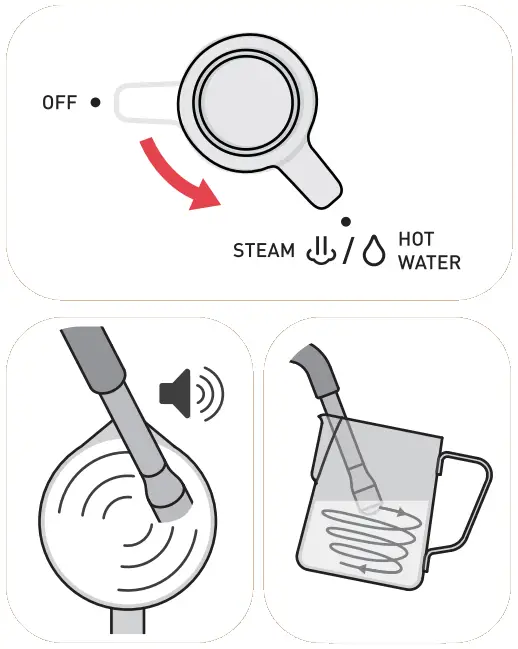

14. Milk texturing

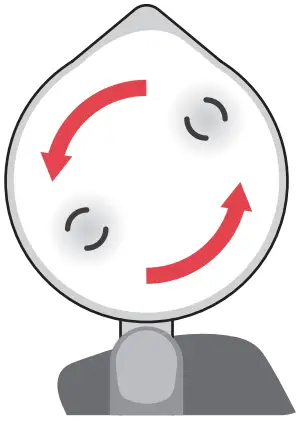

    Turn dial to STEAM to start texturing milk. Check milk is moving in a whirlpool action.


    As milk level rises, lower jug to keep tip just below surface. When desired microfoam is achieved, immerse steam wand half way.

    Return dial to OFF position. Remove steam wand from jug

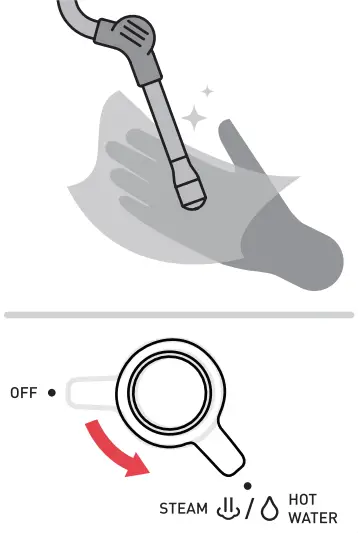

15. Clean and purge steam wand

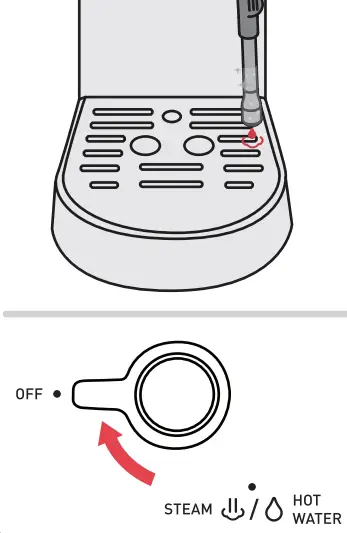

    Wipe steam wand and tip with a damp cloth. Turn dial to HOT WATER for 3 seconds.


    Milky water will come out of steam wand. Return dial to OFF position.

16. Pour milk

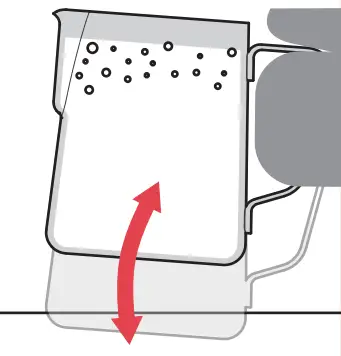

    Tap jug to release larger air bubbles.

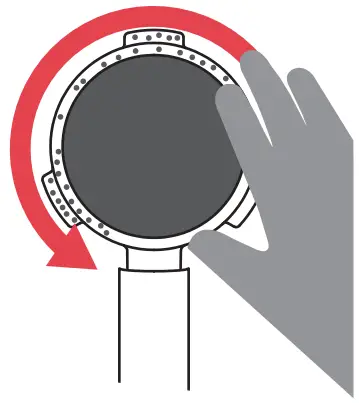

    Swirl jug to blend milk and create a silky texture.

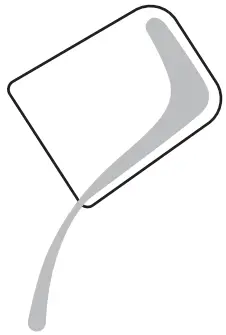

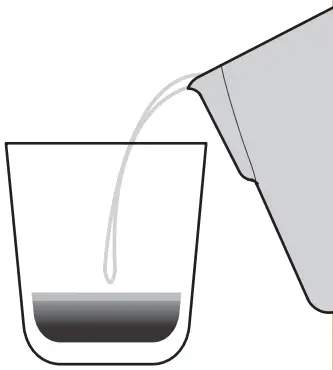

    Pour milk in steady motion.

17. Remove coee cake

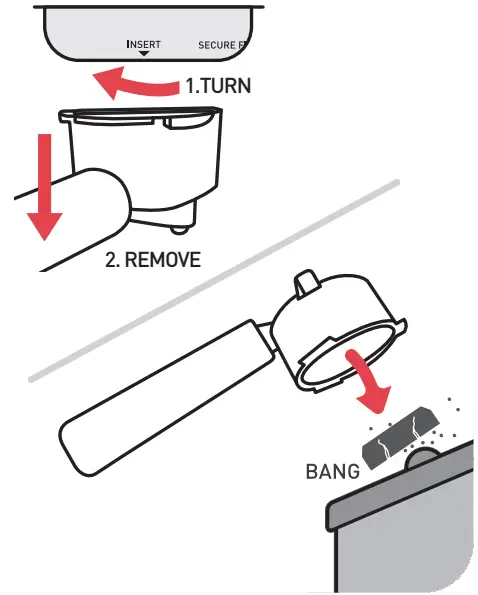

    Turn group handle and remove from group head. Remove used coffee cake from group handle.
18. Making a second coee after texturing milk


    Important: To make coffee again immediately after texturing milk, the thermoblock must first be cooled.


    Press either the 1 CUP, 2 CUP or STEAM button.


    Place a cup under the steam wand.


    Turn the dial to the HOT WATER position and leave on until hot water comes out.

19. Clean up

    Wash parts with warm water. Check if drip tray needs emptying.

For more hints & tips visit the Sunbeam Coffee Hub. www.sunbeam.com.au/hints-and-tips/coffeehub
