Foreword

Thank you for purchasing!
The Parabolic Reflector series is designed to create better diffusing effects. The lamp head (optional) can be directly fixed on the Parabolic Reflector mount, or on the strobe adapter of focusing rod to make them on the same line with the light source. With the movement of focusing rod, the angle and intensity of the light will change accordingly.
When the lamp head (optional) collocates with the focusing rod:
As the focusing rod extends from 0 to 10 degree, the light beam narrows and intensifies.
As the focusing rod retracts from 10 to 0 degree, the light beam widens and weakens, with a diffusion of even lighting.

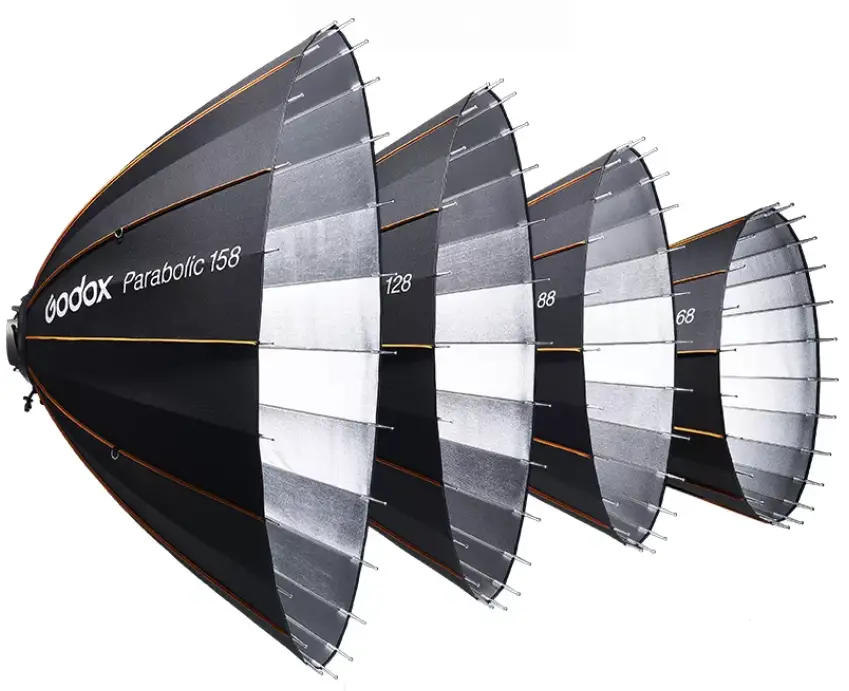

The Parabolic Reflector series has 4 products: Parabolic 68, Parabolic 88, Parabolic 128 and Parabolic 158.

Warning

• Please gently use the handle to open or close the Parabolic Reflector to avoid accidents or damages.
• As the Parabolic Reflector is heavy, please make a reasonable assessment before directly installing lamp head (optional) to the mount of the Parabolic Reflector.
• The Parabolic Reflector is suitable for Godox H1200P or H2400P. We take no responsibility for any accident by using lights of other brands which we have not tested.
• When collocating with the focusing rod, please fix on the strobe adapter of focusing rod before attaching to the Parabolic Reflector.

Before using this product:
Please read this user manual carefully in order to ensure your safety and the proper operation of this product. Keep for future reference.

Included Items

Separately Sold Accessories

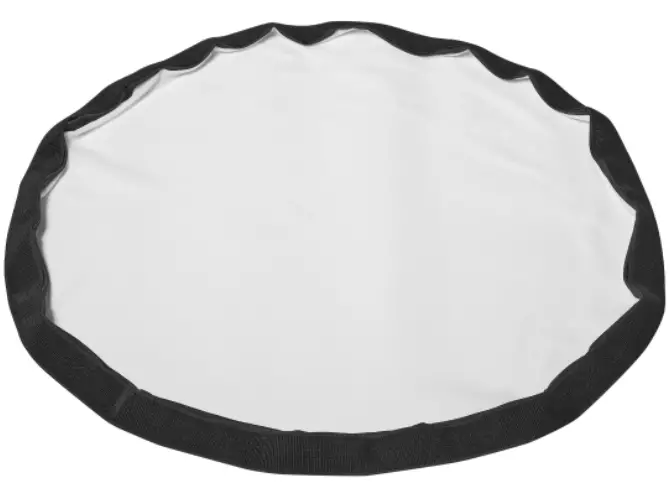

Dissuer

Dissuer P68-D1
Dissuer P68-D2

Dissuer P88-D1
Dissuer P88-D2

Dissuer P128-D1
Dissuer P128-D2

Dissuer P158-D1
Dissuer P158-D2

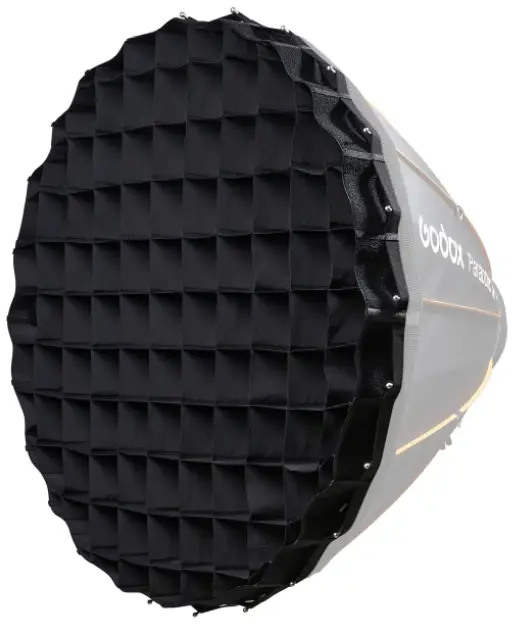

Light Grid

Light Grid P68-LG
Light Grid P88-LG
Light Grid P128-LG
Light Grid P158-LG

Instructions for use

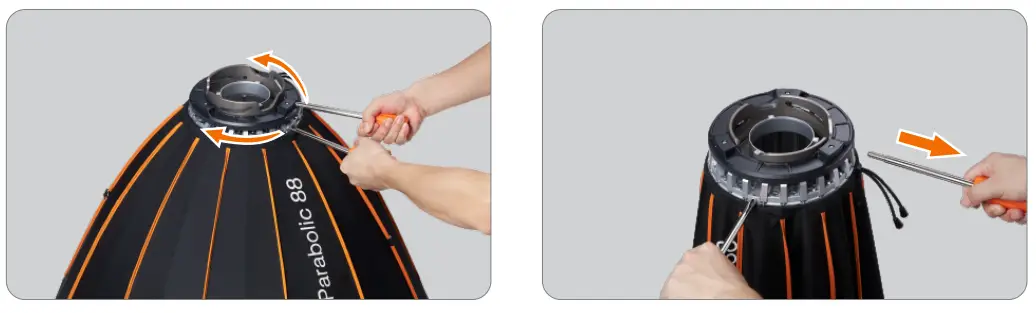

Open the Parabolic Reflector
Insert the handles into the red dotted mounts, then hold a handle with each hand and push them in the same direction until the Parabolic Reflector is fully unfolded.

Close the Parabolic Reflector
Insert the handles into the red dotted mounts, then hold a handle with each hand and push them in the opposite direction until the Parabolic Reflector is closed.

Technical Data

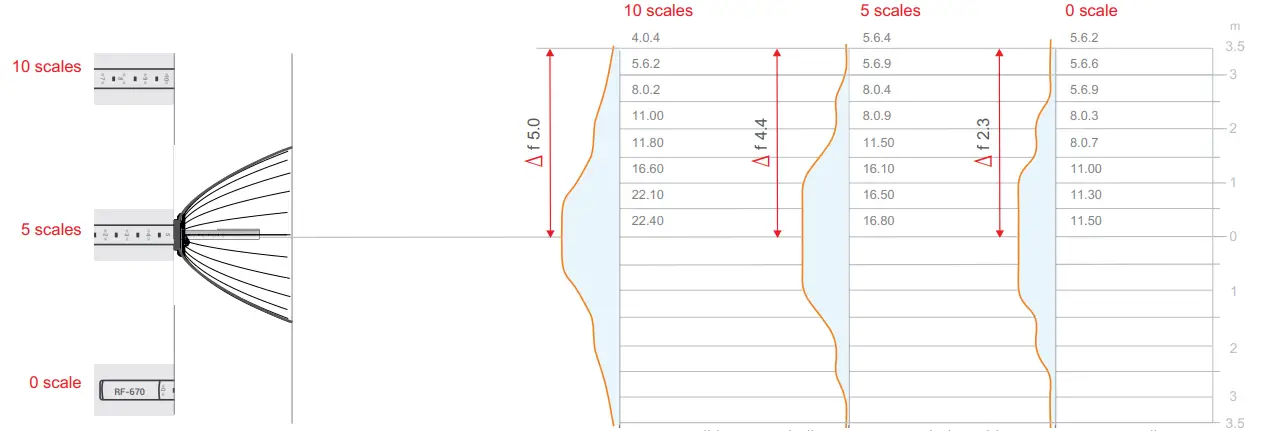

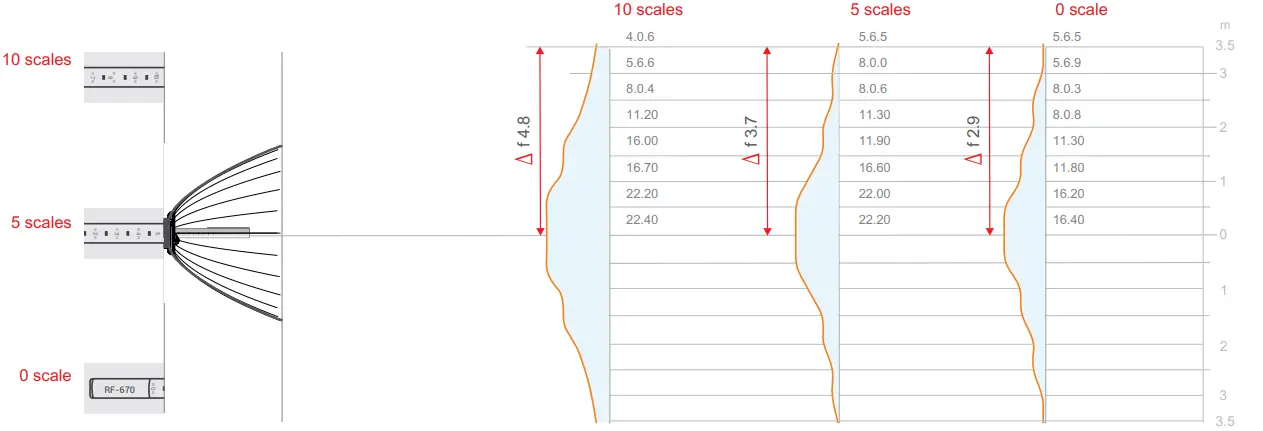

TEST CONDITIONS

Test Condition Parabolic 68, PF-R670 index table L-858D, 3 meters’ distance.

Test Condition Parabolic88, PF-R670 index table L-858D, 3 meters’ distance.

Test Condition Parabolic128, PF-R870, index table L-858D, 3 meters’ distance.

Test Condition Parabolic158, PF-R870，index table L-858D, 3 meters’ distance.

Warranty

Dear customers, as this warranty card is an important certificate to apply for our maintenance service, please fill in the following form in coordination with the seller and safe-keep it. Thank you!

Note: This form shall be sealed by the seller.

Applicable Products
The document applies to the products listed on the Product Maintenance Information (see below for further information). Other products or accessories (e.g. promotional items, giveaways and additional accessories attached, etc.) are not included in this warranty scope.

Warranty Period
The warranty period of products and accessories is implemented according to the
relevant Product Maintenance lnformation. The warranty period is calculated from the day(purchase date) when the product is bought for the first time, And the purchase date is considered as the date registered on the warranty card when buying the product.

How to Get the Maintenance Service
If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide valid warranty card. If you cannot provide valid warranty card, we may offer you maintenance service once confirmed that the product or accessory is involved in the maintenance scope, but that shall not be considered as our obligation.

Inapplicable Cases
The guarantee and service offered by this document are not applicable in the following cases: 1. The product or accessory has expired its warranty period; 2. Breakage or damage caused by inappropriate usage, maintenance or preservation, such as improper packing, improper usage, improper plugging in/out external equipment, falling off or squeezing by external force, contacting or exposing to the improper temperature, solvent, acid, base, flooding and damp environments, etc; 3. Breakage or damage caused by non-authorized institution or staff in the process of installation, maintenance, alternation, addition and detachment; 4. The original identifying information of product or accessory is modified, alternated, or removed; 5. No valid warranty card; 6. Breakage or damage caused by using illegally authorized, nonstandard or non public released software; 7. Breakage or damage caused by force majeure or accident; 8. Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories and software that beyond the warranty period or scope is not included in our maintenance scope. The normal discoloration, abrasion and consumption are not the breakage within the maintenance scope.

Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the following Product Maintenance Information:

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
